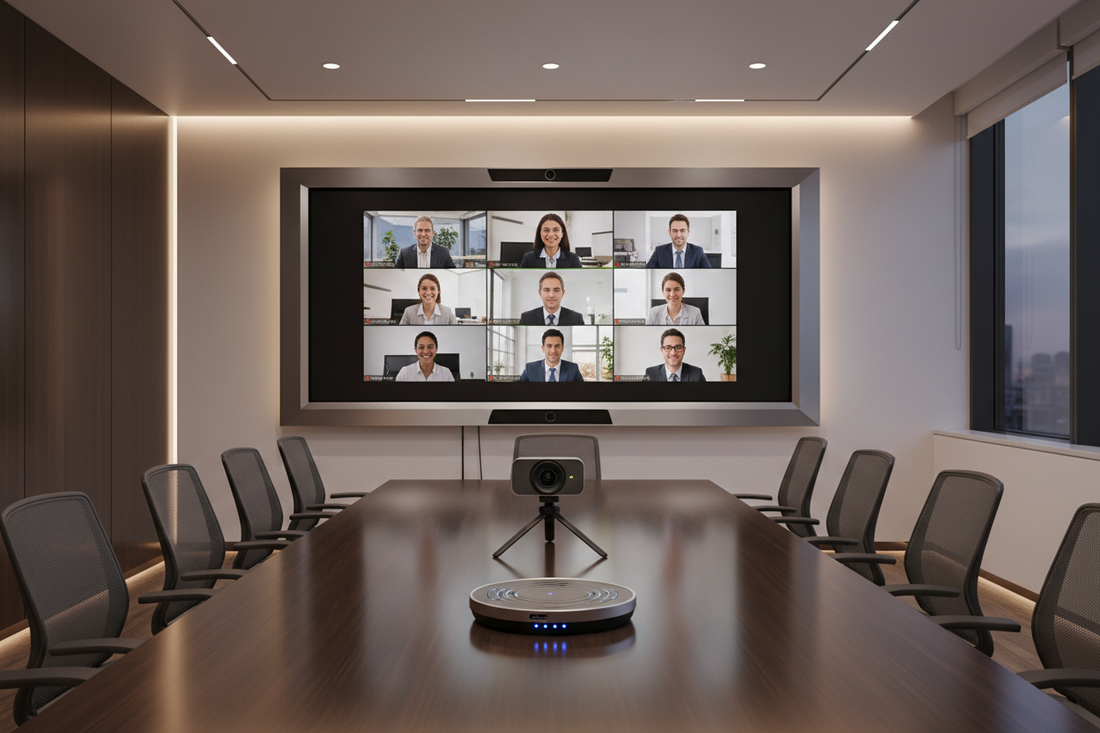

Choosing the Right Conference Room Video System for Your Space and Team Size

Short answer: a conference room video conferencing system is a matched set of four components: a camera sized to the room's field of view, a microphone array that covers every seat, a display large enough for the farthest viewer to read shared content, and a compute platform certified for Microsoft Teams, Zoom or Google Meet. Rooms fail when these are bought separately rather than specified together. Audio, not video, is the component that fails first and gets noticed most.

If you are equipping anything from a four-seat huddle room to a twenty-seat boardroom, this guide covers what to specify, in what order, and the checks that matter in Indian offices specifically.

What actually makes up a meeting room system

Buying a "video conferencing system" as a single product is where most procurement goes wrong. There are four subsystems, and each one is sized by a different variable.

Subsystem	Sized by	Failure symptom if wrong
Camera	Room width and seating depth	Remote participants see a distant, unreadable wide shot
Microphones	Table length and ceiling height	Remote participants ask people to repeat themselves
Display	Distance to the farthest seat	Shared spreadsheets and slides are unreadable at the back
Compute platform	Your collaboration software and IT policy	Meetings start late while someone hunts for a cable

A fifth element, the room itself, quietly determines whether any of the above performs. Glass walls, hard flooring and bare plasterboard create reverberation that no microphone fully compensates for.

Room sizing: the table to specify from

Use seat count and room length, not budget, as the starting variable.

Room type	Seats	Typical length	Camera approach	Audio approach	Display
Huddle room	2 to 4	Up to 3.5 m	Single all-in-one bar, wide field of view	Bar's built-in array is sufficient	Single display
Small meeting room	4 to 6	3.5 to 5 m	All-in-one bar with auto-framing	Built-in array, one expansion mic if the table is long	Single display
Medium conference room	6 to 12	5 to 8 m	Bar with speaker tracking, or separate PTZ camera	Expansion microphones or ceiling array	Single large or dual display
Large conference room	12 to 18	8 to 11 m	PTZ camera plus audio processor	Ceiling microphone array, distributed speakers	Dual display
Boardroom	16 to 24+	11 m and above	Multi-camera with director logic, front and rear views	Ceiling array with DSP, zoned speakers	Dual large display or LED wall

The jump from medium to large is the point at which an all-in-one bar stops being adequate. Above roughly eight metres, a single bar cannot both frame faces usefully and pick up voices at the far end of the table. Browse configured video conferencing systems by room size to see what a matched set looks like at each tier.

Why audio is the component that decides your outcome

Poor video is tolerated. Poor audio ends the meeting early. Three factors decide audio quality, and only one of them is the microphone.

Pickup coverage. Every seat must sit inside the effective pickup pattern. A table microphone typically covers a radius of two to three metres for clear speech. Beyond that, voices drop and remote participants compensate by turning up volume, which introduces echo. A twelve-seat table almost always needs either expansion microphones or a ceiling array.

Ceiling height. Ceiling microphone arrays are elegant and keep tables clear, but pickup quality degrades as the array moves further from the speaker's mouth. In rooms with high ceilings or exposed services, a table or expansion microphone often outperforms the more expensive ceiling solution.

Room acoustics. This is the factor nobody budgets for. Glass partitions, marble or vitrified flooring and unbroken plasterboard walls, all common in Indian corporate fit-outs, reflect sound and lengthen reverberation. The result is a hollow, distant voice on the far end even with a premium microphone. Acoustic panels, carpet or fabric blinds usually deliver more improvement per rupee than upgrading the microphone.

If you are comparing specific microphone options for a room, our guide to choosing the right conferencing microphone breaks down when expansion mics beat wireless units.

Camera selection without overspending

Field of view. A wide field of view, commonly around 120 degrees, matters in short rooms where people sit close to the display. In long rooms, a wide angle simply makes distant participants smaller. Long rooms need optical zoom, not a wider lens.

Auto-framing versus speaker tracking. Auto-framing crops the image to include everyone present and suits most small and medium rooms. Speaker tracking switches focus to whoever is talking and earns its cost in larger rooms and boardrooms where a group shot renders faces too small to read.

Optical versus digital zoom. Digital zoom crops pixels and softens the image. In any room over eight metres, insist on optical zoom.

Multi-camera setups. Boardrooms benefit from a second camera capturing the chairperson or the far end of the table, with automatic switching. This is the point where the system needs design work rather than a product selection.

Sizing the display so content is actually readable

Display size is set by the distance to the farthest viewer, not by the wall's dimensions or the budget line.

AVIXA's DISCAS standard separates two viewing needs. Basic viewing covers video and presentation slides where the audience only needs to recognise general content. Analytical viewing covers spreadsheets, CAD drawings and dense documents where the audience must read fine detail. Analytical viewing requires a substantially larger display for the same room.

A practical rule for planning: measure from the screen to the farthest seat, then check whether your typical content is a slide deck or a spreadsheet. If finance and engineering teams use the room, size for analytical viewing or you will be replacing the display within a year.

Dual displays are worth the extra cost when the room regularly shows shared content and remote participants at the same time. Forcing both onto one screen shrinks faces to the point where the video adds little.

Platform and compute: three routes

Route	How it works	Best for	Trade-off
Certified appliance	Android-based bar or codec certified for Teams or Zoom	Most rooms, standardised estates	Locked to the certified platform ecosystem
Room PC or mini-PC	Windows device running Microsoft Teams Rooms	IT teams wanting full policy and imaging control	More management overhead and patching
BYOD or USB	Users connect their own laptop over USB-C or HDMI	Rooms with mixed external guests and varied platforms	Depends on user laptops, more variables to fail

Two practical points. First, certified devices matter: platform vendors publish certification programmes, and a certified device receives firmware validated against the platform, which is what prevents the slow drift into unreliability after a year of software updates. Second, most organisations end up wanting BYOD capability alongside a certified appliance, because external visitors will arrive with a different platform. Specify it at the start rather than retrofitting.

Infrastructure checks people skip

These cause more post-installation problems than any product choice.

USB cable distance. Passive USB 3.0 runs reliably only over short distances, roughly three metres. Camera or bar placement further from the compute device requires an active or optical extender. Discovering this on installation day is a common and avoidable delay.

Network bandwidth and quality. A 1080p call typically consumes a few megabits per second per endpoint, but jitter and packet loss degrade calls far more than raw bandwidth. Prioritise a stable, QoS-configured connection over a faster unmanaged one.

Power and protection. Voltage fluctuation is a genuine risk in many Indian commercial buildings. Specify a UPS or line conditioner for the codec and display. Replacing a failed display costs more than the protection.

Cable routing and conduits. Decide camera, microphone and display positions before civil work begins. Retrofitting conduits into a finished boardroom is expensive and visible.

Lighting. A camera facing a window renders every participant as a silhouette. Check the light source direction before fixing the display wall.

Room scheduling panels. Optional, but the fastest way to stop meetings colliding in a busy office.

Conference room or boardroom: the difference that matters

The terms are used interchangeably in procurement, but they specify differently.

A conference room is a working room used many times a day by rotating teams. Priorities are reliability, one-touch join and identical behaviour across every room so employees never have to learn a second system.

A boardroom hosts fewer, higher-stakes meetings with external directors, investors and auditors. Priorities shift to presentation quality, discreet integration, multi-camera coverage and confidence that nothing will fail in front of an audience that matters. Cable clutter and visible equipment become genuine concerns.

Standardising a fleet of conference rooms and custom-designing a single boardroom is the correct approach for most organisations. Boardrooms and multi-room estates usually warrant a site survey before quotation, which is what the AV design and integration process is structured around.

Six mistakes that cost the most

Buying the display first. It is the visible component, so it gets the budget, leaving audio underfunded. Reverse the order.

Sizing by room dimensions instead of seat positions. An eight-metre room with people seated only in the first four metres is a different specification.

Ignoring acoustics. No microphone corrects a hard, reflective room.

Mixing brands across subsystems without a processor. Components from different manufacturers can work together, but echo cancellation and camera control need a design that accounts for it.

Skipping user training. A capable system that staff cannot start on time is a failed investment.

No support contract. Firmware updates, platform changes and hardware faults are certainties over a three-year life. Agree the support arrangement before purchase, not after the first failure.

Procurement checklist

Before approving any quotation, confirm:

Seat count, room length and ceiling height documented for each room

Camera coverage verified against the farthest and widest seats

Microphone coverage verified for every seat, not just the table centre

Display size checked against analytical viewing if spreadsheets or drawings are shown

Collaboration platform confirmed with IT, plus BYOD provision for guests

Network port, bandwidth, QoS and PoE availability confirmed

Power protection specified

Cable routes agreed with the interior contractor

Warranty terms, support response time and maintenance contract in writing

User training session scheduled for handover

GST invoicing and delivery timelines confirmed

Frequently asked questions

What is a conference room video conferencing system?

It is an integrated set of four components: a camera, a microphone system, a display and a compute platform certified for Microsoft Teams, Zoom or Google Meet. The components are specified together and sized to the room's dimensions and seat count, rather than purchased as separate items.

How do I know what size system my room needs?

Measure the room length and count the seats. Rooms up to five metres with six or fewer seats are generally served by an all-in-one video bar. Rooms beyond eight metres or twelve seats need separate camera, microphone and processing components because a single bar cannot cover both framing and audio pickup at that distance.

Why does my current meeting room have bad audio despite a good microphone?

Usually room acoustics rather than the microphone. Glass partitions, hard flooring and bare walls reflect sound and create reverberation, which reaches the microphone as a hollow, distant voice. Adding soft surfaces such as carpet, acoustic panels or fabric blinds often improves clarity more than upgrading the microphone.

Should I choose Microsoft Teams Rooms, Zoom Rooms or Google Meet hardware?

Match the room to the platform your organisation already runs, since the calendar integration and one-touch join are what save time daily. Add BYOD or USB connectivity alongside it so visitors on other platforms can still present without reconfiguring the room.

What is the difference between a conference room and a boardroom system?

A conference room system prioritises reliability and consistency across many rooms used daily. A boardroom system prioritises presentation quality, multi-camera coverage and discreet integration for fewer, higher-stakes meetings. Boardrooms typically require custom design and a site survey rather than a standard package.

Do I need a site survey before buying?

For a single small room with a standard layout, usually not. For boardrooms, rooms above eight metres, multi-room rollouts or any space with unusual acoustics, ceiling height or existing cabling, a survey prevents specification errors that are expensive to correct after installation.

How long does installation take?

A single standard room is typically a same-day installation once cabling and power are in place. Larger boardrooms with ceiling microphones, multi-camera setups and concealed cabling require coordination with civil and interior work, so timelines depend on site readiness rather than equipment availability.

Get the room specified before you get it quoted

The right system depends on four numbers: room length, seat count, ceiling height and distance to the farthest seat. With those, a correct specification takes one conversation instead of three rounds of revised quotations.

Request a room assessment with your room dimensions, seat count and collaboration platform, and receive a configuration matched to the space rather than a generic package.
