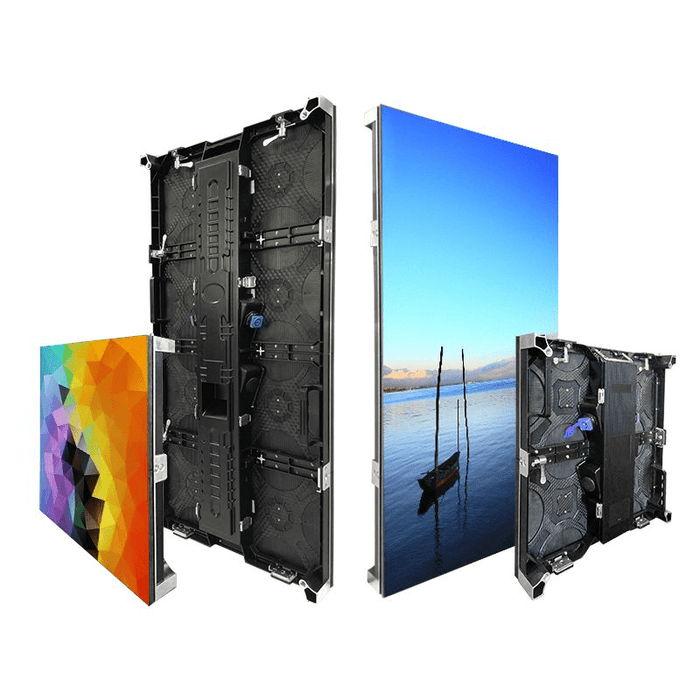

Active LED Displays — also known as active LED video walls — have become the display technology of choice for organisations that need visuals to be seen clearly, from a distance, in almost any lighting condition. Unlike an LCD panel, an LED video wall is built from individual modular cabinets, each carrying thousands of tiny red, green and blue diodes. Because the cabinets tile together seamlessly, a wall can be built to almost any size or aspect ratio — a 2-metre briefing-room display, a 20-metre outdoor façade, or a curved backdrop for a stage. Universal AV Solutions designs, supplies and installs LED display solutions across Delhi NCR and pan-India, for corporate, government, education, retail, broadcast and event environments.

Choosing the Right Pixel Pitch

Pixel pitch — the distance in millimetres between adjacent LEDs — is the single biggest factor in how an LED display should be specified. A fine pitch display, typically under 1.5 mm, is built for close viewing distances of a metre or two, which is why it's the standard choice for corporate boardrooms, control rooms and broadcast studios where viewers sit close to the screen. As viewing distance increases, a wider pixel pitch becomes more cost-effective without any loss in perceived image quality — auditoriums, retail storefronts and large lobby installations typically use displays in the 1.5–4 mm range, while outdoor billboards and stadium screens, viewed from tens of metres away, commonly use 4 mm and above. Getting this specification right is the difference between a display that looks razor-sharp and one that looks either pixelated up close or unnecessarily expensive from a distance.

Indoor and Outdoor LED Display Solutions

Indoor LED display solutions prioritise colour accuracy, contrast and a slim cabinet profile suited to controlled lighting — ideal for corporate lobbies, command centres and interactive retail spaces. Outdoor LED display installations are a different engineering problem entirely: cabinets need an IP65-rated, weatherproof enclosure, significantly higher brightness (often 5,000–10,000 nits) to remain legible in direct sunlight, and a wider pixel pitch appropriate to the viewing distance. Semi-outdoor installations, such as covered walkways or shaded façades, sit between the two and are specified case by case.

LED Video Walls by Application

A corporate LED video wall in a boardroom or reception typically favours a fine-pitch, seamless indoor panel that reads clearly from a few metres away. A command centre LED wall for a control room, security operations centre or network operations centre runs continuously, so reliability, redundancy and colour consistency across the wall over thousands of hours matter more than anything else. LED video walls for retail are chosen for brightness and visual impact in busy, high-footfall environments, while LED displays for education support interactive teaching in smart classrooms and auditoriums. COB (Chip-on-Board) and fine-pitch LED technology, meanwhile, has made ultra-fine-pitch displays practical for broadcast studios and high-end control rooms where the display itself will appear on camera.

Flexible and Creative LED Displays

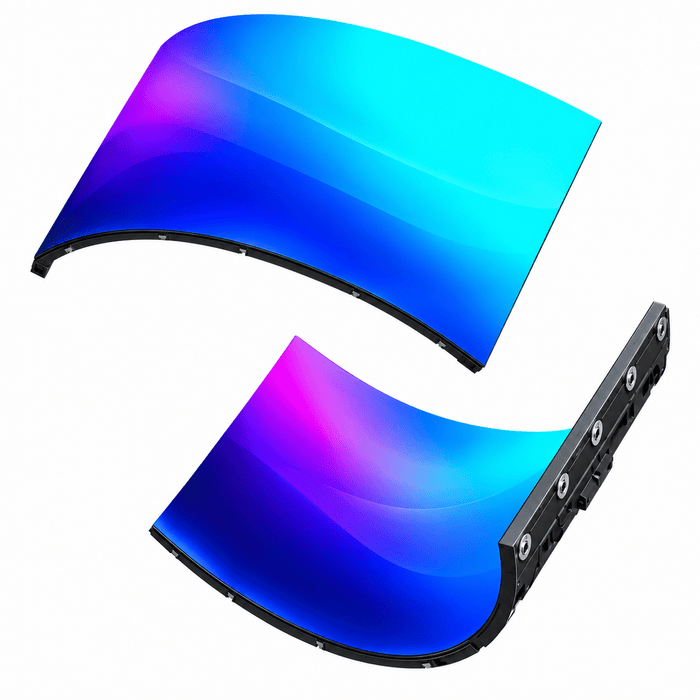

Where a space calls for something beyond a flat rectangle, flexible and creative LED panels can be curved, wrapped around columns, or built into cylindrical and irregular shapes for experiential retail, event staging and architectural installations — without sacrificing image uniformity across the curve.

Professional LED Display Installation, End to End

Specifying an LED video wall is only the first step. Structural mounting, power and data distribution, colour calibration across every cabinet, and ongoing service all determine how the display performs on day one and five years later. Universal AV Solutions handles the complete process — consultation, system design, professional installation and after-sales support — for LED video wall projects across India. If you're evaluating an indoor LED display, an outdoor LED display, or a fine-pitch LED solution for a specific space, our AV specialists can help you match the right pixel pitch, brightness and installation type to your environment and budget.
