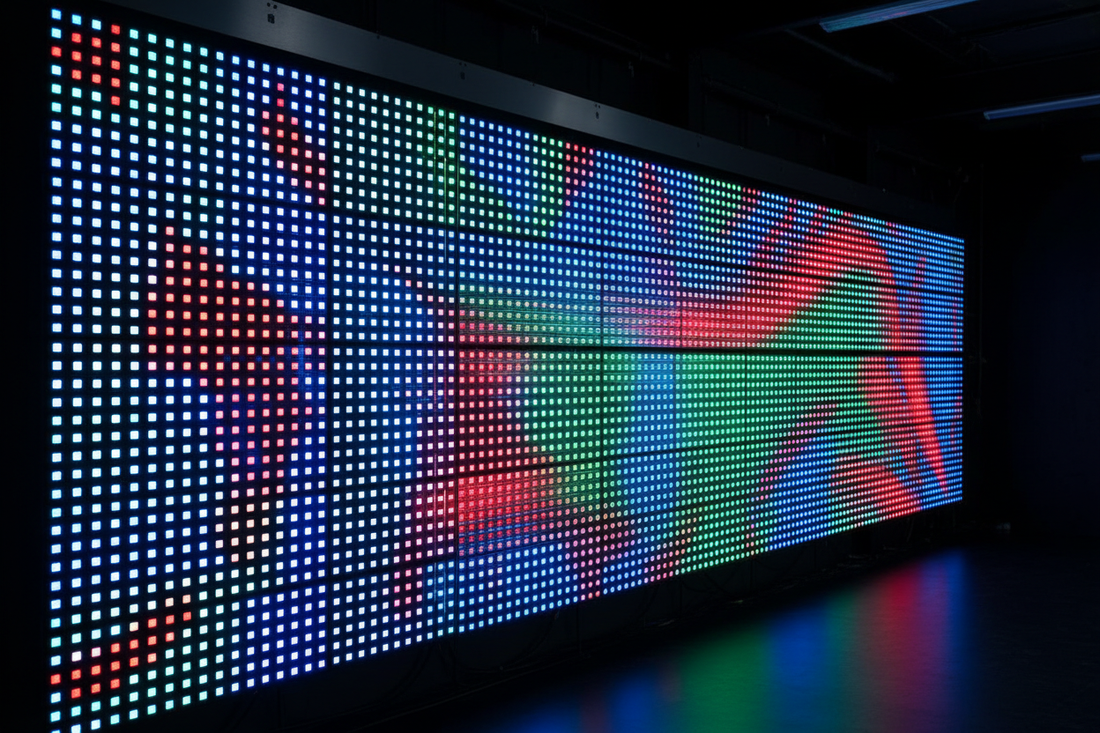

Sizing an LED Wall: Why Viewing Distance Decides Your Pixel Pitch

Pixel pitch should be chosen by measuring how far your closest viewer sits, not by picking the finest pitch your budget allows. A quick field check: multiply the pixel pitch in millimetres by ten to get the approximate minimum comfortable viewing distance in feet. A P2.5 panel needs roughly 25 feet of separation. A P1.5 works from about 15 feet.

Sit closer than that and you see individual pixels. Sit much further and you have paid for resolution nobody can perceive.

That second failure is the expensive one, and it is far more common in India than the first. Buyers compare quotations on pixel pitch because it is the easiest number to compare, then specify P1.2 for a lobby wall viewed from thirty feet. The wall works. It also costs several times what a P3 would have cost, and the difference is invisible to everyone who walks past it.

This guide covers how to calculate the pitch you actually need, and then the specifications that determine whether the wall performs: brightness, refresh rate, LED packaging, processing and service access. Those decide whether you are satisfied in year three. Pixel pitch mostly decides the invoice.

Quick answers



Step one: measure before you specify

Go to the room. Stand where the nearest person will regularly stand or sit. Measure that distance. Everything follows from that number.

The two calculations worth knowing

The 10x rule, for quick field checks. Multiply pixel pitch in millimetres by ten, and read the answer in feet.

Visual Acuity Distance, for precision. Multiply pixel pitch in millimetres by 3.438, and read the answer in metres. This is derived from the angular resolution limit of the human eye and gives the distance at which someone with 20/20 vision stops resolving individual pixels.

The two broadly agree, with the acuity calculation being slightly more conservative.

One caveat worth stating. These distances describe when pixels stop being individually visible. There is also a comfortable viewing distance, which is subjective and depends on eyesight, content type and resolution of the source material. Text-heavy content such as dashboards and spreadsheets is more demanding than video or motion graphics. If your wall will display dense data, err one step finer than the table suggests.

Worked example

A corporate reception in Gurugram. The wall sits behind the desk. Visitors wait on sofas roughly 8 metres away, and people walk past at about 3 metres.

The nearest regular viewer is the seated visitor at 8 metres, not the person walking past. Walking viewers glance rather than study, so they tolerate a coarser pitch.

8 metres divided by 3.438 gives approximately P2.3, so P2.5 is the correct specification. A P1.5 would cost substantially more and look identical from the sofa.

Step two: brightness, and why indoor and outdoor are different products

Brightness is measured in nits, or candela per square metre. This is where buyers most often specify the wrong category of product entirely.

An outdoor panel indoors is not a bonus. Running 6,000 nits in a lobby is uncomfortable to look at and wastes power and panel life. Most quality panels dim, but you have paid for headroom you will never use, and you have bought an outdoor thermal and weatherproofing design you do not need.

An indoor panel outdoors simply fails. It washes out in daylight, and it is not built for moisture, dust or thermal cycling.

For anything outdoor or semi outdoor, also specify the IP rating, separately for the front and rear faces, since these commonly differ.

Step three: the spec most buyers miss

If the wall will ever appear on camera, refresh rate matters more than pixel pitch.

This applies to more installations than people expect: broadcast studios, houses of worship that stream services, corporate spaces used for hybrid meetings and town halls, auditoriums recording events, and any space where photography happens.

A low refresh rate produces horizontal scan lines and flicker on camera, even though the wall looks perfect to the naked eye. It is the single most common post-installation complaint on walls that end up being filmed, and it cannot be fixed afterwards without replacing panels.

Ask this question directly: will this wall ever be on camera? If there is any chance, specify the higher refresh rate at purchase. The cost difference at order stage is modest. The cost of discovering it later is the wall.

Also confirm the grayscale processing depth, typically 14-bit or 16-bit. Higher depth preserves detail in dark scenes, which matters for video content and for broadcast backdrops.

Step four: COB, SMD or GOB

This is the LED packaging method, and it affects durability, fine pitch capability, serviceability and cost.

Practical guidance. SMD remains the sensible default for most installations and for anything outdoor or large format. COB earns its premium at fine pitches, in high traffic areas where people may touch the wall, and in control rooms running continuously. GOB is a middle option worth considering where knocks are likely but COB pricing is out of reach.

Step five: everything that is not the panel

The panels are typically half to two thirds of a video wall project. The rest determines whether it works reliably.

Service access decides your mounting design

This catches people out repeatedly. A wall mounted flat against a structural wall can only be serviced from the front. If you specify rear service panels and then mount them against a wall, replacing a failed module means dismantling a section of the display.

Decide this at design stage, not at installation. Front serviceable panels typically carry a small premium and are worth it in almost every flush-mounted application.

Step six: budgeting realistically

Costs move with pitch, brightness, packaging technology, brand tier and project scale, so treat published figures with caution. What is more useful is understanding the shape of the budget.

Two lines buyers routinely omit.

Spares. LED walls are modular and modules do fail. Holding two to three percent of the wall area as spare modules from the original production batch matters, because LED bins vary between production runs and a replacement module from a later batch can be visibly different in colour. Buy spares with the wall, not afterwards.

Calibration and commissioning. A wall that is powered on is not a wall that is commissioned. Colour and brightness uniformity across modules requires calibration. Confirm it is in scope.

Questions to ask any supplier

1. What is the pixel pitch, and what viewing distance does that assume?

2. What is the brightness in nits, and is that a peak or sustained figure?

3. What is the refresh rate, and what grayscale depth?

4. SMD, COB or GOB, and why that choice for my application?

5. What is the IP rating, front and rear, if outdoor or semi outdoor?

6. Front or rear service, and does the mounting design match?

7. What processing is included, and what resolution and input count does it support?

8. What is the panel flatness tolerance and cabinet construction?

9. What spares are included, and from the same production batch?

10. Is calibration and commissioning in scope?

11. What is the warranty, on panels and on power supplies separately?

12. What is the service response time, and do you have engineers in my region?

Question eleven matters more than it looks. Power supplies and receiving cards typically fail before LEDs do. A warranty that covers the panel but excludes the power supply is much less useful than it sounds.

Matching the wall to the application

Universal AV Solutions designs and installs LED video walls across command centres, corporate spaces, auditoriums, retail, broadcast and houses of worship. Browse our product range or talk to us about a specific room.



LED wall or something else?

Direct view LED is not always the right answer.

The honest summary: LED wins on seamlessness, brightness and scalability, and it has no bezels. It costs more per square metre than LCD tiling or projection. Below roughly 100 inches, a single large format display is usually the better value.

Frequently asked questions

What is pixel pitch on an LED video wall?

Pixel pitch is the distance in millimetres between the centres of two adjacent LED pixels. A P2.5 panel has 2.5 mm between pixels. Smaller pitch means higher pixel density, higher resolution in a given area, and a shorter minimum viewing distance before individual pixels become visible.

How do I calculate the right pixel pitch?

Measure the distance to your nearest regular viewer. For a quick check, divide that distance in feet by ten to get the pitch in millimetres. For a more precise figure, divide the distance in metres by 3.438. A viewer at 8 metres calculates to roughly P2.3, so P2.5 is appropriate.

Is a smaller pixel pitch always better?

No. Below the distance at which the eye resolves individual pixels, additional density is invisible and you are paying for resolution nobody perceives. Over-specifying pitch is the most common and most expensive error in LED wall procurement. Specify to viewing distance, then spend the difference on brightness, refresh rate and processing.

How bright does an LED video wall need to be?

Roughly 600 to 800 nits for a dim control room, 800 to 1,200 for a typical corporate lobby or conference room, 1,500 to 2,500 for retail with significant daylight, and 5,000 to 10,000 nits or more for outdoor installations in direct sun. Indoor panels fail outdoors, and outdoor brightness indoors is uncomfortable and wasteful.

Why does refresh rate matter on an LED wall?

Because low refresh rates produce visible scan lines and flicker when the wall is captured on camera, even though it looks fine to the naked eye. If the wall will appear in hybrid meetings, streamed services, recorded events or photographs, specify at least 3,840 Hz, and 7,680 Hz or above for broadcast. This cannot be corrected after installation.

What is the difference between COB and SMD LED?

SMD mounts individual red, green and blue LED packages onto the board and is the cost-effective default, particularly for outdoor and large format work. COB mounts LED chips directly on the board and seals them in resin, giving better heat dissipation, lower glare, strong dust and impact resistance often to IP65, and better performance at very fine pitches. COB costs more and generally requires module-level rather than individual LED replacement.

What is GOB LED?

GOB, or glue on board, applies a protective layer over a conventional SMD panel, improving resistance to touch, dust, moisture and impact. It sits between SMD and COB on both durability and cost, and suits harsh environments and rental applications where panels are handled frequently.

Should I choose front or rear service panels?

Front service if the wall mounts flush against a structural wall, which covers most fixed indoor installations. Rear service requires 600 to 900 mm of clear walkway behind the wall. Deciding this after the mounting design is fixed is a common and expensive mistake, because a rear service wall mounted flush cannot be maintained without partial dismantling.

How long does an LED video wall last?

Quality panels are typically rated for 100,000 hours to half brightness, which is more than a decade of normal commercial use. In practice, power supplies and receiving cards usually fail before the LEDs, which is why warranty terms on those components deserve separate attention.

Do I need spare modules?

Yes, and buy them with the wall. LED production batches vary slightly in colour binning, so a module sourced two years later can be visibly different from its neighbours. Holding two to three percent of the wall area as spares from the original batch is standard practice.

What is included in a video wall project besides the panels?

Video processing and control, sending and receiving cards, mounting structure, power distribution, cabling and signal extension, cooling where needed, content management, calibration, commissioning and spares. Panels typically account for 50 to 65 percent of the project. Quotations covering only panels are not comparable to quotations covering the system.

LED video wall or LCD video wall?

LED is seamless with no bezels, brighter, scalable to any size and longer lived, at a higher cost per square metre. LCD video walls tile individual displays with thin but visible bezels, at a lower cost. If bezel lines are acceptable and budget is the constraint, LCD remains viable. For a premium seamless image, LED.

How long does installation take?

A straightforward indoor wall typically takes a few days on site once the structure and power are ready, plus calibration and commissioning. Larger or outdoor installations take longer and depend on structural work, access and power availability. Site readiness, not panel delivery, is usually what determines the schedule.

Getting the specification right

The sequence matters more than any single number. Measure the viewing distance, calculate the pitch, then spend your remaining budget on brightness, refresh rate and processing rather than on finer pixels nobody can see.

Tell us the room, the nearest viewing position, the ambient light, whether the wall will appear on camera, and what content you plan to run. We will specify the pitch, brightness and processing against those conditions, and tell you honestly if a coarser pitch would look identical for less money.
