Bosch LC1-PC20G6-6-IN 20W Ceiling Loudspeaker India

Name: Bosch LC1-PC20G6-6-IN 20W Premium-Sound Ceiling Coaxial Loudspeaker
Brand: Bosch
Price: 3199.0 INR
Availability: InStock

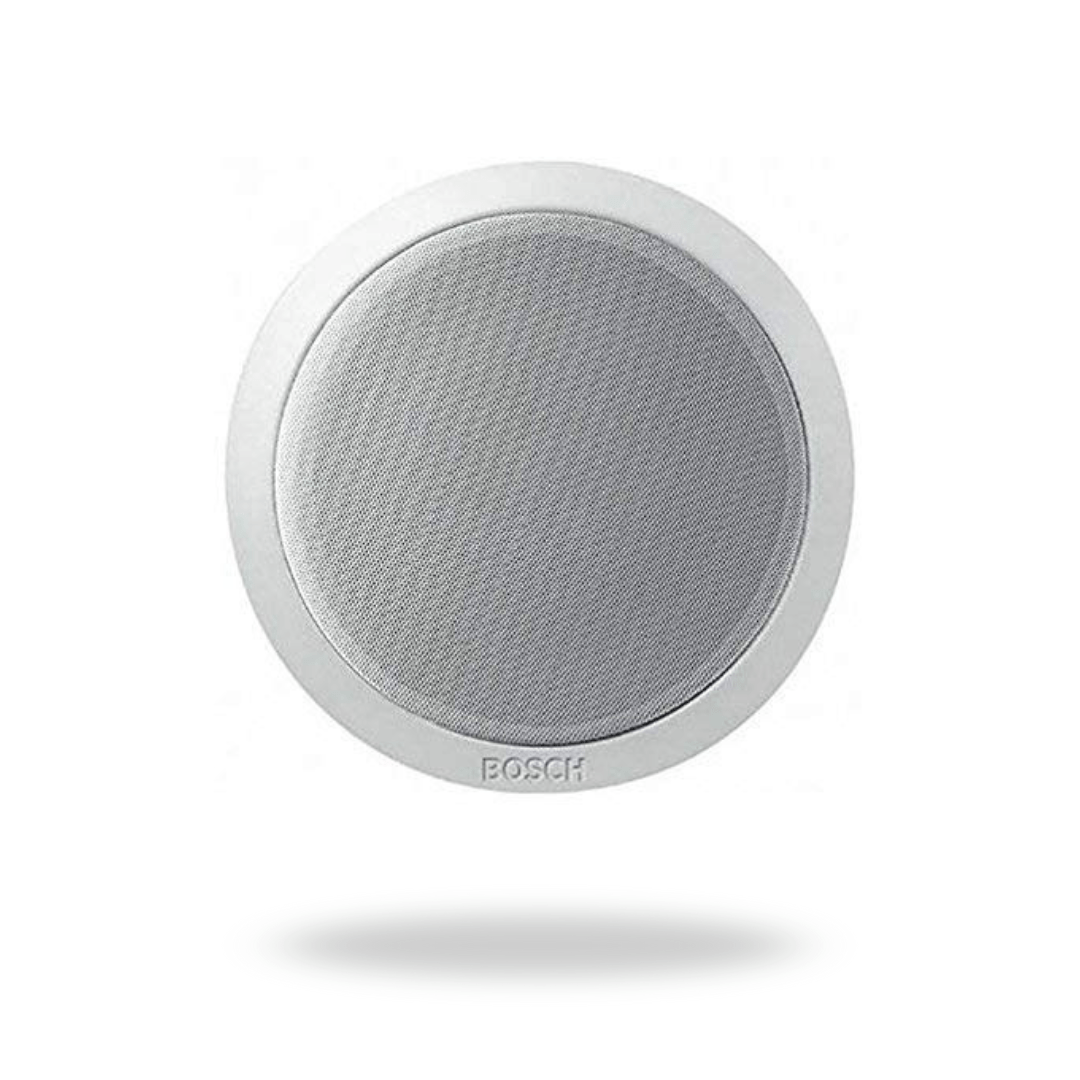

Bosch LC1-PC20G6-6-IN 20W premium-sound ceiling coaxial loudspeaker, front view

Bosch LC1-PC20G6-6-IN · Ceiling Loudspeaker

20W Coaxial Ceiling Loudspeaker for Clear PA Sound

LC1-PC20G6-6-IN Premium-Sound Ceiling Speaker for 100V PA Ideal for Malls, Offices & Hospitality

20W Coaxial Design
100V Power Taps
70 Hz - 20 kHz
Wide Dispersion

Request for Quote

Product information

Bosch LC1-PC20G6-6-IN is a 20W premium-sound coaxial ceiling loudspeaker for 100V public address systems. A coaxial driver with a separate tweeter gives balanced speech and music, and selectable power taps let installers match the level of each speaker to the room.

Key features

20W rated power: enough level for offices, corridors, retail and hospitality spaces.
Premium-sound design: built for clear speech and pleasant background music.
100V line input: rated voltage of 100 V for constant-voltage PA systems.
Power taps: 20, 10, 5, 2.5 W: choose the power per speaker to balance levels across a zone.
70 Hz to 20 kHz response: effective frequency range (-10 dB).
89 dB (+/-3 dB) sensitivity: measured at 1 W, 1 m, 1 kHz octave.
Wide dispersion: over 180 deg at 1 kHz, 170 deg at 2 kHz, 72 deg at 4 kHz and 57 deg at 8 kHz (-6 dB).
White finish: neat, low-profile look in ceilings; weight 1.5 kg.
Screw terminal: simple connection for standard PA cabling.

Ideal for

Offices, schools, shopping malls, restaurants, hotels and corridors that need clean ceiling sound for announcements and background music from a 100V system.

Buy Bosch LC1-PC20G6-6-IN in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. Contact us for the latest price and a GST quotation.

Bosch LC1-PC20G6-6-IN at a glance

Product type	Premium-sound ceiling loudspeaker
Rated power	20 W (max 30 W)
Rated voltage	100 V
100V power taps	20, 10, 5, 2.5 W
Frequency range (-10 dB)	70 Hz to 20 kHz
Sensitivity	89 dB (+/-3 dB)
Opening angles (-6 dB)	over 180 deg at 1 kHz, 170 deg at 2 kHz, 72 deg at 4 kHz and 57 deg at 8 kHz (-6 dB).
Weight	1.5 kg
Colour	White

Clear ceiling sound for 100V systems

The LC1-PC20G6-6-IN is a premium-sound ceiling loudspeaker in Bosch's LC1 range. It is designed to be driven from a 100V PA amplifier or mixer amplifier, such as the Bosch Plena PLE-1ME series.

White finish suits standard ceilings.
Rated for 100V constant-voltage lines.
Use several speakers on one line to cover a large area evenly.

Bosch LC1-PC20G6-6-IN FAQs

What is the Bosch LC1-PC20G6-6-IN?

The Bosch LC1-PC20G6-6-IN is a 20W premium-sound ceiling coaxial loudspeaker for 100V public address systems.

What frequency range does the LC1-PC20G6-6-IN cover?

The effective range is 70 Hz to 20 kHz (-10 dB).

Who is the LC1-PC20G6-6-IN for?

It suits offices, malls, schools, hotels and corridors that need clear ceiling sound for announcements and background music.

How much does the Bosch LC1-PC20G6-6-IN cost?

Contact Universal AV Solutions for the latest price and a GST quotation.

Do you provide installation and support?

Yes. Universal AV Solutions provides supply, installation and after-sales support across Delhi NCR and pan-India.

Good to know: Specifications are based on the manufacturer's published information and may change. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
