Product information

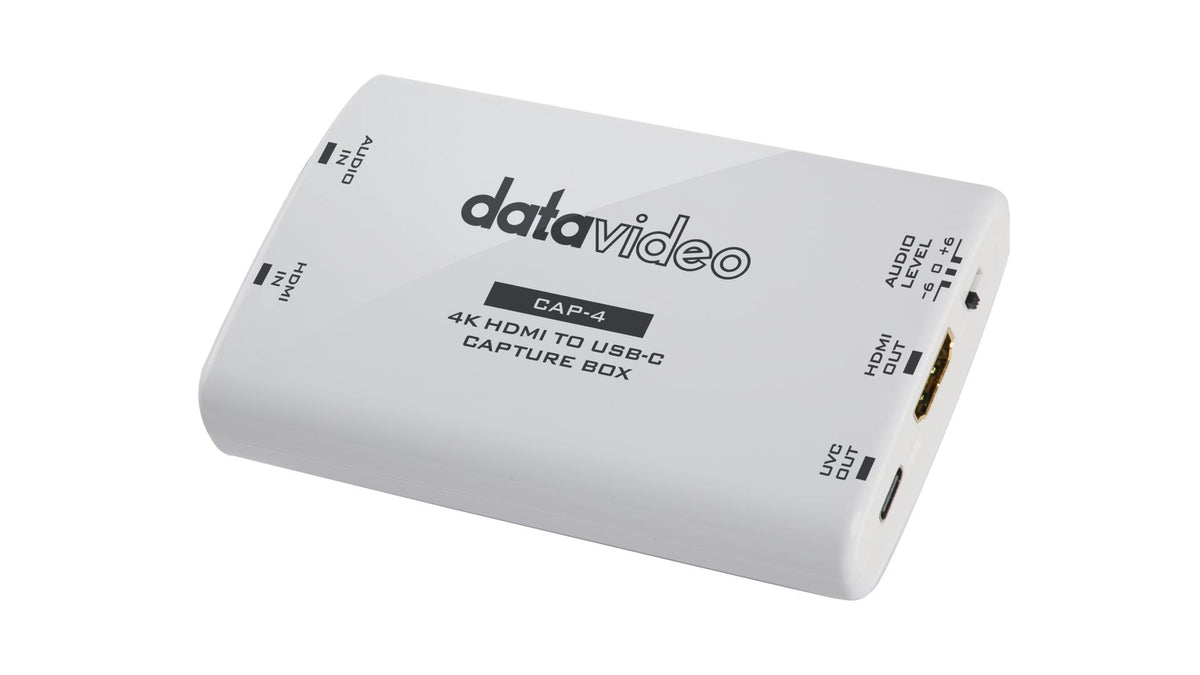

The Datavideo CAP-4 is a converter from Datavideo, supplied in India by Universal AV Solutions. CAP-4 4K HDMI to USB-C Capture Box. 4K 2160p support at 50/60fps.
Key features
- 4K 2160p support at 50/60fps
- USB-C 3.2 Gen 2 interface, up to 10 Gbps
- Plug-and-play across multiple operating systems
- Mixing of HDMI-embedded audio with external line-in audio
- UVC support with automatic video format (resolution and frame rate) detection
- HDMI loop-through output
Technical specifications
- Input: 1x HDMI; Output: 1x USB 3.2 Gen (Type-C), 1x HDMI loop through
- Input video bandwidth: up to FRL 6 (48G); USB-C output bandwidth up to 10 Gbps
- Audio input: HDMI embedded (2-channel), 3.5mm stereo line input
- Audio format: 16/24 bit, 2-channel, 44.1kHz and 48kHz input; up to 24-bit PCM, fixed 48kHz output
- Capture format: RGB/YUY2/NV12/I420/P010/MJPEG (USB 3.2 Gen 2); MJPEG/YUY2/NV12/I420 (USB 2.0)
- Firmware update and power: via USB port; consumption under 4.5W
- Operating 0~40C; storage -20~60C; humidity 20~90% RH (no condensation)
- OS: Windows 10 x64 or above, macOS High Sierra 10.13 or above, Linux
- 105 x 68 x 23 mm; 75g
What's in the box (per official Datavideo page)
- 1 x CAP-4
- 1 x USB 3.0 Cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
