Product information

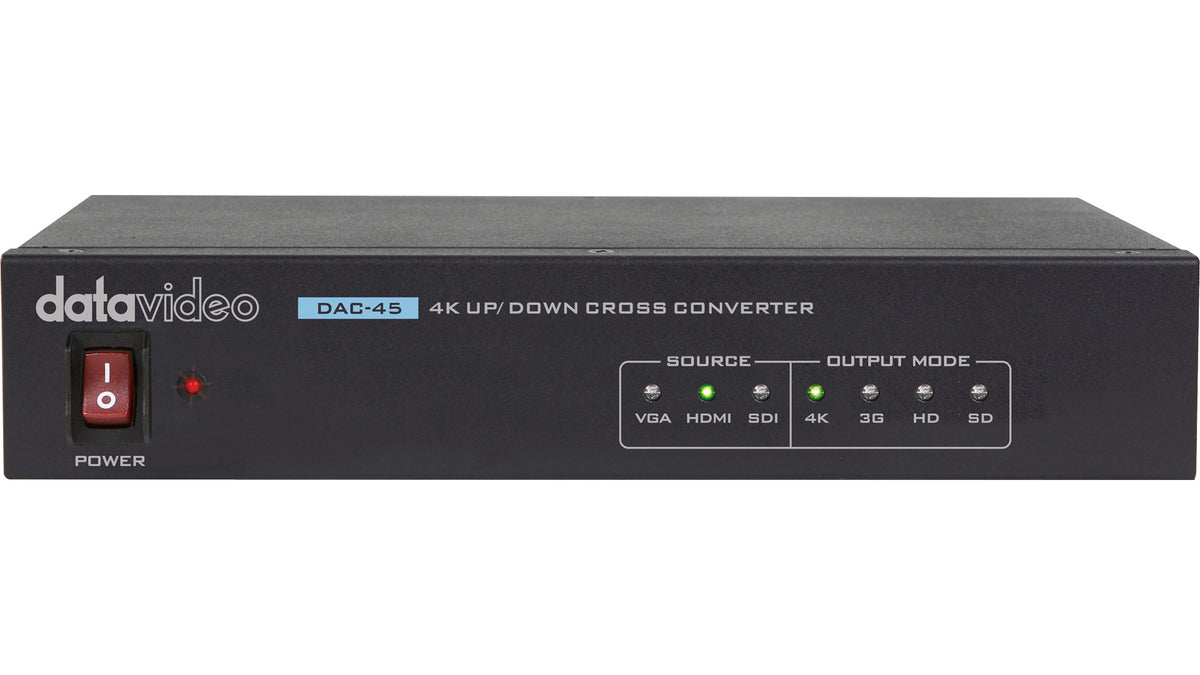

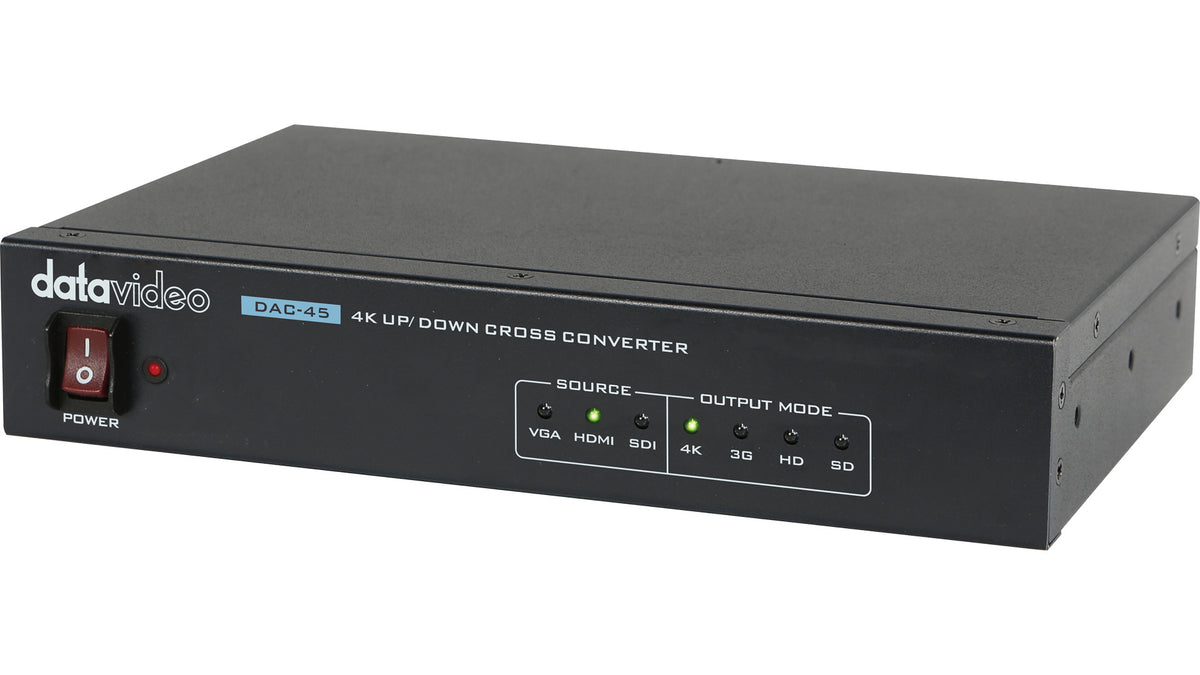

The Datavideo DAC-45 is a converter from Datavideo, supplied in India by Universal AV Solutions. DAC-45 4K Up/Down Cross Converter. 4K Up Conversion.
Key features
- 4K Up Conversion
- External audio embedding
- Supports 3G-SDI Level A/B
- Wide range conversion for great compatibility
- Built-in De-interlacer and Interlacer (I/P conversion)
- Reference input (Black Burst and Tri-Level Sync.)
- Adjustment of HDMI color space
- Easy installation on the rack
Technical specifications
- Conversion: VGA/HDMI/SDI to 4K HDMI/3G-SDI Multi-format Up/Down/Cross

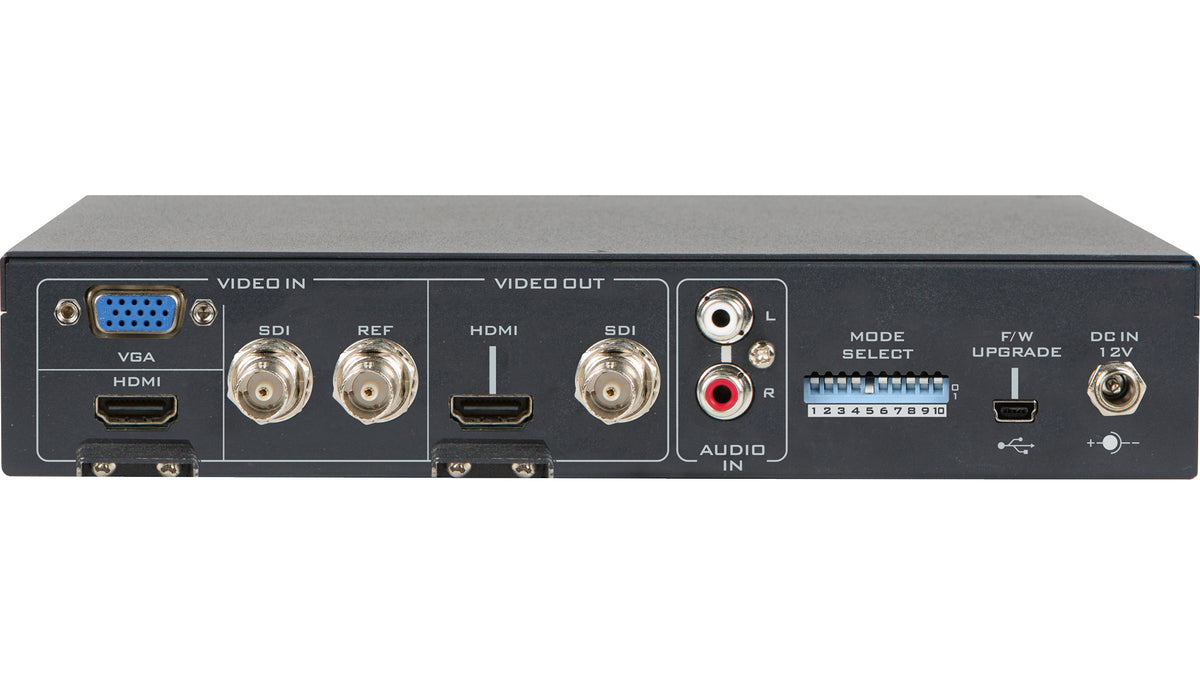

- Video inputs: 1x VGA, 1x HDMI, 1x HD/SD-SDI, 1x Reference Input
- Video outputs: 1x SDI, 1x HDMI
- Audio inputs: 2x RCA (unbalanced L/R), 2x SDI/HDMI embedded
- Audio outputs: SDI/HDMI embedded up to 8CH, 48KHz, PCM
- Equalizer: Yes; Reclock: Yes; SDI cable drive: Yes
- Updates/configuration: Mini USB x1
- 220 x 143 x 42 mm; 1 kg; 0~40 C; DC 12V, 9.4W
What's in the box (per official Datavideo page)
- 1 x DAC-45
- 1 x AD Switch DC 12V
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
