Product information

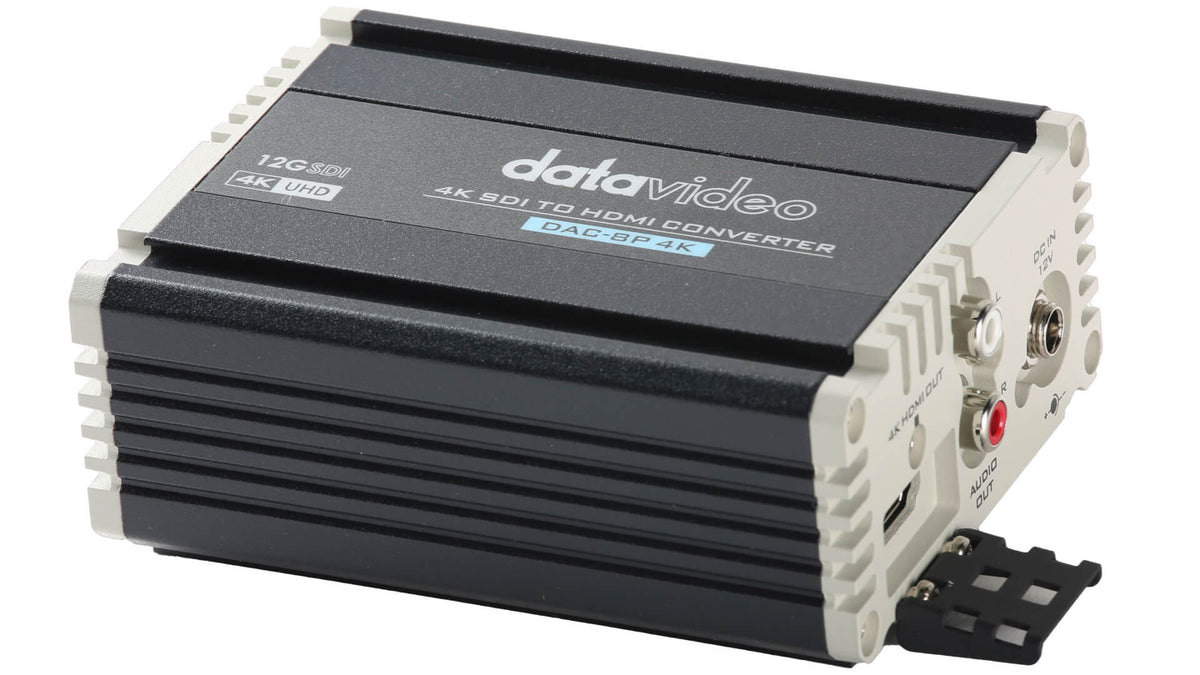

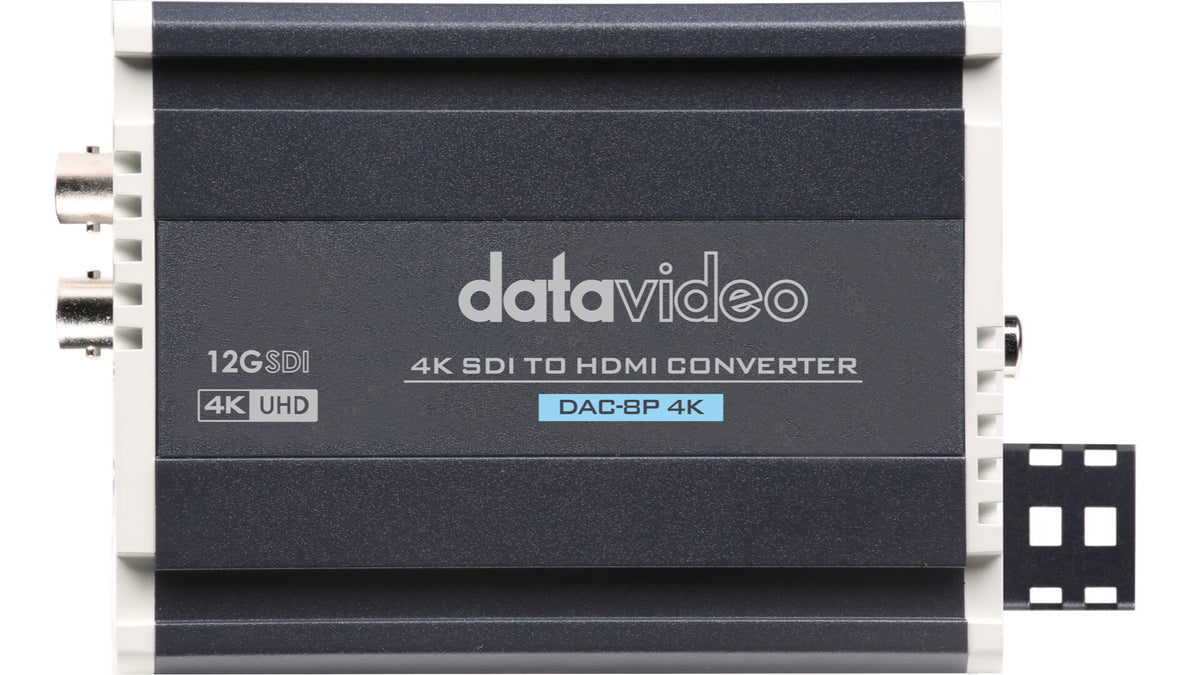

The Datavideo DAC-8P 4K is a converter from Datavideo, supplied in India by Universal AV Solutions. DAC-8P 4K SDI to HDMI Converter. Broadcast Quality 4K SDI to HDMI Converter.
Key features
- Broadcast Quality 4K SDI to HDMI Converter
- Supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
- 12G-SDI input and loop-thru output
- Supports SDI Re-Clocking
- Not only a video converter, but also an audio de-embedder
- Supports HDMI Deep Color
- Aluminum appearance design, rugged and durable
Technical specifications
- Conversion: 12G-SDI to HDMI 2.0

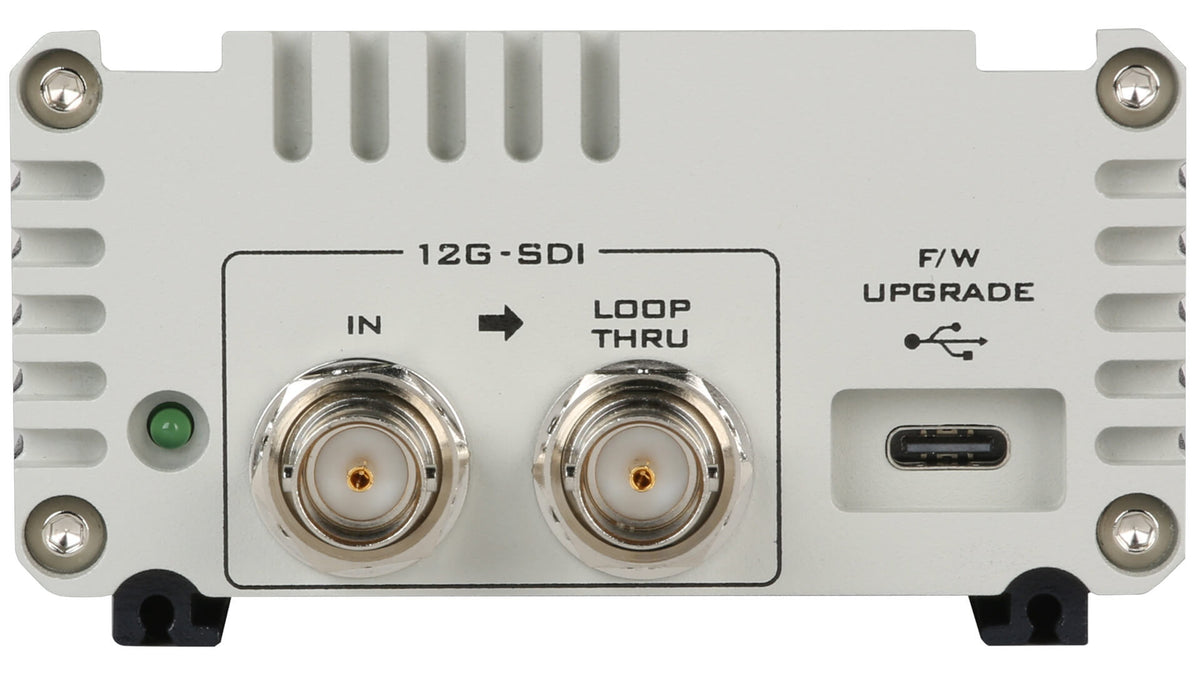

- Video input: 12G-SDI x1; loop through 1
- Video output: 1x HDMI 2.0 with embedded audio
- Audio inputs: SDI embedded 24-bit 16-channel
- Audio outputs: RCA x2 (unbalanced L/R); HDMI embedded 24-bit 8-channel
- Equalizer: Yes; Reclock: Yes; SDI cable drive: Yes
- Updates: USB Type C x1
- 112 x 85 x 45 mm; 0.3 kg; 0~40 C; DC 12V, 8.64W
What's in the box (per official Datavideo page)
- 1 x DAC-8P 4K
- 1 x AD Switch DC 12V
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
