Product information

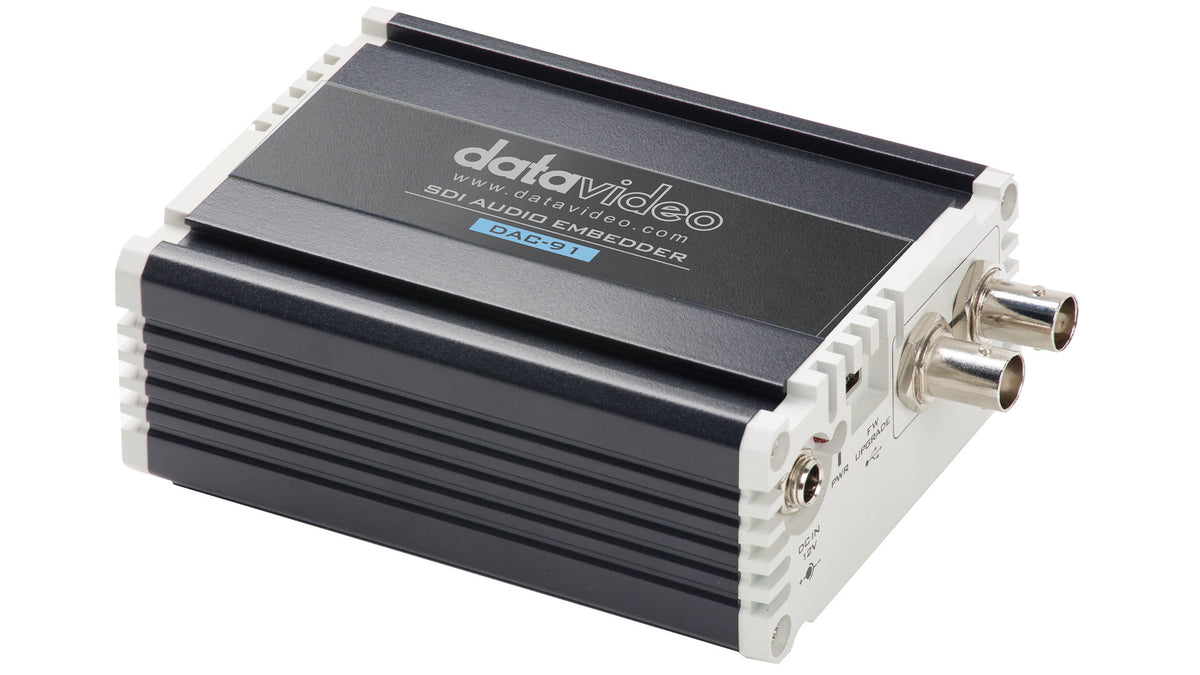

The Datavideo DAC-91 is a converter from Datavideo, supplied in India by Universal AV Solutions. DAC-91 SDI Audio Embedder. Allow users to embed 2 channels of analogue audio into SDI video signal.
Key features
- Allow users to embed 2 channels of analogue audio into SDI video signal
- 3G/HD/SD-SDI to support up to 1080p/60 video format
- Automatically detecting and switching between the different formats
- Mini XLR and RCA audio connectors for inputting analogue audio
- Audio level indicator display
- Audio level adjustment
- Supports SMPTE and EBU
- 4 x Analogue Audio inputs (Mini XLR x 2, RCA x 2)
- Aluminum Alloy and Heavy Duty Design
Technical specifications
- Conversion: Audio Embedder

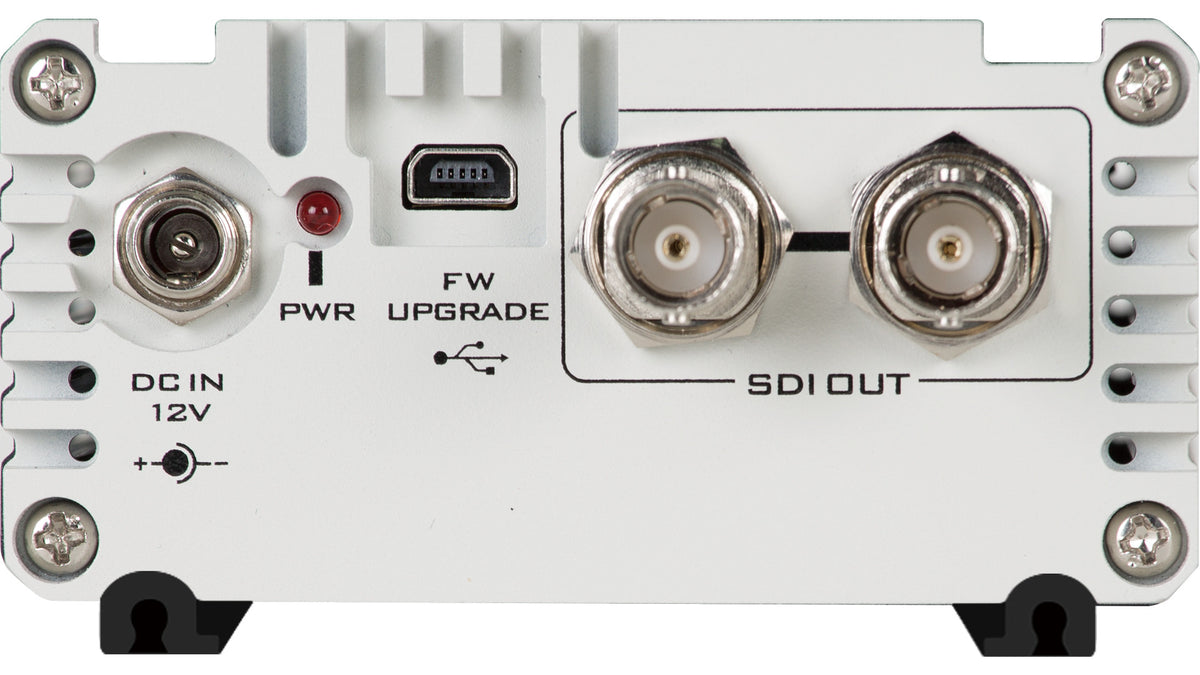

- Video input: 3G/HD/SD-SDI x1; output 3G/HD/SD-SDI x2

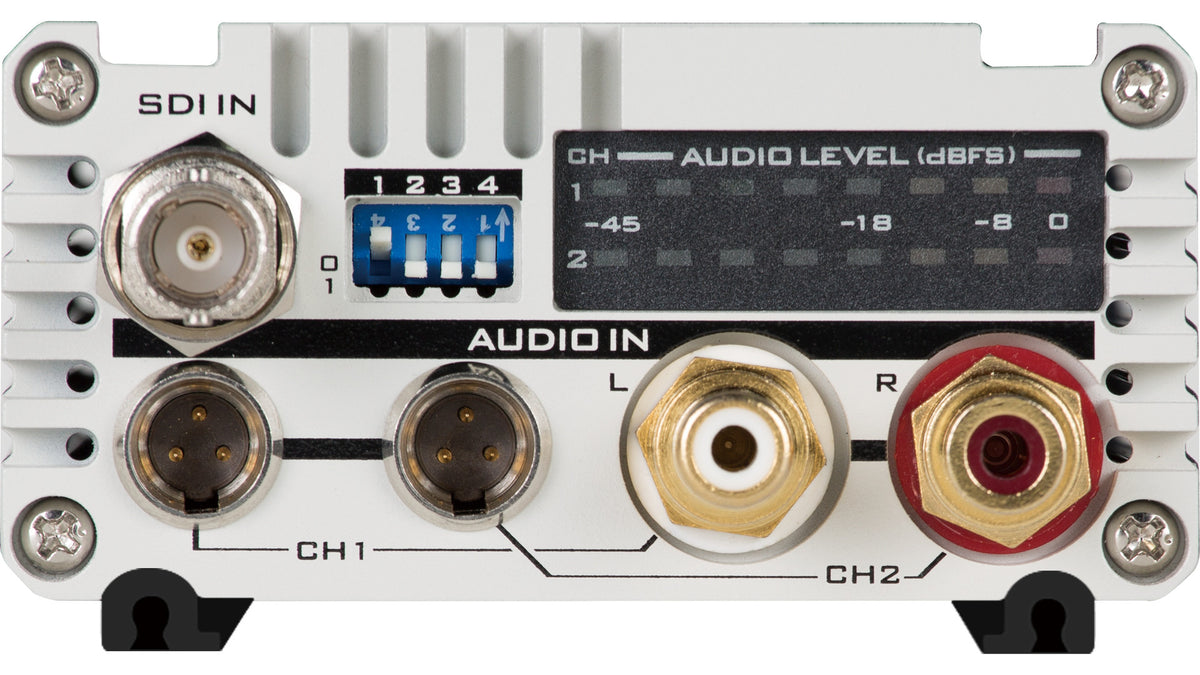

- Audio inputs: Mini XLR (balanced) x2, RCA (unbalanced) x2
- Input impedance: RCA 20K ohm, XLR 42K ohm; output impedance 50 ohm
- Audio format selection: SMPTE, EBU; audio gain: Yes
- Updates: Mini USB x1
- 112 x 85 x 45 mm; 0.4 kg; 0~40 C; DC 12V, 0.5A
What's in the box (per official Datavideo page)
- 1 x DAC-91 product
- 1 x AD Switch DC 12V
- 2 x Mini XLR to female XLR cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
