Product information

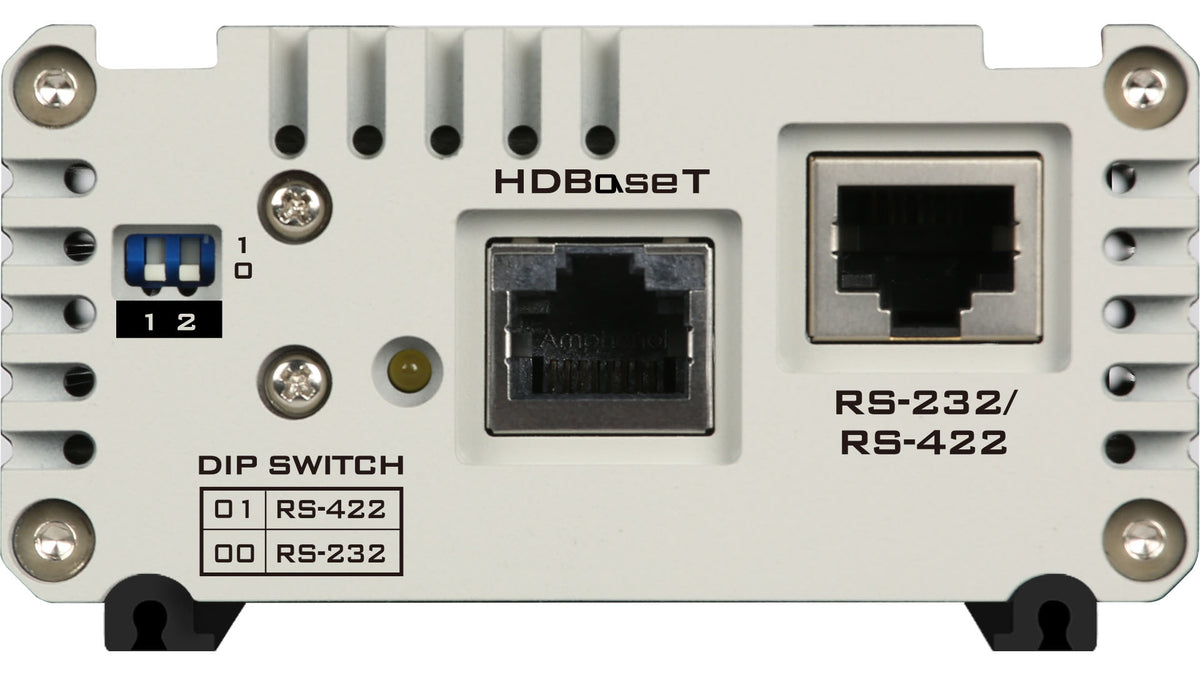

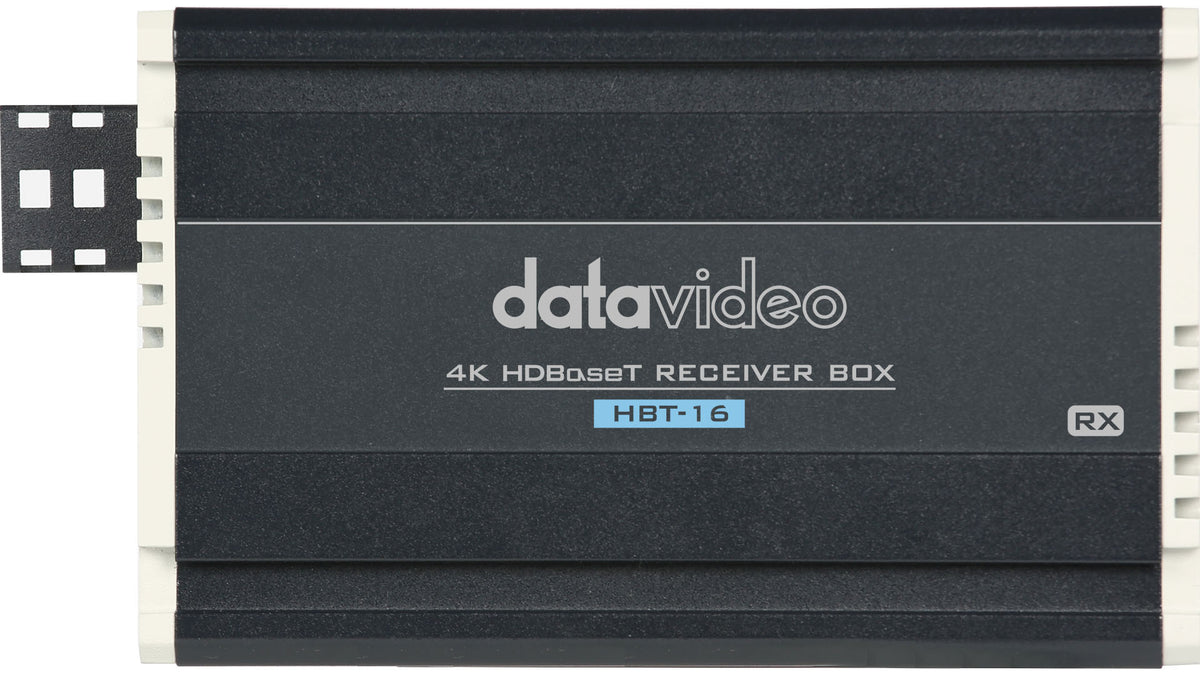

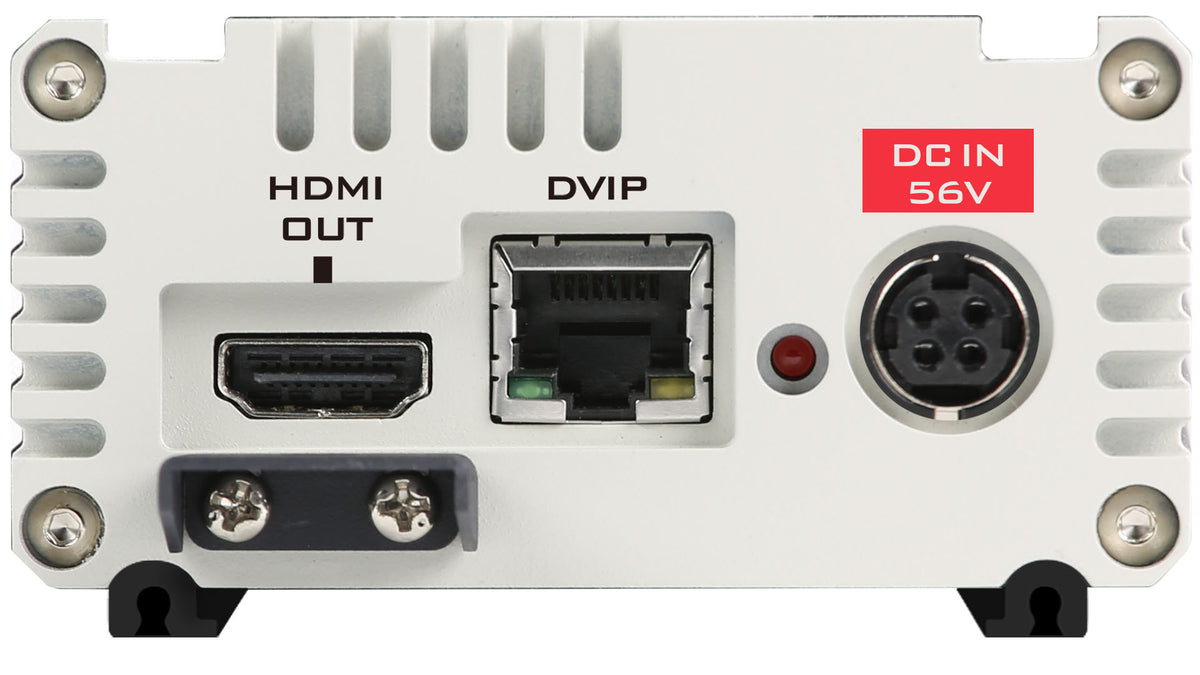

The Datavideo HBT-16 is a hdbaset receiver from Datavideo, supplied in India by Universal AV Solutions. HBT-16 4K HDBaseT Receiver Box. HBT-16; 4K HDBaseT Receiver Box.
Key features
- HBT-16; 4K HDBaseT Receiver Box
- Long-distance 4K HDBaseT receiver
- Video, audio, DVIP, RS-422/232, and PoE+ over one Ethernet cable
- HDMI Deep Color support
- Extends 2160P transmission up to 100m
- HDCP compliant
- DVIP, RS-422, and RS-232 control
- Default EDID and EDID learning from the display
- Dolby TrueHD and DTS Master audio support
- Aluminum alloy, heavy-duty design
Technical specifications
- Model Number: HBT-16
- Video/Audio Input: HDBaseT RJ-45 x1
- Video/Audio Output: HDMI 2.0 x1
- Supported Video Format: 2160p: 60/59.94/50/30/29.97/25; 1080p: 60/59.94/50/30/29.97/25; 1080i: 60/59.94/50; 720p: 60/59.94/50; 480i: 59.94; 576i: 50
- Video Process: 4K2K60 4:4:4 8bits; 4K2K60 4:2:0 10bits
- Video bandwidth: Single-link 600MHz [18Gbps]
- DVIP: RJ-45 x1 (input)
- RS-422/RS-232: RJ-45 x1
- Power: DC IN: DC 56V
- PoE Output: 65W
- HDBaseT Distance: 2160p60/59.94/50 up to 100m by CAT 6A cable (resolution downward supported)
- HDMI compliance: HDMI 2.0
- HDCP compliance: HDCP 2.2/1.4 (Bypass)
- Audio support: Surround sound (up to 7.1ch)
- Dimension (LxWxH): 157 x 85 x 46mm
- Weight: 450 g
- Operating Temp. Range: 0~40 °C
What's in the box (per official Datavideo page)
- 1 x HBT-16 main unit
- 1 x AC cord
- 1 x DC 56V power adaptor
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
