Product information

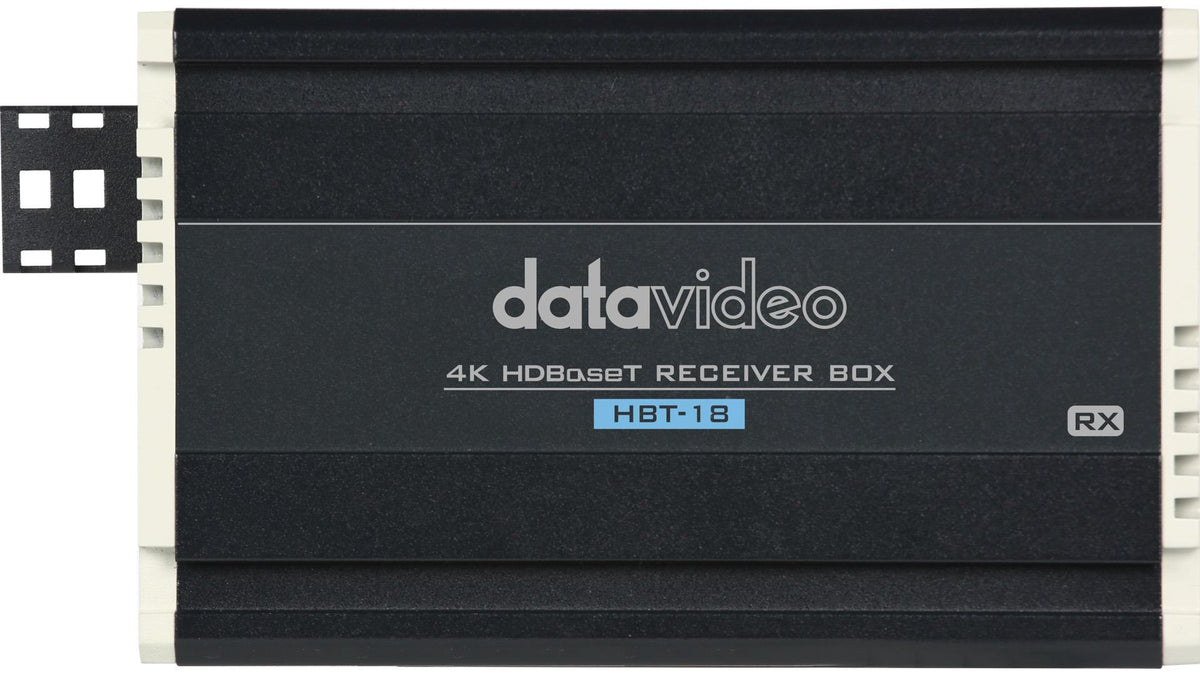

The Datavideo HBT-18 is a hdbaset receiver from Datavideo, supplied in India by Universal AV Solutions. HBT-18 HDBaseT Receiver Box. 4K60 Video Transmission.
Key features
- 4K60 Video Transmission
- 100m Transmission Distance
- Single Cable Solution
- Power Over Ethernet (PoE)
- DVIP Control Protocol
- RS-422/232 Control Protocol
- Aluminum Alloy and Heavy Duty Design
Technical specifications
- Model Number: HBT-18
- Video/Audio Input: HDBaseT RJ-45 x1

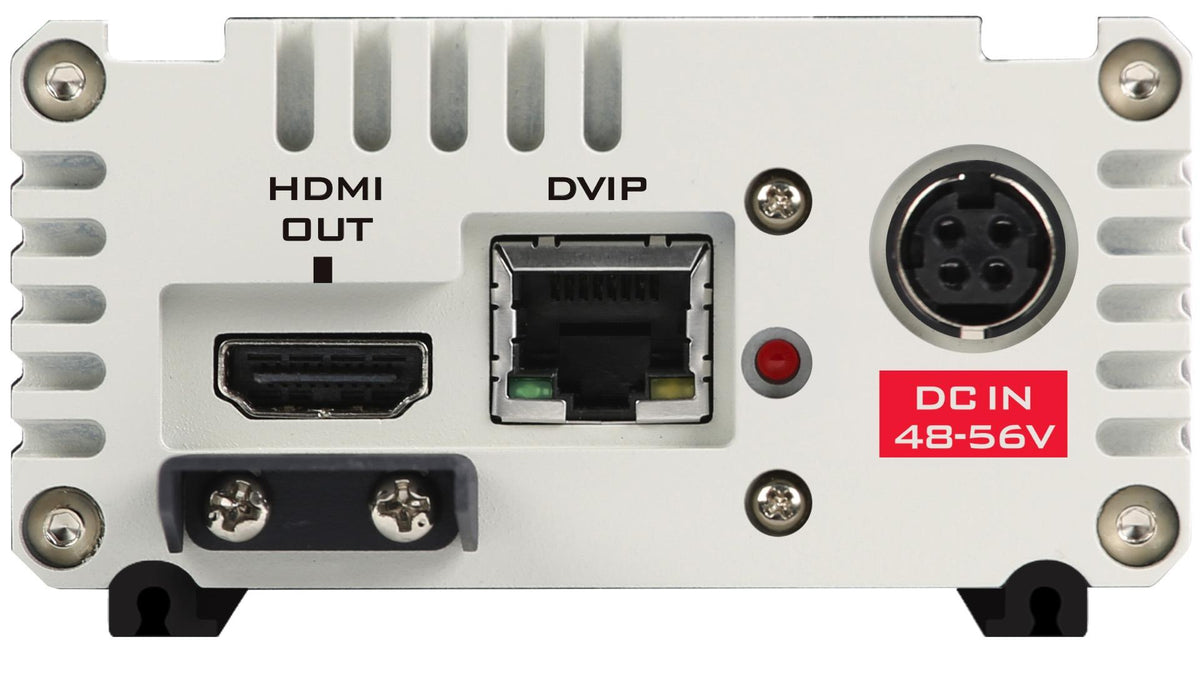

- Video/Audio Output: HDMI 2.0 x1
- Supported Video Format: 2160p: 60/59.94/50/30/29.97/25; 1080p: 60/59.94/50/30/29.97/25; 1080i: 60/59.94/50; 720p: 60/59.94/50; 480i: 59.94; 576i: 50
- Video Process: 4K2K60 4:4:4 8bits; 4K2K60 4:2:0 10bits
- Video bandwidth: Single-link 600MHz [18Gbps]
- DVIP: RJ-45 x1(input)

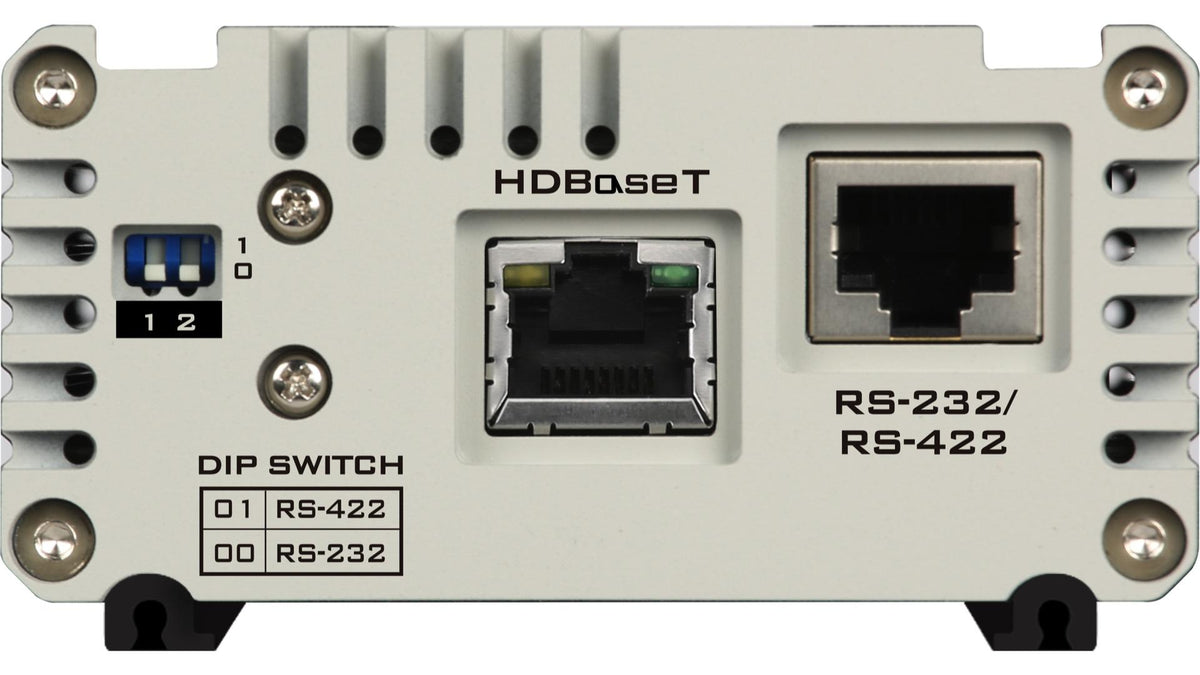

- RS-422/ RS-232: RJ-45 x1
- Power: DC IN: DC 48~56V
- PoE Output: 80W
- HDBaseT Distance: 2160p60/59.94/50 Up to 100m by CAT. 6A Cable (HDBaseT certification required) (Resolution downward supported)
- HDMI compliance: HDMI 2.0
- HDCP compliance: HDCP 2.2/1.4 (Bypass)
- Audio support: Surround sound [up to 7.1ch)
- Dimension (LxWxH): 157 x 85 x 46mm
- Weight: 465g
- Operating Temp. Range: 0~40 °C
What's in the box (per official Datavideo page)
- 1 x HBT-18 main unit
- 1 x AC cord
- 1 x DC 56V power adaptor
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
