Product information
The Datavideo HS-2600 is a mobile video production studio from Datavideo, supplied in India by Universal AV Solutions. HS-2600 HD 8-Channel Portable Video Streaming Studio. 8-input Full HD production switcher (4x SDI, 4x HDMI).
Key features
- 8-input Full HD production switcher (4x SDI, 4x HDMI)
- Built-in H.264 streaming encoder
- Built-in H.264 recorder for SD cards
- 4 PIPs, 4 upstream keyers, 2 DSKs
- Flex Source
- Custom and dual Multiview output
- 4 chromakeyers (virtual studio)
- 17.3" LED backlit monitor
- Built-in animations and 50 virtual set backgrounds
- Included CG Title Creator
- SRT streaming support
- Compatible with dvCloud
Technical specifications
- Model Number: HS-2600
- Video Standard: HD
- Video Format: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz
- Input Routable / Crosspoint: All 8, repeatable

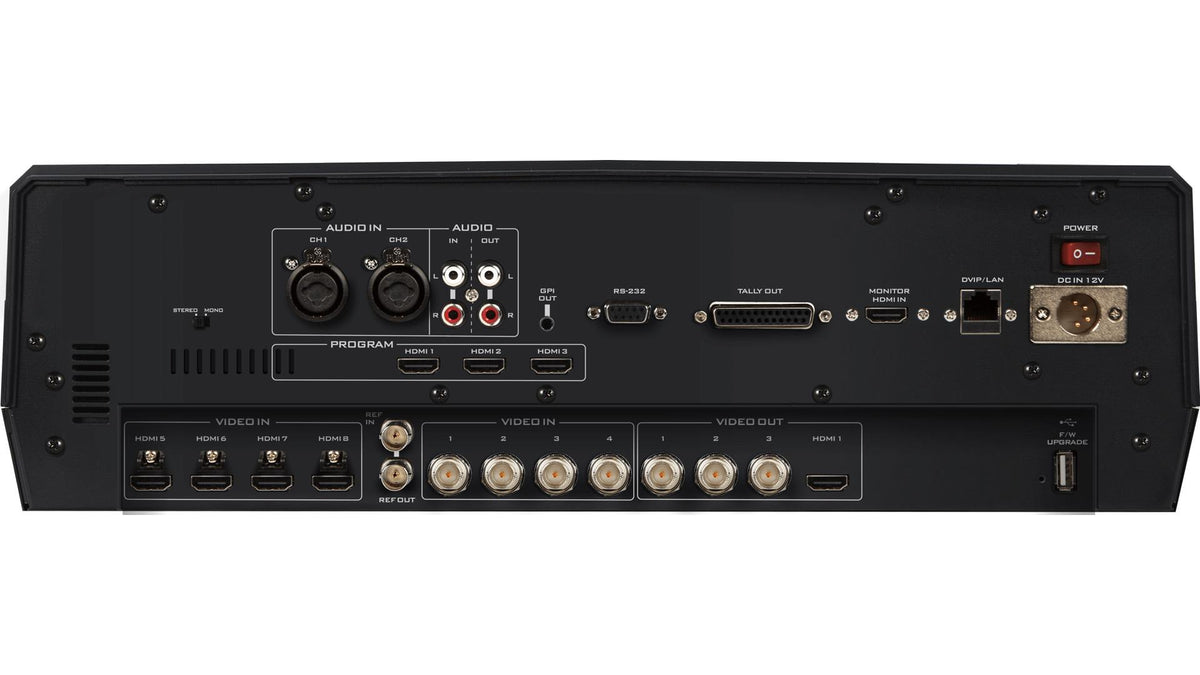

- Video Input: 4 x 3G-SDI; 4 x HDMI
- Computer Graphic Interface: 4 via HDMI
- Video Output: 3 x 3G-SDI for PGM (AUX assignable); 1 x HDMI 1.4 for PGM (AUX assignable); 3 x HDMI 1.4 for PGM
- Analogue Audio Input: 2 x XLR/MIC (6.3mm) Combo Socket; 1 x stereo RCA audio
- Analogue Audio Output: 1 x stereo RCA audio
- Digital Embedded Audio Support: SDI Input/Output 4 channels, HDMI Input/Output 2 channels
- Audio Delay Calibration: Up to 16 frames
- A+V Switching: Yes
- USK: 4
- DSK: 2
- Picture in Picture: 4
- Logo Insertion: 2
- Title Creator: Yes
- Built-in Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pix
- Streaming: H.264: MAX RES 1080p; H.265: MAX RES 1080p
- Streaming Audio Encode: AAC 2CH, 16bit 48KHz 192Kbps
- Streaming Protocol: RTSP; RTMP; SRT
- Streaming Control: Web browser UI for configuration and control; Socket commands
- Recording File System: FAT32, exFAT
- Recording File Format: MP4 (H.265+ AAC) or (H.264+ AAC)
- Streaming & Recording Setting Control: Web UI for system configuration and control
What's in the box (per official Datavideo page)
- 1 x HS-2600 Unit
- 1 x AD Switch DC 12V with AC Cord
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
