Product information

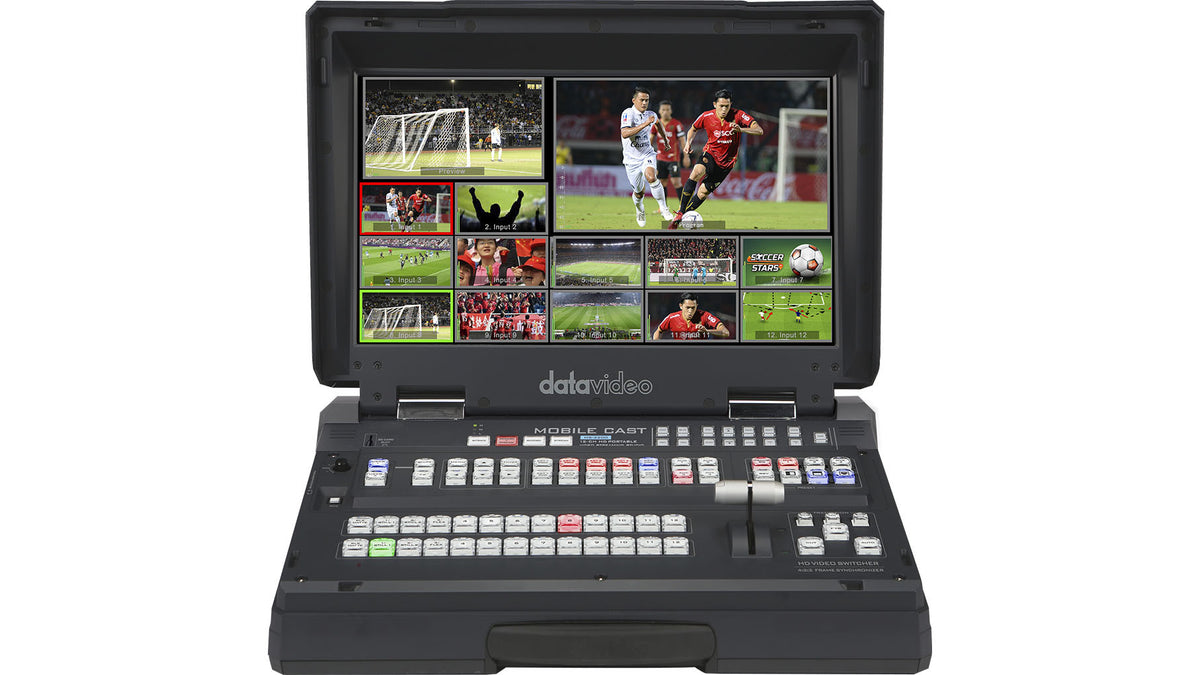

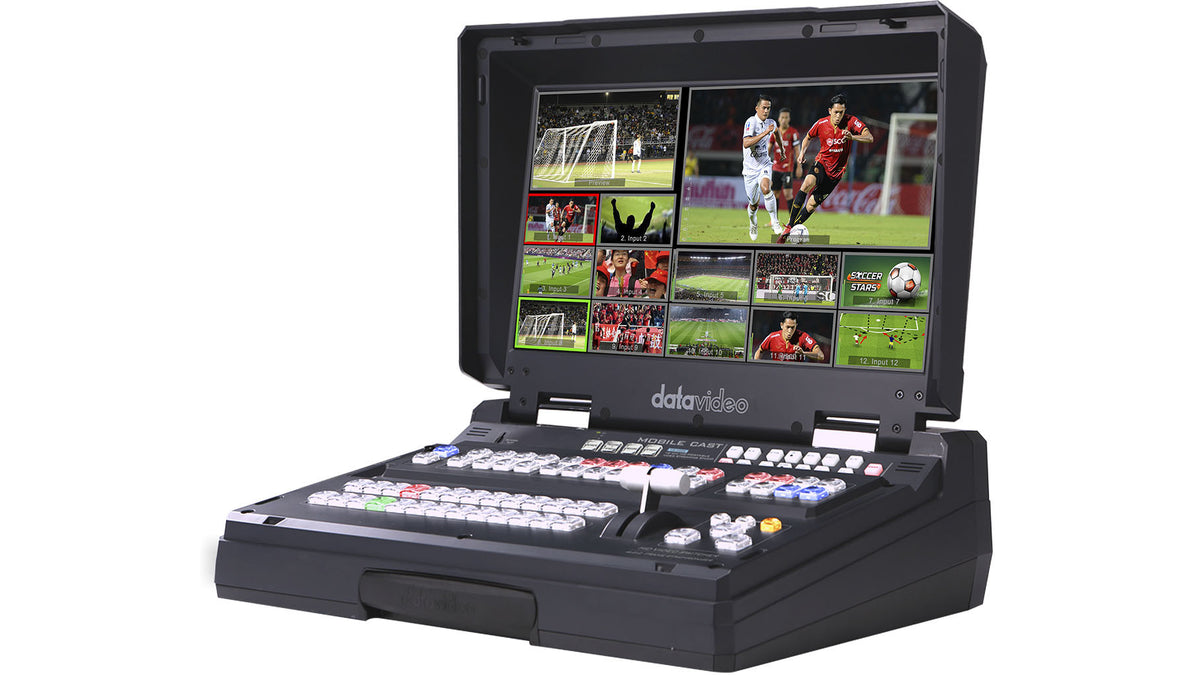

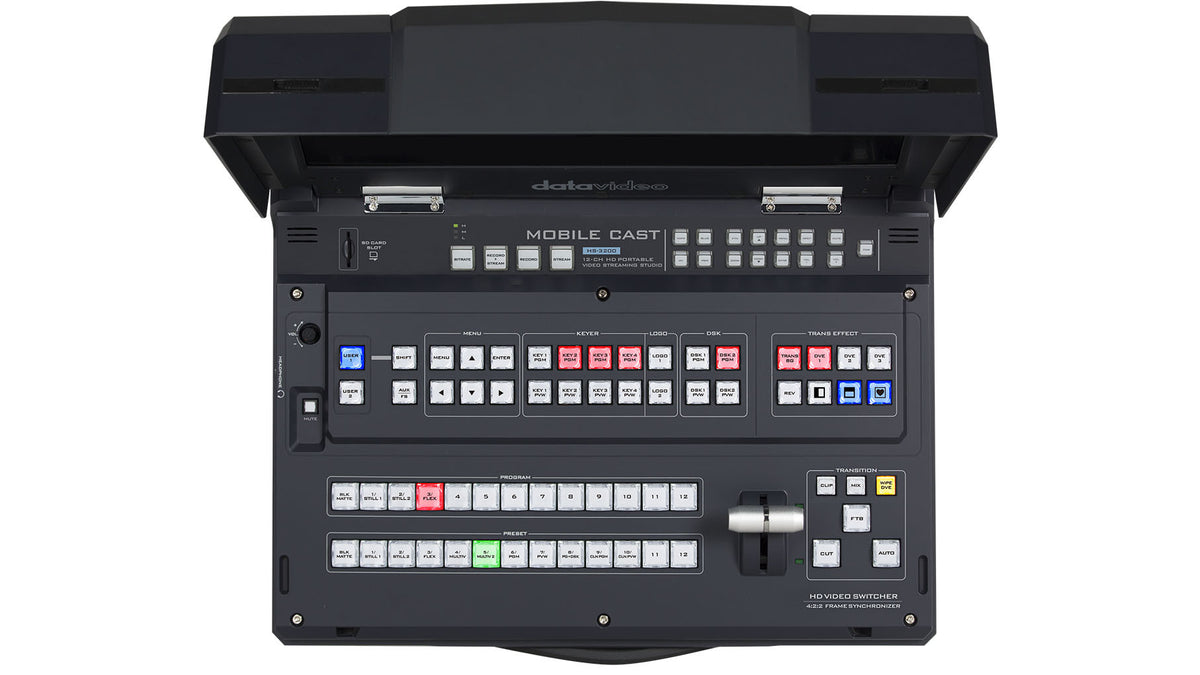

The Datavideo HS-3200 is a mobile video production studio from Datavideo, supplied in India by Universal AV Solutions. HS-3200 12-Channel HD Portable Video Streaming Studio. 12 inputs (8x SDI, 4x HDMI) and 9 outputs (5x SDI, 4x HDMI).
Key features
- 12 inputs (8x SDI, 4x HDMI) and 9 outputs (5x SDI, 4x HDMI)
- Full 1080p support with built-in input scaler (up/down conversion)
- Built-in H.264 streaming encoder
- Built-in H.264 recorder for SD cards
- 8 PIPs (4x keyer, 4x FlexSource)
- FlexSource layering
- 4 upstream chromakey/linear/luma keyers
- 2 DSKs and 2 logo insertion channels
- 4-channel chromakey virtual studio
- 2 stinger transitions and 2D transition DVE
- Dual Multiview output with custom layouts
- Built-in 17.3" LED monitor (1920x1080)
Technical specifications
- Model Number: HS-3200
- Video Standard: Full HD
- Video Format: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz
- Input Routable / Crosspoint: All 12, repeatable
- Video Input: 8x SDI, 4x HDMI
- Computer Graphic Interface: 4 via HDMI
- Down-converted Output: 1x SDI
- Video Output: 5x SDI, 1x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source; 3x HDMI PGM only
- Analogue Audio Input: 4x Balanced XLR
- Analogue Audio Output: 2x Balanced XLR
- Digital Embedded Audio Support: Input 2 channels, Output 4 channels
- Audio Delay Calibration: Up to 16 frames
- A+V Switching: Yes
- USK: 4
- DSK: 2, support Lumakey & Linear key (Key / Fill)
- Picture in Picture: 8 (4x Keyer, 4x Flex Source)
- Logo Insertion: 2
- Title Creator: Yes, free software download
- Built-in Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pix
- Streaming: H.264 / AVC, Main/High Profile; Configurable Bit-rate up to 10Mbps
- Streaming Audio Encode: AAC-LC; Configurable bit rate range from 32Kbps to 384Kbps; Sample rate: 48KHz, 16bit
- Streaming Protocol: TS over TCP/UDP (unicast & multicast); RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming); RTMP/RTMPS (Publish); HLS; SRT
- Streaming Control: Web browser UI for configuration and control; Socket commands
- Recording File System: FAT, exFAT, NTFS
- Recording File Format: MP4
What's in the box (per official Datavideo page)
- 1 x HS-3200 Unit
- 1 x AD Switch DC 12V with AC Cord
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
