Product information

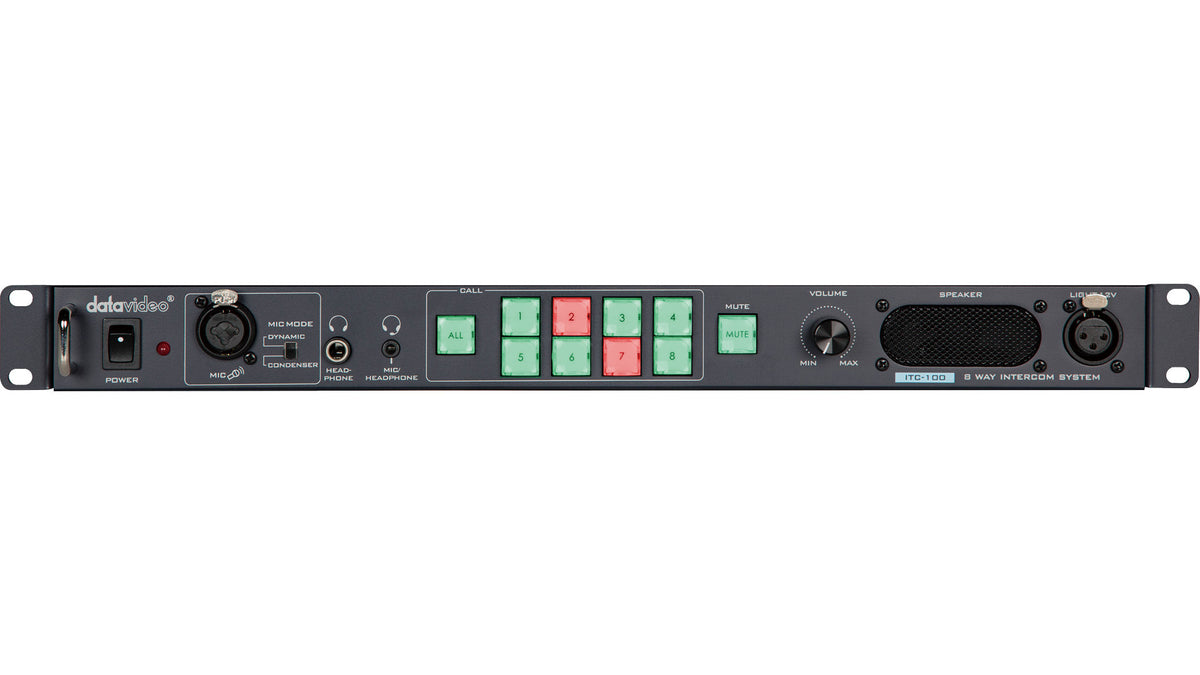

The Datavideo ITC-100 is an intercom from Datavideo, supplied in India by Universal AV Solutions. ITC-100 Intercom System. Rackmountable 8 Channels Intercom System. Catalogue kit: 8-way wired intercom and tally system with 4 x ITC-100SL beltpack set (4 x beltpack, 4 x 20m ITC/tally cable, 4 x MC-1 mic, 4 x tally light, 1 x gooseneck mic). Supports up to 200 metres by cascading.
Key features
- Rackmountable 8 Channels Intercom System
- 8-way talkback and tally indicators
- Selectable Channel Talk, Broadcast to All or Mute
- Communication Distance Up to 200 Meters
- 19'' 1U Rack Design
- Dual Color Tally Light Indicator
Technical specifications
- Model: ITC-100

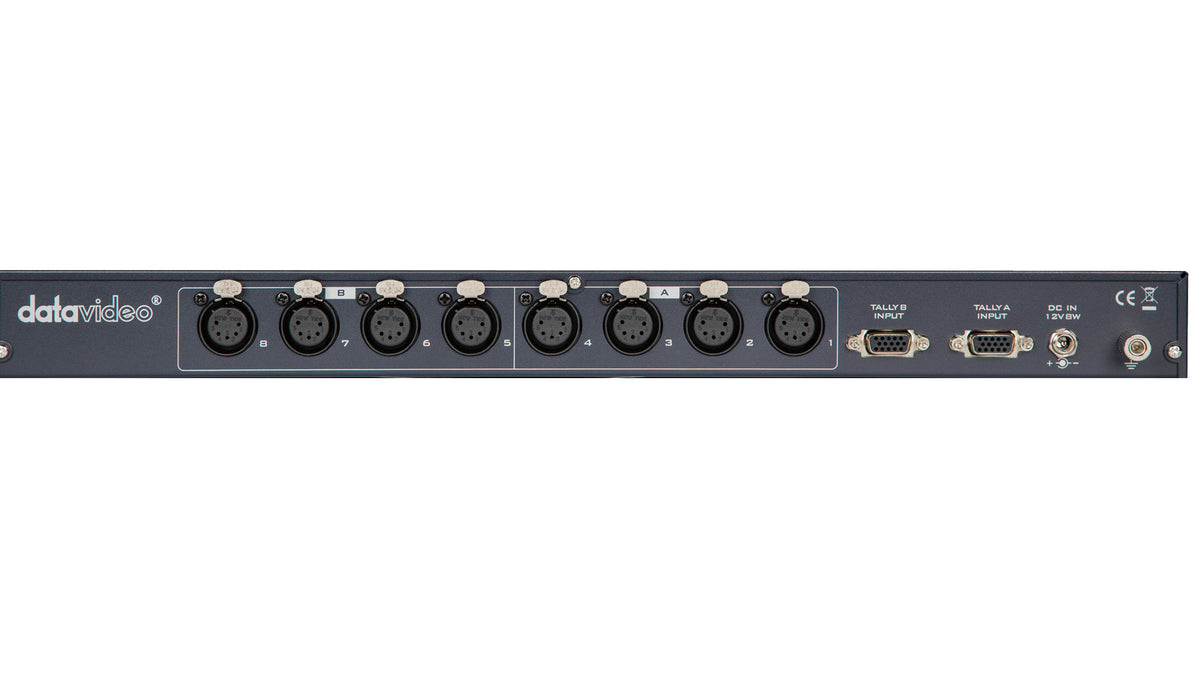

- Tally: 2 x 15-pin DSub sockets for Tally A and B
- MIC/Headset: 3.5mm stereo jack; headset impedance 8-600 Ohms, 100 mW (min)
- Headphone: 1/4" (6.3mm) stereo socket; 8-600 Ohms, 100 mW (min)
- Light socket (DC 12V): 3-pin XLR; 12V/100mA max
- Microphone: 3-pin XLR / 1/4" jack; switchable condenser/dynamic; -67 dB
- Frequency response: 550-3.6 kHz, <+/-3dB; THD <3%; S/N >50dB
- Built-in speaker: 70mm x 30mm 32 Ohm 3 Watts
- Operating range: up to 200 meters between base station and slave
- 482 x 127 x 46 mm; 1.9 kg; 0~40 C; DC 12V, 8W

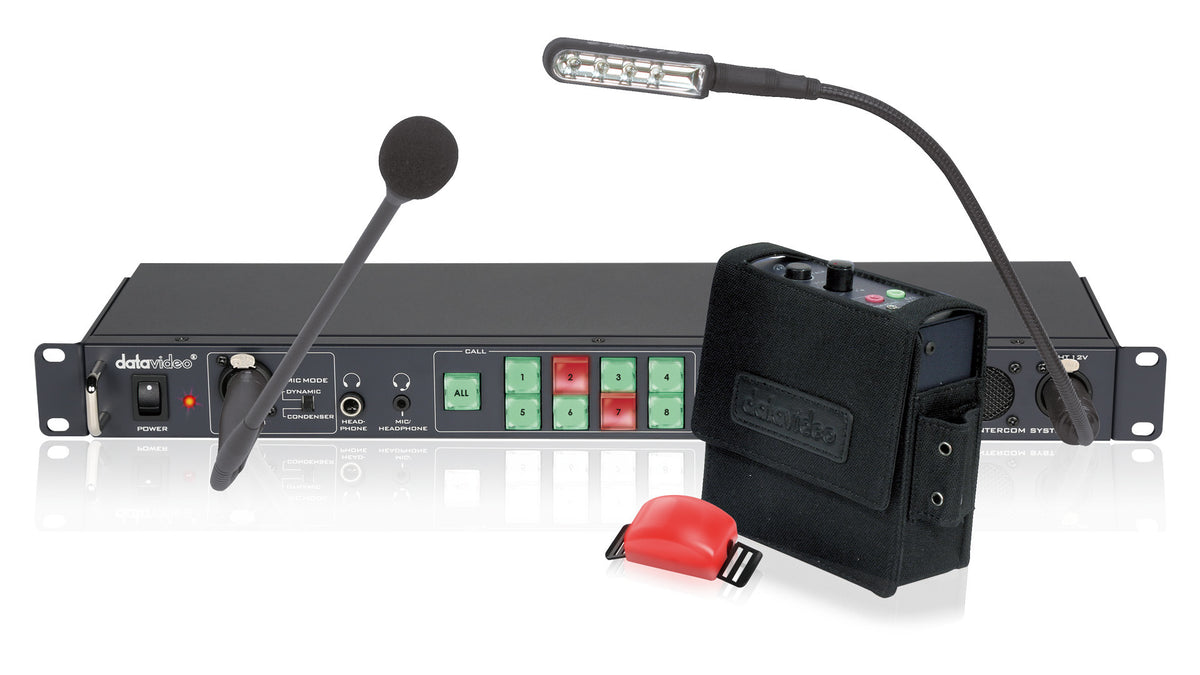

What's in the box (per official Datavideo page)
- 1 x ITC-100 Base Unit
- 4 x ITC-100SL Belt Pack
- 4 x ITC-100SL Carry Case
- 4 x Cable 5pin 20cm XLR to XLR
- 4 x 3.5mm Jack to 3.5mm Jack Cable
- 4 x Headset with microphone
- 4 x Tally LED Indicator
- 1 x XLR Gooseneck Microphone
- 1 x XLR Gooseneck Light
- 1 x 12V 1A Power Supply Unit
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
