Product information

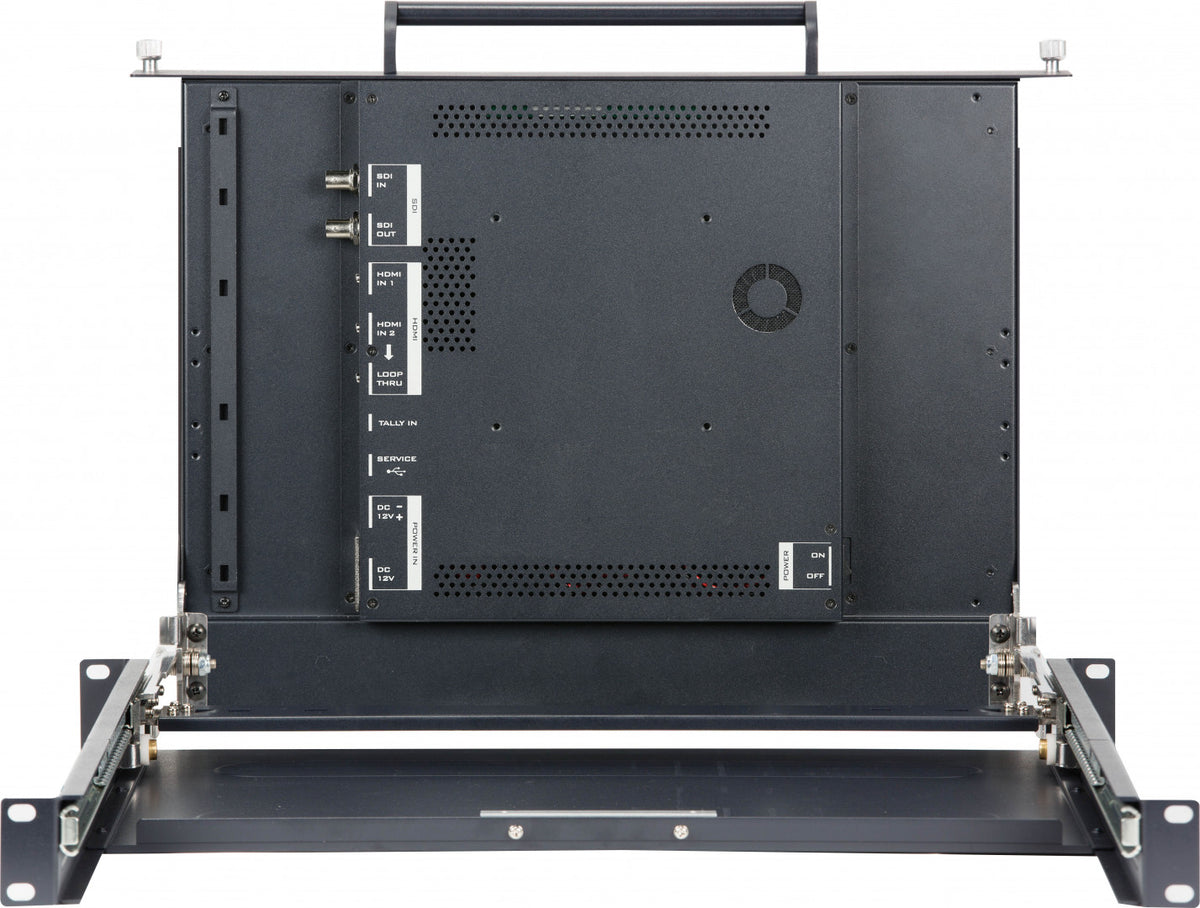

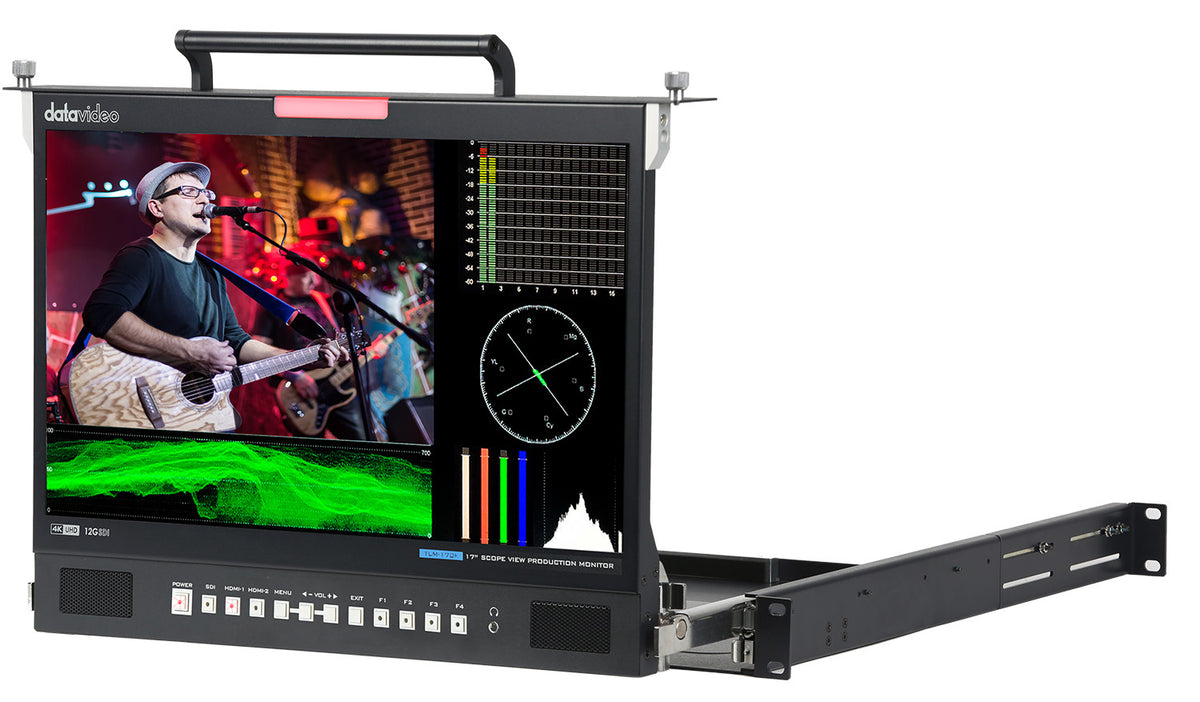

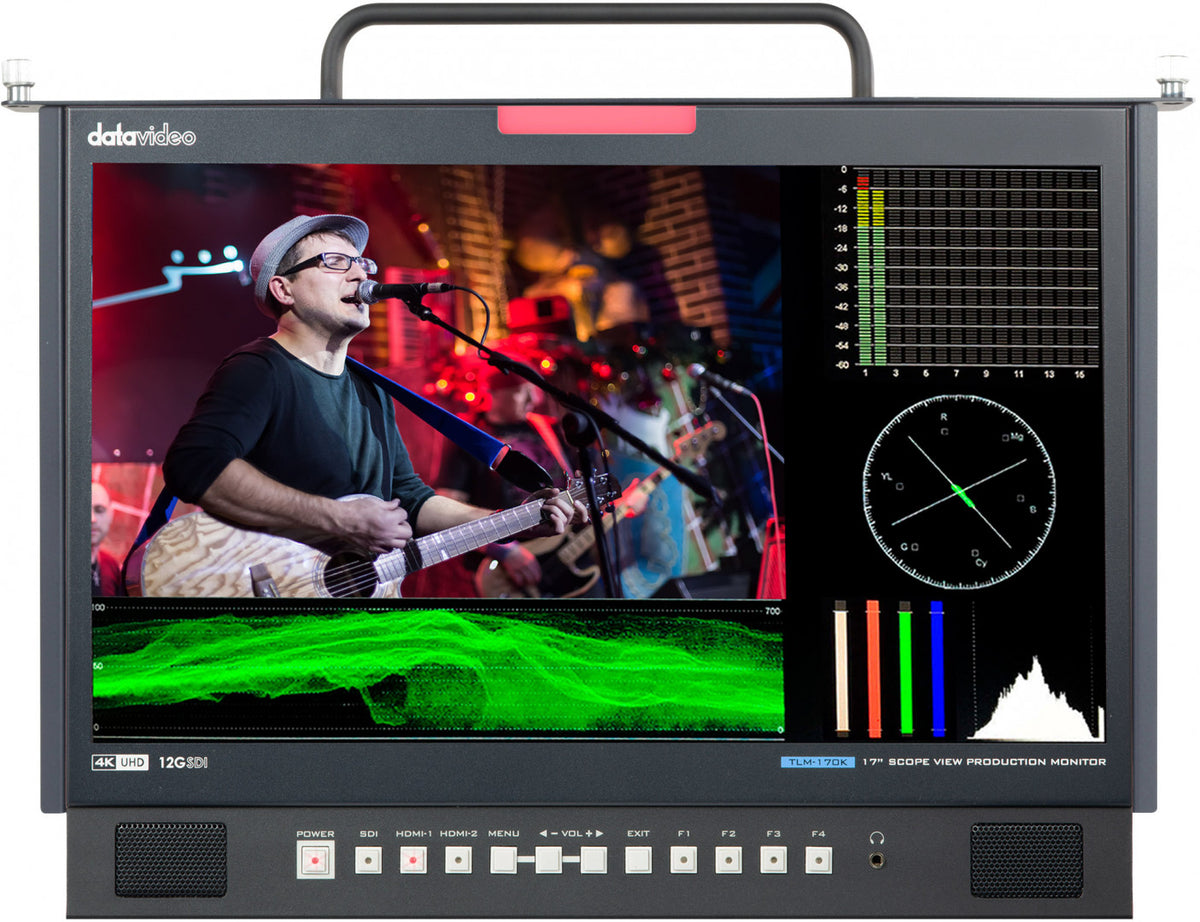

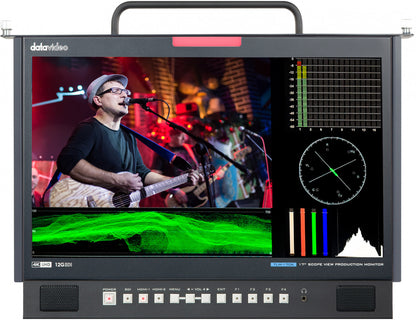

The Datavideo TLM-170KM is a broadcast monitor from Datavideo, supplied in India by Universal AV Solutions. TLM-170KM 17.3" 4K Broadcast Monitor (1U Pull-Out). 17.3" 4K UHD pull-out monitor with a 3840 x 2160 IPS panel.
Key features
- 17.3" 4K UHD pull-out monitor with a 3840 x 2160 IPS panel
- 178-degree wide viewing angle
- Brightness of 300 cd/m2 and 1000:1 contrast ratio
- 1 x 12G-SDI and 2 x HDMI (HDMI 2.0) inputs, with loop-through outputs
- Supports up to DCI 4K and Ultra HD signals on input and output
- HDR support for HLG and SMPTE 2084
- Color space presets: Rec 709 and DCI P3
- Tally light included
- Built-in functions: YRGB peak, time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR/SDR, and more
Technical specifications
- Chassis: Pull-Out
- Screen: 17.3" LED Backlit
- Resolution: 3840 x 2160
- Viewing Angle: (H) +89/-89 deg; (V) +89/-89 deg
- Luminance/Contrast: 300cd/m2; 1000:1
- Video Inputs: 1 x 12G SDI; 2 x HDMI (2.0)
- Loop Through: 1 x 12G SDI; 1 x HDMI (2.0)
- Supported Input Resolutions - SDI: 4096x2160p (23.98/24/25/29.97/30/50/59.94/60); 3840x2160p (23.98/24/25/29.97/30/50/59.94/60); 4096x2160Psf (23.98/24/25/29.97/30); 3840x2160Psf (23.98/24/25/29.97/30); 1920x1080p (23.98/24/25/29.97/30/50/59.94/60); 1920x1080i (50/59.94/60); 1920x1080Psf (23.98/24/25/29.97/30); 1280x720p (23.98/24/25/29.97/30/50/59.94/60); 525i, 625i
- Supported Input Resolutions - HDMI: 4096x2160p (23.98/24/25/29.97/30/50/59.94/60); 3840x2160p (23.98/24/25/29.97/30/50/59.94/60); 1920x1080p (23.98/24/25/29.97/30/50/59.94/60); 1920x1080i (50/59.94/60); 1280x720p (23.98/24/25/29.97/30/50/59.94/60); 720x480i (NTSC), 720x576i (PAL); 640x800, 800x600, 1024x768, 1280x800
- Aspect Ratio: 16:9, 4:3
- Aspect Marker: YES
- Safety Marker: YES
- Tally LED: Live (Red); Cued (Green)
- Audio In/Out: Input: Embedded Audio (48KHz sampling); Output: Analog stereo (Phone Jack); Speaker x 2 (3W)
- Special Features: waveform, vector scope, Focus Peaking, False Color, Exposure (Zebras), Histogram, HDR / SDR, Time Code, Audio Vector, Camera Log, Gamma, Marker, Pixel to Pixel, Zoom, H/V Delay, DSLR, Freeze, Image Flip, Check Field, Level Meter, Color Bar, Color Calibration
- Dimension (WxHxD): 403 x 305 x 37 mm
- Operating Temp. Range: 0~40 C
- Power: DC 12V, 40.1W
- Weight: 5.2 kg
What's in the box (per official Datavideo page)
- 1 x TLM-170KM product
- 1 x AD Switch DC 12V
- 4 x Screw phi4.0*6m/m
- 8 x Screw phi3.0*6m/m
- 8 x Screw M5 x 10mm
- 5 x Cable tie
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
