Product information

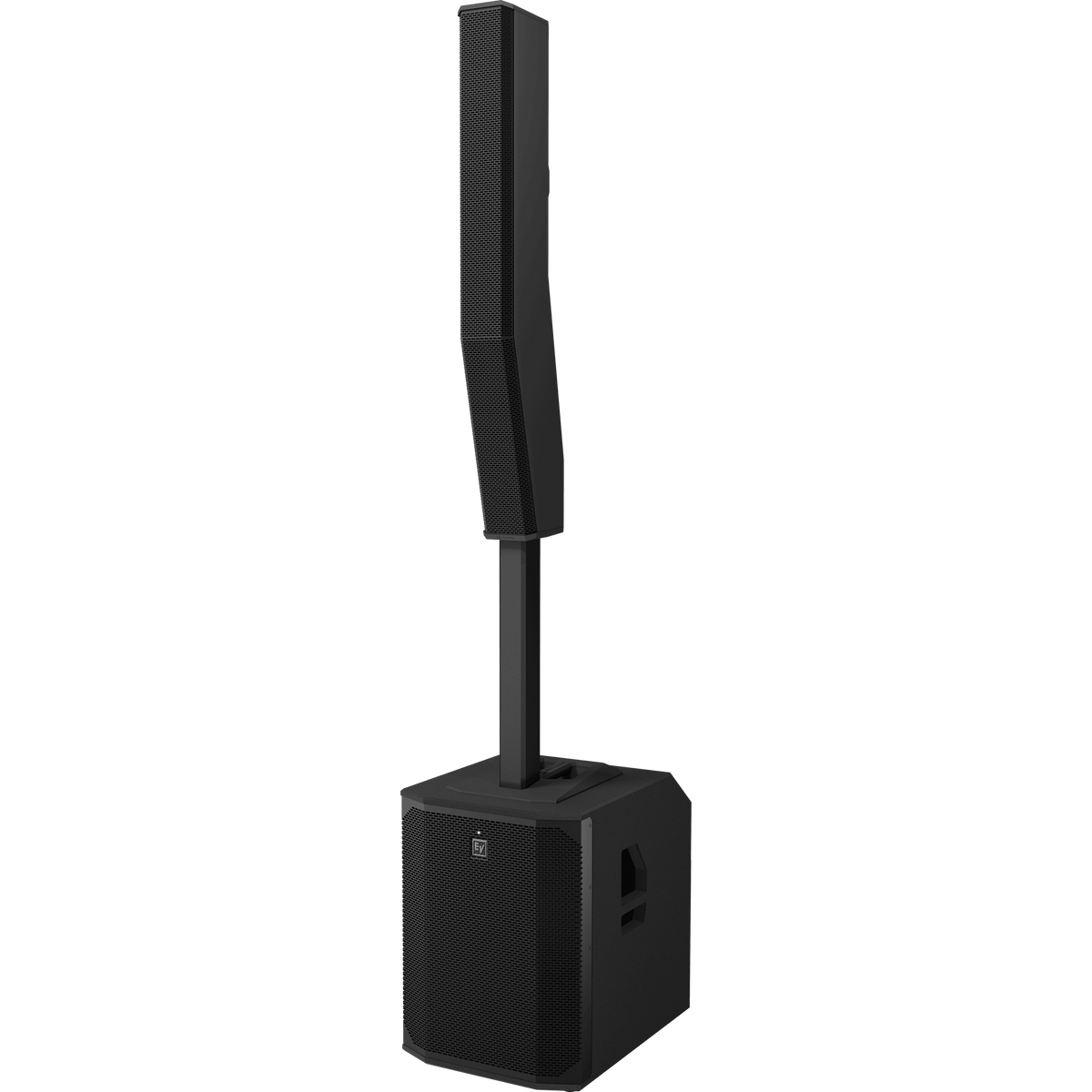

Electro-Voice EVOLVE 70 is a 15-inch high-end portable powered column loudspeaker system. The three-piece system places a 15-inch subwoofer with a 3-inch voice coil and a 2,000 W peak-rated amplifier in the base, along with the connections for the whole system, and feeds the column from the same amplifier.
Key features
- 15-inch subwoofer with a 3-inch voice coil.
- 2,000 W peak amplifier rating, powering both the subwoofer and the column.
- 120° × 25° coverage as stated in the manufacturer description, with a 160 Hz crossover to the column.
- Flexible inputs: mic/line, stereo RCA, AES/EBU digital and Bluetooth stereo with true wireless stereo (TWS).
- System linking: XLR Mix Out, XLR Sub Out, AES/EBU thru and an RJ45 QuickSmart Link connector.
- QuickSmart App control across EVOLVE speakers.
- Rugged cabinet: plywood construction with a polyurea coating.
Technical specifications
| Type | Powered portable column loudspeaker system |
|---|---|
| Subwoofer | 15-inch, 3-inch voice coil |
| Amplifier rating | 2,000 W peak |
| Frequency response | 40 Hz – 18 kHz |
| Coverage | 120° × 25° (manufacturer description) |
| Crossover to column | 160 Hz |
| Cabinet | Plywood with polyurea coating |
| Colours (manufacturer) | Black or white |
Connectivity
- powerCON® power input
- Dual XLR/TRS combo mic/line inputs with switchable 48 V phantom power
- Stereo XLR/TRS combo line input
- Stereo RCA line input
- XLR AES/EBU input and AES/EBU thru
- XLR Mix Out and XLR Sub Out
- RJ45 QuickSmart Link connector
- Bluetooth stereo input with TWS
Applications
DJs and performers, live music and entertainment, corporate events and presentations, hotels and banquet halls, houses of worship, rental and production companies, and educational and institutional events.
What is included
Package contents are not itemised on the manufacturer page. Please contact us to confirm what is supplied.
Specifications are from Electro-Voice. The 2,000 W figure is a peak amplifier rating, not a continuous (RMS) output rating.
