Product information

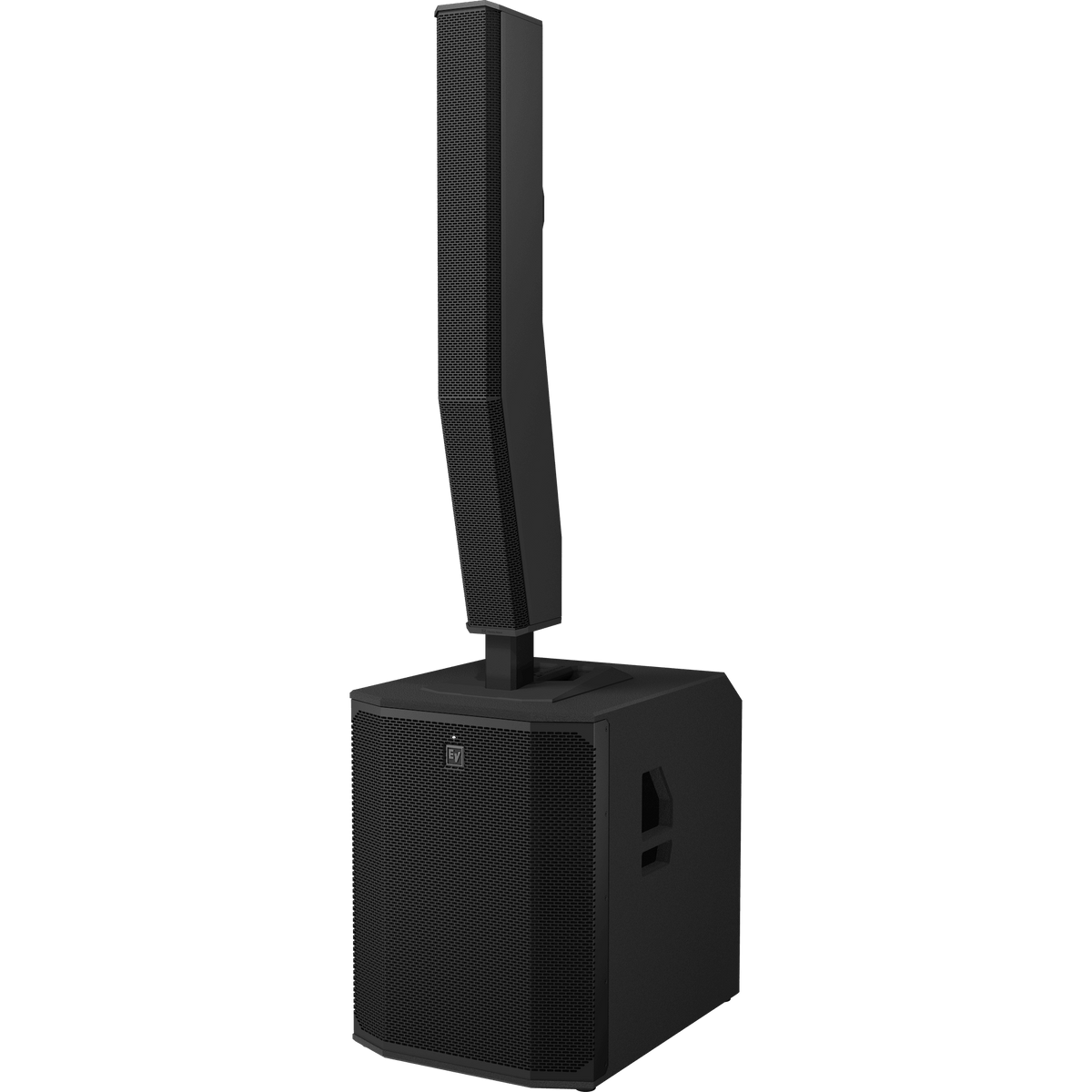

Electro-Voice EVOLVE 90 is an 18-inch high-end portable powered column loudspeaker system. It pairs an 18-inch subwoofer with eight 4.7-inch neodymium column drivers and is positioned by the manufacturer for DJ sets, live bands, productions and large rooms.
Key features
- 18-inch cast-frame woofer with a 4-inch voice coil, with response to 35 Hz (−3 dB).
- Eight 4.7-inch neodymium drivers in the column.
- 2,000 W Class-D amplifier, split into 1,000 W for low frequencies and 1,000 W for high frequencies.
- 134 dB peak SPL (manufacturer figure).
- 120° × 25° coverage waveguide.
- Inputs: dual XLR/TRS combo, stereo RCA, AES/EBU and Bluetooth TWS streaming.
- QuickSmart App control with four sound modes (Music, Live, Speech, Club) and EVOLVE system linking.
Technical specifications
| Type | Powered portable column loudspeaker system |
|---|---|
| Subwoofer | 18-inch cast-frame woofer, 4-inch voice coil |
| Column drivers | Eight 4.7-inch neodymium |
| Amplifier | 2,000 W Class-D (1,000 W LF + 1,000 W HF) |
| Maximum SPL | 134 dB (peak) |
| Frequency response | 35 Hz – 18 kHz |
| Frequency range (−10 dB) | 28 Hz – 20 kHz |
| Coverage (H × V) | 120° × 25° |
| Sound modes | Music, Live, Speech, Club |
| Colours (manufacturer) | Black or white |
Connectivity
- powerCON® power input
- Dual XLR/TRS combo mic/line inputs with switchable 48 V phantom power
- Stereo XLR/TRS combo line input
- Stereo RCA line input
- XLR AES/EBU input and AES/EBU thru
- XLR Mix Out and XLR Sub Out
- RJ45 QuickSmart Link connector
- Bluetooth stereo input with TWS
Applications
DJs and performers, live music and entertainment, corporate events and presentations, hotels and banquet halls, houses of worship, rental and production companies, and educational and institutional events.
What is included
Package contents are not itemised on the manufacturer page. Please contact us to confirm what is supplied.
Specifications are from Electro-Voice. The 2,000 W amplifier figure is as listed by the manufacturer; whether it is a peak or continuous (RMS) rating is not stated.
Buy Electro-Voice EVOLVE 90 in India from Universal AV Solutions. Contact us for supply and event-sound planning support across Delhi NCR and pan-India.
