Key Highlights
-
12-inch Woofer
Deep, powerful low-end for live sound
-
Bluetooth Streaming
Wireless audio streaming built in
Technical Specifications
Audio
- Power
- 1300W peak, Class D
- Driver
- 12-inch woofer + 1-inch compression driver
- Connectivity
- Bluetooth, 3-channel digital mixer
Product information

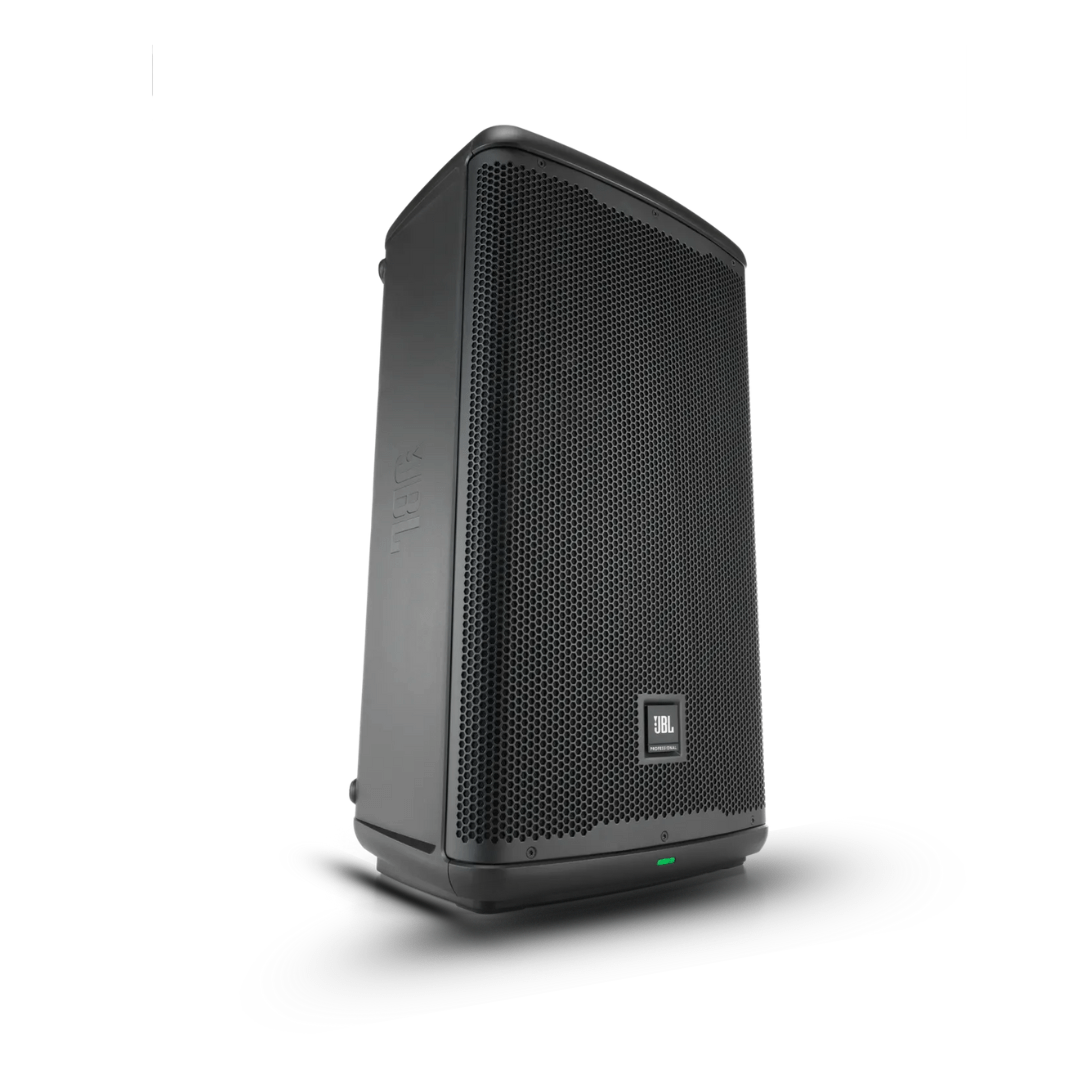

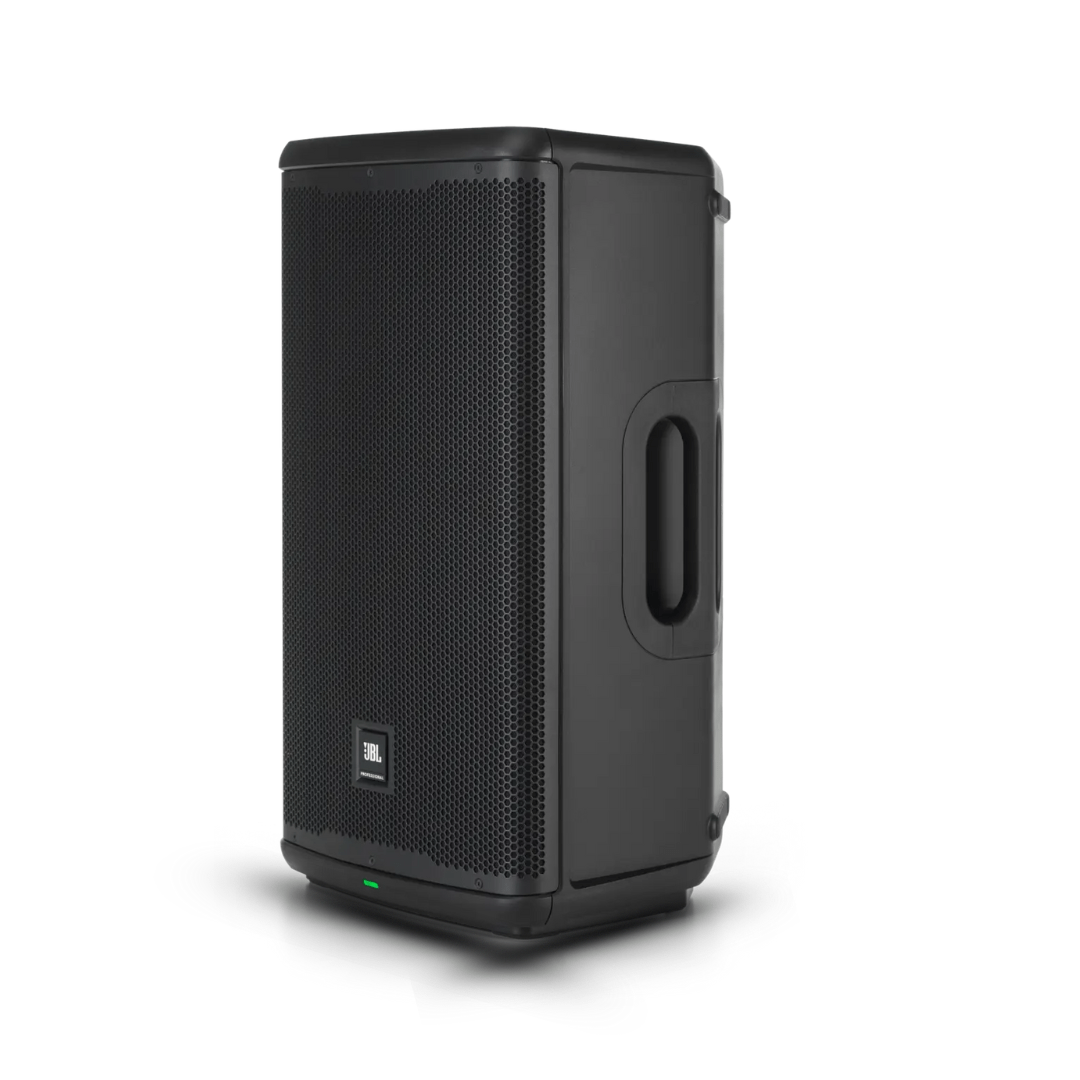

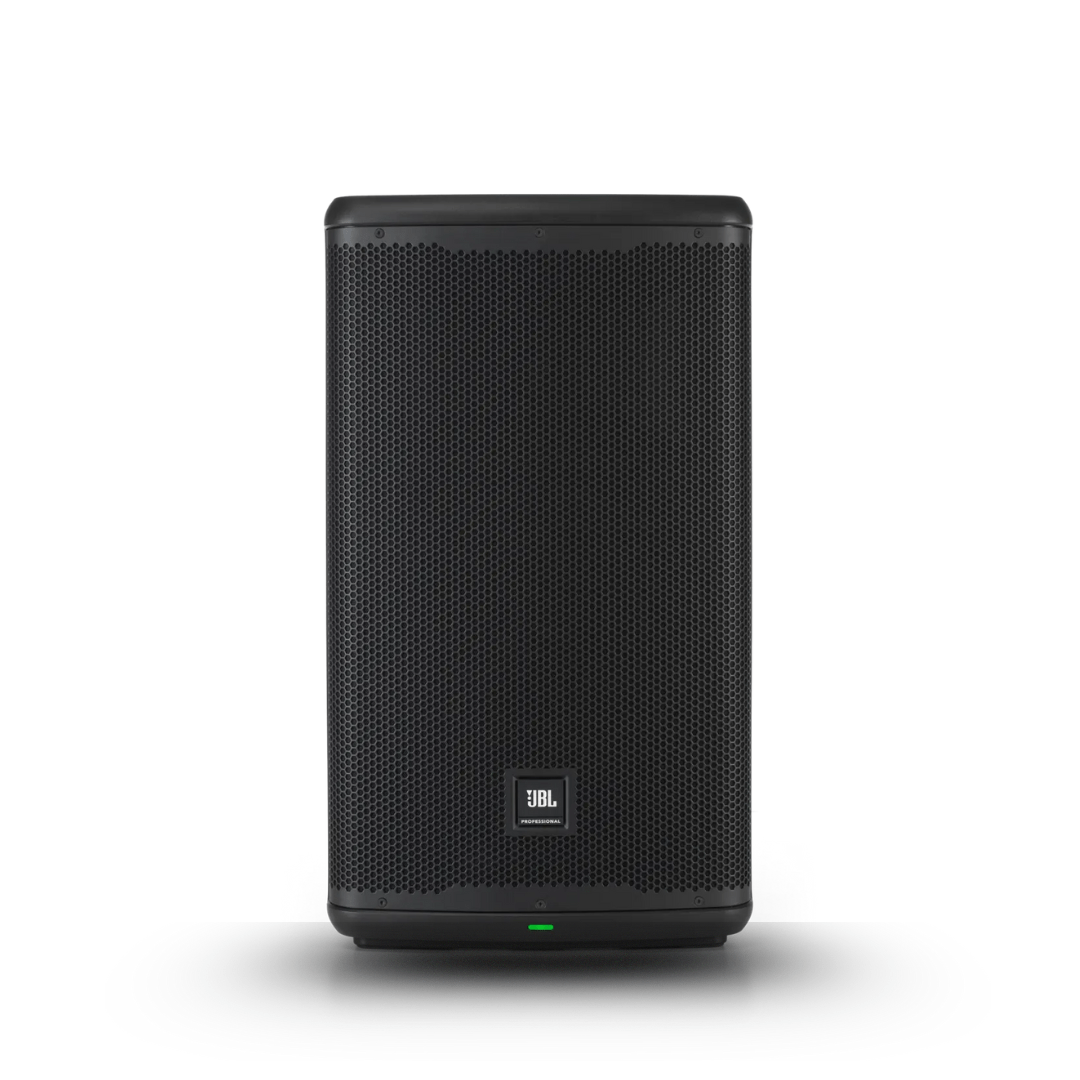

JBL EON712D-EK is a portable 12-inch powered PA speaker from the EON700 Series. It adds more low-end weight and reach than the 10-inch model while keeping a built-in mixer, dbx processing and Bluetooth streaming, which makes it a good fit for bands, DJs, worship spaces and mid-size venues.
Key features
- 12-inch woofer: a custom woofer with a 2-inch voice coil pairs with a 2414H-1 neodymium compression driver.
- Class D amplification: 1,300 W peak / 650 W RMS with a maximum SPL of 127 dB.
- Smooth horn coverage: a redesigned high-frequency horn gives 100° horizontal by 60° vertical dispersion.
- Built-in 3-channel digital mixer: two XLR combo inputs and an XLR pass-through for mics, instruments and daisy-chaining.
- Bluetooth 5.0: stream music and control the speaker, with True Wireless Stereo for a pair.
- dbx DSP: automatic feedback suppression, parametric EQ, ducking and 100 ms speaker delay.
- Backlit LCD and app control: set up on the speaker or through the JBL Pro Connect app.
- Flexible mounting: built-in pole mount, two carry handles and support for an optional universal yoke bracket; about 14.5 kg.
Ideal for
Live music, DJ sets, worship services, conferences, school and college programmes, banquet halls and rental sound setups.
Buy JBL EON712D-EK in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. Contact us for the latest price and a GST quotation.
JBL EON712D-EK at a glance
| Product type | Portable 12-inch powered PA loudspeaker |
|---|---|
| Series | JBL EON700 Series |
| Transducers | 12-inch woofer (2-inch voice coil), 2414H-1 neodymium compression driver |
| Amplifier | Class D, 1,300 W peak / 650 W RMS |
| Max SPL | 127 dB |
| Frequency response | 60 Hz to 20 kHz (-3 dB); 50 Hz to 20 kHz (-10 dB) |
| Coverage | 100° H x 60° V |
| Inputs | 2 x XLR combo, XLR pass-through |
| Wireless | Bluetooth 5.0 with True Wireless Stereo |
| Weight / size | 14.5 kg; 26.3 x 15 x 12.75 in (H x W x D) |

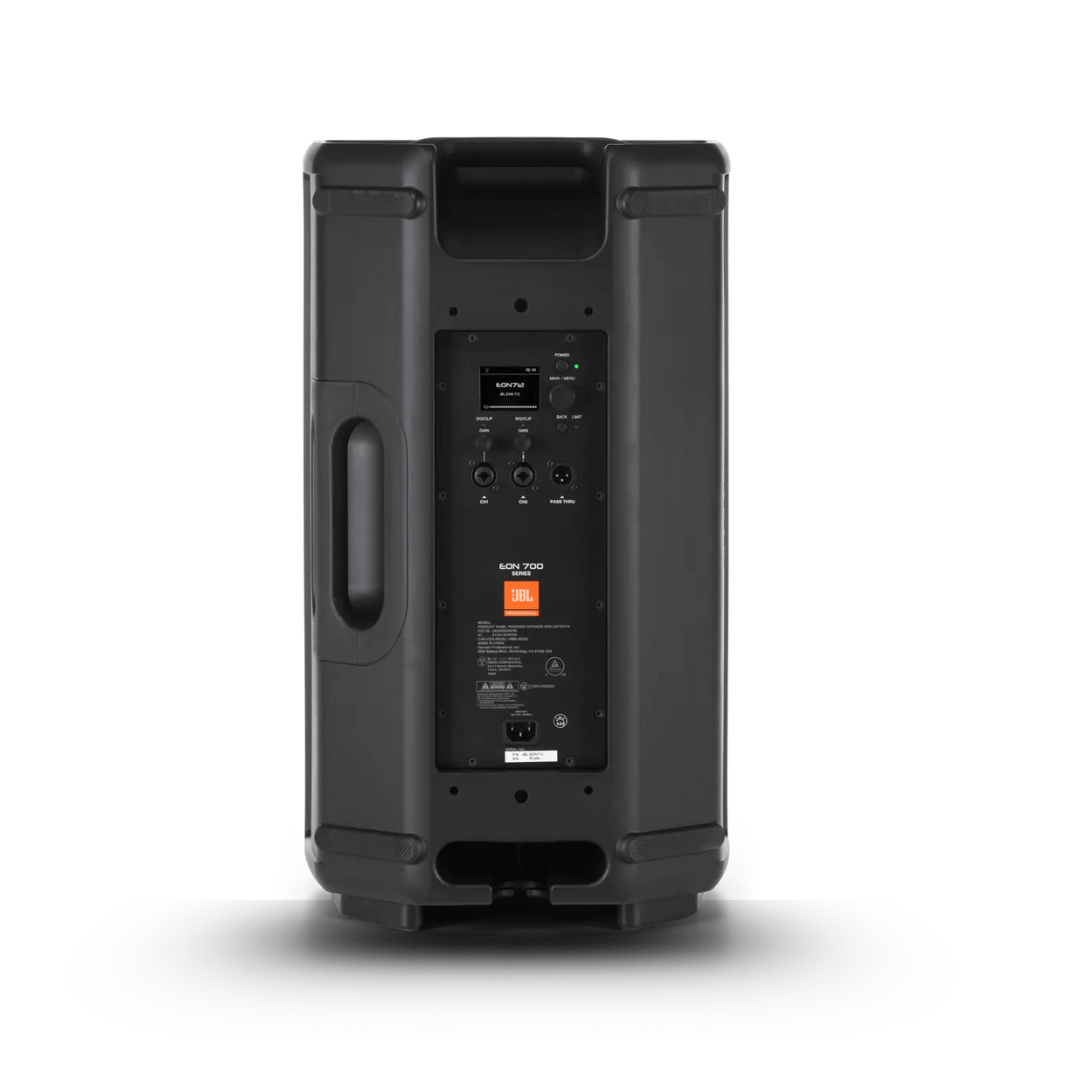

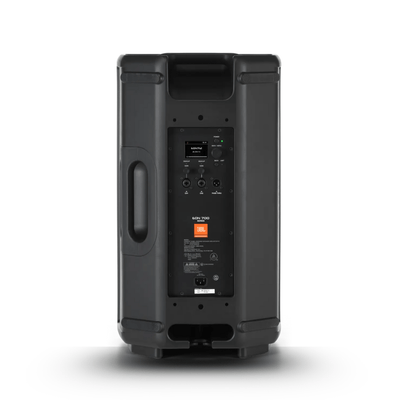

Built-in mixer and processing
The EON712 includes a 3-channel digital mixer and dbx DSP, so small systems need no external mixer. A backlit LCD and the JBL Pro Connect app handle setup.
- Automatic feedback suppression for mic use.
- Parametric EQ, ducking and 100 ms delay.
- Bluetooth 5.0 streaming with TWS pairing.
Set up on a stand or as a floor speaker

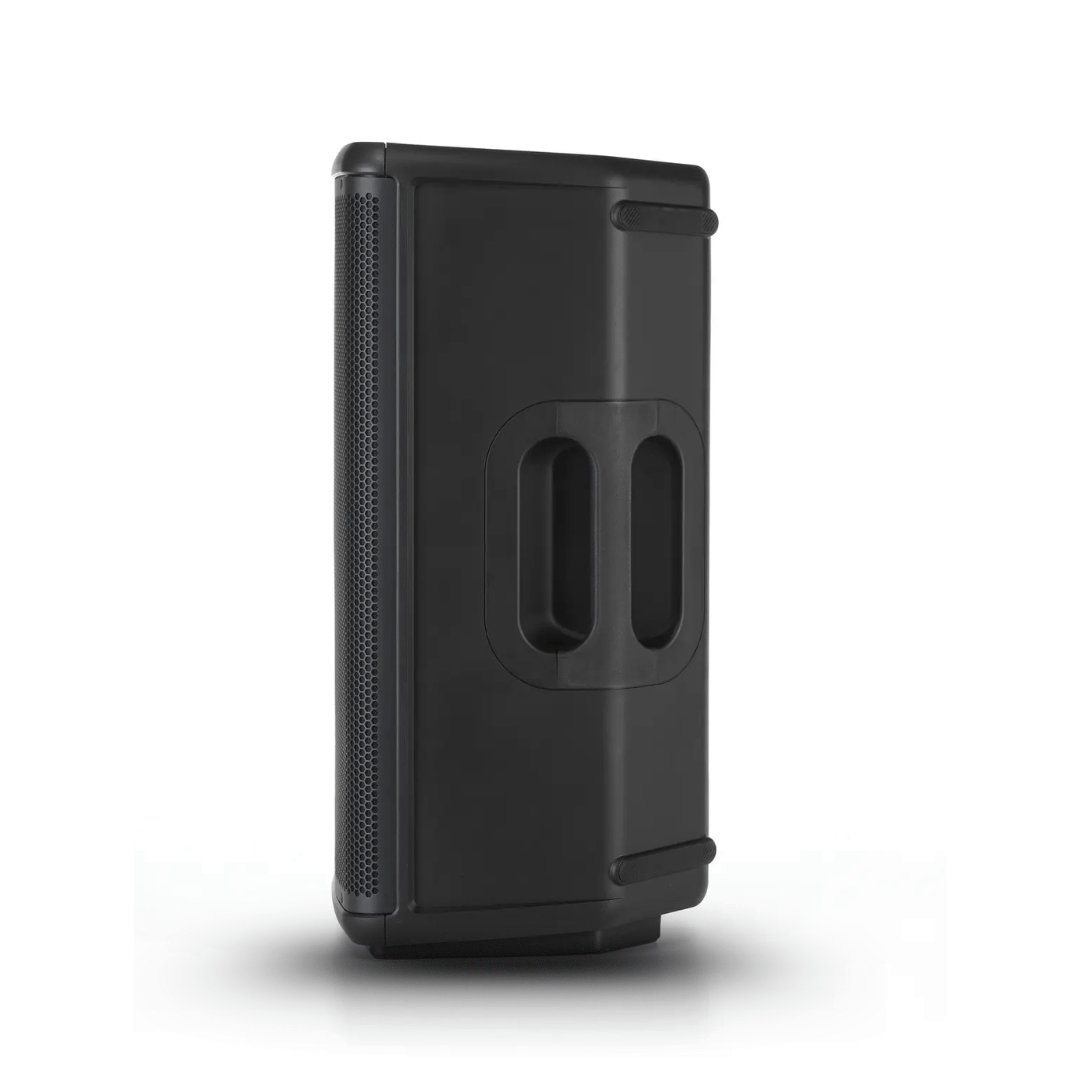

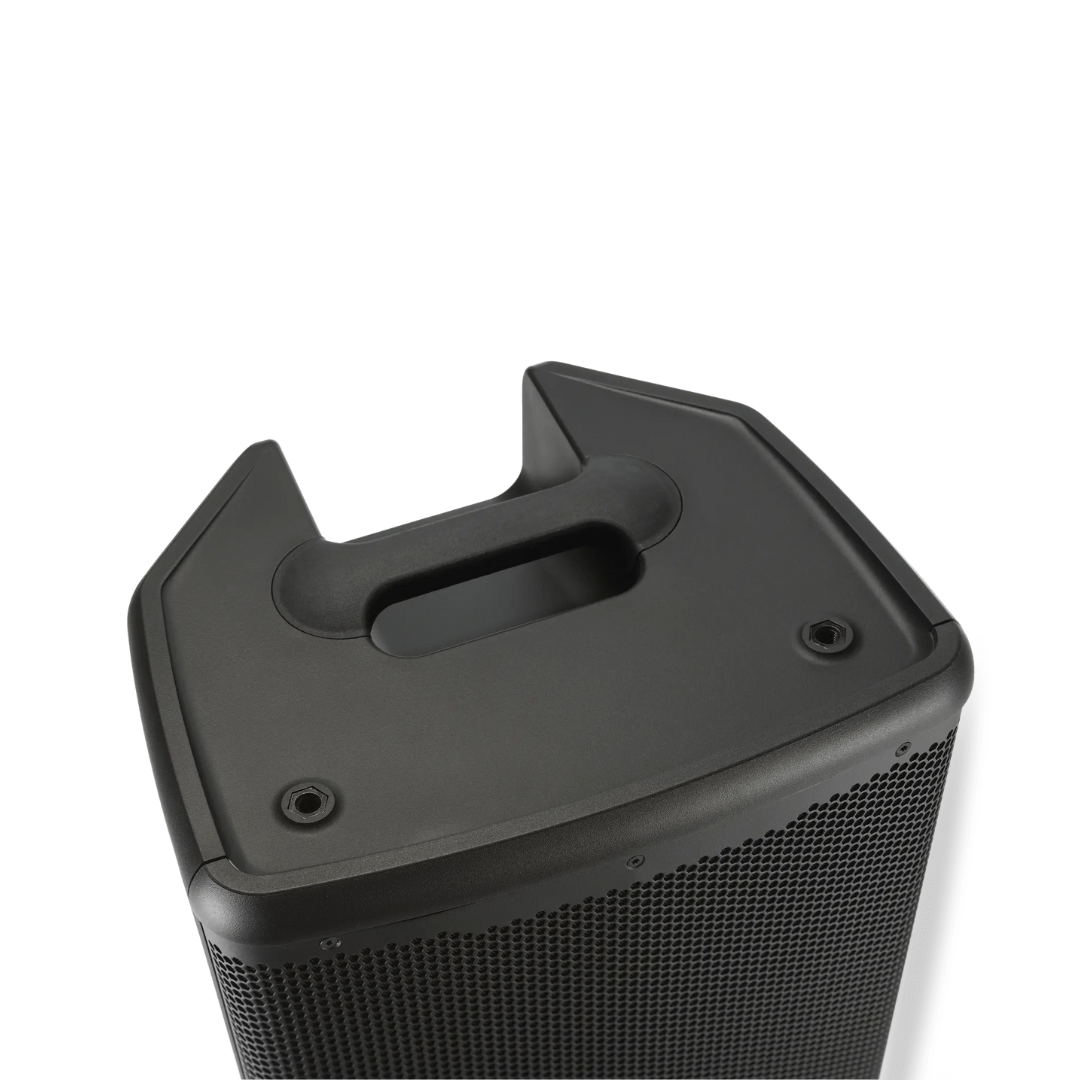

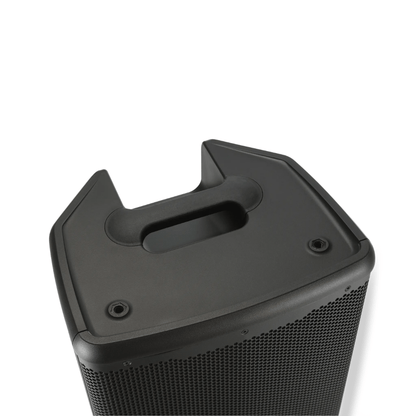

A built-in pole mount lets the speaker sit on a stand, while an optional universal yoke bracket adds hanging or angled placement. Two handles make transport easier.
Good to know: Specifications are taken from the JBL EON712 manufacturer page and may differ slightly by regional variant. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
Frequently Asked Questions
Can this be used for live events?
Yes, the EON712D-EK is designed for live sound, DJ setups, and portable PA use.
You may also consider
Other video conferencing cameras, speakerphones and VC solutions
-

JBL

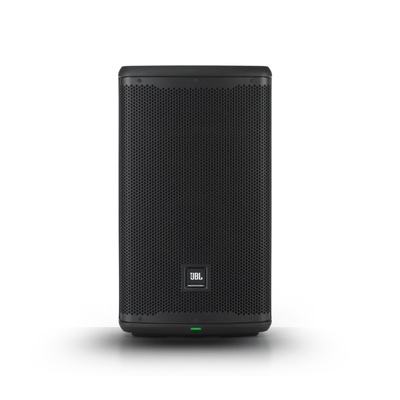

JBL EON710D-EK 10-inch Powered PA Speaker with Bluetooth
-
