Rocwave NOVA · PTZ Conferencing Camera
4K 12X Voice Tracking PTZ Camera

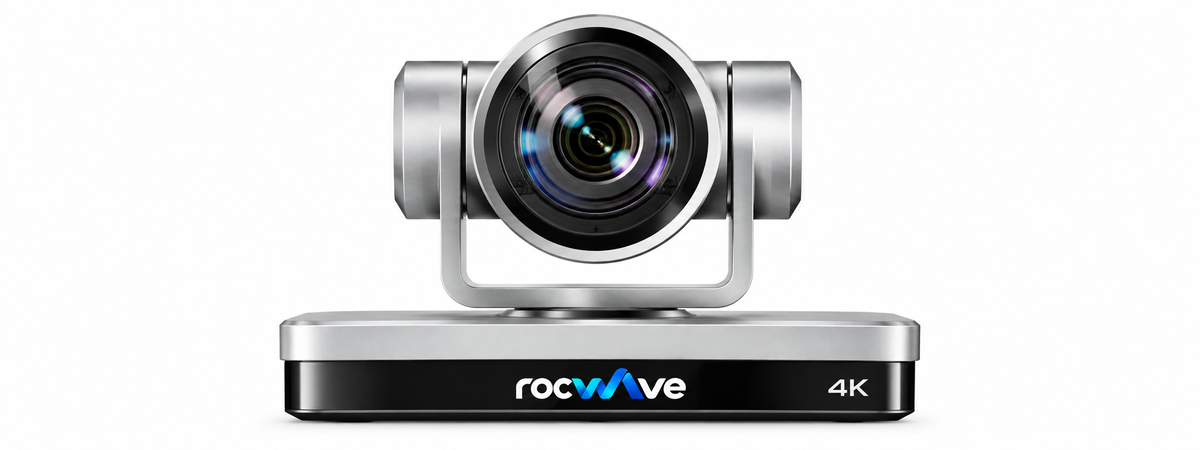

RW-NV12 4K 12X Optical Zoom PTZ Camera Auto Framing + Voice Tracking
- 4K, 12X Optical Zoom
- 6-Mic Voice Tracking
- PoE
- Up to 255 Presets
Key Highlights
-
12X Optical / 15X Digital Zoom
4K PTZ lens with 12X optical zoom and up to 15X digital zoom.
-
Auto Framing (Face Detection)
Automatically detects participants; farthest framing distance 6–7 metres.
-
Intelligent Voice Tracking
6 omni-directional microphone arrays, 6–7m pickup, on/off toggle.
-
HDMI/USB3.0 + PoE
HDMI, USB3.0 and LAN outputs with PoE support.
-
Low-Power Sleep <400mW
Enters a low-power sleep mode under 400mW.
Technical Specifications
Close-Up (PTZ) Lens
- Image Sensor
- 1/2.8-inch CMOS, 8.29 effective megapixels, 16:9
- Optical Zoom
- 12X
- Viewing Angle
- H: 7.6° (N) – 80.5° (W)
- Iris Value
- F1.8 – F3.6
- Digital Zoom
- 15X
- Minimum Illumination
- 0.5 Lux (F1.8, AGC ON)
- DNR
- 2D & 3D
- White Balance
- Auto/Manual/One-Key White Balance/Specified Color Temperature
- Focus Mode
- Auto/Manual/One-Key Focus
- Exposure Mode
- Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority
- Shutter Speed
- 1/25 – 1/20000
- SNR
- >50dB
Panoramic Lens
- Lens (Panoramic)
- Fixed lens
- Field of View (Panoramic)
- 110.2°/101.8°/69.5° (D/H/V)
- Iris (Panoramic)
- F2.0±5%
- Focus (Panoramic)
- F=1.89mm
Interface
- Back Panel
- HDMI, LAN (supports PoE), USB3.0, A-IN, RS232-IN, DC12V power supply, power switch
- Video Output
- HDMI, LAN, USB3.0
- Video Compression
- LAN: H.264, H.265; USB3.0: MJPG, H264, YUY2, NV12
- Audio Input
- Dual-channel 3.5mm linear input
- Network Protocols
- RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT
- Control Protocols
- VISCA, Pelco-D, Pelco-P
PTZ
- Pan
- -110° to +110°
- Tilt
- -30° to +30°
- Presets
- Up to 255 (10 via remote control)
Power & Physical
- Power Supply
- HEC3800 socket (DC12V); adapter input AC110–220V, output DC12V/2.5A
- Power Consumption
- Under 12W
- Dimensions
- 220mm (L) × 144mm (W) × 159mm (D)
- Weight
- Approx. 1.7kg
- Environment
- Indoors
In the Box
- Standard Accessories
- Power adapter, RS232 control cable, USB3.0 cable, remote control, user manual
- Optional Accessory
- Mount brackets
Product information
Rocwave Nova (RW-NV12) is a 4K dual-lens PTZ camera with 12X optical zoom, built-in voice tracking and PoE connectivity for conference rooms.
Key Features
- 4K Ultra HD PTZ lens with 12X optical zoom, 80.5° angle
- Integrated fixed panoramic lens, field of view 110.2°/101.8°/69.5° (D/H/V)
- Auto framing via built-in face detection, with a farthest framing distance of 6–7 metres
- Intelligent voice positioning and tracking via 6 omni-directional microphone arrays, maximum pick-up distance 6–7 metres, with voice tracking on/off control
- Pan -110° to +110°, tilt -30° to +30°, up to 255 presets
- Low-power sleep mode, under 400mW
- HDMI, USB3.0 and LAN (PoE) outputs
Technical Specifications
| Close-Up (PTZ) Lens | |
|---|---|
| Image Sensor | 1/2.8-inch CMOS, 8.29 effective megapixels, 16:9 |
| Optical Zoom | 12X |
| Viewing Angle | H: 7.6° (N) – 80.5° (W) |
| Iris Value | F1.8 – F3.6 |
| Digital Zoom | 15X |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| DNR | 2D & 3D |
| White Balance | Auto/Manual/One-Key White Balance/Specified Color Temperature |
| Focus Mode | Auto/Manual/One-Key Focus |
| Exposure Mode | Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority |
| Shutter Speed | 1/25 – 1/20000 |
| SNR | >50dB |
| Panoramic Lens | |
| Lens | Fixed lens |
| Field of View | 110.2°/101.8°/69.5° (D/H/V) |
| Iris | F2.0±5% |
| Focus | F=1.89mm |
| Interface | |
| Back Panel | HDMI, LAN (supports PoE), USB3.0, A-IN, RS232-IN, DC12V power supply, power switch |
| Video Output | HDMI, LAN, USB3.0 |
| Video Compression | LAN: H.264, H.265; USB3.0: MJPG, H264, YUY2, NV12 |
| Audio Input | Dual-channel 3.5mm linear input |
| Network Protocols | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT |
| Control Protocols | VISCA, Pelco-D, Pelco-P |
| PTZ | |
| Pan | -110° to +110° |
| Tilt | -30° to +30° |
| Presets | Up to 255 (10 via remote control) |
| Power & Physical | |
| Power Supply | HEC3800 socket (DC12V); adapter input AC110–220V, output DC12V/2.5A |
| Power Consumption | Under 12W |
| Dimensions | 220mm (L) × 144mm (W) × 159mm (D) |
| Weight | Approx. 1.7kg |
| Environment | Indoors |
| In the Box | |
| Standard Accessories | Power adapter, RS232 control cable, USB3.0 cable, remote control, user manual |
| Optional Accessory | Mount brackets |
Connectivity
HDMI, USB3.0 and a LAN port supporting PoE, plus RS232-IN control and a dual-channel 3.5mm audio input. Supports RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS and SRT network protocols.
AI Tracking
Auto framing uses built-in face detection to automatically detect participants (farthest framing distance 6–7 metres), while intelligent voice positioning and tracking locates the speaker in real time via 6 omni-directional microphone arrays (maximum pick-up distance 6–7 metres).
