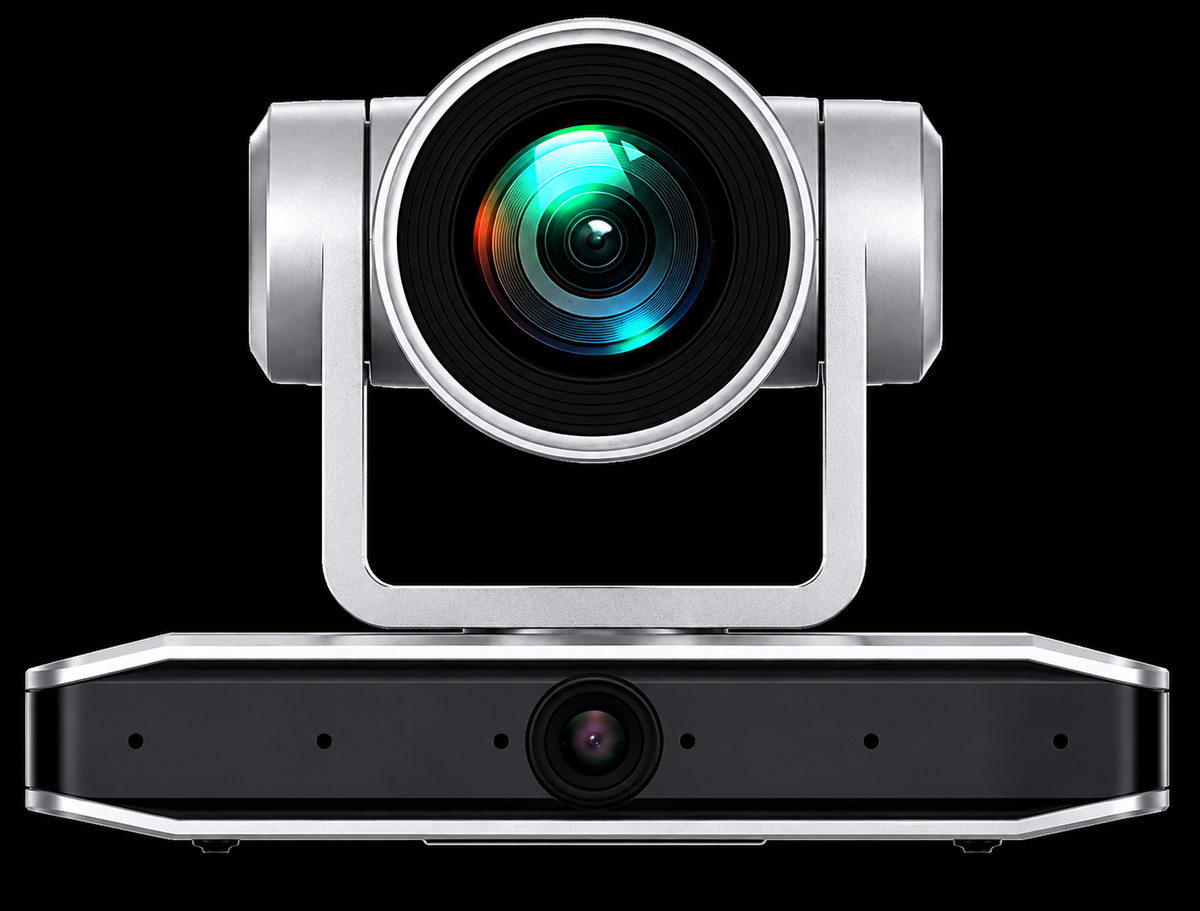

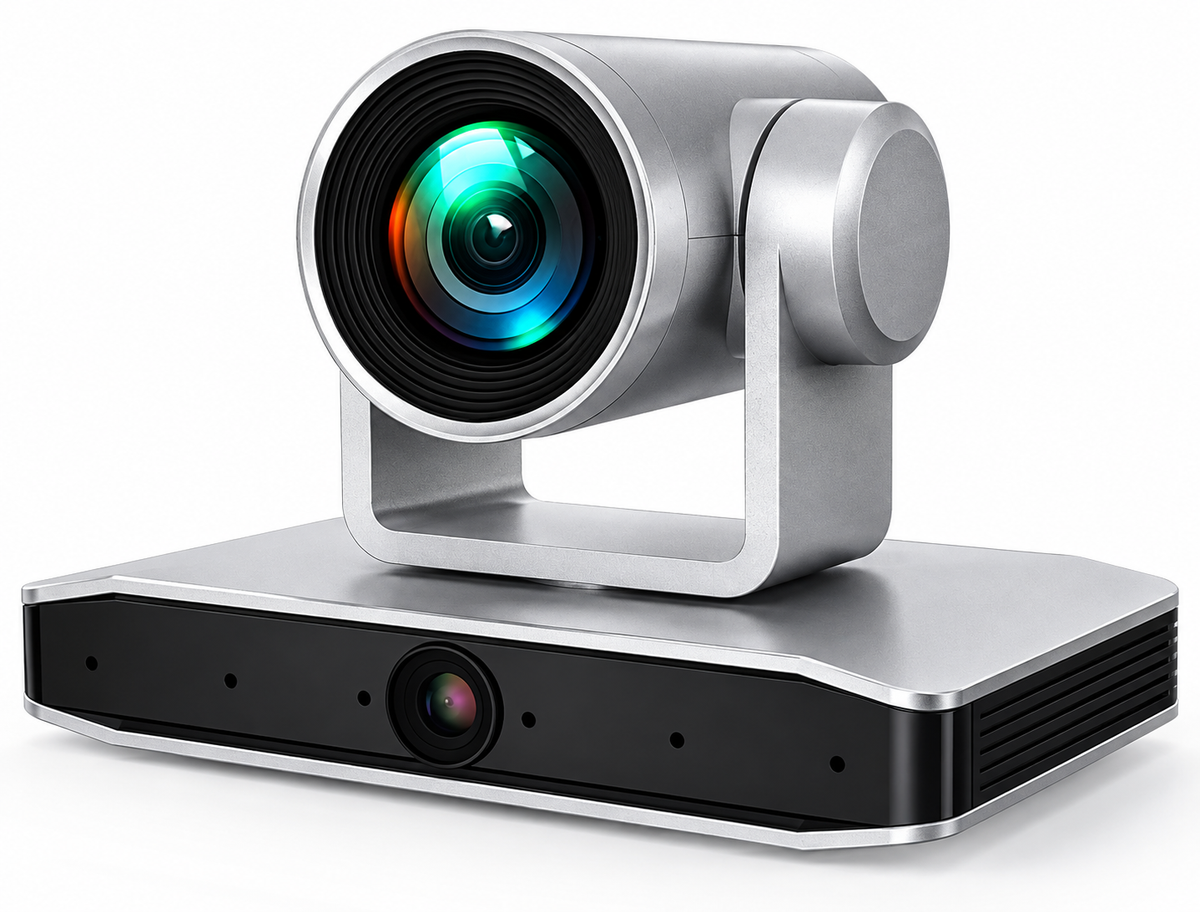

Rocwave ORION · PTZ Conferencing Camera
4K Dual-Lens PTZ Camera with AI Tracking
RW-OR12 4K Dual-Lens PTZ Camera Panoramic + 12X Optical Zoom
- 4K Dual Lens
- 12X Optical Zoom
- AI Tracking
- HDMI + SDI + USB + PoE+
Key Highlights
-
12X Optical Zoom
4K PTZ lens with 12X optical zoom and an 80° wide viewing angle.
-
4 AI Tracking Modes + ReID
Real-time, stage, regional tracking and intelligent framing with ReID pedestrian recognition.
-
6-Mic Voice Location Tracking
Six omni-directional microphone arrays for intelligent voice tracking.
-
HDMI/SDI/USB3.0 + PoE+
HDMI, SDI, USB3.0 and LAN outputs with PoE+ support.
-
Up to 255 Presets
Up to 255 PTZ presets (10 via remote control).
Technical Specifications
Close-Up (PTZ) Lens
- Image Sensor
- 1/2.8-inch CMOS, 8.42 effective megapixels, 16:9
- Optical Zoom
- 12X
- Viewing Angle
- H: 8° (N) – 80° (W)
- Iris Value
- F1.8 – F2.68
- Digital Zoom
- 10X
- Minimum Illumination
- 0.5 Lux (F1.8, AGC ON)
- DNR
- 2D & 3D
- White Balance
- Auto/Manual/One-Key White Balance/Specified Color Temperature
- Focus Mode
- Auto/Manual/One-Click Focus
- Exposure Mode
- Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority
- Shutter Speed
- 1/25 – 1/10000
- SNR
- >50dB
Panoramic Lens
- Image Sensor (Panoramic)
- 1/2.8-inch CMOS
- Lens (Panoramic)
- Fixed focal length, horizontal FOV 110°, aperture F=2.2, focal length f=2.03mm, angle adjustable ±15°
Interface
- Back Panel
- HDMI, SDI, LAN (supports PoE+), USB3.0, LINE-IN, RS485/RS232
- Video Output
- HDMI, SDI, LAN, USB3.0
- Video Compression
- LAN: H.264, H.265; USB3.0: YUY2, NV12
- Audio Input
- Dual 3.5mm linear inputs
- Network Protocols
- RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT
- Control Protocols
- VISCA, Pelco-D, Pelco-P
PTZ
- Pan
- -170° to +170°
- Tilt
- -30° to +90°
- Presets
- Up to 255 (10 via remote control)
Power & Physical
- Power Supply
- HEC3800 socket (DC12V); adapter input AC110–220V, output DC12V/2.5A
- Power Consumption
- 24W (max)
- Dimensions
- 219mm × 136.6mm × 155.4mm
- Weight
- Approx. 1.58kg
- Environment
- Indoors
Product information
Rocwave ORION (RW-OR12) is a 4K dual-lens PTZ conferencing camera that pairs a fixed panoramic lens with a 12X optical zoom PTZ lens, using built-in AI tracking and voice localization to keep the right people in frame.
Key Features
- 4K Ultra HD PTZ lens with 12X optical zoom, 80° wide angle
- Integrated fixed panoramic lens, 110° horizontal field of view, adjustable ±15°
- Four AI tracking modes: real-time tracking, stage tracking, regional tracking and intelligent framing, with ReID pedestrian recognition
- Intelligent voice location tracking via 6 omni-directional microphone arrays
- Pan -170° to +170°, tilt -30° to +90°, up to 255 presets
- HDMI, SDI, USB3.0 and LAN outputs with PoE+ support
Technical Specifications
| Close-Up (PTZ) Lens | |
|---|---|
| Image Sensor | 1/2.8-inch CMOS, 8.42 effective megapixels, 16:9 |
| Optical Zoom | 12X |
| Viewing Angle | H: 8° (N) – 80° (W) |
| Iris Value | F1.8 – F2.68 |
| Digital Zoom | 10X |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| DNR | 2D & 3D |
| White Balance | Auto/Manual/One-Key White Balance/Specified Color Temperature |
| Focus Mode | Auto/Manual/One-Click Focus |
| Exposure Mode | Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority |
| Shutter Speed | 1/25 – 1/10000 |
| SNR | >50dB |
| Panoramic Lens | |
| Image Sensor | 1/2.8-inch CMOS |
| Lens | Fixed focal length, horizontal FOV 110°, aperture F=2.2, focal length f=2.03mm, angle adjustable ±15° |
| Interface | |
| Back Panel | HDMI, SDI, LAN (supports PoE+), USB3.0, LINE-IN, RS485/RS232 |
| Video Output | HDMI, SDI, LAN, USB3.0 |
| Video Compression | LAN: H.264, H.265; USB3.0: YUY2, NV12 |
| Audio Input | Dual 3.5mm linear inputs |
| Network Protocols | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT |
| Control Protocols | VISCA, Pelco-D, Pelco-P |
| PTZ | |
| Pan | -170° to +170° |
| Tilt | -30° to +90° |
| Presets | Up to 255 (10 via remote control) |
| Power & Physical | |
| Power Supply | HEC3800 socket (DC12V); adapter input AC110–220V, output DC12V/2.5A |
| Power Consumption | 24W (max) |
| Dimensions | 219mm × 136.6mm × 155.4mm |
| Weight | Approx. 1.58kg |
| Environment | Indoors |
Connectivity
HDMI, SDI, USB3.0 and a LAN port supporting PoE+, plus RS485/RS232 control and dual 3.5mm audio inputs. Supports RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS and SRT network protocols.
AI Tracking
Four AI tracking modes — real-time tracking, stage tracking, regional tracking and intelligent framing — with ReID pedestrian recognition to keep a locked-on speaker in frame, plus intelligent voice location tracking from 6 omni-directional microphone arrays.
Suitable For
Per the manufacturer's application guidance: remote education, teaching recording and broadcasting, conference systems, remote training, remote medical care, court hearing systems and emergency command systems.
Specifications are based on the manufacturer's published information and may change. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
