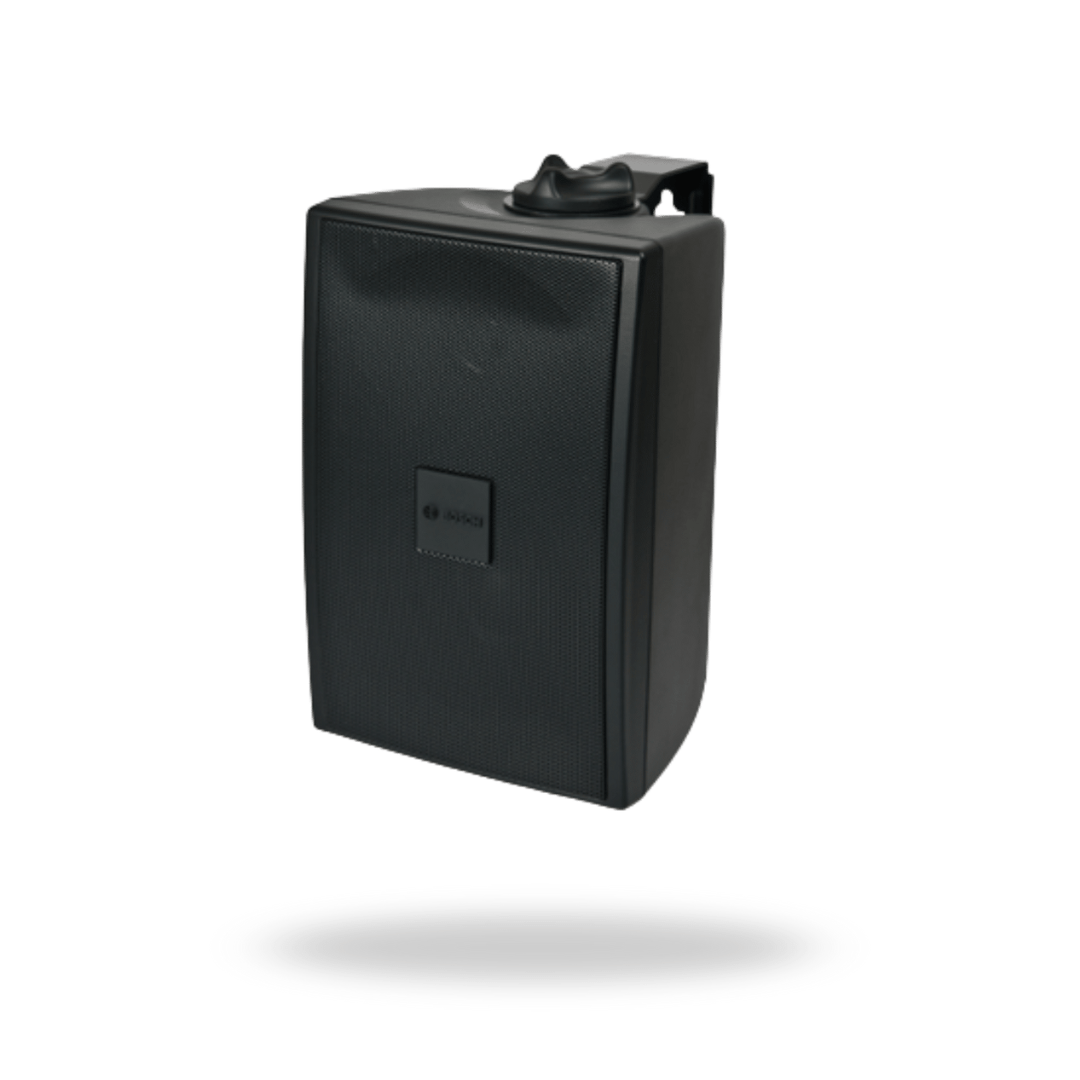

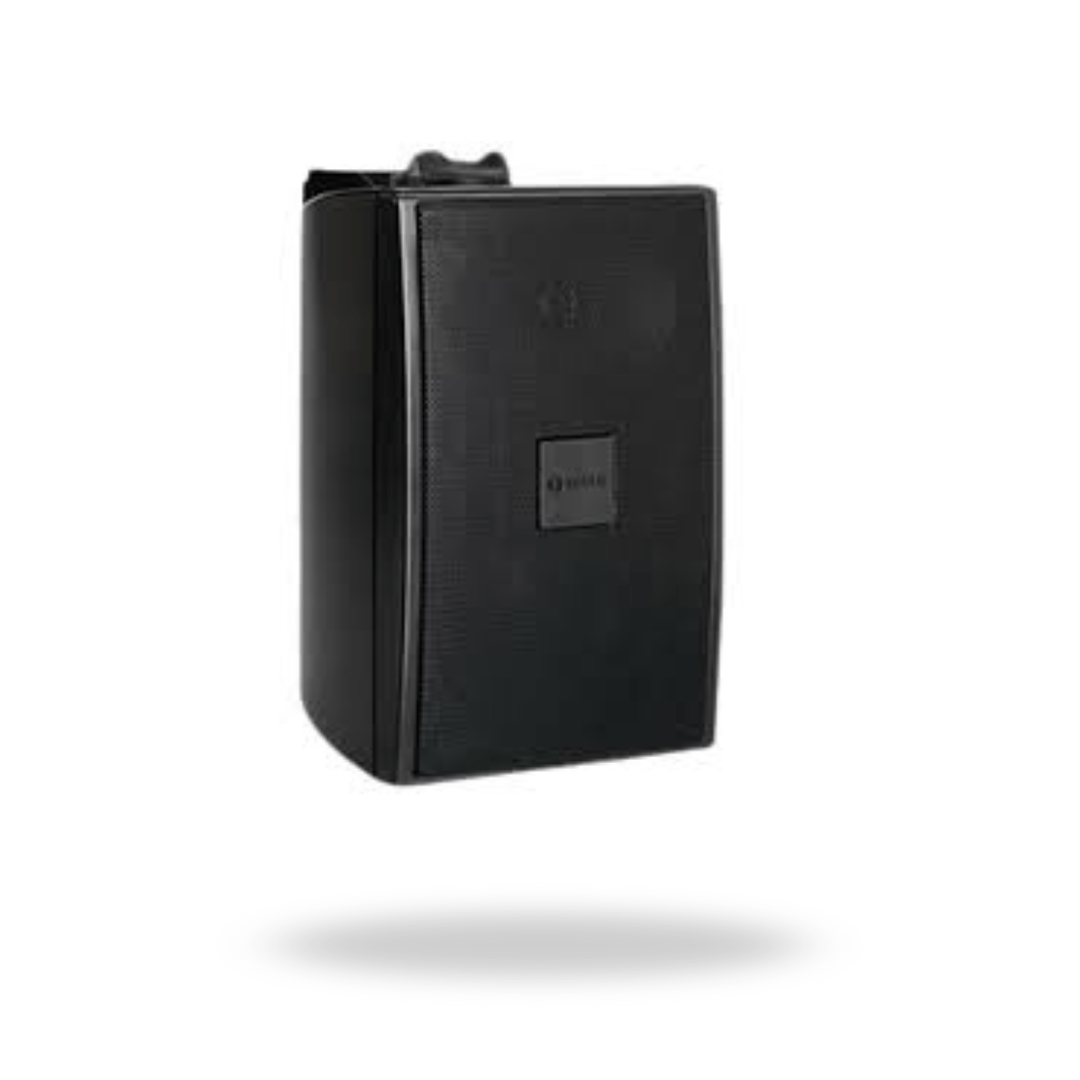

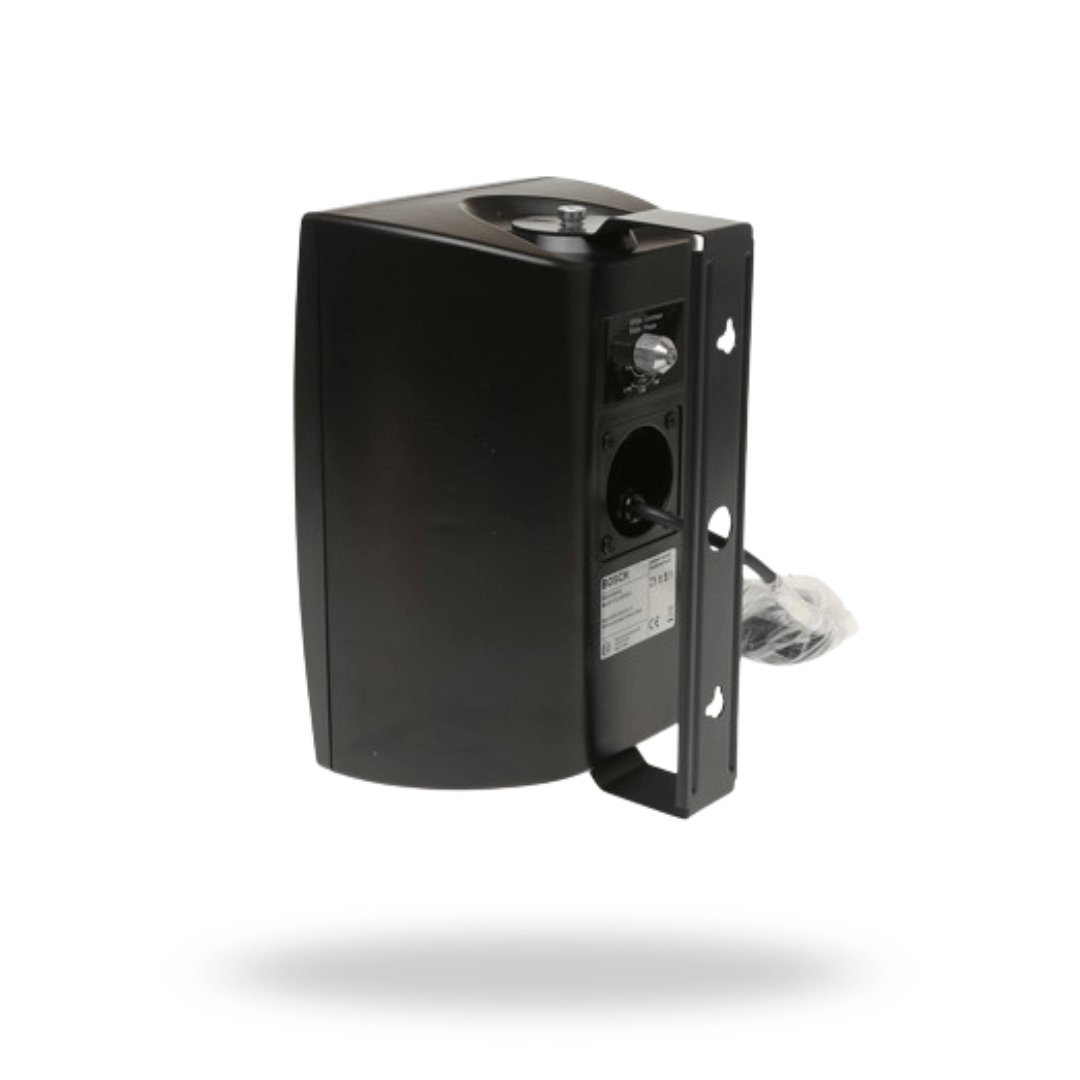

Bosch LB2-UC30-D1 30W Premium Sound Cabinet Loudspeaker
Bosch LB2-UC30-D1 30W Premium Sound Cabinet Loudspeaker
Couldn't load pickup availability
The Bosch LB2-UC30-D1 30W Premium Sound Cabinet Loudspeaker delivers crystal-clear audio with powerful 30W output. Perfect for professional installations, it ensures exceptional sound quality for any environment.
Durable and sleek design, perfect for any commercial or public space
Easy to install with included mounting hardware
Can be used as a standalone speaker or integrated into a sound system
Ideal for large areas such as conference rooms, auditoriums, and retail stores
Wide frequency response for accurate sound reproduction
Weather-resistant construction allows for indoor and outdoor use
Compatible with both low-impedance and high-impedance systems
Designed by Bosch, a trusted brand in audio technology
Suitable for both background music and speech amplification purposes.
Key Specifications
|
Maximum power |
45 W |
|
Rated power |
30 W (30 / 15 / 7.5 / 3.75 W) |
|
Sound pressure level at rated / 1 W (1 kHz, 1 m) |
105 / 90 dB (SPL) |
|
Effective frequency range (-10 dB) |
100 Hz to 18.5 kHz |
|
Opening angle 1 kHz / 4 kHz (-6 dB) |
160° / 81° (horizontal) / 150° / 90° (vertical) |
|
Rated input voltage |
15.5/70/100 V |
|
Rated impedance |
8 / 163 / 333 ohm |
|
Transducers |
127 mm (5”) woofer, 13 mm (0.51 “) dome tweeter |
|
Dimensions (H x W x D): |
250 x 160 x 140 mm, (9.84 x 6.30 x 5.51 in) |
|
Weight |
2.4 kg (5.29 lb) |
