Bosch LBD3905-D 12W Cabinet Loudspeaker India

Name: Bosch LBD3905-D 12W Bi-Directional Cabinet Loudspeaker, Black
Brand: Bosch
Price: 2478.0 INR
Availability: InStock

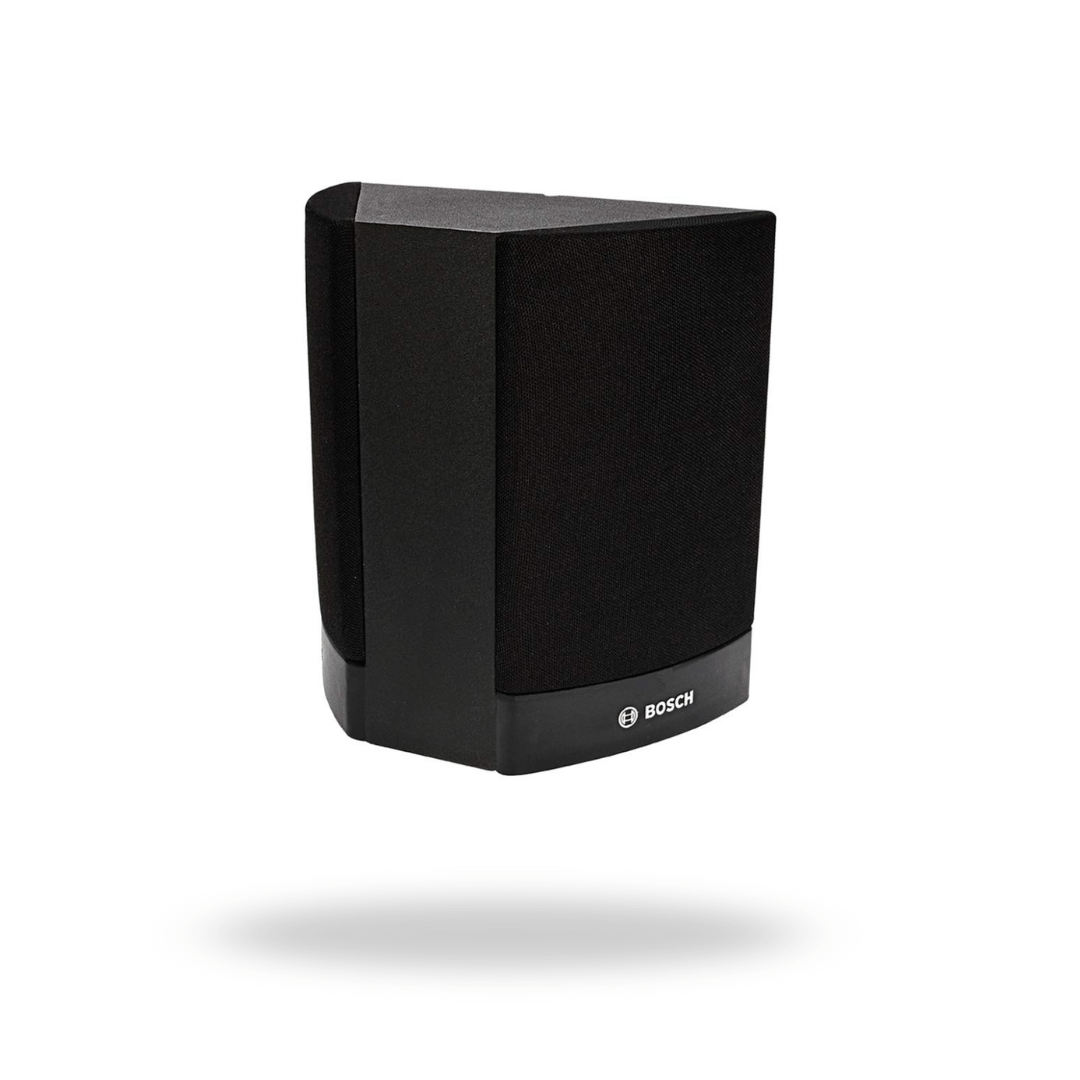

Bosch LBD3905-D 12W bi-directional cabinet loudspeaker, front view

Bosch LBD3905-D · Cabinet Loudspeaker

Bi-Directional 12W Cabinet Loudspeaker for 100V PA

LBD3905-D Wide Coverage from One Black Cabinet Ideal for Corridors & Open Rooms

12W Rated Power
Bi-Directional Design
254 x 254 deg Coverage
100V Line Input

Request for Quote

Product information

Bosch LBD3905-D is a 12W bi-directional cabinet loudspeaker in black for 100V public address systems. It sends sound out in two directions from one cabinet, so a single unit can cover both sides of a corridor, an open-plan room or a wide space.

Key features

12W rated power: enough level for medium rooms, corridors and open areas.
100V line input: rated input voltage of 100 V for constant-voltage PA systems.
150 Hz to 15 kHz response: tuned for speech intelligibility and background music (-10 dB).
85.8 dB sensitivity: measured at 1 W, 1 m, 1 kHz octave.
Defined coverage: 254 x 254 degrees coverage at both 1 kHz and 4 kHz (-6 dB) for very wide, even distribution.
Cabinet size: 243 x 230 x 131 mm and 1.9 kg.
Black finish: a neat cabinet for exposed indoor mounting.
Indoor environmental range: operates from -5 to 55 degrees C and stores from -40 to 70 degrees C.

Ideal for

Corridors, open-plan offices, waiting areas, lobbies and other spaces where one loudspeaker has to cover a wide area in more than one direction.

Buy Bosch LBD3905-D in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. Contact us for the latest price and a GST quotation.

Bosch LBD3905-D at a glance

Product type	Cabinet loudspeaker for public address
Rated power	12 W
Rated input voltage	100 V
Frequency range (-10 dB)	150 Hz to 15 kHz
Sensitivity (1 W, 1 m, 1 kHz)	85.8 dB
Coverage (-6 dB, 1 kHz)	254 x 254 deg
Coverage (-6 dB, 4 kHz)	254 x 254 deg
Dimensions (H x W x D)	243 x 230 x 131 mm
Weight	1.9 kg
Colour	Black

Two-direction sound from one cabinet

The bi-directional design of the LBD3905-D widens coverage compared with a single-direction cabinet, which reduces the number of speakers needed in long or open spaces.

254 x 254 degrees coverage at both 1 kHz and 4 kHz (-6 dB).
Runs from a 100V PA amplifier or mixer amplifier.
Sensitivity of 85.8 dB (1 W, 1 m) suits close-to-medium listening distances.

Bosch LBD3905-D FAQs

Can the Bosch LBD3905-D be used on a 100V line?

Yes. The specification lists a rated input voltage of 100 V, so it is intended for 100V constant-voltage public address systems driven by a suitable PA amplifier or mixer amplifier.

What is the Bosch LBD3905-D?

The Bosch LBD3905-D is a 12W black cabinet loudspeaker for 100V public address systems, used for speech announcements and background music.

What does bi-directional mean on the LBD3905-D?

It means the cabinet radiates sound in two directions, giving very wide coverage of 254 x 254 degrees at -6 dB from a single loudspeaker.

Who is the LBD3905-D for?

It suits corridors, open offices, lobbies and waiting areas that need wide, even PA coverage.

How much does the Bosch LBD3905-D cost?

Contact Universal AV Solutions for the latest price and a GST quotation.

Do you provide installation and support?

Yes. Universal AV Solutions provides supply, installation and after-sales support across Delhi NCR and pan-India.

Good to know: Specifications are based on the manufacturer's published information and may change. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
