Product information

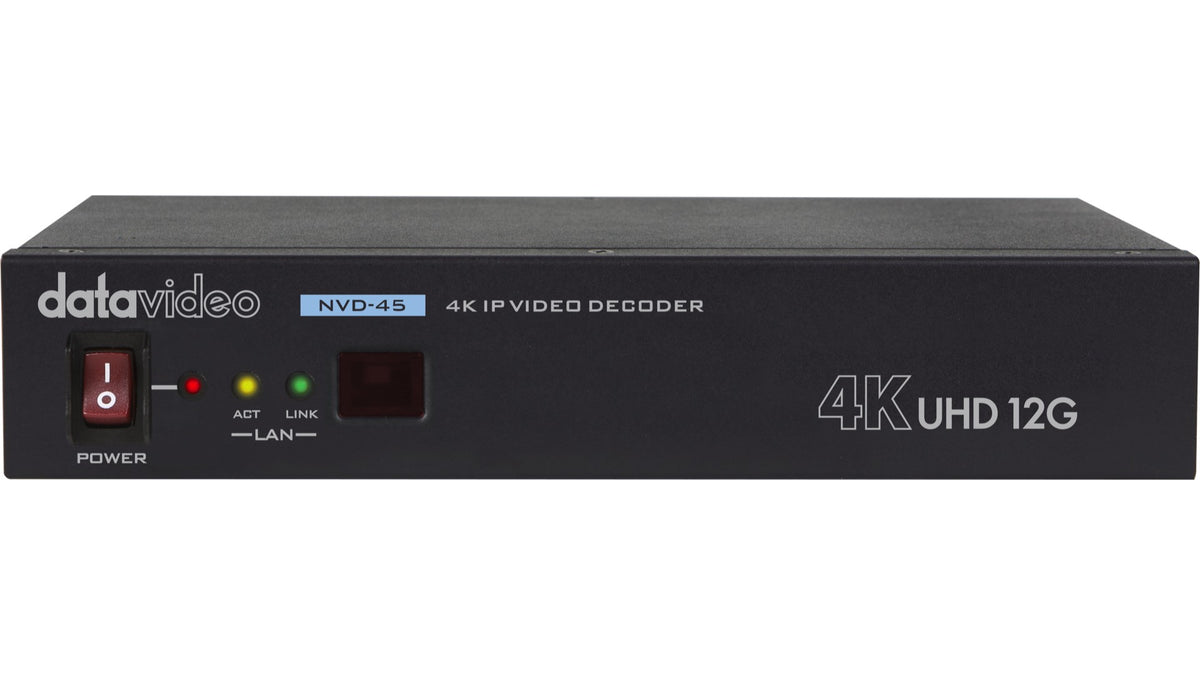

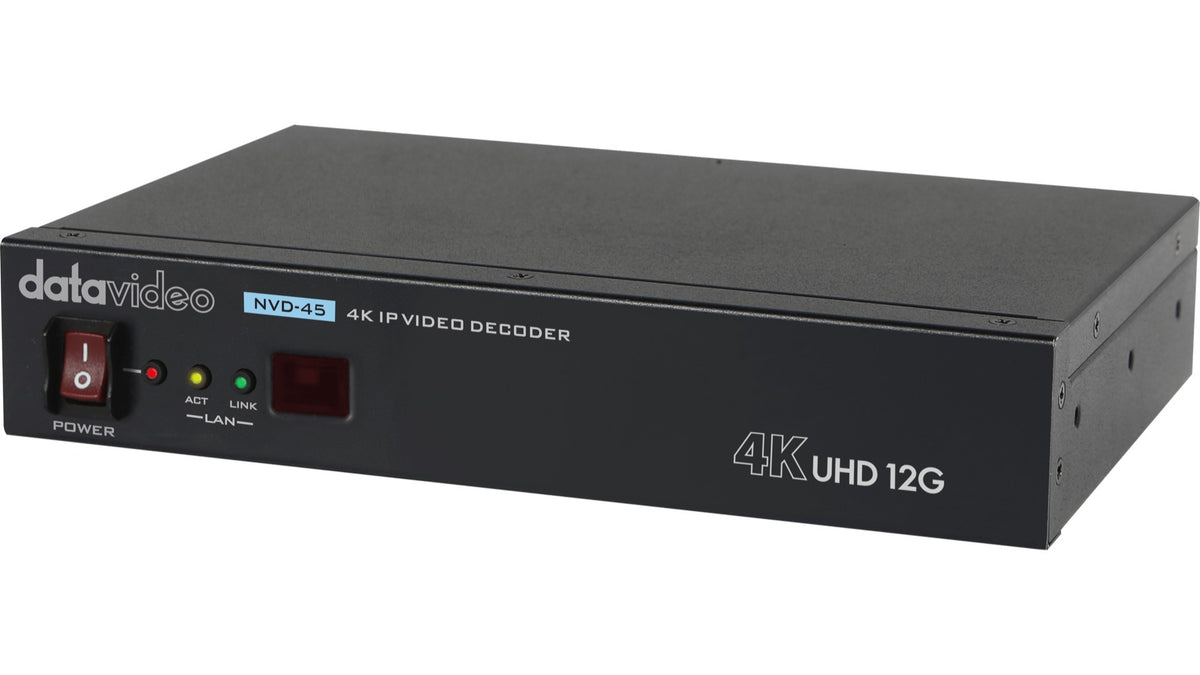

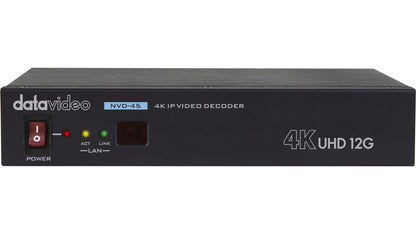

The Datavideo NVD-45 is a video decoder from Datavideo, supplied in India by Universal AV Solutions. NVD-45 4K SDI IP Video Decoder. Decode Videos from Datavideo Encoders, Youtube Live, UStream, and Other Major CDNs.
Key features
- Decode Videos from Datavideo Encoders, Youtube Live, UStream, and Other Major CDNs
- Decodes All Common Streaming Protocols Including SRT
- Pristine Quality
- Extremely Secure
- Always Reliable
- Low Latency
- Output High Quality Video at 2160p 50/60 FPS
- Easily Connect Encoders to Decoders with dvCloud
- Perfectly Matched with Datavideo Streaming Encoders
- Real-time Video Flip and Rotate
- Simultaneous Outputs
- RMC-12 Remote Control
Technical specifications
- Stream input: RTSP (UDP/TCP/HTTP), SRT caller, MPEG-TS (UDP/TCP pull), RTMP pull/push, UDP raw, HLS over HTTP

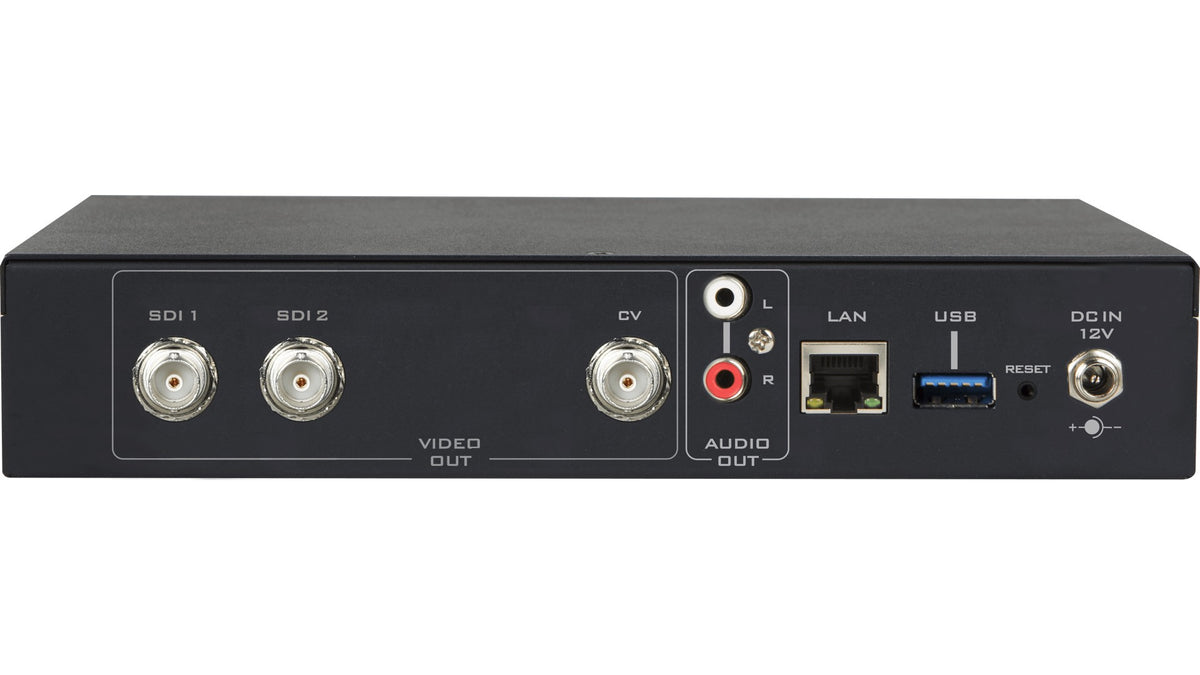

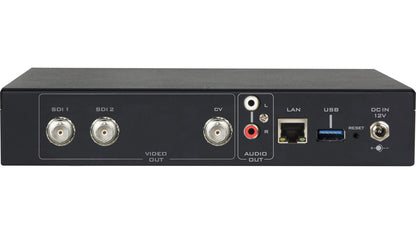

- Audio output: 2 x RCA (L/R), SDI embedded audio
- Video output: 12G-SDI x 2 (digital), Composite x 1 (analogue)
- Network: 1x RJ-45 (10/100/1000M), DHCP/Static IP
- Supported resolution: 3840x2160p (H.265 only), 1080p, 1080i, 720p, 576i 50, 480i 60; decoding up to 2160p60/50
- Control: Web browser UI, socket commands; automatic firmware upgrade
- Power: input AC 100~240V; output DC 12V/1A
- Operating temp 0~40C; storage -20~60C
- Dimensions: 220 x 143 x 42 mm; 1 kg
What's in the box (per official Datavideo page)
- 1 x NVD-45 product
- 1 x AD Switch DC 12V
- 1 x Remote Control
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
