Logitech Rally Bar · Video Conferencing Bar
4K All-in-One Video Bar for Medium to Large Rooms
Rally Bar All-in-One Video Conferencing Bar Camera, Mic Array and Speakers in One Unit
- 4K Camera
- 90° Field of View
- 6-Mic Array, Up to 7 m
- CollabOS & Logitech Sync
Price on Request
Every installation is different. Talk to our AV Consultant for configuration, BOQ and customised proposal.
Key Highlights
-
4K Camera
4K video with 15X HD zoom (5X optical, 3X digital)
-
90° Field of View
82.1° horizontal, 52.2° vertical, plus motorized pan and tilt
-
RightSight Auto-Framing
AI-driven framing of the active speaker, with an AI Viewfinder watching the room
-
6-Mic Beamforming Array
Five adaptive beams, pickup up to 7 m
-
RightSound Audio
Auto-levelling with noise and echo suppression
-
Integrated Speakers
Two 70 mm drivers, 8 W rated power
-
CollabOS and Logitech Sync
Appliance platform with cloud-based device management
-
USB and Appliance Modes
Use with a room PC or laptop, or as an appliance with a software licence
-
Expandable Audio
Supports up to 4 Rally Mic Pods for larger rooms
Product information

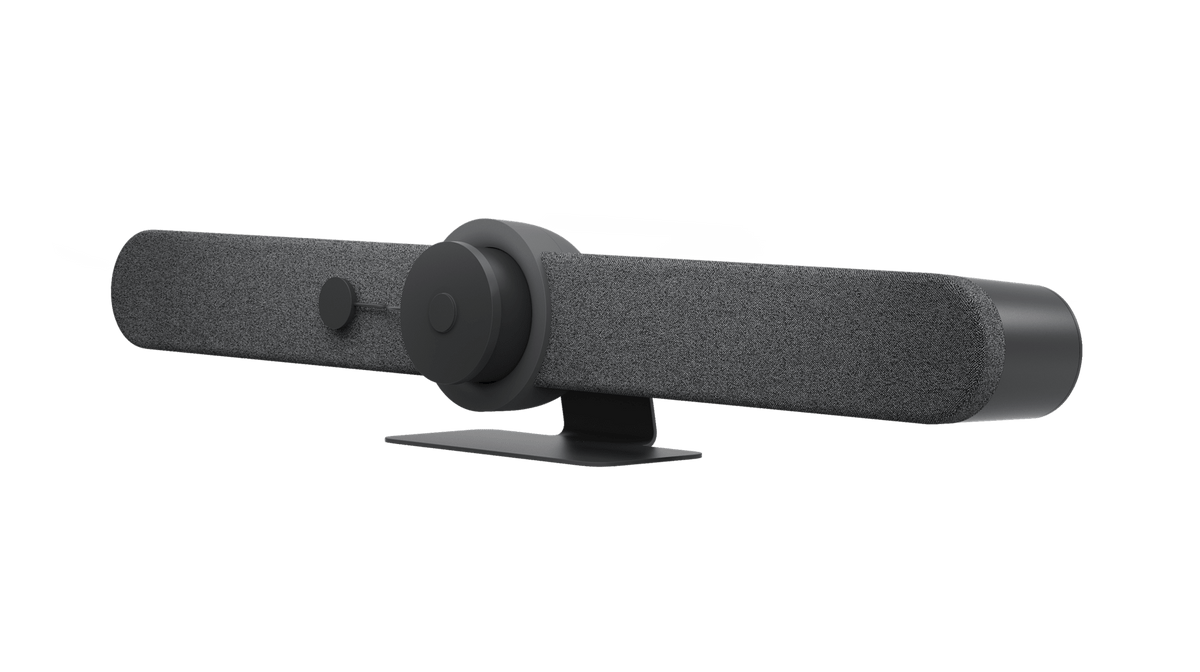

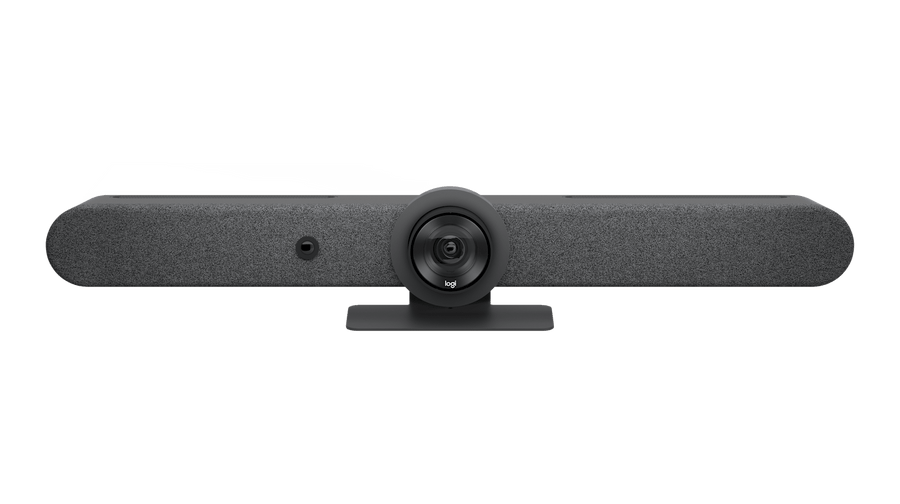

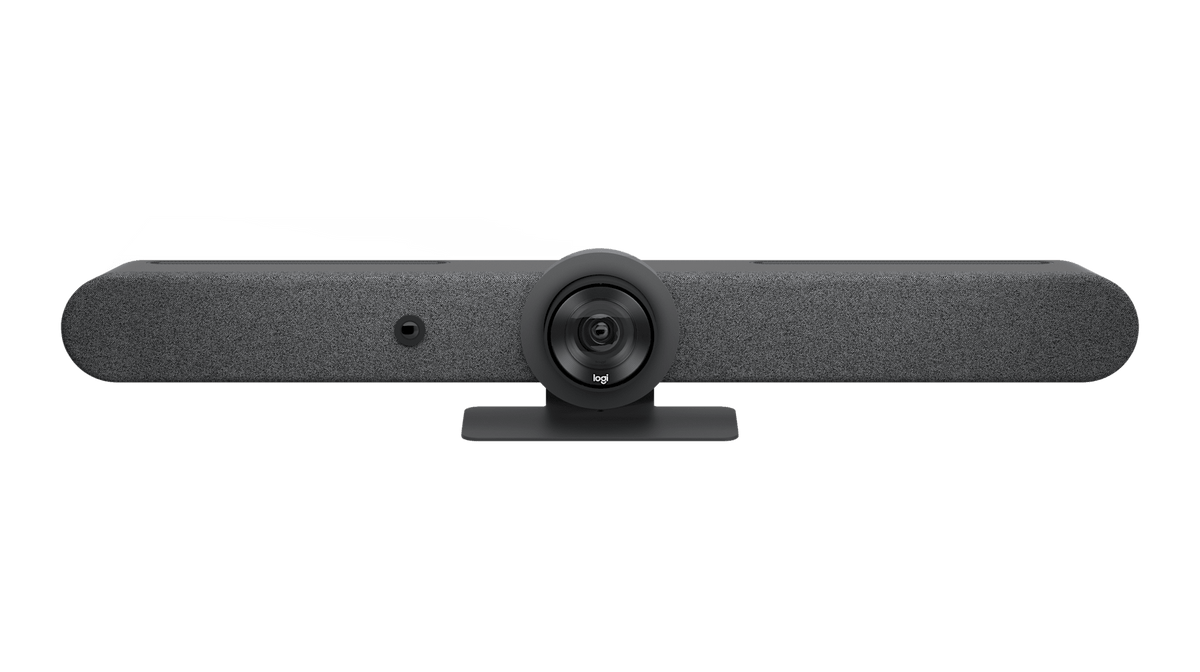

Logitech Rally Bar is an all-in-one video conferencing bar designed for medium to large meeting rooms and professional hybrid collaboration. A 4K camera with an AI Viewfinder, a six-microphone beamforming array and two speakers sit in a single front-of-room unit running Logitech CollabOS, so the room can run video calls without a separate camera, microphones and speaker.
Key features
- 4K camera with flexible coverage: 4K video, 15X HD zoom (5X optical, 3X digital) and a 90° diagonal field of view, plus motorized pan of ±25° and tilt of ±15°, help frame a larger table and the people around it.
- AI-powered framing: Logitech RightSight frames the active speaker while a secondary AI Viewfinder keeps watching the whole room. Grid View can frame all participants for hybrid meetings, and RightLight works to keep skin tones natural.
- Clear room audio: six digital MEMS microphones form five adaptive beams with pickup up to 7 m. Echo cancellation, voice activity detection and AI-based noise suppression, together with Logitech RightSound, help voices stay level and clear.
- Integrated speakers: two 70 mm drivers with an 8 W rating play remote voices back into the room, in an enclosure designed to limit vibration reaching the camera.
- Room to grow: an external microphone input supports up to four Rally Mic Pods and two Rally Mic Pod Hubs, sold separately, for larger rooms.
- Connections: two HDMI outputs, one HDMI input, three USB Type-A and one USB Type-C port, Gigabit Ethernet, Wi-Fi and a Bluetooth Low Energy remote.
- CollabOS and Logitech Sync: the bar runs Logitech CollabOS, and Logitech Sync lets IT teams monitor rooms, push updates and change settings from the cloud.
Deployment modes and platforms
Rally Bar can run as a meeting room appliance, in USB mode with a meeting room PC, or plug-and-play from a laptop (BYOD). Appliance mode needs a room solution software licence, which is not included. USB mode supports Windows 11, Windows 10 and the two most recent macOS versions. Logitech lists Rally Bar for Microsoft Teams Rooms on Android and on Windows, and states that it is certified for leading platforms including Zoom and Google Meet. Current certification and feature support vary by platform, so please confirm your platform with us before ordering.
Ideal for
Medium to large meeting rooms, corporate conference rooms and hybrid collaboration spaces where one unit should handle camera, microphones and speakers. Logitech positions the bar for medium to large rooms; treat this as manufacturer guidance and contact us to check your room layout.
Buy Logitech Rally Bar in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. You can also compare other video conferencing bars and video conferencing systems, or read about our corporate AV solutions and video conferencing solutions for meeting rooms.
Specifications are based on the manufacturer's published information and may change. Logitech Tap or Tap IP touch controllers, Rally Mic Pods and room software licences are sold separately. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
Applications
-

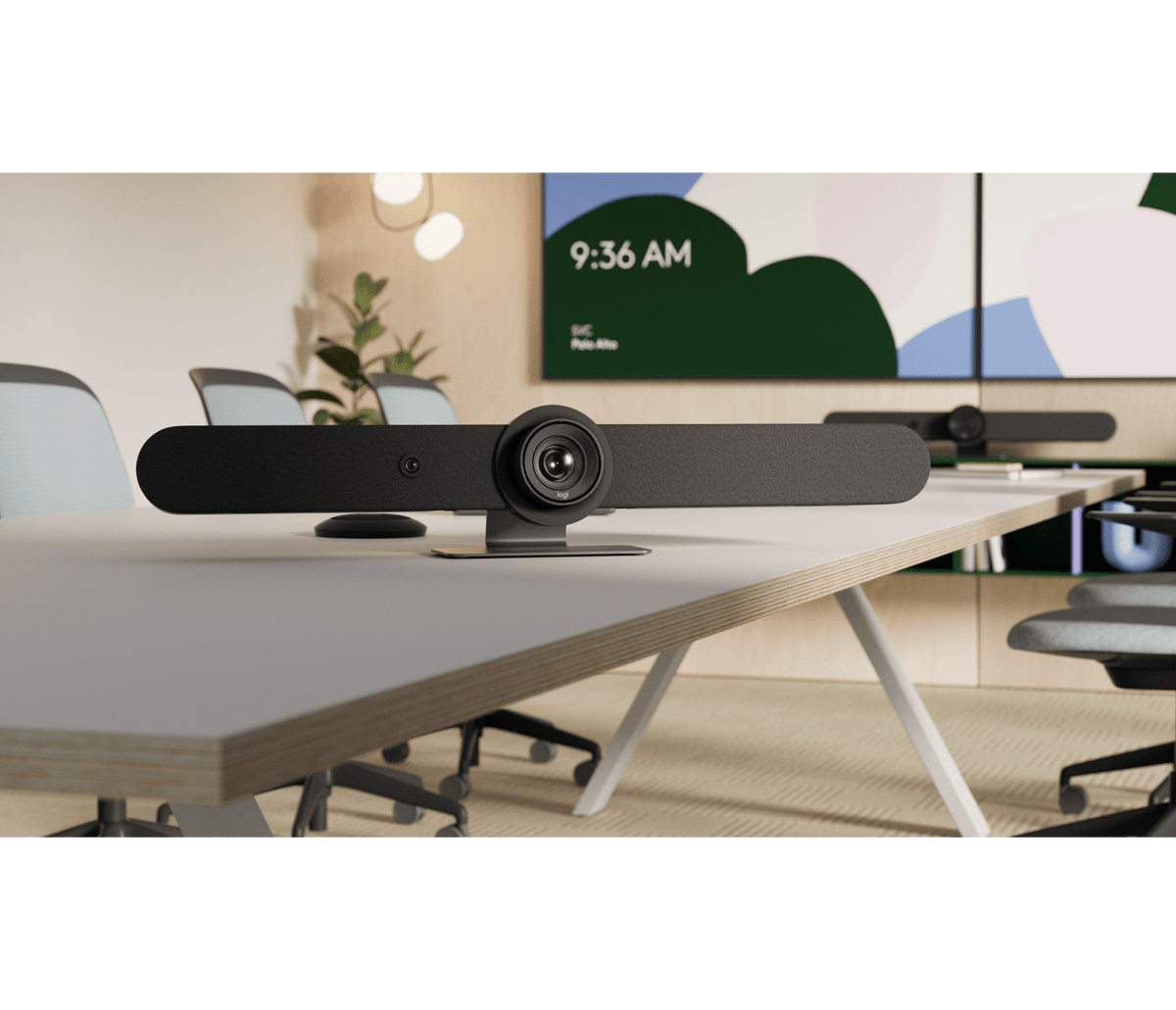

Medium and Large Meeting Rooms
Rooms where one bar should handle camera, microphones and speakers, with optional Rally Mic Pods for wider audio pickup.
-
Corporate Conference Rooms
Team meetings, client calls and presentations with 4K video, HDMI display output and room-wide audio.
-
Hybrid Collaboration Spaces
Mixed in-room and remote meetings, using RightSight framing and Grid View to keep participants visible.
-
Microsoft Teams Rooms
Teams Rooms on Android or Windows, paired with a Logitech Tap or Tap IP touch controller.
-
Zoom and Google Meet Rooms
Rooms built on platforms that Logitech lists as supported; please confirm your platform and licence before ordering.
Technical Specifications
Video
- Camera resolution
- 4K (also 1440p, 1080p, 900p, 720p and SD at 30 fps)
- Field of view
- 90° diagonal (82.1° horizontal, 52.2° vertical)
- Zoom
- 15X HD zoom (5X optical, 3X digital)
- Pan
- Motorized, ±25°
- Tilt
- Motorized, ±15°
- Total room coverage (field of view plus pan and tilt)
- 132.1° horizontal x 82.2° vertical
- AI video features
- RightSight auto-framing with AI Viewfinder, Grid View, RightLight
- Displays supported
- 2 (up to 1080p each)
Audio
- Speakers
- 2 x 70 mm drivers
- Rated power
- 8 W
- Impedance and sensitivity
- 4 Ω, 92 dB SPL at 1 W
- Distortion (THD)
- Less than 2% at 1 kHz / 1 W
- Audio processing
- RightSound: separates speech from other sounds, auto-levels voices, suppresses background noise and echo
- Speaker enclosure
- Patented speaker suspension to reduce vibration-induced camera shake and audio interference
Microphones
- Microphone array
- 6 omnidirectional digital MEMS beamforming microphones forming 5 adaptive acoustic beams
- Pickup range
- Up to 7 m (23 ft)
- Frequency response
- 90 Hz to 16 kHz
- Sensitivity
- Better than -36 dBFS ±1 dB at 1 Pa
- Microphone processing
- Acoustic echo cancellation (AEC), voice activity detection (VAD), AI-based noise suppression
- Expansion
- Up to 4 Rally Mic Pods and 2 Rally Mic Pod Hubs via the proprietary external mic input (sold separately)
Connectivity
- HDMI out
- 2 (up to 1080p)
- HDMI in
- 1
- USB
- 3 x Type-A, 1 x Type-C (USB 3.0)
- Ethernet
- 10/100/1000 Mbps
- Wi-Fi
- 802.11a/b/g/n/ac
- External microphone input
- Yes (proprietary, for Rally Mic Pod accessories)
- Remote control
- Bluetooth Low Energy
- Network protocols
- IPv4, IPv6
- Proxy support
- IP-based, FQDN-based and PAC file
Software & Management
- Built-in platform
- Logitech CollabOS
- Device management
- Logitech Sync: cloud platform to monitor room and device health, deploy updates and change settings
- Security
- AES-128 full disk encryption, symmetric keys and PKI for data encryption, device attestation, API-authenticated device access, Arm TrustZone and RPMP key protection
Compatibility
- USB mode operating systems
- Windows 11, Windows 10 and the two most recent versions of macOS
- Microsoft Teams Rooms
- Microsoft Teams Rooms on Android and on Windows (medium-sized rooms), per Logitech
- Zoom and Google Meet
- Logitech states Rally Bar is certified for leading video platforms including Zoom and Google Meet. Current certifications are listed at logitech.com/support/vc-certifications
- Touch controllers
- Logitech Tap and Tap IP (compatibility may vary; sold separately)
Room & Deployment
- Room size (manufacturer guidance)
- Medium to large meeting rooms
- Appliance mode
- Runs on the built-in compute. Requires a room solution software licence, which is not included
- USB mode
- Connects to a meeting room PC over USB. Also supports plug-and-play use from a laptop (BYOD)
- Internet connection
- Wired or wireless
- Mounting
- All-in-one enclosure with integrated table stand. Wall and TV mounts for video bars are available separately
Physical
- Dimensions (H x W x D)
- 164 x 910 x 130.5 mm
- Weight
- 7.08 kg
- Colour
- Graphite
- Operating temperature
- 0 to 40 °C
- Storage temperature
- -40 to 70 °C
- Humidity
- 10% to 95%
- Cable management
- Built-in cable management and retention system
Power
- Power input
- 100-240 V, auto-sensing power supply
- Power output
- 19 V, 4.74 A
- Power supply dimensions
- 127 x 51 x 30 mm
- Heat output
- 57 BTU/hr idle, 64 BTU/hr in a meeting
Package Contents
- In the box
- Rally Bar, power supply, AC power cord, HDMI cable, USB cable, remote control, lens caps for the main camera and AI Viewfinder, user documentation
- Cable lengths
- DC 1.5 m, AC 1 m, HDMI 1.4 2 m, USB-A to USB-C 3.0 2.2 m
Warranty
- Standard warranty
- 2-year limited hardware warranty
- Extended warranty
- 1-year and 3-year extended warranties available at hardware purchase (availability varies by reseller)
Frequently Asked Questions
What is Logitech Rally Bar?
Logitech Rally Bar is an all-in-one video conferencing bar for medium to large meeting rooms. A 4K camera with an AI Viewfinder, a six-microphone array and two speakers are built into one unit running Logitech CollabOS.
What type of meeting room is Logitech Rally Bar designed for?
Logitech positions Rally Bar for medium to large meeting rooms. Larger rooms can add up to four Rally Mic Pods for extra microphone coverage. Room suitability depends on layout and use, so please contact us to check your space.
Does Logitech Rally Bar support 4K video?
Yes. The camera supports 4K video, along with 1440p, 1080p, 900p, 720p and SD at 30 fps, with 15X HD zoom (5X optical and 3X digital).
What is the field of view of Logitech Rally Bar?
The camera has a 90° diagonal field of view (82.1° horizontal and 52.2° vertical). With motorized pan of ±25° and tilt of ±15°, Logitech quotes total room coverage of 132.1° horizontal by 82.2° vertical.
Does Logitech Rally Bar support Microsoft Teams and Zoom?
Logitech lists Rally Bar for Microsoft Teams Rooms on Android and on Windows, and states it is certified for leading platforms including Zoom and Google Meet. Certification status and feature support can change by platform, so please confirm the current details with us or at logitech.com/support/vc-certifications before ordering.
Can Logitech Rally Bar be used in USB mode?
Yes. In USB mode it connects to a meeting room PC running Windows 11, Windows 10 or one of the two most recent versions of macOS. It can also be used plug-and-play from a laptop (BYOD).
Does Logitech Rally Bar support appliance mode?
Yes. Rally Bar can run in appliance mode on its built-in compute. Appliance mode requires a room solution software licence from the platform provider, which is not included with the bar. A Logitech Tap or Tap IP touch controller is sold separately.
Can Logitech Rally Bar be managed remotely using Logitech Sync?
Yes. Logitech Sync is a cloud platform that lets IT teams monitor room and device health, deploy updates and change settings remotely across Rally Bar devices.
