Product information
The Optoma X400LVe is a portable XGA DLP projector for classrooms, training rooms, offices and meeting rooms. It combines 4,000 lumens of brightness with a native 1024 x 768 (4:3) image that suits slide decks, spreadsheets and documents, plus a built-in 10W speaker so a small or medium room can be used without extra equipment. Warranty: 2 years onsite.
Key Features
- 4,000 lumens brightness and 25,000:1 contrast ratio, as published by Optoma India, for lit meeting rooms and classrooms.
- XGA native resolution (1024 x 768, 4:3) with DLP imaging; 16:9 content is supported.

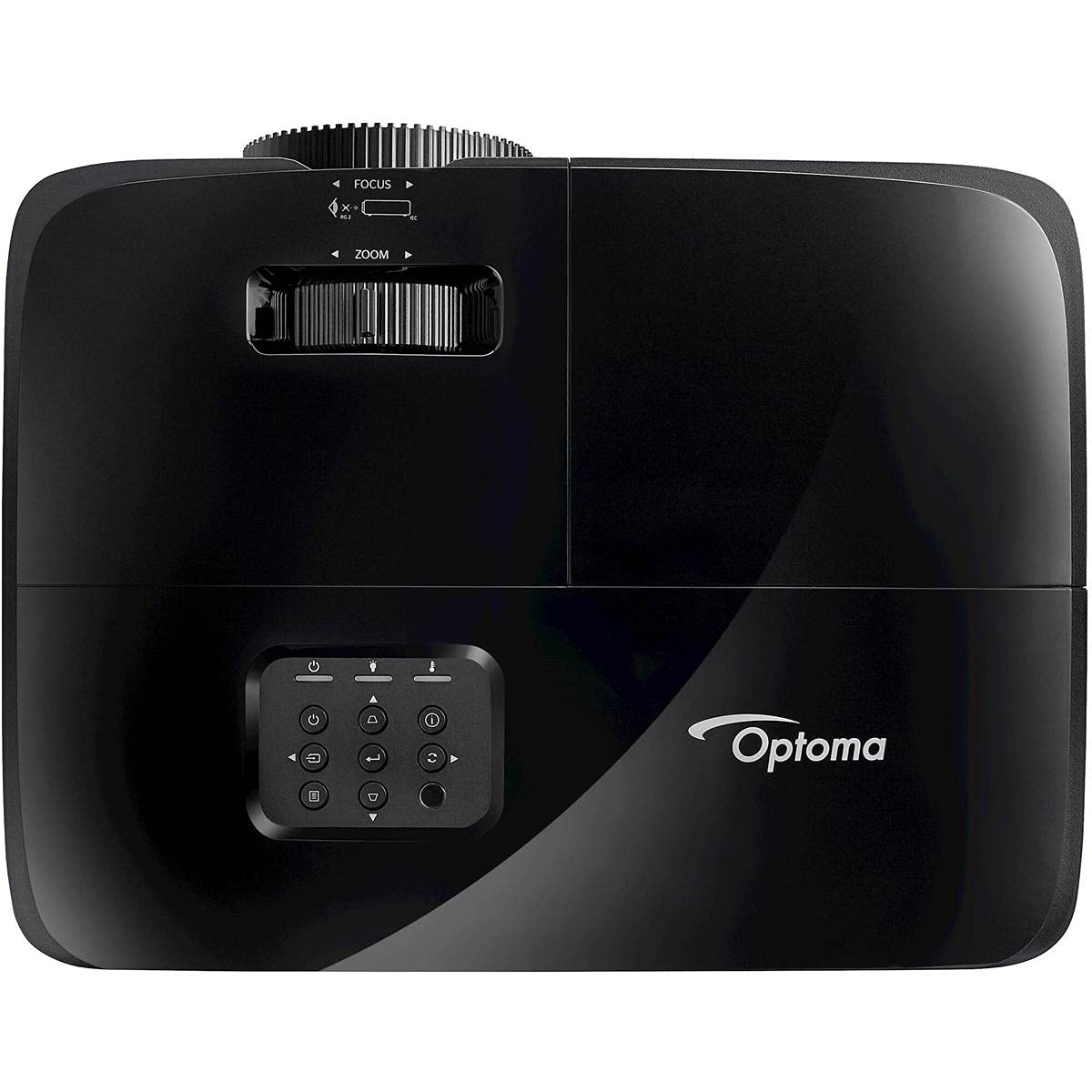

- 1.1x manual zoom and vertical keystone correction of plus or minus 40 degrees for flexible placement.
- Built-in 10W speaker for presentations and video without external speakers.
- One HDMI 1.4a input (with 3D support), plus VGA and composite video inputs, a 3.5 mm audio input, and RS232 control.
- VGA output, 3.5 mm audio output and a USB-A power output (1A) for a streaming stick or dongle.
- Lamp life of up to 6,000 hours (Bright), 12,000 hours (Dynamic) and 10,000 hours (Eco) as stated by Optoma India.
Technical Specifications
| Model | Optoma X400LVe |
|---|---|
| Display technology | DLP |
| Native resolution | XGA (1024x768) |
| Native aspect ratio | 4:3 (16:9 compatible) |
| Brightness | 4,000 lumens |
| Contrast ratio | 25,000:1 |
| Light source | Lamp |
| Lamp life (up to) | 6,000 h (Bright), 12,000 h (Dynamic), 10,000 h (Eco) |
| Zoom | 1.1x, manual |
| Throw ratio | 1.94:1 to 2.16:1 |
| Screen size | 0.71 m to 7.73 m (27.78 in to 304.4 in) diagonal |
| Vertical keystone correction | +/-40 degrees |
| Built-in speaker | 1 x 10W |
| Inputs | 1 x HDMI 1.4a (3D support), 1 x VGA, 1 x composite video, 1 x 3.5 mm audio |
| Outputs | 1 x VGA, 1 x 3.5 mm audio, 1 x USB-A power (1A) |
| Control | 1 x RS232 |
| Noise level | 27 dB to 29 dB |

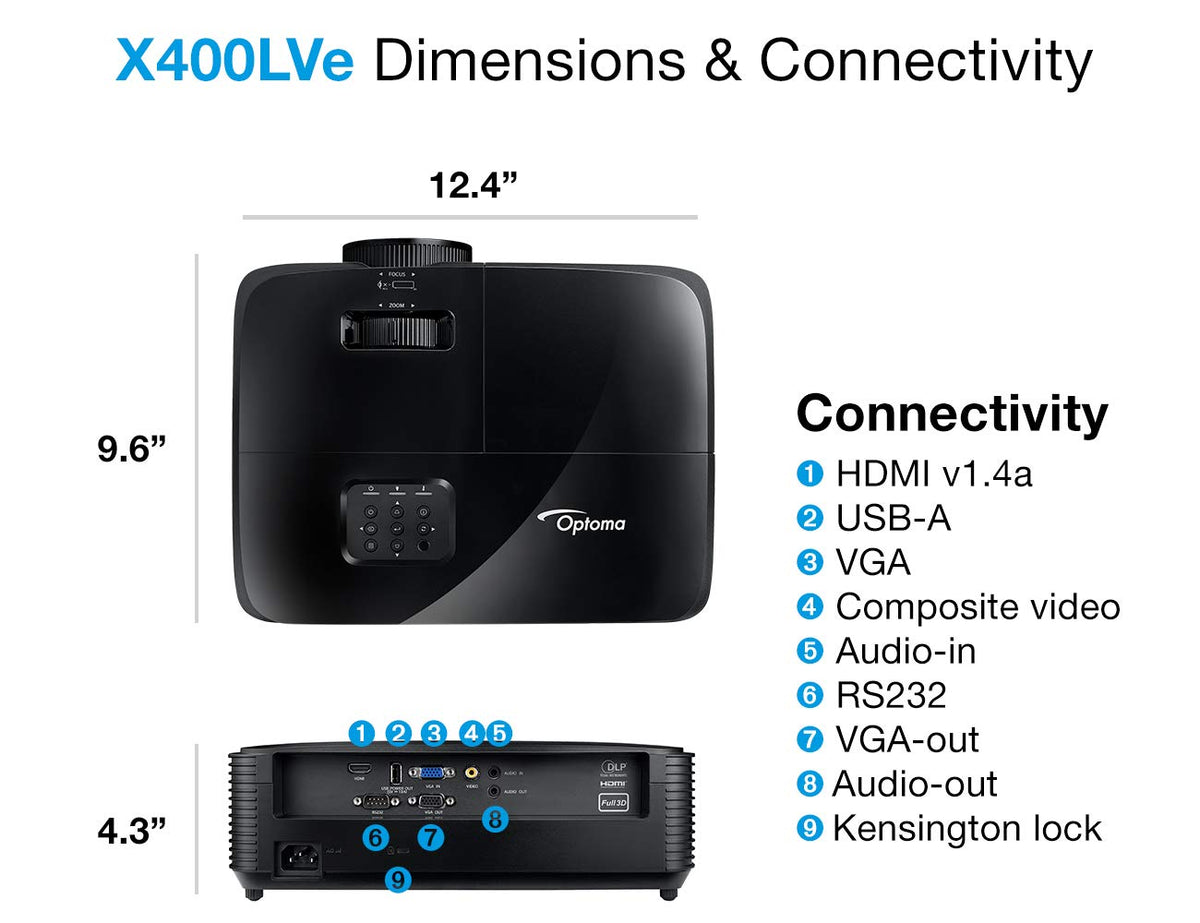

| Dimensions (W x D x H, with feet) | 316 x 243.5 x 108.5 mm |
| Weight | 3 kg net |
| Warranty | 2 years onsite |
| Smart features | None listed. This is not a smart projector and has no built-in operating system, apps or Wi-Fi. |
Native resolution is the 1024 x 768 panel. The projector can accept and scale higher-resolution signals, but these are not native resolutions. Specifications are taken from the Optoma India product page.
Suitable Applications
- Classrooms and smart-classroom setups for small to medium rooms
- Corporate presentations and boardroom meetings
- Training rooms and workshops
- Shared offices that need a portable projector

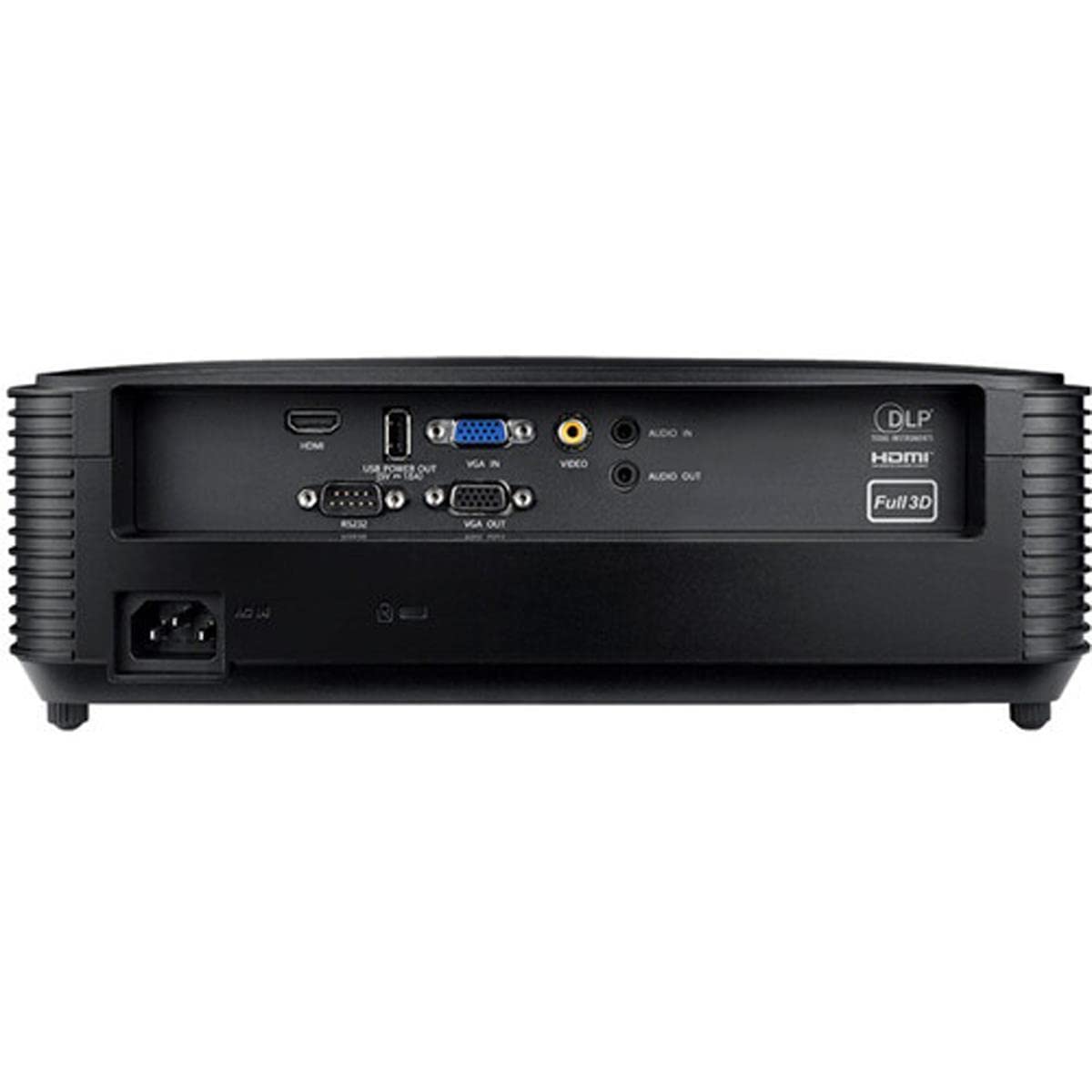

Connectivity and Installation
The X400LVe has a single HDMI input, a VGA input and a composite video input, so laptops, document cameras and media players can connect directly, and its VGA and audio outputs can pass signal on to another display or speaker. The USB-A port supplies power only: it can run an HDMI streaming stick but does not play files from a USB drive. With a 1.94:1 to 2.16:1 throw ratio and a 1.1x manual zoom, it is a standard-throw projector, and vertical keystone correction of +/-40 degrees helps with off-axis placement. No horizontal keystone is listed. For fixed installations, please ask our team to confirm the distance for your screen size and room layout. Mounting hardware is sold separately.
Frequently Asked Questions
What is the native resolution?
1024 x 768 (XGA, 4:3). It accepts other signals and scales them to the panel.
How bright is it?
Optoma India lists 4,000 lumens. It is aimed at lit classrooms and meeting rooms; dimming windows gives better contrast.
What screen sizes does it support?
Optoma lists 27.78 to 304.4 inches diagonal. The practical size depends on room size and throw distance, so please contact us for a recommendation.
What can I connect to it?
HDMI 1.4a, VGA and composite video sources, 3.5 mm audio, and a streaming stick powered from the USB-A port.
How long does the lamp last?
Up to 6,000 hours in Bright, 12,000 in Dynamic and 10,000 in Eco mode, per Optoma India.
Is it a smart projector?
No. Use a laptop, media player or HDMI streaming stick as the source.
What warranty does it have?
Warranty: 2 years onsite.
Box Contents and Warranty

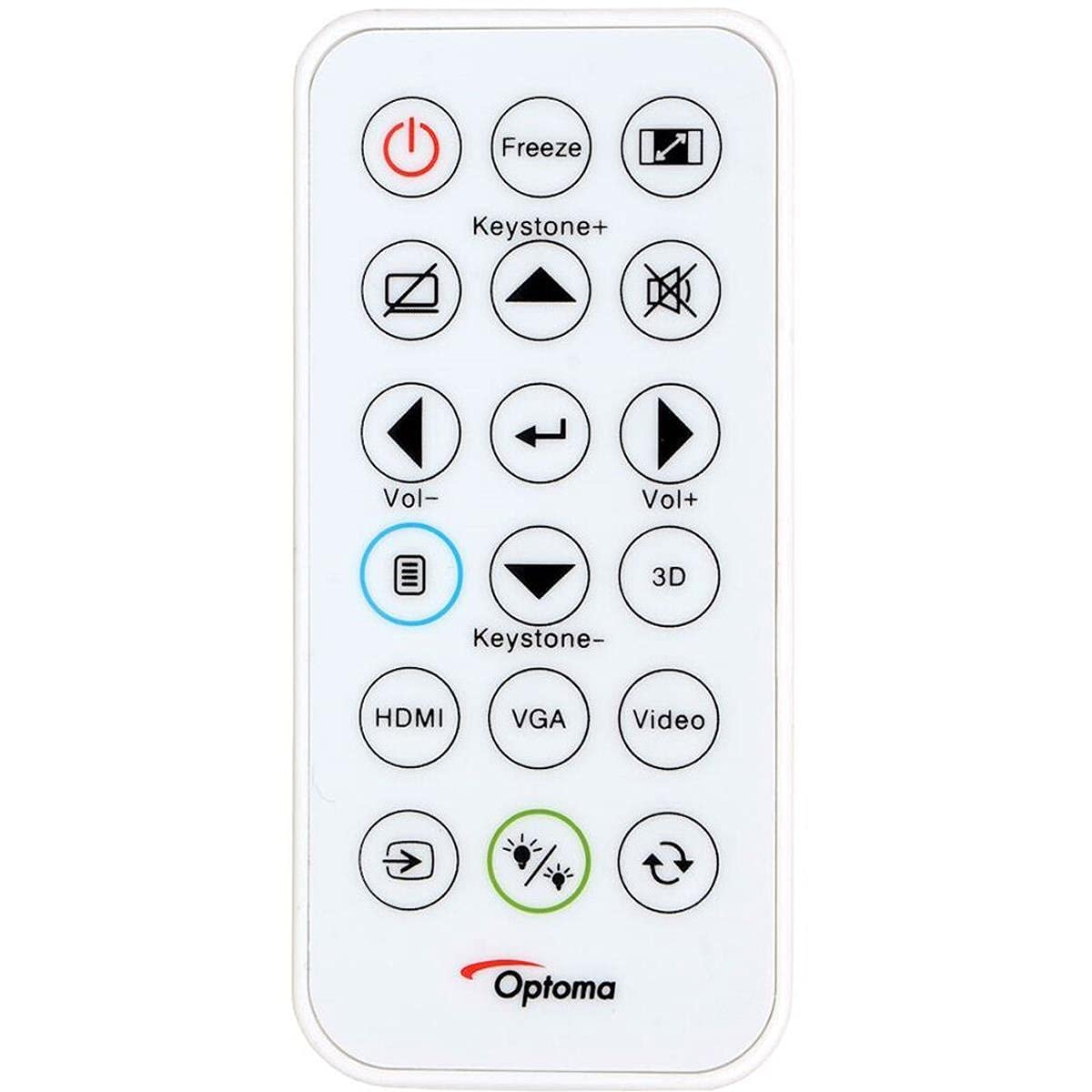

Optoma India lists the AC power cord, remote control and basic user manual in the box. Warranty: 2 years onsite.
Contact Universal AV Solutions for installation or room-fit advice.
