Rocwave VEGA · Video Conferencing Bar
4K All-in-One Video Bar with Auto Framing and Speaker Tracking
RW-VG AIO-60 4K All-in-One Video Conferencing Bar Camera, Mic Array and Speakers in One Unit
- 4K Camera, 120° FOV
- 6-Mic Array, 6m Range
- Dual 10W Speakers
- Bluetooth 5.0
Key Highlights
-
4K Camera, 120° FOV
Wide-angle 4K camera with automatic privacy cover.
-
6-Mic Array, 6m Pickup
Six-microphone MEMS array with AEC, AGC and ANS audio processing.
-
Dual 10W Speakers
Built-in stereo speakers, 100 Hz–20 kHz frequency response.
-
Auto Framing & Speaker Tracking
AI-based group framing and voice-localized speaker tracking.
-
Bluetooth 5.0
Can be used as a Bluetooth mic and speaker.
Technical Specifications
Camera
- Field of View
- 120° (D) / 106° (H) / 72° (V)
- Iris
- F2.0
- Focal Length
- 1.89mm
- Image Sensor
- High-quality CMOS, 8 million effective pixels, 16:9
- Minimum Illumination
- 0.5 Lux
- Digital NR
- 2D & 3D
- Focus
- Auto/Manual
- Video Formats
- HDMI: 4KP30, 1080P60 downward compatible; USB: 4KP30, 1080P60 downward compatible
- Video Compression
- MJPEG, YUY2, H.264, H.265, NV12
- Privacy Cover
- Automatic — on when image output, off when no image
Audio
- Microphones
- 6 × MEMS mic array, 6-metre audio range, 120 Hz–16 kHz frequency response
- Speakers
- Built-in dual speaker, 2 × 10W, 80±3 dB output audio pressure (1.0M/1.0W), 100 Hz–20 kHz frequency response
- Audio Processing
- AEC, AGC, ANS

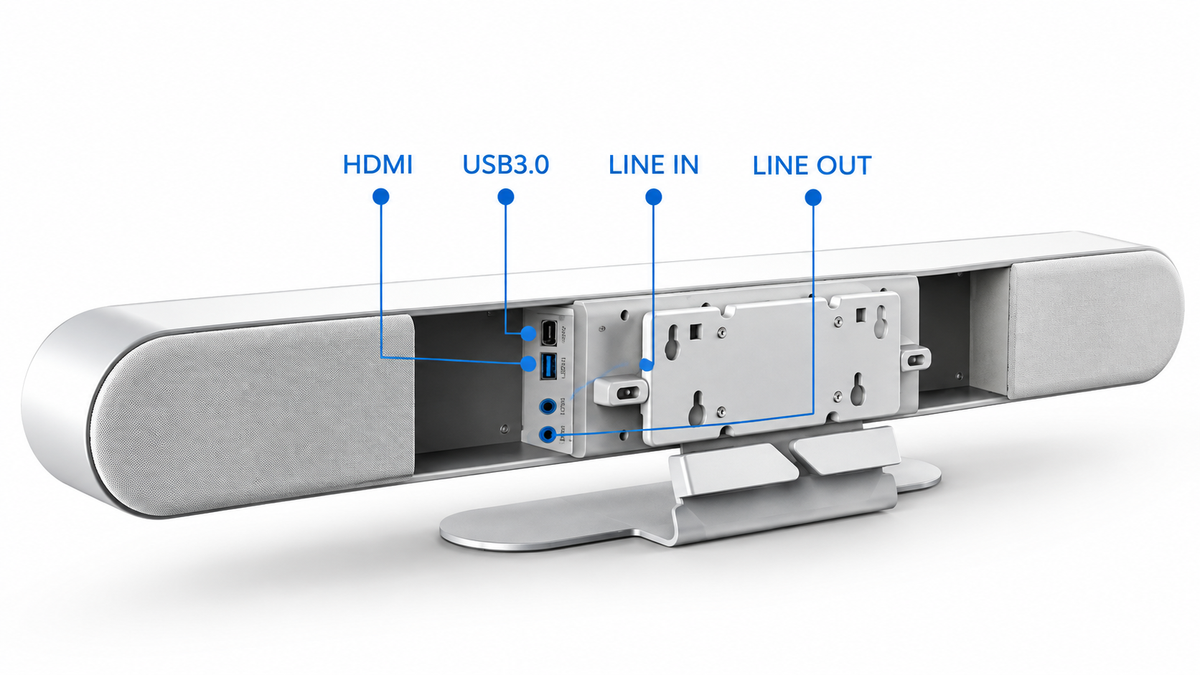

Interfaces
- USB
- USB3.0 audio output interface
- HDMI
- HDMI video input interface
- Line In
- 3.5mm audio linear input (auto-switches to external pickup when connected)
- Line Out
- 3.5mm line output (auto-switches to external speaker when connected)
- Extension Mics
- RJ45 port for expansion microphone
- Power Port
- HEC3800 power socket (DC12V)
Other
- Bluetooth
- 5.0 — can be used as Bluetooth mic and speaker
- Remote Control
- IR remote control
- Supported Operating Systems
- Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
- Power Supply
- Power adapter
- Dimensions (approx., per product diagram)
- 650mm × 80mm × 75mm
- Colors
- White, Grey, Black
Product information
Rocwave VEGA (RW-VG AIO-60) is an all-in-one 4K video conferencing bar that integrates a wide-angle camera, a six-microphone array and dual speakers into a single unit for plug-and-play meeting room setup.
Key Features
- 4K Ultra HD camera with 120° field of view
- Automatic privacy cover, on when streaming and off when not in use
- AI-based group framing (face detection) and speaker tracking (voice localization and voice tracking)
- Six-microphone MEMS array with up to 6-metre audio pickup range and full-duplex audio processing (AEC, AGC, ANS)
- Built-in dual 10W stereo speakers
- Bluetooth 5.0 for use as a Bluetooth mic and speaker
- RJ45 port for cascading extension microphones
- Available in White, Grey or Black
Connectivity
HDMI video input, USB3.0 audio/video output, 3.5mm line in/out, an RJ45 port for extension microphones, and Bluetooth 5.0. Compatible with Windows 7, Windows 8, Windows 10, Mac OS X, Linux and Android, and shown as compatible with popular platforms including Zoom, Microsoft Teams and Skype in the manufacturer's materials.
AI Tracking
Group framing uses face detection to keep participants in view, while speaker tracking uses voice localization and voice tracking to adjust framing toward the person speaking.

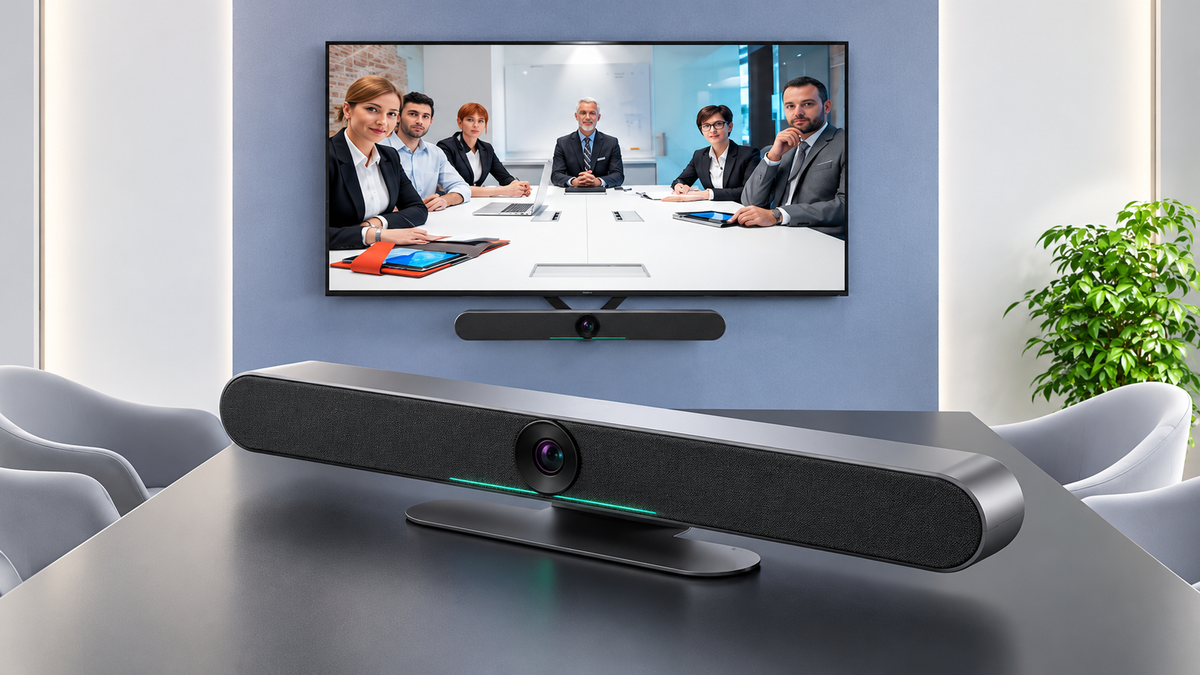

Suitable For
Suitable for small and medium conference rooms, per the manufacturer's application guidance.
Specifications are based on the manufacturer's published information and may change. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
