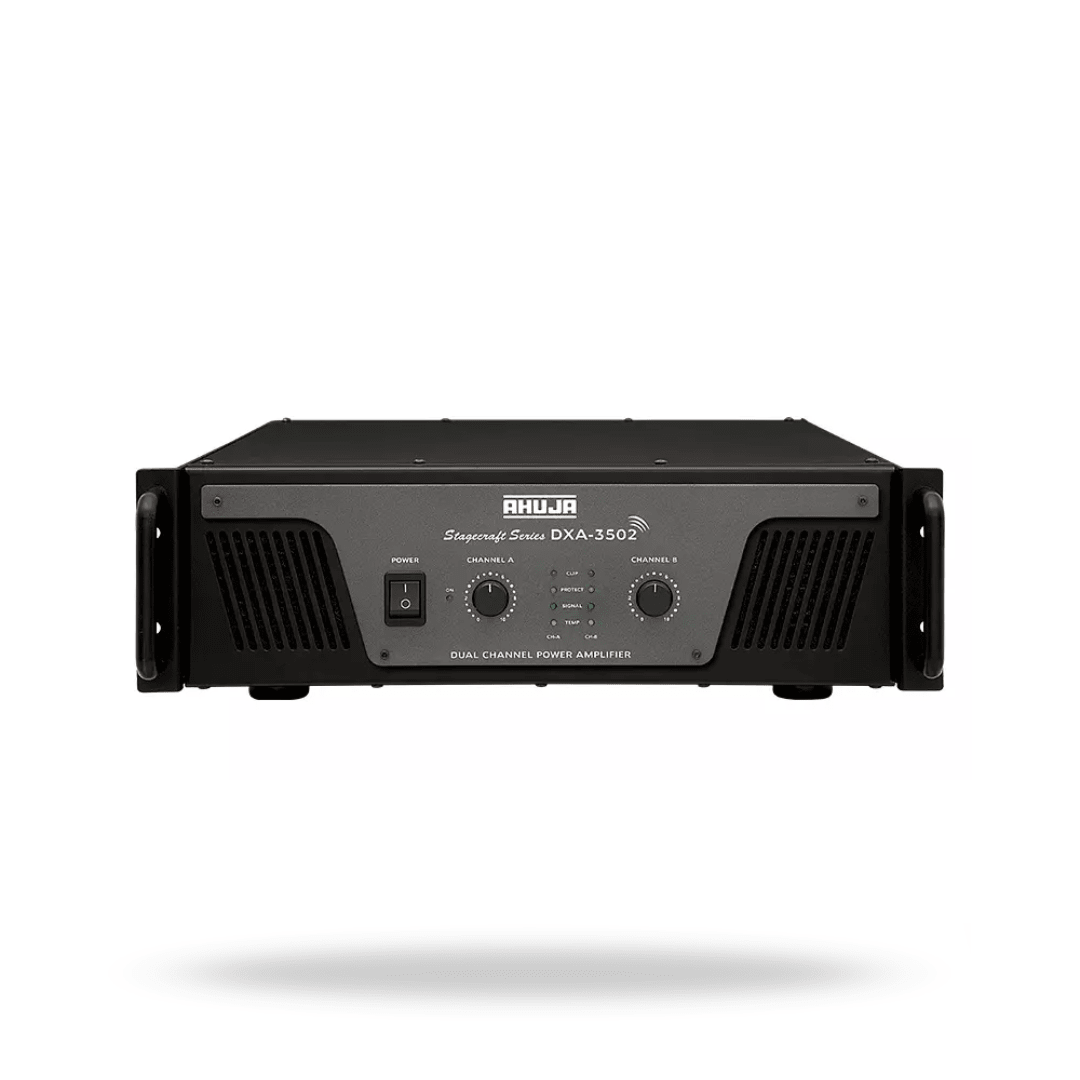

Ahuja DXA-3502 Dual Channel PA Power Amplifier (3500W)

The Ahuja DXA-3502 Dual Channel PA Power Amplifier is a rugged and highly reliable amplifier engineered to set a new benchmark for professionals. Built for top-tier audio systems, this heavy-duty PA system component delivers exceptional sonic clarity and massive power output, making it the ideal choice for large-scale live events, DJ setups, and complex audio installations.

Designed to operate under stringent working conditions, this audio amplifier easily handles wide voltage fluctuations (from gensets or AC mains) and high ambient temperatures. Utilizing advanced Class H operation, this power amplifier ensures optimum energy efficiency without compromising on heavy-hitting audio performance.

Key Features

• High Power Output: Delivers a staggering 1750W + 1750W (at 2Ω) in stereo/mono mode, and up to 3500W (at 4Ω) in bridged mode, providing massive headroom for dynamic audio peaks.
• Class H Efficiency: Advanced circuitry minimizes heat generation while maximizing performance and longevity for your professional audio system.
• Comprehensive Protections: Built-in safeguards automatically protect your PA system against DC, RFI, short circuits, overloading, AC over-voltage, and overheating.
• Advanced Cooling System: Equipped with variable-speed DC fans with temperature sensing to maintain optimal operating conditions.

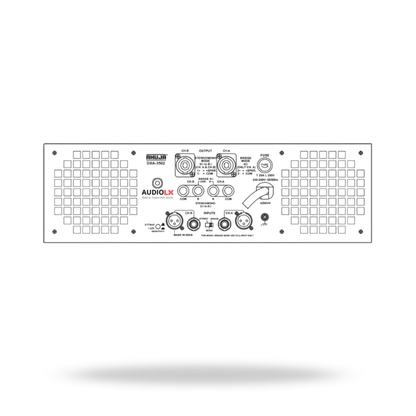

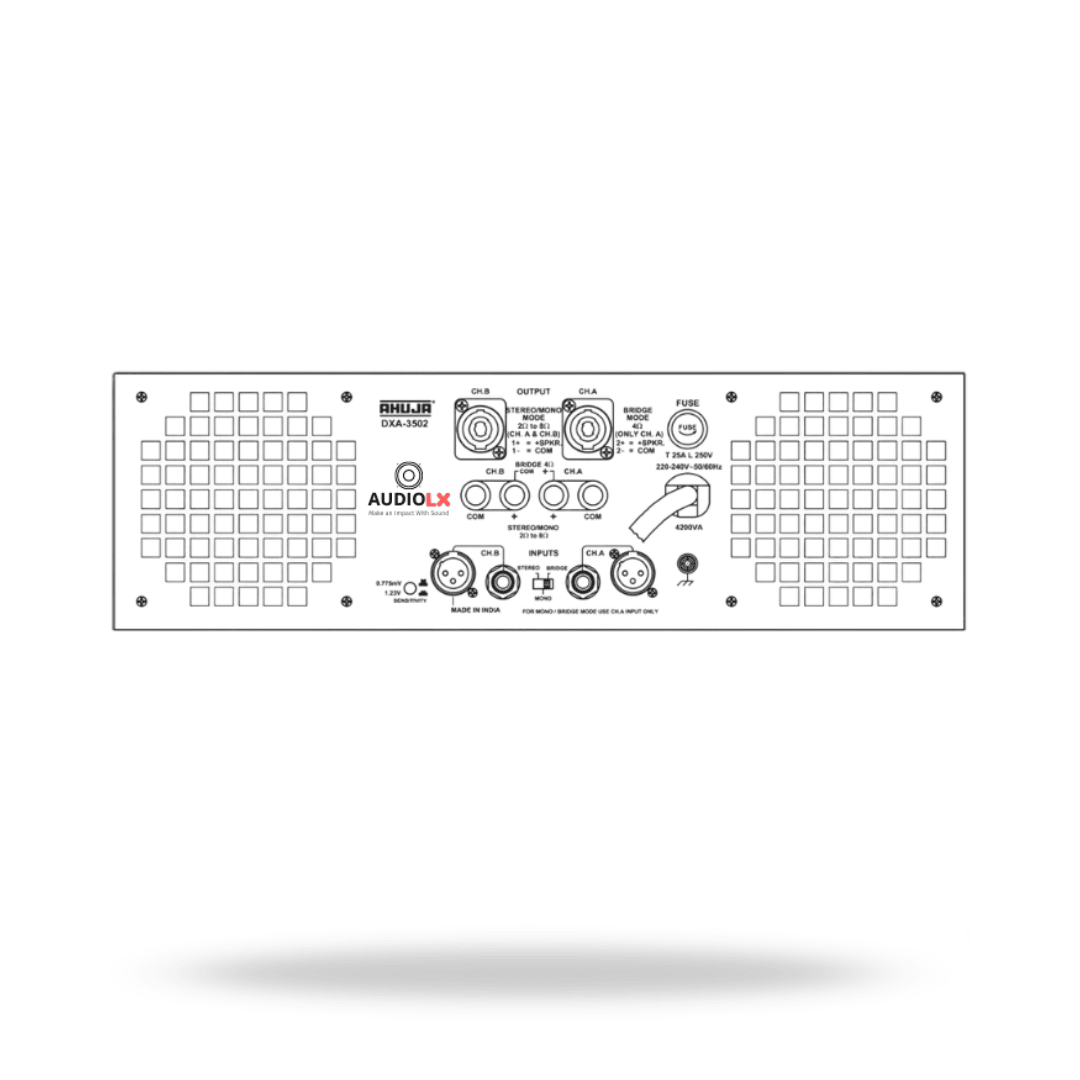

• Versatile Connectivity: Features 2× XLR and 6.3mm Stereo Phone Jack inputs, alongside industry-standard Speakon 4-Way and heavy-duty binding post outputs for universal compatibility.

Technical Specifications

• Power Output (Stereo/Mono): 8Ω: 650W + 650W RMS | 4Ω: 1200W + 1200W RMS | 2Ω: 1750W + 1750W RMS
• Power Output (Bridged): 8Ω: 2400W RMS | 4Ω: 3500W RMS
• Frequency Response: 20Hz – 20,000Hz (-1dB)
• Total Harmonic Distortion (THD + N): < 0.5%
• Signal to Noise (S/N) Ratio: > 95dB
• Damping Factor: > 500
• Dimensions: W482 × H153 × D615 mm
• Weight: 37.50 kg
