dbx PA2-V DriveRack Loudspeaker Processor India

Name: dbx PA2-V DriveRack Loudspeaker Management System Processor (EU)
Brand: DBX
Price: 27685.0 INR
Availability: InStock

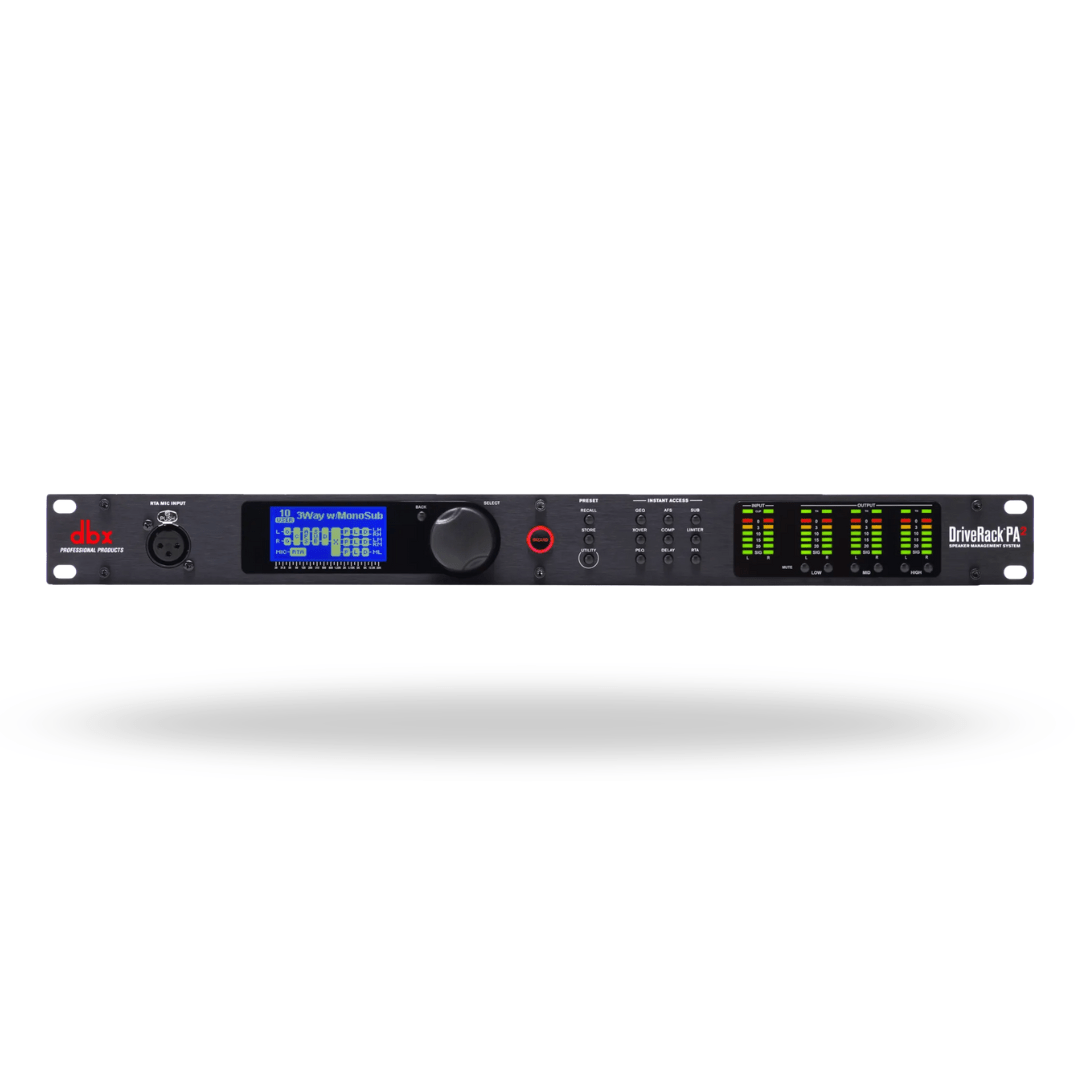

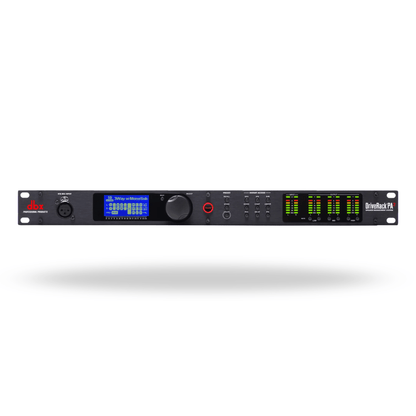

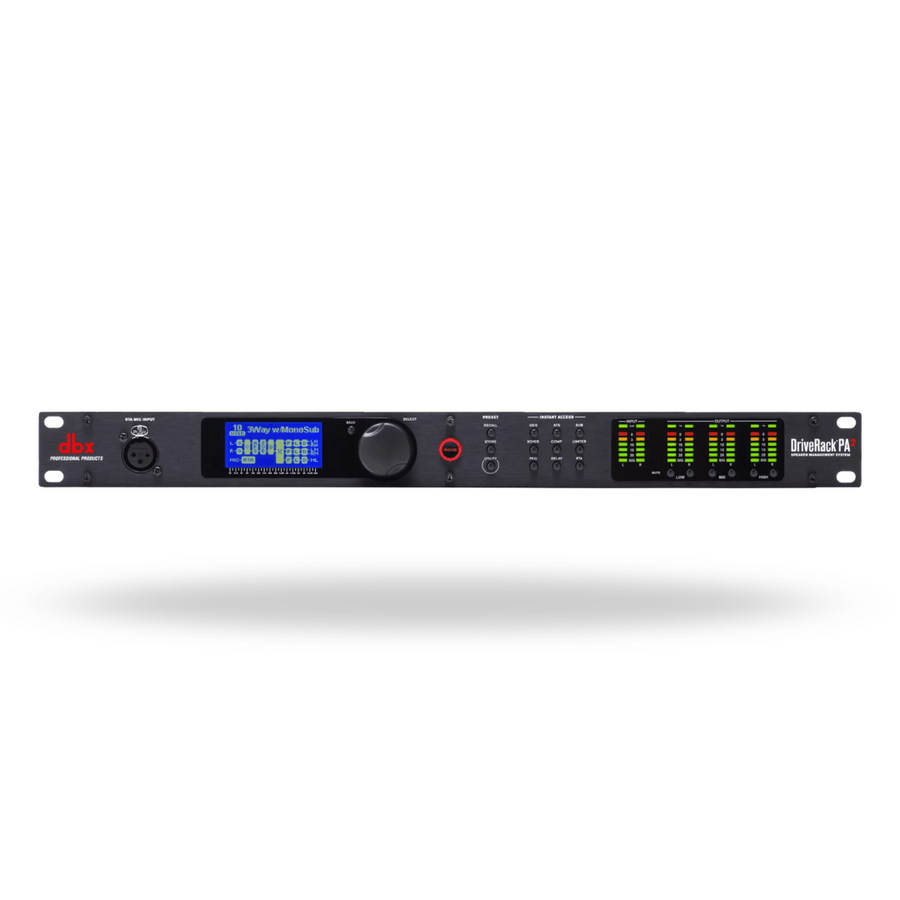

dbx PA2-V loudspeaker management system processor, front view

dbx PA2-V · Loudspeaker Processor

DriveRack Speaker Management with AutoEQ & Feedback Control

PA2-V Complete Loudspeaker Management System Ideal for Live Sound, Worship & Venues

AutoEQ + AFS
2 In / 6 Out XLR
Crossover + Limiter
Mobile Control

Request for Quote

Product information

dbx PA2-V is a loudspeaker management system based on the dbx DriveRack PA2, sitting between the mixer and the amplifiers to tune and protect a PA. It combines AutoEQ, AFS feedback suppression, crossover, EQ and limiting in a single rack-mount unit, so small and mid-size sound systems can be set up quickly and protected from overload.

Key features

AutoEQ: automatic room equalisation using the RTA microphone for a fast, non-intrusive setup.
AFS feedback suppression: detects and removes feedback automatically.
Input processing: compression, graphic EQ, 8-band parametric EQ and subharmonic synthesis.
Output processing: crossover (full range, 2-way or 3-way), 8-band parametric EQ per output, limiting and driver alignment delays up to 60 ms.
2 in, 6 out: two line inputs plus an RTA mic input, and six line outputs, all on XLR.
Setup wizards: updated wizards guide configuration and speaker tuning.
Mobile control: control from Android, iOS, Mac or Windows devices over Ethernet.
Clean audio: dynamic range above 110 dB (A-weighted); 20 Hz to 20 kHz response within 0.5 dB.
Compact rack unit: 19-inch, 1U chassis, 5.75 inch deep, 22 W power draw.

Ideal for

Live bands, DJ and rental systems, houses of worship, bars, banquet halls and small venues that want fast, reliable speaker processing and feedback control.

Buy dbx PA2-V in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. Contact us for the latest price and a GST quotation.

dbx PA2-V at a glance

Product type	Loudspeaker management system (DriveRack PA2 platform)
Inputs	2 line inputs + RTA mic input (XLR)
Outputs	6 line outputs (XLR)
Input processing	Compression, AFS, graphic EQ, 8-band PEQ, subharmonic synthesis
Output processing	Crossover, 8-band PEQ, limiting, delay up to 60 ms
Sample rate	48 kHz
Frequency response	20 Hz to 20 kHz (+/-0.5 dB)
Dimensions / power	19-inch, 1U, 5.75 in deep / 22 W

Set up and protect a PA in minutes

AutoEQ measures the room through the RTA microphone and applies EQ automatically, while wizards handle crossover and speaker setup. Limiting protects loudspeakers, and AFS controls feedback on live microphones.

Placed between the mixer and power amplifiers.
Crossover for full range, 2-way and 3-way systems.
Network control from phones, tablets and computers.

dbx PA2-V FAQs

What is the dbx PA2-V?

The dbx PA2-V is a loudspeaker management system on the dbx DriveRack PA2 platform, offering AutoEQ, feedback suppression, crossover, EQ and limiting for PA systems.

How many inputs and outputs does it have?

The DriveRack PA2 has two line inputs and an RTA microphone input, plus six line outputs, all on XLR.

Can I control it from a phone or tablet?

Yes. dbx lists control from Android, iOS, Mac and Windows devices over Ethernet.

Who is the dbx PA2-V for?

It suits live sound, worship, DJ, banquet and small venue systems that need speaker tuning and protection.

How much does the dbx PA2-V cost?

Contact Universal AV Solutions for the latest price and a GST quotation.

Do you provide installation and support?

Yes. Universal AV Solutions provides supply, installation and after-sales support across Delhi NCR and pan-India.

Good to know: Specifications are based on the manufacturer's published information for the dbx DriveRack range and may change. Contact Universal AV Solutions to confirm the exact version and what is included with your order. All brand names are trademarks of their respective owners.
