dbx DriveRack VENU360 Speaker Processor India

Name: dbx DriveRack VENU360 Loudspeaker Management System Processor (EU)
Brand: DBX
Price: 54835.0 INR
Availability: InStock

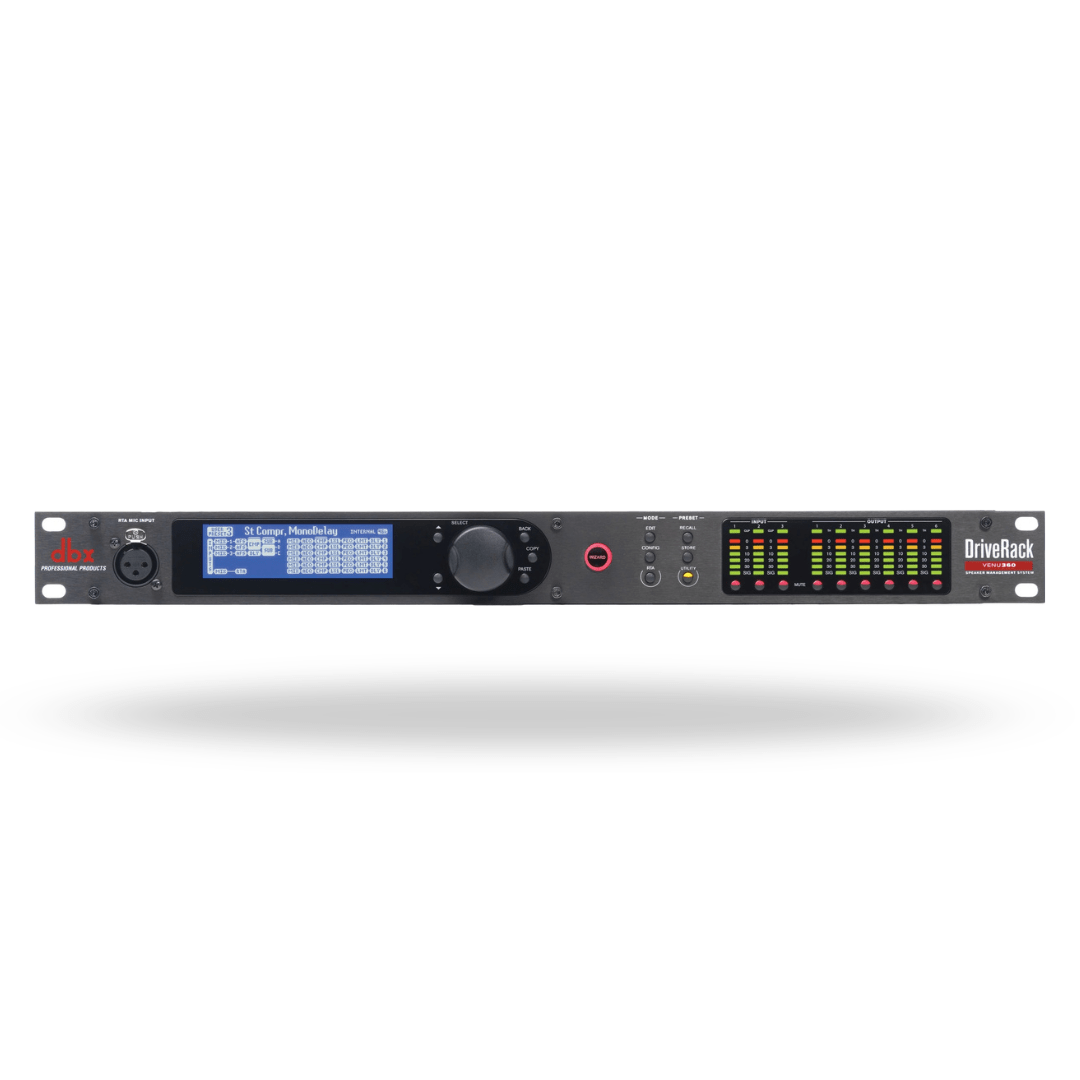

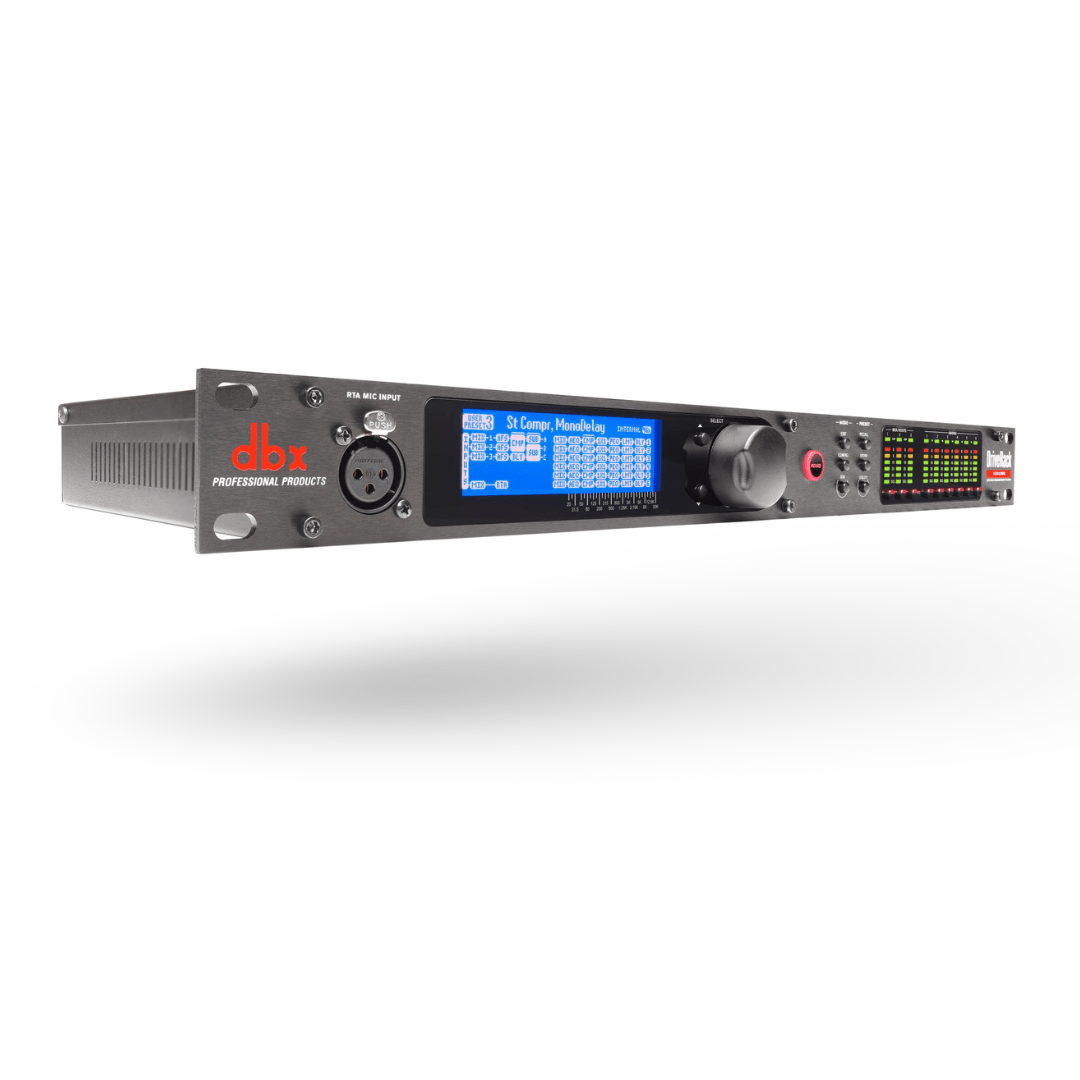

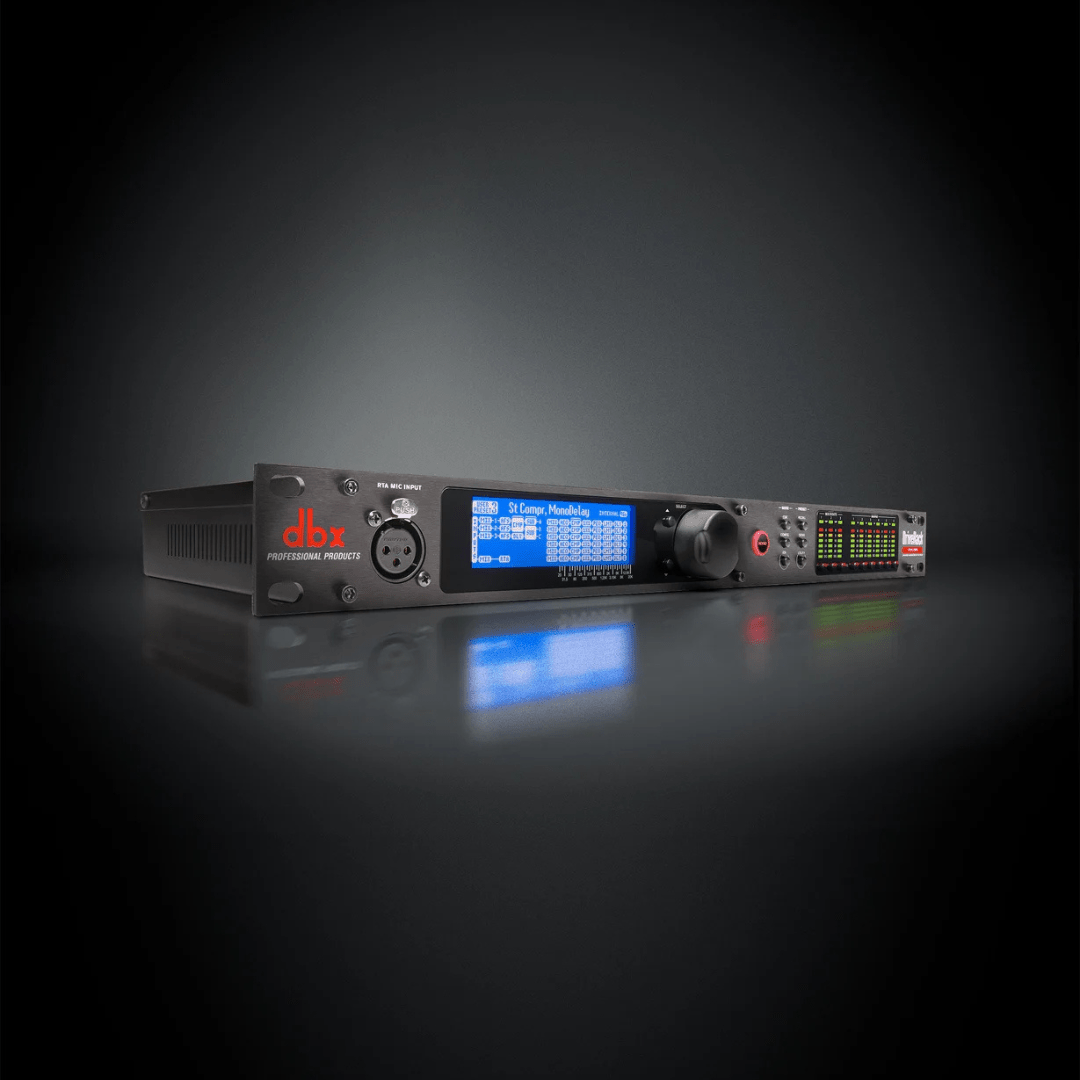

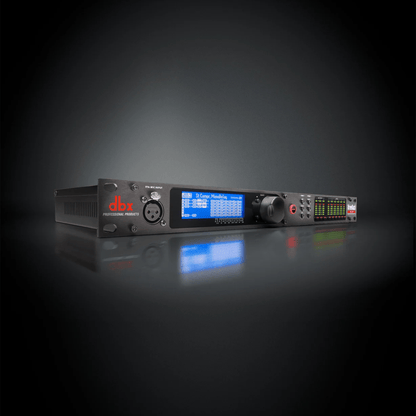

dbx DriveRack VENU360 loudspeaker management system processor, front view

dbx DriveRack VENU360 · Speaker Processor

3-In / 6-Out Loudspeaker Management with AutoEQ & AFS

DriveRack VENU360 Complete Loudspeaker Management System Ideal for Touring, Worship & Installs

3 In / 6 Out
AutoEQ + AFS
31-Band GEQ
Up to 1000 ms Delay

Request for Quote

Product information

dbx DriveRack VENU360 is a complete loudspeaker management system with 3 inputs and 6 outputs, built to tune and protect installed, portable and touring PA systems. It brings AutoEQ, AFS feedback suppression, a 31-band graphic EQ, 12-band parametric EQ, crossover and long output delays into one 1U rack unit with mobile control.

Key features

AutoEQ: improved algorithm that measures the room with sine sweeps and sets levels and EQ within seconds.
AFS feedback suppression: enhanced algorithm that removes feedback before it becomes audible.

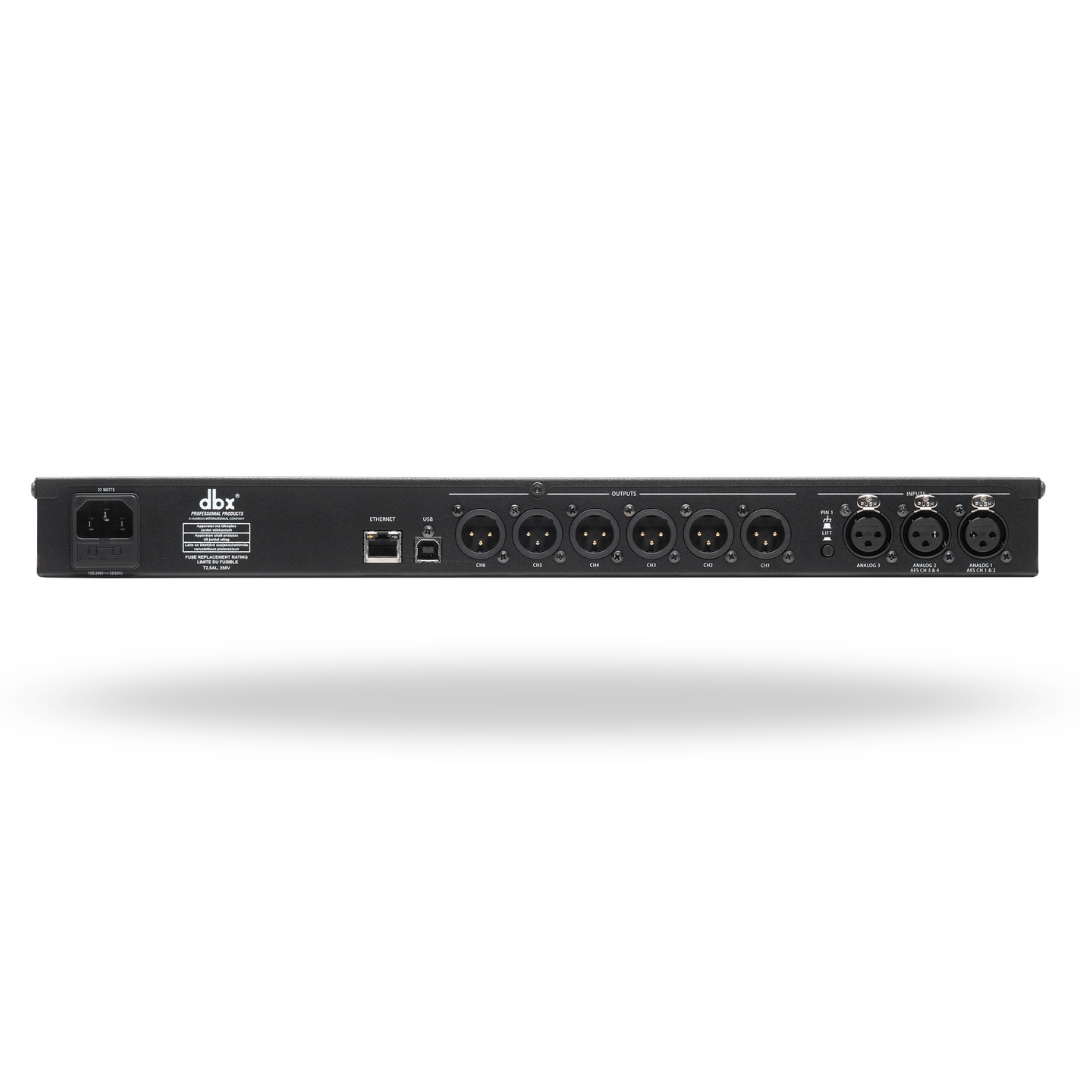

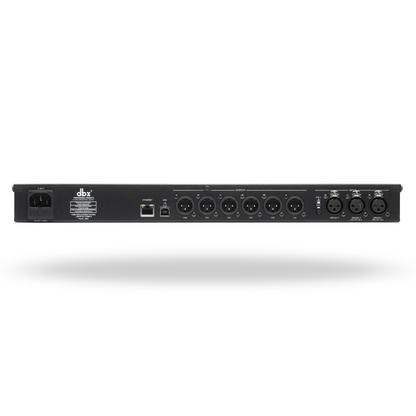

3 in, 6 out: three analog inputs plus two AES digital inputs (shared XLR connectors), an RTA mic input and six line outputs.
Deep processing: compression, 31-band graphic EQ, 12-band parametric EQ, subharmonic synthesis, noise gate, crossover and limiting.
Tower delays: up to 1000 ms delay per output for delay towers and distributed systems.
Mobile control: adjust EQ, crossover, compression and speaker profiles from Android, iOS, Mac or Windows over the local network.
High-quality conversion: 24-bit converters and 32-bit floating-point processing.
Sample rates: 48 or 96 kHz, with conversion supporting up to 192 kHz.
Compact chassis: 1U, 19-inch rack unit, 8 inches deep, 18 W, 100 to 240 VAC.

Ideal for

Touring and rental systems, houses of worship, theatres, clubs, conference venues and fixed installations that need detailed speaker processing and delay control.

Buy dbx DriveRack VENU360 in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. Contact us for the latest price and a GST quotation.

dbx DriveRack VENU360 at a glance

Product type	Loudspeaker management system
Inputs	3 analog + 2 AES digital (shared XLR), RTA mic
Outputs	6 line outputs
Processing	Compression, 31-band GEQ, 12-band PEQ, noise gate, crossover, limiting
Delay	Up to 1000 ms per output
Converters	24-bit, 32-bit floating-point processing
Sample rate	48 / 96 kHz
Dimensions / power	19-inch, 1U, 8 in deep / 18 W, 100-240 VAC

Deep control over the whole PA

VENU360 gives system engineers per-output processing and delays, plus AutoEQ and AFS to speed up tuning and limit feedback.

Speaker profiles and crossover from mobile devices.
Handles analog and AES digital sources.
Suitable for portable racks and fixed installs.

dbx DriveRack VENU360 FAQs

What is the dbx DriveRack VENU360?

It is a complete loudspeaker management system with 3 inputs and 6 outputs, AutoEQ, AFS feedback suppression, EQ, crossover and delay processing.

Does the VENU360 support digital inputs?

dbx lists three analog inputs plus two AES digital inputs, which share the XLR connectors.

Can I control it from a phone or computer?

dbx lists control from Android, iOS, Mac and Windows devices over the local network.

Who is the VENU360 for?

Touring and rental systems, worship, theatre, clubs and installations needing detailed speaker processing.

How much does the dbx DriveRack VENU360 cost?

Contact Universal AV Solutions for the latest price and a GST quotation.

Do you provide installation and support?

Yes. Universal AV Solutions provides supply, installation and after-sales support across Delhi NCR and pan-India.

Good to know: Specifications are based on the manufacturer's published information for the dbx DriveRack range and may change. Contact Universal AV Solutions to confirm the exact version and what is included with your order. All brand names are trademarks of their respective owners.
