Product information

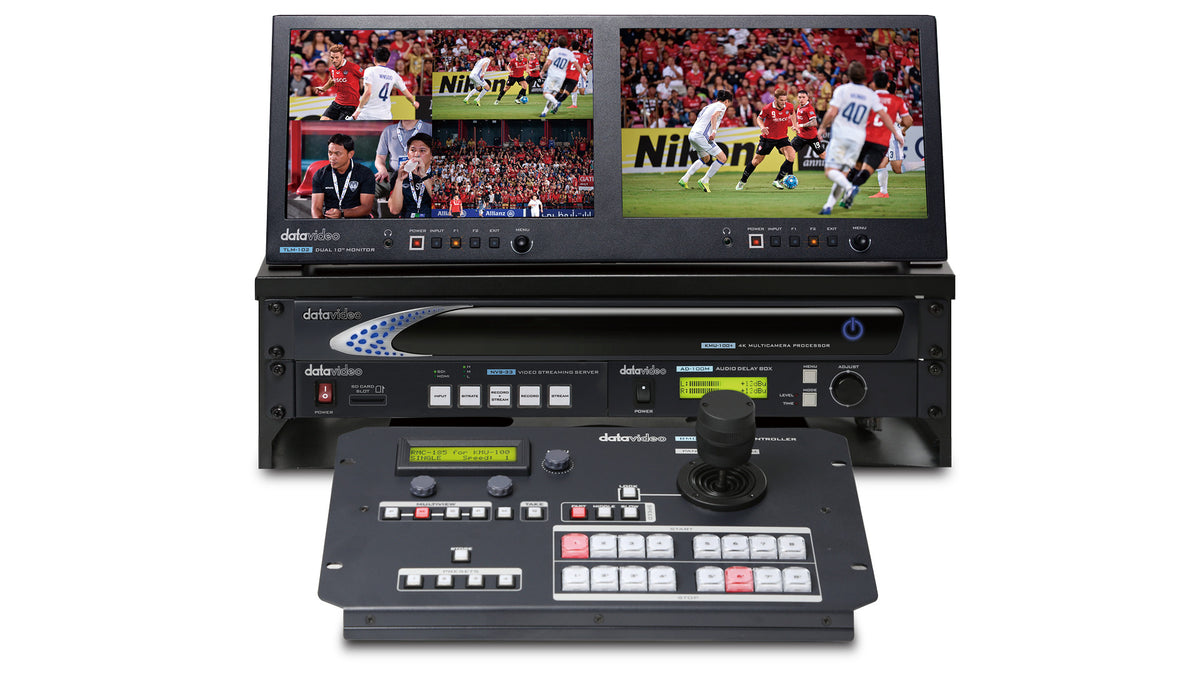

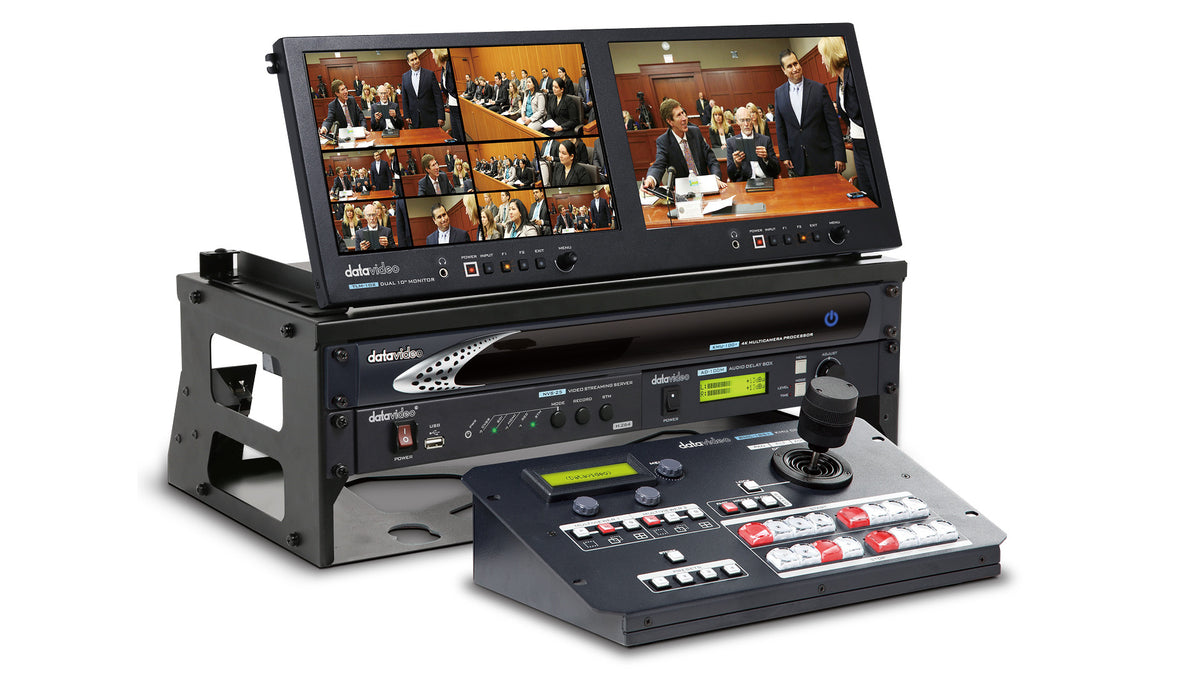

The Datavideo GO KMU-100 Studio is a video switcher from Datavideo, supplied in India by Universal AV Solutions. GO KMU-100 Studio 8-Virtual Cam 4K Processor Studio. 5 in 1 complete video production solution.
Key features
- 5 in 1 complete video production solution
- Create up to 8 new HD video sources from two 4K cameras
- Seamlessly switch between 8 new HD video sources with only 2 cameras
- Streaming to Facebook Live, YouTube, Twitch, and more
Technical specifications
- Model Number: GO KMU-100 Studio
- Video Standard: UHD & HD
- Video Format: 3840x2160p 23.98/24/25/29.97/30/50/59.94/60; 1080p 23.98/24/25/29.97/30; 1080i 50/59.94/60; 1080PsF 23.98/24/25/29.97/30; 720p 50/59.94/60
- Video Processing: SDI: 4:2:2; HDMI: 4:2:0/4:2:2
- Video Input: 2 sets of SDI Input (each set 4x SDI: 1x 3Gb/s or 12Gb/s SD/HD/4K single link 4:2:2; 3x 3Gb/s SD/HD/4K single/dual/quad link 4:2:2); 2x HDMI Input (4K 60p 4:2:0/4:2:2); 2x 12G/6G/3G-SDI support 4K60 4:2:2 single and quad link; 2x HDMI 1.4b/2.0 support 4K60 4:2:0 / 4:2:2
- Video Output: 8x 3G/HD/SD-SDI single link 4:2:2; 2x HDMI 1.4 support 1080p/50/60 4:2:2
- Audio Input: SDI: 16 Ch embedded in HD/4K, 8 Ch embedded in SD; HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K
- Audio Output: SDI: 16 Ch embedded in HD/4K, 8 Ch embedded in SD; HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K
- Preview Display: Dual 10.1" LCD
- Special Features: Seamless Cut
- Streaming Encode: H.264/AVC, Main/High Profile
- Streaming Video Bitrate: Record Only: Up to 16Mbps (1080p50/60); Stream Only: Up to 10Mbps (1080p50/60); Rec+Stream: 10Mbps (1080p25/30)
- Streaming Audio Mode: Stereo/Mono
- Streaming Audio Bitrate: Stereo: 64~384Kbps; Mono: 32~192Kbps
- Streaming Protocols: TS over TCP/UDP (unicast & multicast); RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming); RTMP/RTMPS (Publish); HLS
- Network Interface: 1x RJ45 (10/100Mbps Ethernet)
- Streaming Storage: SD Card
- Recording Storage Medium: SD Card
- How to Retrieve Recorded Content: Removable Hard Drive, transfer data via USB 2.0
- Recording Storage File System: NTFS, FAT, exFAT
- Recorded File Format: MP4
- Audio Input (analogue): 3x XLR (2 for Line-in, 1 for Mic-in), 2x RCA
- Audio Output (analogue): 2x XLR, 2x Unbalanced RCA
- Audio Indicator: SMT LCD
- Audio Delay: Up to 700ms
What's in the box (per official Datavideo page)
- 1 x GO KMU-100 Studio Product
- 1 x RMC-185 Product
- 1 x AD Switch DC 12V
- 2 x HDMI Cable
- 3 x BNC Cable
- 2 x RCA Cable
- 1 x Ethernet Cable
- 1 x RS-422 D Sub 9Pin to RJ-45 Adapter Cab1e
- 12 x Cable Ties
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
