Product information

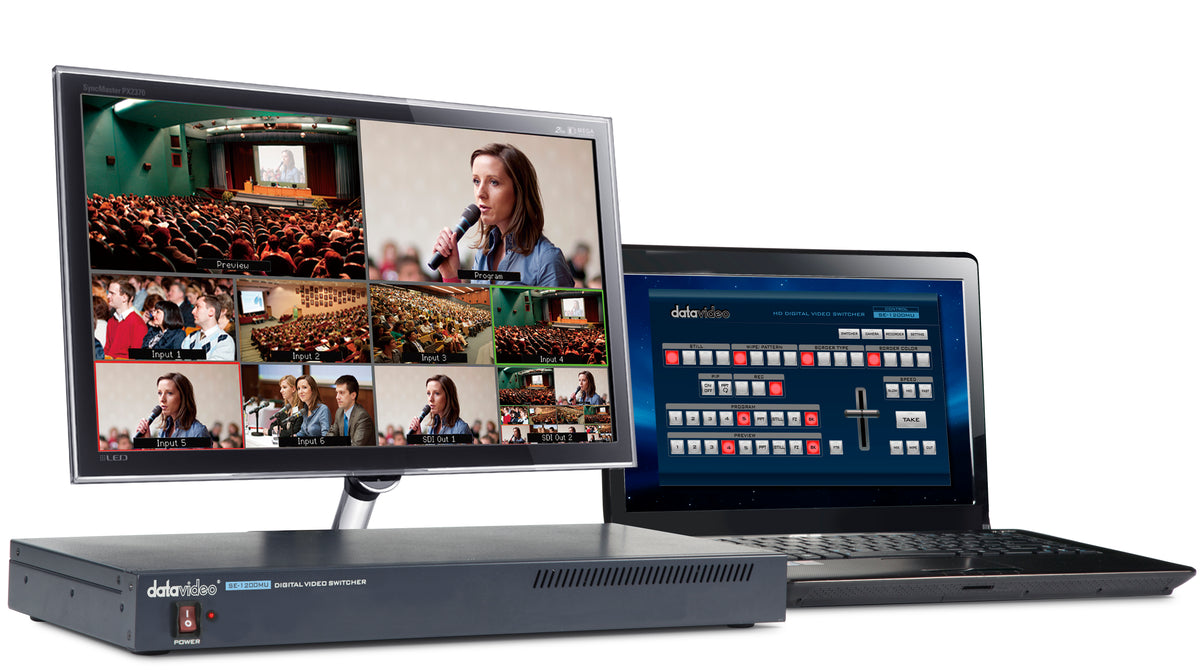

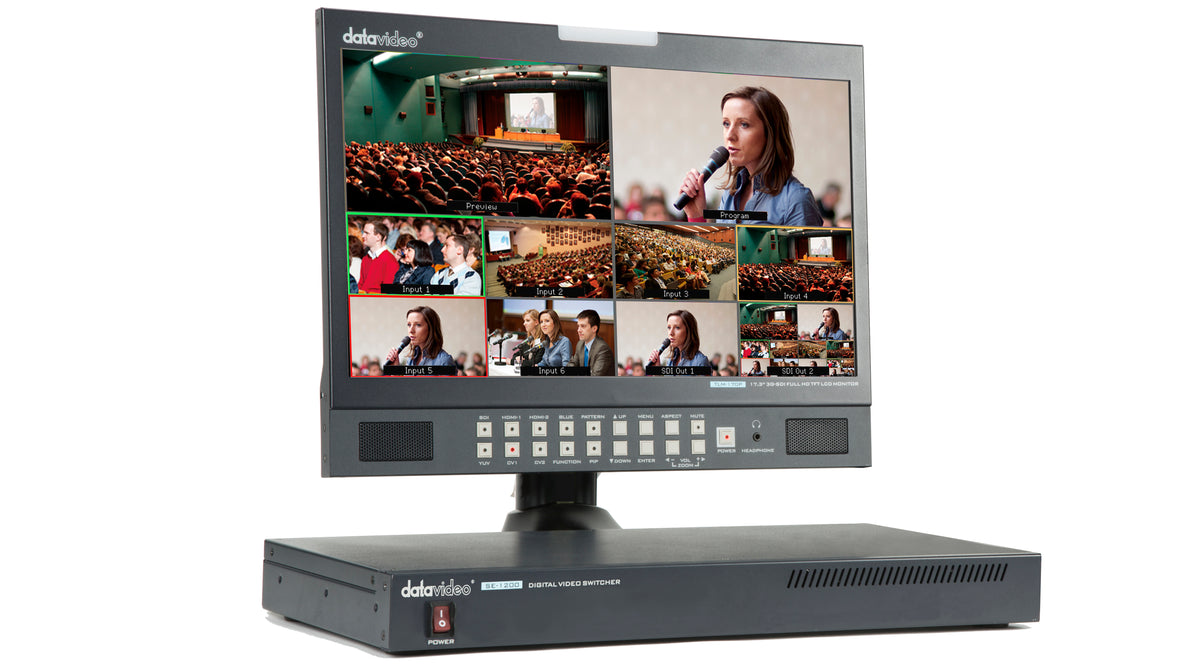

The Datavideo SE-1200 is a video switcher from Datavideo, supplied in India by Universal AV Solutions. SE-1200 6-Channel 1080i SDI/HDMI Switcher (SE-1200MU + RMC-260). Switcher with Distance Control: Switch over IP, external control or RMC-260 control panel. Catalogue lists this model as SE-1200 (SE-1200MU + RMC-260).
Key features
- Switcher with Distance Control: Switch over IP, external control or RMC-260 control panel
- Suitable for medium-sized productions: Supports 6 HD inputs and 4 outputs in HDMI and SDI
- Simple-to-use physical hardware interface: Intuitive control panel RMC-260
- Stunning video effects: Two DSKs and two PIP generators combined with a dual chromakeyer; pre-saved animated stinger transitions and virtual set backgrounds
- Supports XPT (Cross Point Assignment)
- Plug-and-Play: no driver installation needed to connect a laptop
- Professional 10-bit processing switcher
Technical specifications
- Model Number: SE-1200MU
- Video Standard: HD
- Video Format: 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz
- Video Processing: SDI: 4:2:2; HDMI: YUV 4:2:2 10 bit, RGB 4:4:4
- Input Routable / Crosspoint: All 6, repeatable
- Video Input: 4x HD-SDI; 2x HDMI (RGB/YUV, 1080i/1080p/720p)
- Computer Graphic Interface: 2 via HDMI
- Video Output: 2x HD-SDI; 2x HDMI assignable: PGM(w/DSK 1&2), PGM(w/DSK 1), PGM Clean, PVW(w/o DSK), multi-view, Input 1-6
- Built-in Multi-view Monitoring Out: HDMI & SDI assignable, Ethernet (MJPEG)
- Analogue Audio Input: 2x Balanced XLR
- Digital Embedded Audio Support: Input 2 channels, Output 2 channels
- A+V Switching: Yes
- Chromakey: 2
- USK: 2x Keyer support Chromakey/ Linear/ Luma Key
- DSK: 2x DSK support Lumakey/ Linear key (Key / Fill)
- Picture in Picture: 1
- Still Store: 500
- Effects: FTB, Cut, 32 Wipe with border
- Transition Preview: Full transitions preview
- Sync / Reference In/Out: Built-in Genlock (internal)
- Tally Output: 1x D-sub 15pin, dual color
- PC Remote Control: Ethernet (free Window software); RS-422/ RS-232
- Special Features: Motion JPEG Multi-view streaming (120 memory preset, BGD Transition on/off option); Free Virtual Set and Stinger transition included
- Chassis: 1RU rack-mount mainframe
- Dimension (LxWxH): 440 x 215 x 49 mm
What's in the box (per official Datavideo page)
- 1 x SE-1200MU product
- 1 x AD Switch DC 12V
- 1 x DB9P TO DB9P Cable
- 2 x 1U Rack Mount Ear
- 6 x M4 Screws for Rack Mount Ear
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
