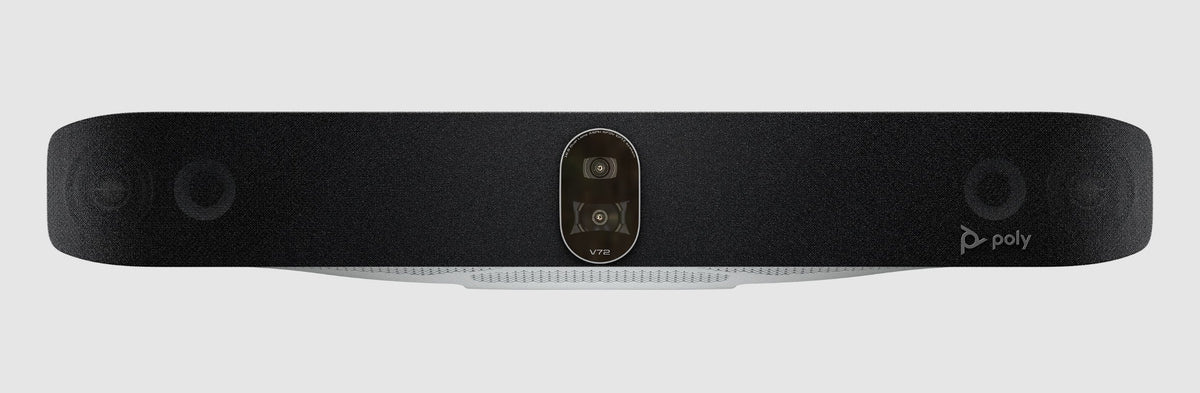

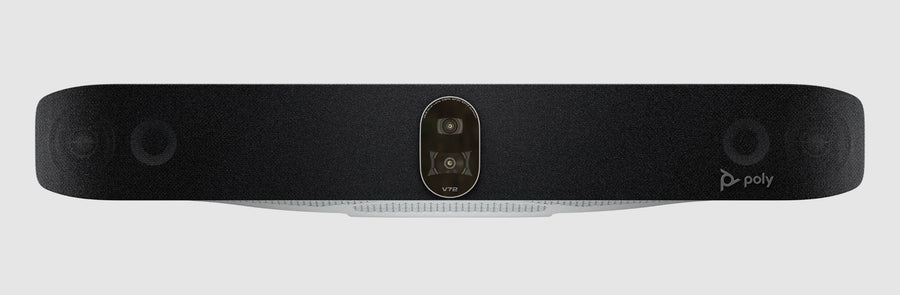

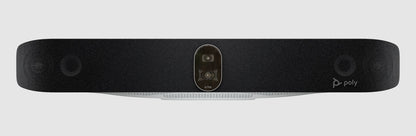

Poly Studio V72 · Premium USB Video Bar
Dual 4K Cameras and Premium Audio for Large Meeting Rooms
Studio V72 Premium USB Video Bar Dual Cameras, Mics and Speakers
- Dual 4K Cameras
- Poly DirectorAI
- USB / BYOD
- Teams · Zoom
Price on Request
Every installation is different. Talk to our AV Consultant for configuration, BOQ and customised proposal.
Key Highlights
-
Dual 4K 20 MP Cameras
Two 20 MP cameras with 4K UHD video for large-room coverage
-
Wide 120° Horizontal View
Wide camera view that takes in the whole room
-
Narrow 70° Horizontal View
Tighter second view for framing speakers and groups
-
140° / 78° Diagonal View
Wide and narrow diagonal fields of view from the dual-camera system
-
7.3× Digital Zoom
Digital zoom, not optical, for closer framing
-
Poly DirectorAI
Speaker, people and group framing for hybrid meetings
-
NoiseBlockAI and Acoustic Fence
Reduces distracting noise and keeps voices clear
-
Integrated Microphones
2 MEMS and 2 second-order mics, pickup up to 7.62 m (25 ft)
-
Dual-Speaker Audio
Two-way speakers with mid speakers, tweeters and bass ports
-
USB and BYOD Deployment
Connects to a PC or Mac over USB Type-C for large BYOD rooms
Product information
Poly Studio V72 is a premium USB video conferencing bar designed for large meeting rooms. It combines dual 4K cameras, Poly DirectorAI camera technology, integrated microphones and dual-speaker audio in one bar, and connects to a PC or Mac over USB, which makes it a professional fit for PC-based and BYOD conferencing spaces.

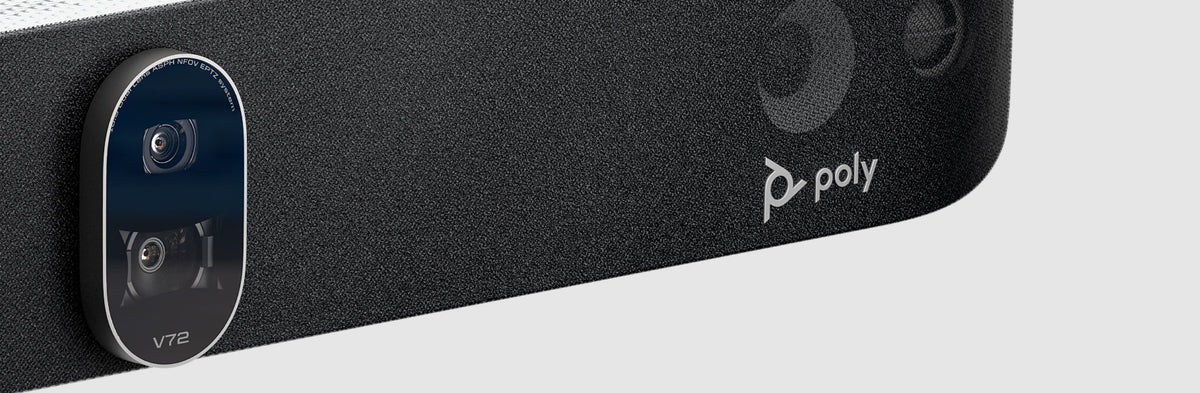

Dual 4K cameras for large rooms
Two 20 MP cameras deliver 4K UHD video, with a wide 120° horizontal view for the whole room and a narrower 70° view for tighter shots. Poly DirectorAI decides what the far end sees, using speaker framing, people framing and group framing as the meeting changes. Zoom is digital (7.3x), so it is best thought of as smart framing within the room rather than optical reach. An integrated electronic privacy shutter covers the cameras when needed.

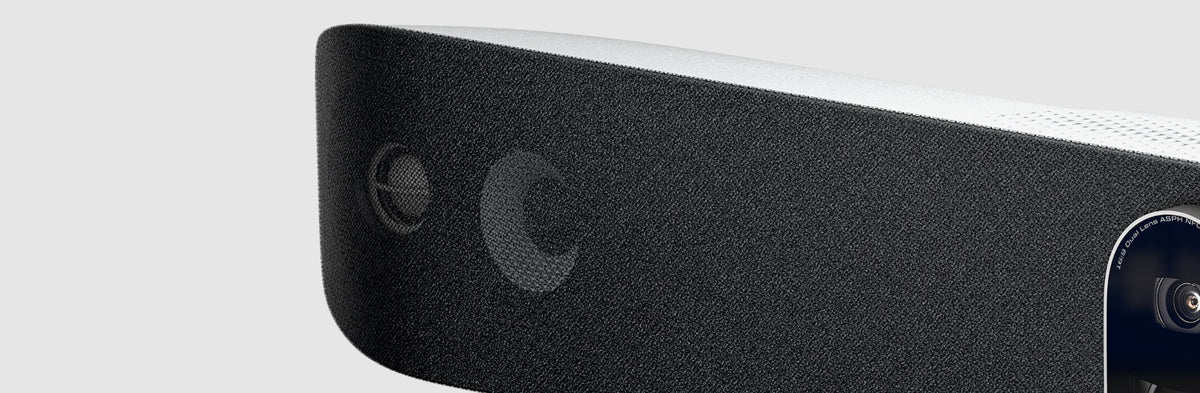

Audio built for big spaces
Poly NoiseBlockAI and Acoustic Fence help keep distracting noise out of the call, while built-in MEMS and second-order microphones pick up voices across a large table. The two-way speaker system pairs mid speakers with tweeters and bass ports for fuller, clearer sound at the far end of the room. If you need more microphone coverage, Poly offers an optional expansion microphone, sold separately.
USB deployment for BYOD and PC-based rooms
Studio V72 works as a USB peripheral: connect the room PC or a visiting laptop through USB Type-C and use your preferred conferencing application. It is certified for Microsoft Teams and Zoom, and Poly Lens gives IT teams remote management. HP also lists the Poly Studio E360 and Studio Table Microphone as supported peripherals, subject to availability and sold separately. Note that HDMI-out is for provisioning only on this model, and its HDMI-in and audio line ports are not supported, so plan displays and room audio with that in mind.
Ideal for
Large corporate conference rooms, boardrooms, large hybrid meeting rooms, enterprise BYOD rooms and training or collaboration spaces. HP positions Studio V72 for large rooms, but real-world coverage depends on layout and acoustics, so send us your room plan and we will check the design. For medium rooms, the all-in-one Poly Studio X52 may be a better fit.
Buy Poly Studio V72 in India from Universal AV Solutions with supply, system design, installation and after-sales support across Delhi NCR and pan-India. Explore our video conferencing bars and video conferencing systems, read about video conferencing solutions, meeting room AV solutions, enterprise video conferencing and our wider corporate AV solutions.
Specifications are based on the manufacturer's published information and may change. Poly Studio E360, expansion microphones and other peripherals are sold separately. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
Applications
-
Large Corporate Conference Rooms
Large conference rooms where a premium USB bar gives clear 4K video and room-filling audio from the room PC.
-
Boardrooms
Boardroom and leadership meetings that need wide coverage, automatic framing and reliable audio for remote directors.
-
Large Hybrid Meeting Rooms
Hybrid rooms where remote participants need to see and hear everyone around a long table.
-
Enterprise BYOD Meeting Rooms
Rooms where staff plug in their own laptop over USB and use the bar with the conferencing app of their choice.
-
Training and Collaboration Rooms
Training and collaboration spaces that need strong pickup and clear sound for larger groups.
Technical Specifications
Model
- Model
- Poly Studio V72 Premium USB Video Bar
- Manufacturer part number (MPN)
- AV1E3AA
Camera
- Camera type
- Dual-lens
- Number of cameras
- 2
- Camera resolution
- 3840 × 2160 (4K UHD)
- Total camera resolution
- 2 × 20 MP
- Frame rate
- 30 fps
- Focus type
- Fixed focus
- Wide horizontal field of view
- 120°
- Narrow horizontal field of view
- 70°
- Wide diagonal field of view
- 140°
- Narrow diagonal field of view
- 78°
- Zoom
- 7.3× digital zoom (not optical)
- Lens cover
- Integrated lens cover
Smart Camera and AI
- Camera intelligence
- Poly DirectorAI automatic framing and tracking
- Framing modes
- Speaker framing, people framing and group framing
- Wide and narrow views
- 120° wide and 70° narrow horizontal views from the dual-camera system
- Automatic framing
- Adjusts the picture as people join, leave or speak
Video
- Video resolution
- 4K UHD, 2160p (3840 × 2160)
- Video frame rate
- 30 fps
- Video output to host
- Delivered to a connected PC or Mac over USB Type-C in USB Device Mode
Audio
- Noise suppression
- Poly NoiseBlockAI
- Noise control
- Poly Acoustic Fence
- Level control
- Automatic gain control (AGC)
- Speaker design
- Two-way dual speakers with mid speakers, aluminium-core tweeters and bass ports
- Speaker sensitivity
- 83 dB (mid speakers); 89 dB (tweeter speakers)
Microphones
- Built-in microphones
- 2 MEMS microphones and 2 second-order microphones
- Microphone pickup range
- Up to 7.62 m (25 ft)
- Microphone sensitivity
- -26 dB
- Expansion microphone
- Optional and sold separately; not included
Ports and Interfaces
- USB Type-C
- 1 × USB Type-C, 5 Gbps (connection to the host PC or Mac)
- USB Type-A
- 2 × USB Type-A, 5 Gbps; disabled by default and can be enabled in Poly Lens (supports mouse and keyboard peripherals only)
- HDMI output
- 2 × HDMI-out 2.0, for provisioning support only
- HDMI input
- 1 × HDMI-in 1.4; not supported
- Line-in
- 1 × line-in; not supported
- Line-out
- 1 × line-out; not supported
- LAN
- 1 × LAN RJ-45
- LLN
- 1 × LLN RJ-45
- RJ-11
- 1 × RJ-11
Wireless
- Wi-Fi
- 802.11a/b/g/n/ac/ax (MIMO) with multi-channel concurrency
Compatibility and Management
- Certified platforms
- Certified for Microsoft Teams and Zoom
- USB Device Mode
- Operates as a USB video conferencing peripheral for a connected PC or Mac
- Other applications
- Can be used with other collaboration applications through USB Device Mode; no certification is claimed
- Management
- Poly Lens remote device management (requires Poly Lens software on a Windows 10 or higher host PC)
- Optional peripherals
- Poly Studio E360 and Poly Studio Table Microphone listed by HP as supported peripherals, subject to regional availability and sold separately
Content and Display
- HDMI-out use
- Listed for provisioning support only; not documented as a content or display output
Security
- Privacy shutter
- Integrated motorized electronic privacy shutter
- Device security
- Local account password policy, security profiles, secure defaults and remote logging with TLS
Room Size
- Recommended room size
- Large rooms
- Room reference
- Microphone pickup up to 7.62 m (25 ft); layout and acoustics affect real-world coverage
Physical
- Dimensions
- 840.18 × 135.4 × 117.93 mm (33.1 × 5.3 × 4.6 in), W × D × H
- Weight
- 3.307 kg (7.28 lb)
Power
- Power supply
- External AC power adapter (supplied)
Environment
- Operating temperature
- 0 to 40 °C
- Operating humidity
- 15 to 80%
- Non-operating humidity
- 5 to 95%
Package and Warranty
- In the box
- Poly Studio V72, wall mount kit, quick start guide, AC power adapter, power cable, HDMI cable, USB Type-C to USB Type-C cable and 2 m Ethernet cable
- Not included
- Poly Studio E360, expansion microphone, touch controller, PC-based room kit and additional cameras
- Warranty
- Poly standard one-year limited warranty
Frequently Asked Questions
What is Poly Studio V72?
Poly Studio V72 is a premium USB video bar from HP Poly for large meeting rooms. It combines dual 4K cameras, Poly DirectorAI framing, built-in microphones and dual-speaker audio, and connects to a PC or Mac over USB for video conferencing.
What size meeting rooms is Poly Studio V72 designed for?
HP positions Poly Studio V72 for large meeting rooms and PC-based or BYOD spaces. This is a guide rather than a guaranteed capacity, because room layout and acoustics also matter, so share your room plan with us and we will confirm the fit.
Does Poly Studio V72 support 4K video?
Yes. Studio V72 uses two 20 MP cameras with 4K UHD (3840 × 2160) video at 30 fps. The quality you see in a call also depends on the platform, bandwidth and the displays used.
How many cameras does Poly Studio V72 have?
Studio V72 has a dual-lens camera system with two 20 MP cameras, giving a 120° wide and a 70° narrow horizontal view. Poly DirectorAI uses speaker, people and group framing to choose what the remote side sees.
What is the field of view of Poly Studio V72?
The wide view is 120° horizontal and 140° diagonal, and the narrow view is 70° horizontal and 78° diagonal. Zoom is 7.3× digital, not optical.
Does Poly Studio V72 support Microsoft Teams and Zoom?
Yes. HP lists Poly Studio V72 as certified for Microsoft Teams and Zoom. It can also be used with other collaboration applications through USB Device Mode, although no certification is claimed for those. Please confirm your platform with us before ordering.
Can Poly Studio V72 connect to a laptop or PC using USB?
Yes. Studio V72 is a USB video bar that connects to a PC or Mac through its USB Type-C port in USB Device Mode, so the room computer can use its cameras, microphones and speakers with the conferencing application. Its two USB Type-A ports are disabled by default and support mouse and keyboard peripherals only.
Can the microphone coverage of Poly Studio V72 be expanded?
HP says an optional expansion microphone is available, and lists Poly Studio E360 and the Poly Studio Table Microphone as supported peripherals, subject to regional availability. They are sold separately and are not included, so please ask us to confirm compatibility for your room.
