Poly Studio X52 · All-In-One Video Bar
4K All-In-One Video Conferencing for Medium Meeting Rooms
Studio X52 All-In-One Video Bar Camera, Mics and Speakers in One Unit
- 4K UHD Camera
- 110° Field of View
- Poly DirectorAI
- Teams · Zoom · Google Meet
Price on Request
Every installation is different. Talk to our AV Consultant for configuration, BOQ and customised proposal.
Key Highlights
-
4K UHD Video
People video up to 4K at 30 fps for sharp, detailed meetings
-
20 MP Camera
Single-lens camera capturing 3840 × 2160 video
-
110° Diagonal Field of View
95° horizontal view to take in more of a medium-sized room
-
5x Digital Zoom
Digital zoom, not optical, for tighter framing of participants
-
Poly DirectorAI
Group, people and speaker framing that adapts as the meeting changes
-
NoiseBlockAI and Acoustic Fence
Reduces distracting noise and keeps the focus on voices in the room
-
Dual Stereo Speakers
Built-in stereo speakers rated 2 × 20 W RMS
-
Four Built-in Microphones
2 MEMS and 2 second-order mics with pickup up to 6.09 m (20 ft)
-
Flexible Connectivity
HDMI in and out, USB-C, USB-A, Ethernet, Wi-Fi and Bluetooth 5.0
-
Teams, Zoom and Google Meet
Certified for all three, plus USB Device Mode and Poly Video App mode
Product information

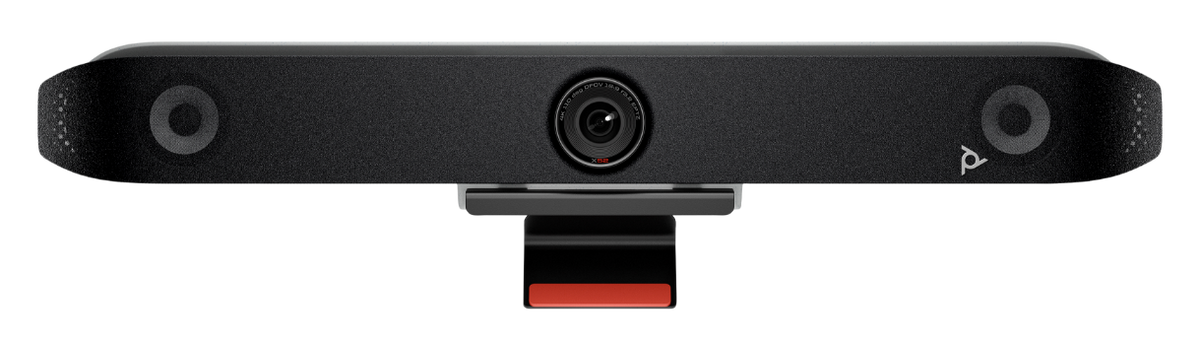

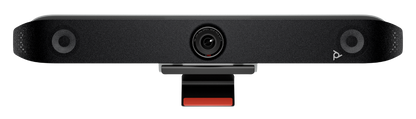

Poly Studio X52 is a premium all-in-one video conferencing bar for medium and mid-sized meeting rooms. A single unit under the display brings together a 20 MP 4K camera, four microphones and stereo speakers, so a room can be set up for professional video calls without separate camera, audio and control boxes.
Sharp 4K video with intelligent framing
The built-in camera captures 4K UHD video with a wide 110° diagonal view, so remote participants see more of the room. Poly DirectorAI handles the framing for you, using group, people and speaker framing to keep the picture relevant as people join, move or start talking. Zoom is digital (5x), which suits framing within a medium room rather than long-distance close-ups.
Clear, focused audio
Poly NoiseBlockAI and Acoustic Fence work to reduce distracting noise so voices stay in front. The built-in stereo speakers fill a mid-sized room, and the microphone array picks up speech across a table of typical size. If you need more coverage, Poly offers an optional expansion microphone for the line-in port, sold separately.
Works with the platform your team uses
Studio X52 is certified for Microsoft Teams, Zoom and Google Meet, and it can also join other cloud services through Poly Video App mode. For ad hoc meetings, USB Device Mode lets a laptop use the bar as its camera, microphones and speakers. Wireless content sharing through AirPlay and Miracast, an HDMI input and digital whiteboarding keep presentations simple, and Poly Lens gives IT teams remote visibility and management.
Ideal for

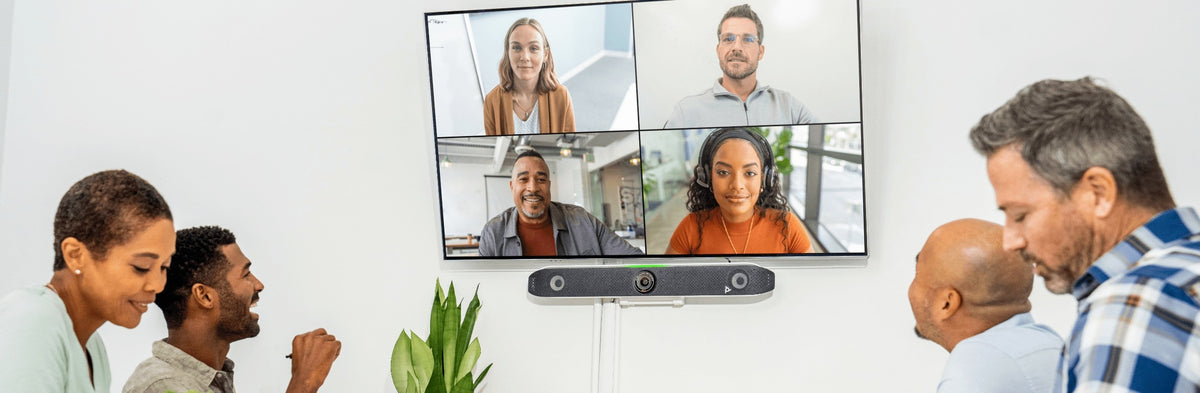

Medium corporate meeting rooms, conference rooms, executive meeting rooms, hybrid collaboration rooms and training spaces. HP gives a reference room size of about 20 ft × 15 ft, but this is only a guide, so send us your room plan and we will confirm the fit. For a smaller room, the Logitech Rally Bar Huddle may be a better match, and for large rooms a modular video conferencing system may suit better.
Buy Poly Studio X52 in India from Universal AV Solutions with supply, system design, installation and after-sales support across Delhi NCR and pan-India. Explore our video conferencing solutions, meeting room AV solutions, enterprise video conferencing and wider corporate AV solutions.
Specifications are based on the manufacturer's published information and may change. This listing is for the standard Studio X52 without a touch controller; Poly TC8 or TC10, mounts and the expansion microphone are sold separately. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
Applications
-
Medium Corporate Meeting Rooms
Everyday team meetings and client calls in mid-sized rooms that need a simple all-in-one setup.
-
Conference Rooms
Conference rooms where one device at the front of the room should handle camera, audio and calling.
-
Executive Meeting Rooms
Management and leadership meetings where clear video, automatic framing and a clean installation matter.
-
Hybrid Collaboration Rooms
Hybrid meetings where remote participants need to see and hear everyone in the room, whatever platform the team uses.
-
Training and Collaboration Spaces
Training rooms and collaboration spaces that combine video calls with content sharing from laptops and wireless devices.
Technical Specifications
Model
- Model
- Poly Studio X52 All-In-One Video Bar (standard configuration, without touch controller)
- Manufacturer part number (MPN)
- 7200-87620
Camera
- Camera type
- Single-lens camera built into the video bar
- Camera resolution
- 4K UHD (3840 × 2160), 20 MP
- Diagonal field of view
- 110°
- Horizontal field of view
- 95°
- Zoom
- 5x digital zoom (no optical zoom)
- Additional cameras
- Secondary cameras can be added through the USB and HDMI connections
- Privacy cover
- Listed in the box in the HP data sheet; please confirm with us when ordering
Smart Camera Framing
- Camera intelligence
- Poly DirectorAI automatic framing and tracking
- Framing modes
- Group framing, people framing and speaker framing
Video
- People video (4K)
- 4K at 30 fps, from 2048 Kbps
- People video (1080p)
- 60 fps from 1740 Kbps; 30 fps from 1024 Kbps
- People video (720p)
- 60 fps from 832 Kbps; 30 fps from 512 Kbps
- Video standards
- H.264 AVC, H.264 High Profile, H.265 and H.239
- Content resolution
- Input and output up to UHD 3840 × 2160; 5 to 60 fps (up to 15 fps at 4K in a call)
- Supported displays
- 2 displays (3 in Zoom with a supported adapter)
Audio
- Audio processing
- Full duplex, acoustic echo cancellation and automatic gain control
- Noise management
- Poly NoiseBlockAI and Poly Acoustic Fence
- Speakers
- Built-in stereo speakers
- Speaker power
- 2 × 20 W RMS (40 W maximum)
- Speaker sensitivity
- 79 dB at 1 W, 1 m
- Audio standards
- 22 kHz (Polycom Siren 22), 20 kHz (G.719 M-mode with Siren 22), 14 kHz (Siren 14, G.722.1 Annex C), 7 kHz (G.722, G.722.1), 3.4 kHz (G.711, G.728, G.729A)
Microphones
- Built-in microphones
- 2 MEMS microphones and 2 second-order microphones
- Microphone pickup range
- Up to 6.09 m (20 ft)
- Optional expansion microphone
- Connects to the line-in port (Poly part number 2200-69631-001, sold separately)
Ports and Interfaces
- HDMI input
- 1 × HDMI 2.0 (video and audio)
- HDMI output
- 2 × HDMI 2.0 (video)
- USB Type-C
- 1 × USB-C, 5 Gbps
- USB Type-A
- 2 × USB-A, 5 Gbps
- Ethernet
- 1 × RJ-45, 10/100/1000 Mbps with Auto-MDIX
- Line-in
- 1 × line-in for the optional expansion microphone
Wireless and Network
- Wi-Fi
- 802.11a/b/g/n/ac/ax with multi-channel concurrency (not available on no-radio versions)
- Bluetooth
- Bluetooth 5.0 (not available on no-radio versions)
- IP support
- IPv4 and IPv6
- Call protocols
- H.323 and/or SIP up to 6 Mbps in Poly Video App mode
- Network resilience
- Lost Packet Recovery, dynamic bandwidth allocation and reconfigurable MTU size
- Proxy and certificates
- Web proxy (basic, digest, NTLM) and SCEP
Content Sharing
- Wireless content sharing
- Apple AirPlay and Miracast
- Wired content and whiteboarding
- HDMI input and digital whiteboarding
- Digital signage
- Appspace and Raydiant
Compatibility and Management
- Certified platforms
- Microsoft Teams, Zoom and Google Meet
- Other native apps
- Dialpad, GoToRoom, RingCentral and StarLeaf
- Other cloud services
- Poly Video App mode, or USB Device Mode from a connected computer
- Device management
- Poly Lens
- Touch controller
- Optional Poly TC8 or TC10 (sold separately)
Security
- Encryption
- AES-128 and AES-256 media encryption (H.323, SIP), H.235.6, BFCP
- Access control
- Authenticated access to admin menus, web interface and API; password policy, security profiles, account and login port lockout, secure defaults, TLS remote logging and Active Directory authentication
- Physical security
- Kensington lock slot
Room Size
- Recommended room size
- Medium / mid-sized meeting rooms
- Room reference
- About 20 ft × 15 ft (about 6.1 m × 4.6 m), a recommended reference rather than a guaranteed capacity
Physical
- Dimensions (W × H × D)
- 769.5 × 115.2 × 103 mm (30.3 × 4.5 × 4 in)
- Weight
- 2.54 kg (5.6 lb)
Power
- Power supply
- External auto-sensing AC power adapter (adapter wattage not published)
- Power consumption
- 25 W under heavy load, 8 W idle/sleep; 37 VA at 120 V / 60 Hz and at 230 V / 50-60 Hz; about 65 BTU/h heat output
Environment
- Operating conditions
- 0 to 40 °C (32 to 104 °F); 15 to 80% humidity, non-condensing
- Storage conditions
- -40 to 70 °C (-40 to 158 °F); 5 to 95% humidity, non-condensing
- Maximum altitude
- 4,877 m (16,000 ft)
Package and Warranty
- In the box
- Poly Studio X52, Ethernet cable, monitor clamp, privacy cover, AC power adapter, power cable and HDMI cable
- Warranty
- Poly standard one-year limited warranty
Frequently Asked Questions
What is Poly Studio X52?
Poly Studio X52 is an all-in-one video conferencing bar from HP Poly that combines a 4K camera, microphones and stereo speakers in a single unit. It is designed for medium and mid-sized meeting rooms and runs built-in cloud video apps, with USB Device Mode available when you want to use a laptop instead.
What size meeting rooms is Poly Studio X52 designed for?
HP positions Poly Studio X52 for medium and mid-sized rooms and gives a reference room of about 20 ft × 15 ft, with microphone pickup up to 6.09 m (20 ft). Treat this as a guide rather than a guaranteed capacity, because seating layout and room acoustics also matter. Share your room plan with us and we will confirm the fit.
Does Poly Studio X52 support 4K video?
Yes. The camera is a 20 MP 4K UHD camera, and Poly lists people video up to 4K at 30 fps. Actual video quality in a call also depends on the platform, bandwidth and the display you connect.
What is the field of view of Poly Studio X52?
The camera has a 110° diagonal field of view and a 95° horizontal field of view. It offers 5x digital zoom; there is no optical zoom.
Does Poly Studio X52 support Microsoft Teams, Zoom and Google Meet?
Yes. HP and Poly list Poly Studio X52 as certified for Microsoft Teams, Zoom and Google Meet. It also supports native apps such as Dialpad, GoToRoom, RingCentral and StarLeaf, and can join other cloud services through Poly Video App mode or USB Device Mode. Certification can change, so please confirm your platform with us before ordering.
What is Poly DirectorAI?
Poly DirectorAI is the smart camera technology in Poly Studio X52. It adjusts the camera view automatically using group framing, people framing and speaker framing, so remote participants can see who is in the room and who is talking without anyone steering the camera.
Can Poly Studio X52 connect to a laptop using USB?
Yes. USB Device Mode lets you connect a laptop or PC to the USB Type-C port and use the camera, microphones and speakers with the conferencing app of your choice. Content can also be shared through the HDMI input.
Can Poly Studio X52 share content wirelessly?
Yes. It supports Apple AirPlay and Miracast for wireless content sharing, along with digital whiteboarding and a wired HDMI input.
