RØDE NT1 5th Generation · Studio Condenser Microphone
Dual-Connect Studio Condenser with XLR and USB-C Outputs
RØDE NT1 5th Generation Studio Condenser Microphone XLR + USB-C, 32-Bit Float over USB
- 1-inch Capsule
- XLR + USB-C
- 32-Bit Float (USB)
- 4dBA Self-Noise
- 142dB SPL
Price on Request
Every installation is different. Talk to our AV Consultant for configuration, BOQ and customised proposal.
Key Highlights
-
1-Inch HF6 Condenser Capsule
A large-diaphragm, true condenser capsule with a cardioid pattern for detailed studio recording.
-
Dual XLR and USB-C Output
Connect through analogue XLR to external equipment, or digitally through USB-C to a computer. Use one output at a time.
-
32-Bit Float USB Output
The USB-C digital output records in 24-bit or 32-bit float. The XLR output is analogue.
-
Up to 192kHz Conversion
Digital sampling rates of 48kHz, 96kHz and 192kHz over USB.
-
Low 4dBA Self-Noise
RØDE lists equivalent noise of 4dBA (A-weighted) for quiet recordings.
-
142dB SPL Handling
High maximum sound pressure level for loud vocals and instruments.
-
Built-In Revolution Preamp
RØDE's Revolution Preamp is built into the microphone.
-
APHEX Processing at 48kHz
On-board APHEX digital processing over USB, available only at a 48kHz sample rate.
-
Cardioid, Side-Address Design
Cardioid pickup from the side of the microphone for focused vocal and instrument capture.
-
Shock Mount, Pop Filter and Cables Included
The package lists an SM6 shock mount and pop filter, a 3 m USB-C cable, a 6 m XLR cable and a dust cover.
Product information
The RØDE NT1 5th Generation is a large-diaphragm studio condenser microphone with a 1-inch HF6 capsule, a cardioid pattern and two ways to connect: an analogue XLR output and a digital USB-C output. It is designed for vocal recording, podcasting, voice-over, music production and content creation. Universal AV Solutions supplies it for studios, creators, corporate teams and video production setups across India.
Key features
RØDE lists a frequency range of 20Hz to 20kHz, equivalent noise of 4dBA, a maximum SPL of 142dB and an output impedance of 100Ω. The microphone is a side-address design with a cardioid polar pattern, and RØDE's Revolution Preamp is built in. The package includes an SM6 shock mount and pop filter, a 3 m USB-C cable, a 6 m XLR cable and a dust cover.

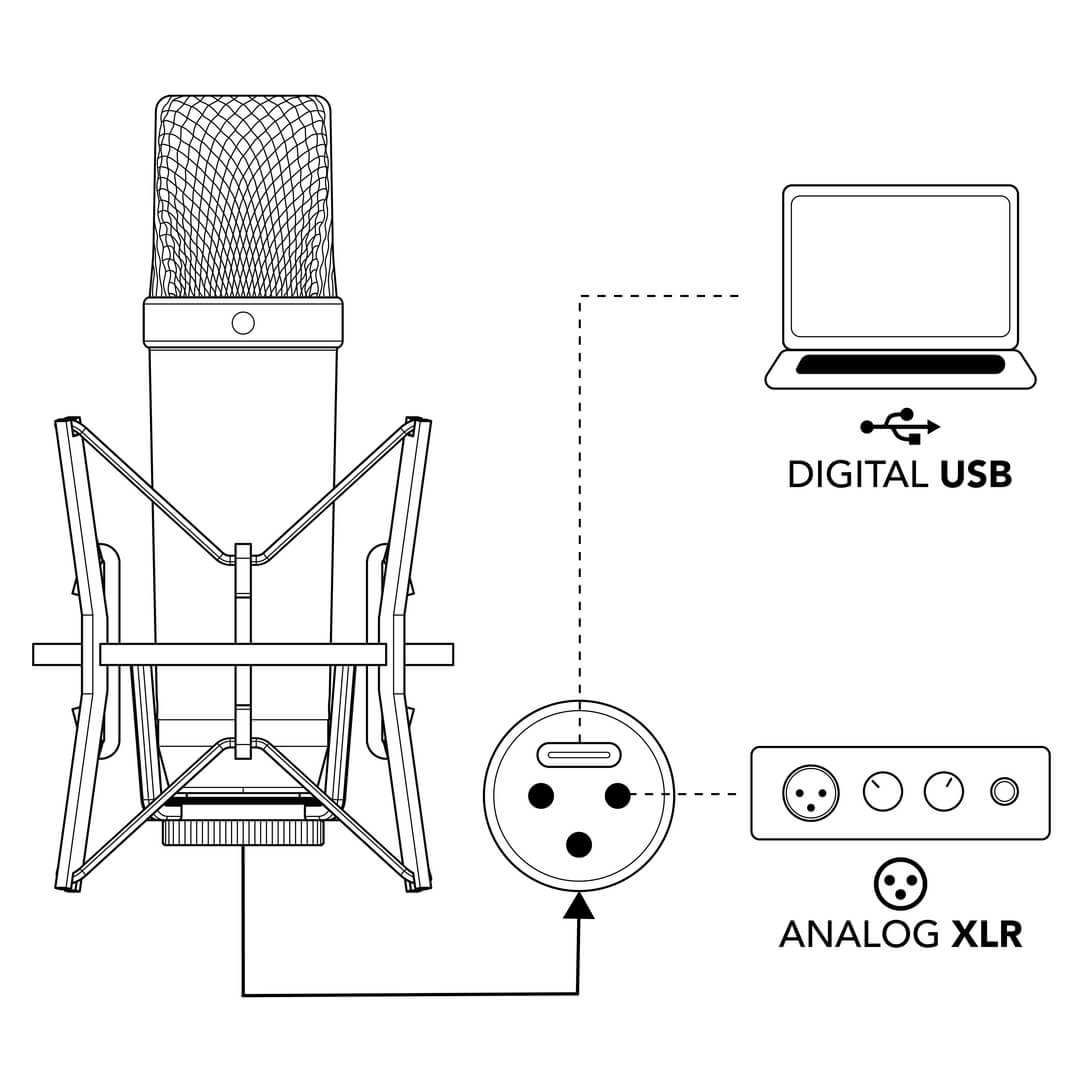

USB-C versus XLR connection options
The XLR output is analogue. It connects to an audio interface, mixer or other compatible equipment and requires 48V phantom power. The USB-C output is digital. It connects directly to a computer and is powered by the 5V USB connection. You still need compatible recording software and adequate USB power. Use either the XLR output or the USB-C output at one time, not both together.
32-bit float and digital recording
The USB-C digital output supports 24-bit and 32-bit float at sampling rates of 48kHz, 96kHz and 192kHz. 32-bit float applies to the USB digital output, not to the analogue XLR output. The microphone still has a maximum SPL of 142dB, so 32-bit float does not remove all limits on loud sources. Compatibility with 32-bit float depends on your computer, operating system and recording software, so please check RØDE's guidance. The microphone has no listed headphone output, so use your interface, mixer or computer for monitoring.
APHEX processing
The microphone includes on-board APHEX digital signal processing over USB. RØDE states that it is available only at a 48kHz sample rate.
Applications
It suits vocal and music recording, podcasting and voice-over, YouTube and creator studios, acoustic instrument recording, corporate voice recording, video production, and home and professional recording studios.

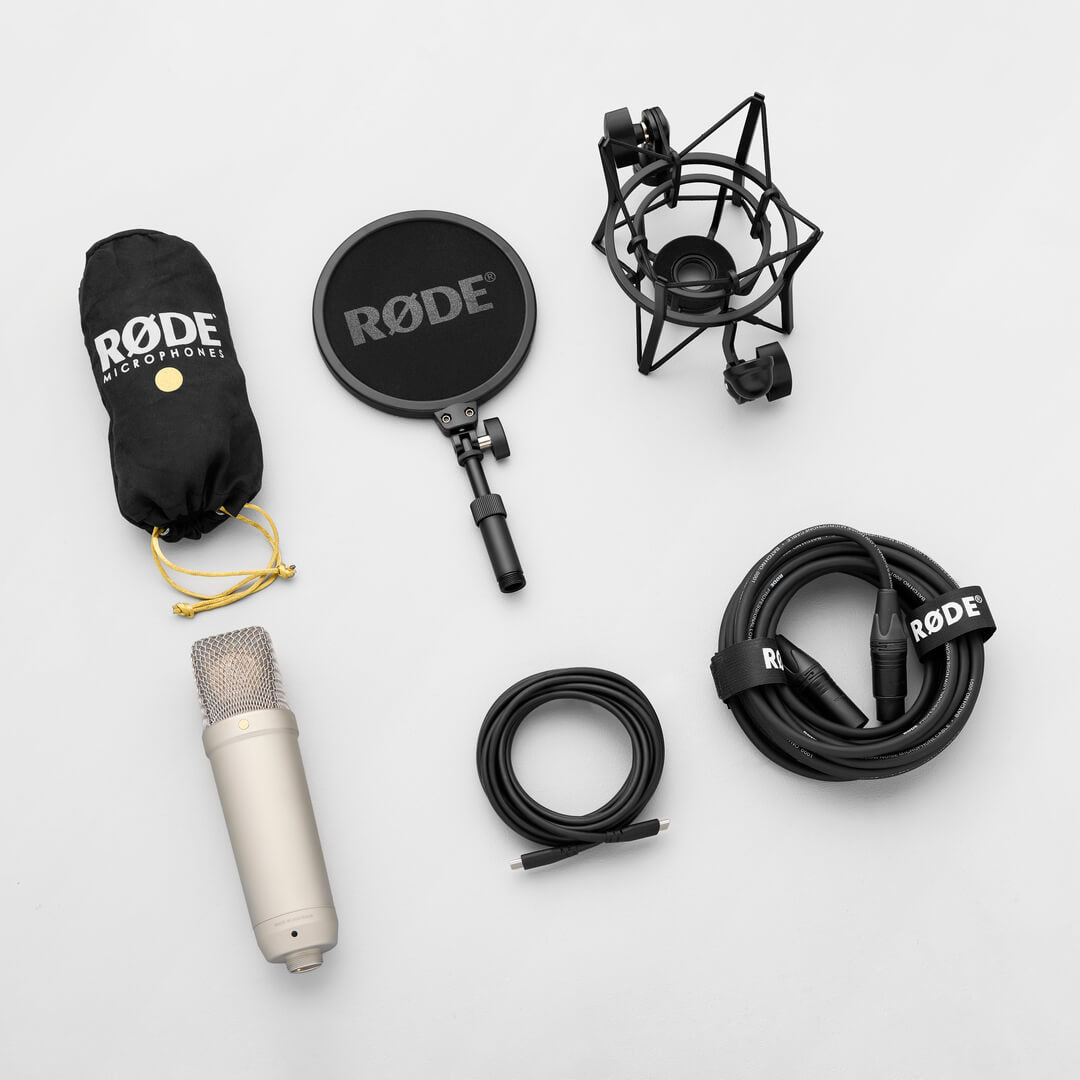

Included accessories
RØDE lists the microphone, an SM6 shock mount and pop filter, an SC29 3 m USB-C cable, a 6 m XLR cable and a dust cover. RØDE offers the microphone in black and silver, so please confirm the finish when you request a quotation. A microphone stand, boom arm, audio interface and headphones are not included.
Explore our professional audio equipment, microphones and audio mixers, along with video production equipment. If you plan to use the XLR output, you may want to look at mixers such as the Soundcraft EPM6 or the Yamaha MG10XU. These are separate products, so please confirm that phantom power and connections suit your setup.
Buy RØDE NT1 5th Generation in India from Universal AV Solutions with supply, system design and after-sales support across Delhi NCR and pan-India. Read about our broadcast and video production solutions, corporate AV solutions and education AV solutions, or contact us for a quotation.
Specifications are based on the manufacturer's published information and may change. Microphone stands, boom arms, audio interfaces and other equipment are sold separately unless listed in the package contents. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
Applications
-
Vocal and Music Recording
Capture detailed vocals in a home or professional studio.
-
Podcasting and Voice-over
Record podcasts, narration and voice-over directly over USB-C or through an interface.
-
YouTube and Creator Studios
Use as a desk or boom-arm microphone for creator recordings.
-
Acoustic Instrument Recording
Record guitars and other acoustic instruments with a 1-inch condenser capsule.
-
Corporate Voice Recording
Record presentations, e-learning narration and training audio.
-
Video Production
Record voice-over and dialogue for video and content production.
-
Home and Professional Recording Studios
Use through XLR with an audio interface or mixer, or directly over USB-C.
Technical Specifications
General
- Model
- RØDE NT1 5th Generation
- Microphone type
- Large-diaphragm studio condenser microphone
- Colours
- Black and Silver, per RØDE; contact us to confirm the finish
Acoustic
- Acoustic principle
- Pressure gradient
- Capsule
- 1-inch HF6 true condenser capsule
- Polar pattern
- Cardioid
- Address type
- Side-address
- Frequency range
- 20Hz to 20kHz
- Maximum SPL
- 142 dB SPL
- Equivalent noise (A-weighted)
- 4 dBA
- Sensitivity
- -32 dB re 1 V/Pa (25 mV at 94 dB SPL) ±2 dB at 1 kHz
- Output impedance
- 100 Ω
- Active electronics
- JFET impedance converter with bipolar output buffer
Analogue Output (XLR)
- Output connection
- 3-pin XLR
- Power requirement
- 48V phantom power (P48) via XLR
Digital Output (USB-C)
- Output connection
- USB-C
- Power requirement
- 5V via USB
- Bit depth
- 24-bit and 32-bit float
- Sampling rates
- 48kHz, 96kHz and 192kHz
- Preamp
- Built-in Revolution Preamp
- Digital processing
- APHEX digital signal processing, available only at 48kHz sample rate
- Minimum OS (datasheet)
- Windows 10 and macOS 10.15
- Connection use
- Use either the XLR or the USB-C output, not both at once
Physical
- Dimensions
- Approx. 52 × 52 × 189 mm
- Weight
- Approx. 308 g (microphone)
Mounting and Accessories
- Included mounting
- SM6 shock mount and pop filter
- Included protection
- Dust cover
Package Contents
- Standard package
- Microphone, SM6 shock mount and pop filter, SC29 3 m USB-C cable, 6 m XLR cable and dust cover
Frequently Asked Questions
What is the RØDE NT1 5th Generation?
The RØDE NT1 5th Generation is a large-diaphragm studio condenser microphone with a 1-inch HF6 capsule and a cardioid pattern. It has both an analogue XLR output and a digital USB-C output.
What is the difference between USB-C and XLR connectivity?
XLR is an analogue output that connects to an audio interface, mixer or other compatible equipment and needs 48V phantom power. USB-C is a digital output that connects directly to a computer and is powered over USB at 5V.
Does it support 32-bit float recording?
Yes, on the USB-C digital output, which supports 24-bit and 32-bit float. The XLR output is analogue. Compatibility with 32-bit float depends on your computer, operating system and recording software, so check RØDE's guidance.
Does it require phantom power?
When used through the XLR output, it needs 48V phantom power (P48). Over USB-C it is powered by the 5V USB connection.
Can USB and XLR be used simultaneously?
No. Use either the XLR output or the USB-C output at one time.
Does the microphone have a headphone output?
No headphone output is listed. Use your audio interface, mixer or computer for monitoring.
What is the frequency response?
RØDE lists a frequency range of 20Hz to 20kHz.
What accessories are included?
RØDE lists the microphone, an SM6 shock mount and pop filter, an SC29 3 m USB-C cable, a 6 m XLR cable and a dust cover. A microphone stand, boom arm, audio interface and headphones are not included.
Is it suitable for podcasting and voice-over?
Yes. It is a cardioid studio condenser with low self-noise and a USB-C output for direct computer recording, as well as XLR for use with interfaces and mixers. You will need compatible recording software.
