AVMatrix SHARK S4 4-CH SDI/HDMI Video Switcher India

Name: AVMatrix SHARK S4 4-Channel SDI/HDMI Video Switcher with RTMP/SRT Streaming
Brand: AVMatrix
Price: 68440.0 INR
Availability: InStock

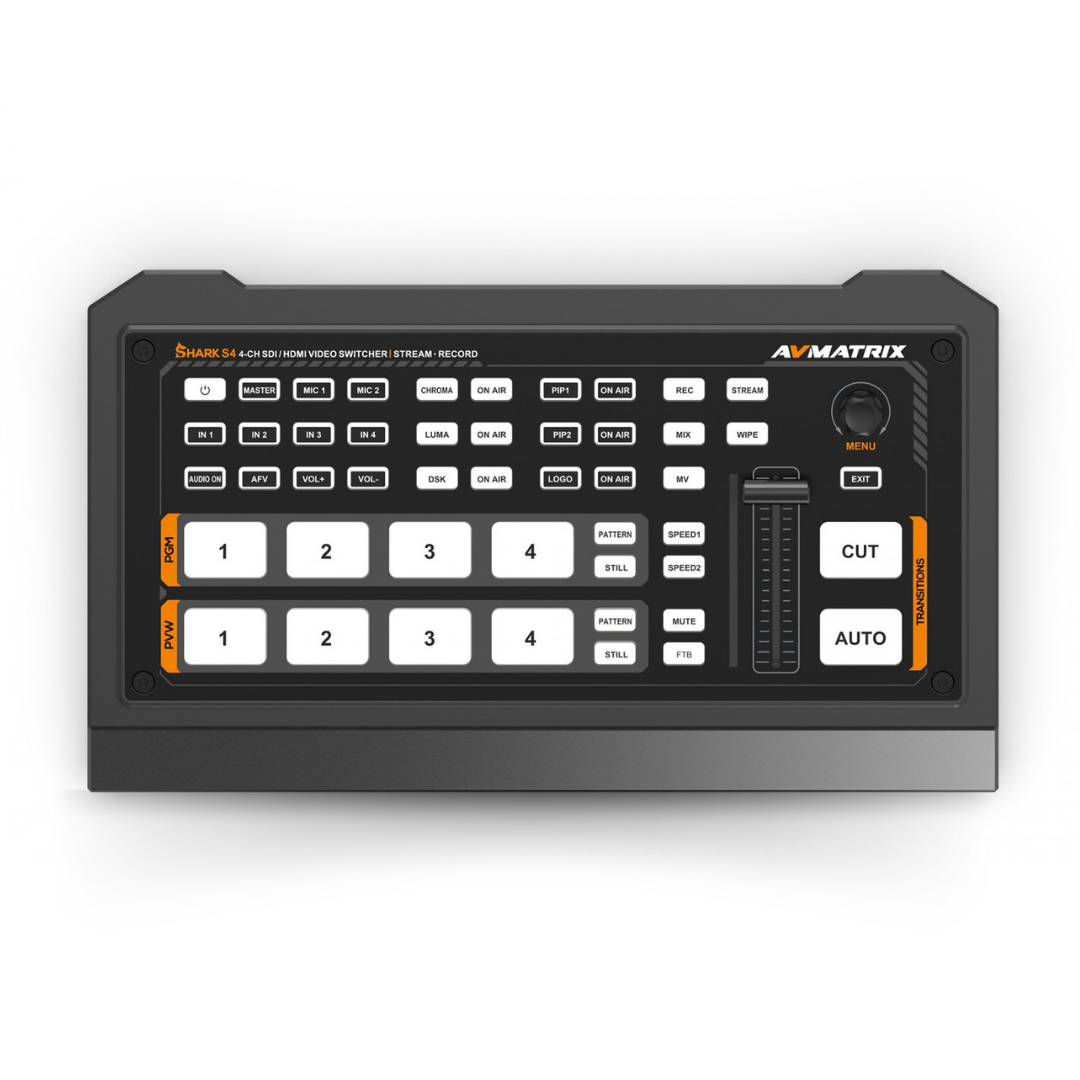

AVMatrix SHARK S4 4-channel SDI/HDMI video switcher, front view

AVMatrix SHARK S4 · Video Switcher

4-Channel SDI/HDMI Video Switcher for Live Production & Streaming

SHARK S4 Compact SDI/HDMI Switcher for Streaming Ideal for Events, Worship & Webcasts

2 HDMI + 2 SDI Inputs
RTMP / SRT Streaming
USB / SD Recording
Chroma & Luma Key

Request for Quote

Product information

AVMatrix SHARK S4 is a 4-channel SDI/HDMI video switcher for live production, streaming and recording. With two HDMI and two 3G-SDI inputs, it suits multi-camera events, worship, education and studio work.

Key features

2 x HDMI and 2 x 3G-SDI inputs: auto-detected inputs so you can mix SDI and HDMI cameras and sources.
Multiple outputs: two HDMI program outputs, one HDMI multiview output and a USB Type-C output.
RTMP/SRT streaming and recording: stream to platforms and record to a USB disk or SD card.
USB capture and streaming: use the switcher as a source for a PC over USB.
Upstream and downstream keying: luma key, chroma key, two PIP windows, POP, downstream key and logo overlay.
Transitions: T-bar, auto and cut transitions with wipe, mix and dip effects.
Built-in audio mixer: HDMI and SDI embedded audio plus a 2-channel mic/line input, with audio delay.
Media library: 39 default patterns, 16 imported images, 16 captured images and 2 colour generators.
Tally and controls: FTB, mute and still functions, with GPIO for a tally system.

Ideal for

Multi-camera live events, worship streaming, school and university broadcasts, corporate webcasts and studios that mix SDI and HDMI sources.

Buy AVMatrix SHARK S4 in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. Contact us for the latest price and a GST quotation.

AVMatrix SHARK S4 at a glance

Product type	4-channel SDI/HDMI live production video switcher
Video inputs	2 x HDMI and 2 x 3G-SDI, auto-detected

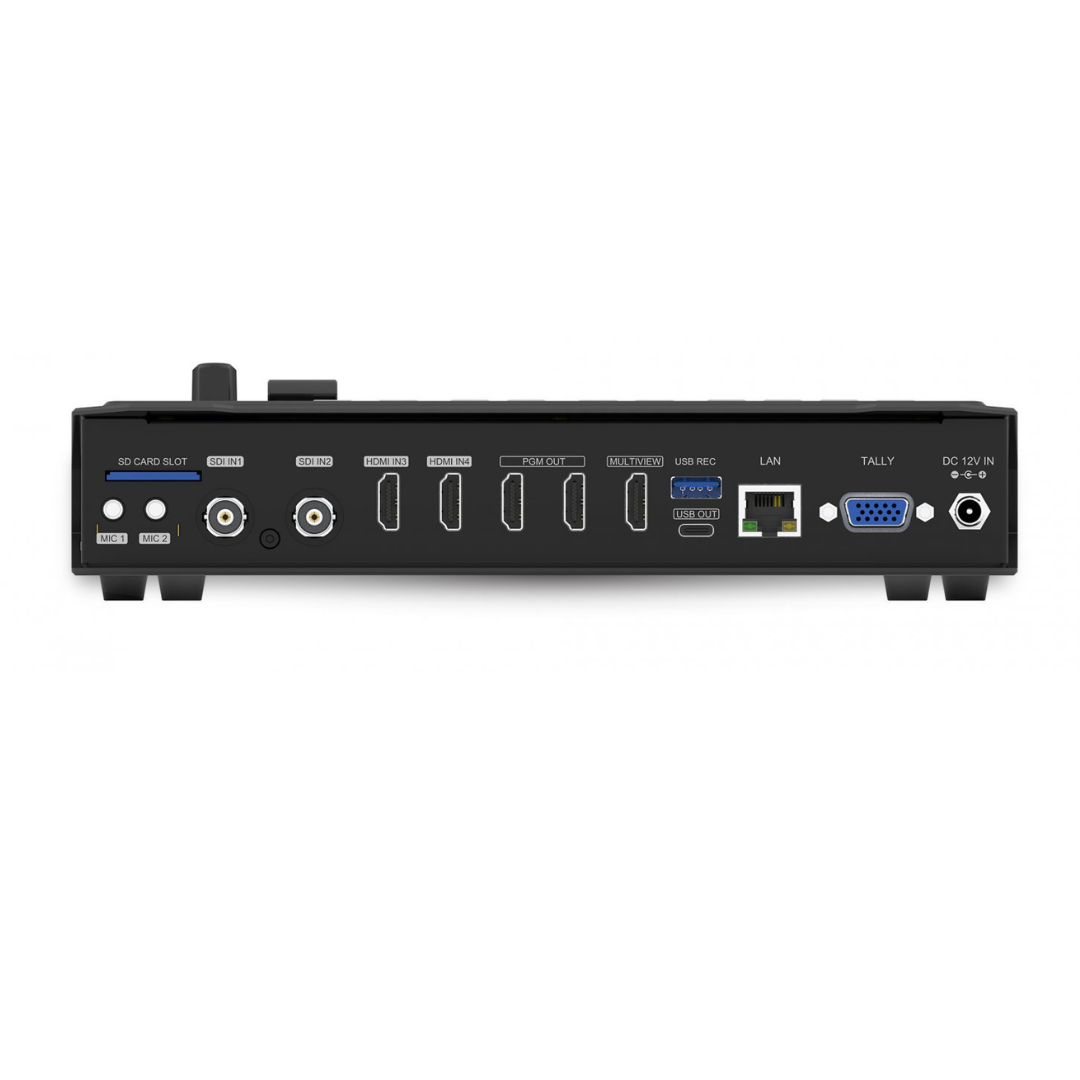

Video outputs	2 x HDMI PGM, 1 x HDMI multiview, 1 x USB Type-C
Streaming	RTMP / SRT
Recording	USB disk or SD card
Keying	Luma key, chroma key, 2 x PIP, POP, downstream key, logo overlay
Transitions	T-bar, auto, cut; wipe, mix and dip effects
Audio	2 x HDMI and 2 x SDI embedded audio, 2-channel mic/line input, audio delay
Tally	GPIO

Mix SDI and HDMI sources

The SHARK S4 accepts both 3G-SDI and HDMI sources on auto-detected inputs, so broadcast-style SDI cameras and HDMI devices can share one switcher.

2 x HDMI and 2 x 3G-SDI inputs.
RTMP/SRT streaming plus USB disk or SD card recording.
USB Type-C output for capture and streaming on a PC.

Keying and graphics

Upstream and downstream keys, picture-in-picture and a built-in media library help you add graphics, logos and layouts without extra hardware.

AVMatrix SHARK S4 FAQs

What is the AVMatrix SHARK S4?

The AVMatrix SHARK S4 is a 4-channel SDI/HDMI video switcher with keying, an audio mixer, RTMP/SRT streaming and USB/SD recording.

Which inputs does it have?

Two HDMI and two 3G-SDI inputs, auto-detected, plus a 2-channel microphone/line input.

Can it stream and record?

Yes. It supports RTMP/SRT streaming and can record to a USB disk or SD card.

Who is it for?

Event producers, churches, schools, universities and companies running multi-camera productions.

How much does it cost?

Contact Universal AV Solutions for the latest price and a GST quotation.

Do you provide installation and support?

Yes. Universal AV Solutions provides supply, installation and after-sales support across Delhi NCR and pan-India.

Good to know: Specifications are based on the manufacturer's published information and may change. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
