AVMatrix SHARK H4 PLUS 4-CH HDMI Video Switcher India

Name: AVMatrix SHARK H4 PLUS 4-Channel HDMI Video Switcher with 10.1-inch Display
Brand: AVMatrix
Price: 64900.0 INR
Availability: InStock

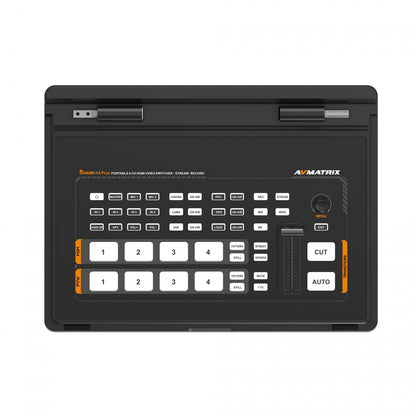

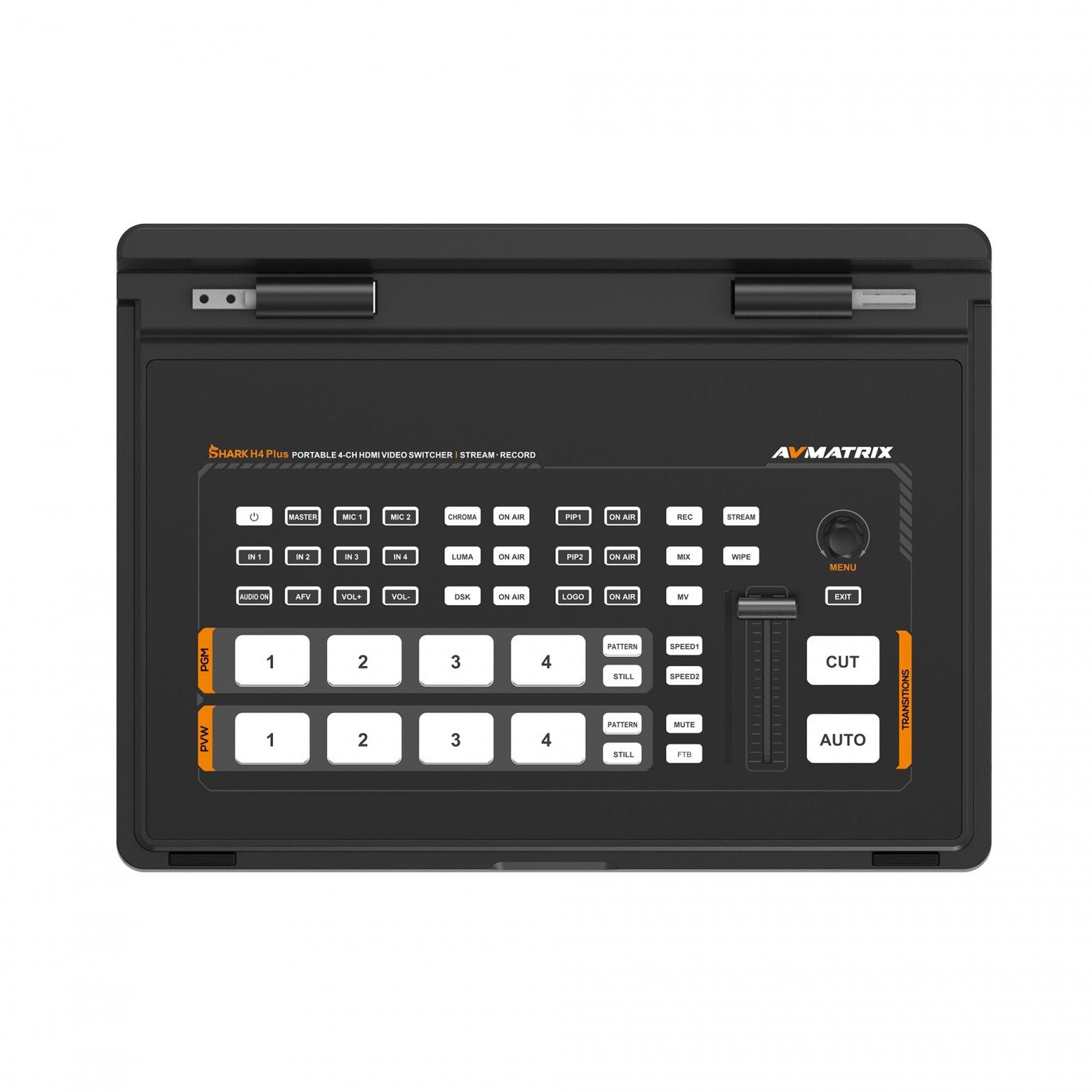

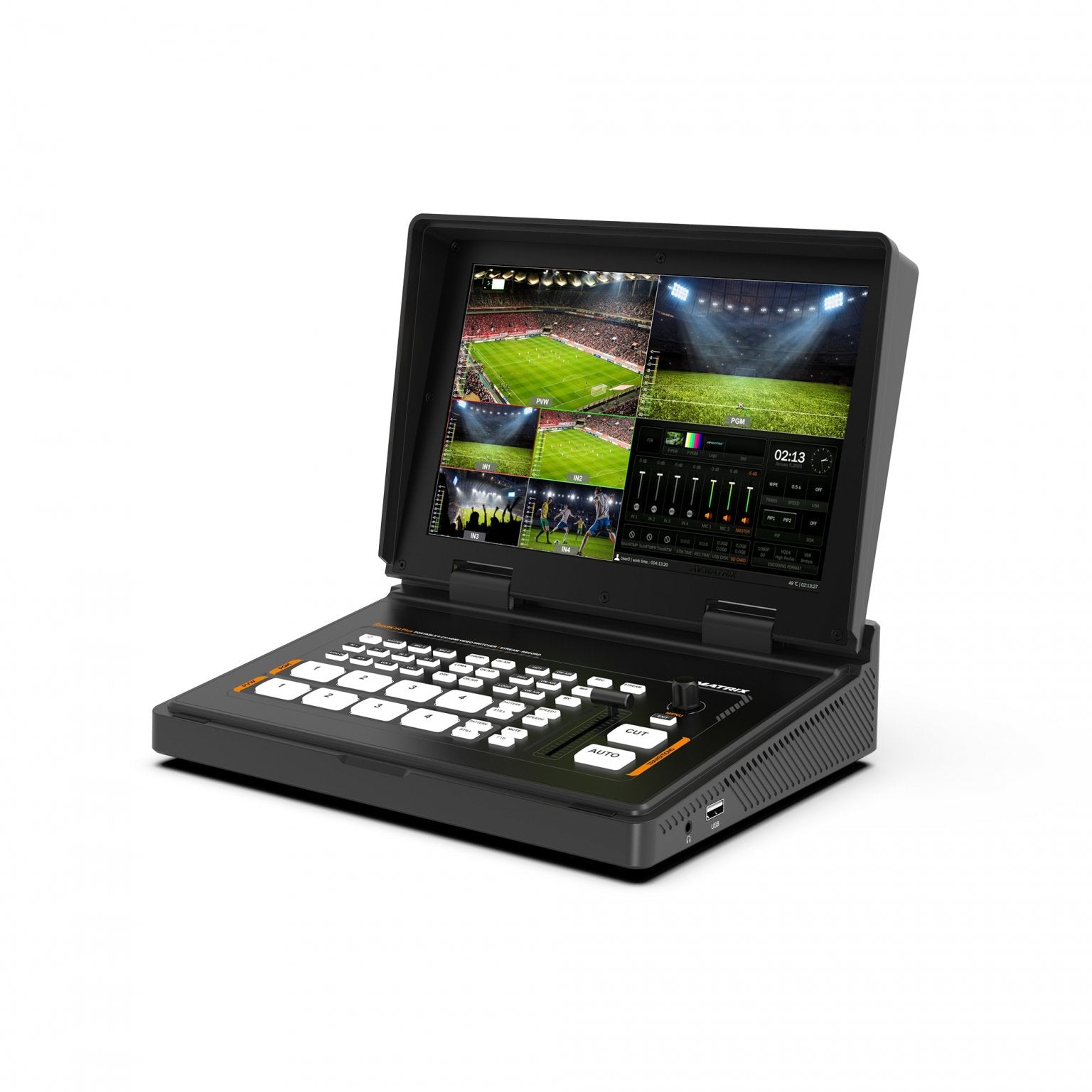

AVMatrix SHARK H4 PLUS 4-channel HDMI video switcher, front view

AVMatrix SHARK H4 PLUS · Video Switcher

4-Channel HDMI Video Switcher for Live Production & Streaming

SHARK H4 PLUS Portable HDMI Switcher with 10.1-inch Display Ideal for Events, Worship & Webcasts

4 x HDMI Inputs
RTMP / SRT Streaming
USB / SD Recording
Chroma & Luma Key

Request for Quote

Product information

AVMatrix SHARK H4 PLUS is a compact 4-channel HDMI video switcher with a 10.1-inch FHD IPS display for live production, streaming and recording. It combines switching, keying, audio mixing and RTMP/SRT streaming in one unit for events, worship, education and small studios.

Key features

10.1-inch FHD IPS display: monitor and control the show from the built-in screen.
Four HDMI inputs: auto-detected inputs for cameras, laptops and media players.
Multiple outputs: two HDMI program outputs, one HDMI multiview output and a USB Type-C output.
RTMP/SRT streaming and recording: stream to platforms and record to a USB disk or SD card.
USB capture and streaming: use the switcher as a source for a PC over USB.
Upstream and downstream keying: luma key, chroma key, two PIP windows, POP, downstream key and logo overlay.
Transitions: T-bar, auto and cut transitions with wipe, mix and dip effects.
Built-in audio mixer: four HDMI embedded audio channels plus a 2-channel mic/line input, with audio delay.
Media library: 39 default patterns, 16 imported images, 16 captured images and 2 colour generators.
Tally and controls: FTB, mute and still functions, with GPIO for a tally system.

Ideal for

Live event production, worship streaming, school and university broadcasts, corporate webcasts and multi-camera HDMI setups that need one compact switcher for switching, streaming and recording.

Buy AVMatrix SHARK H4 PLUS in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. Contact us for the latest price and a GST quotation.

AVMatrix SHARK H4 PLUS at a glance

Product type	4-channel HDMI live production video switcher
Video inputs	4 x HDMI, auto-detected
Display	10.1-inch FHD IPS LCD

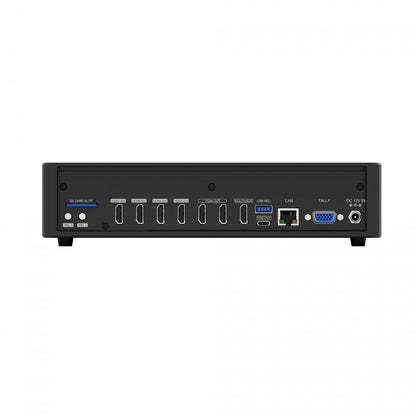

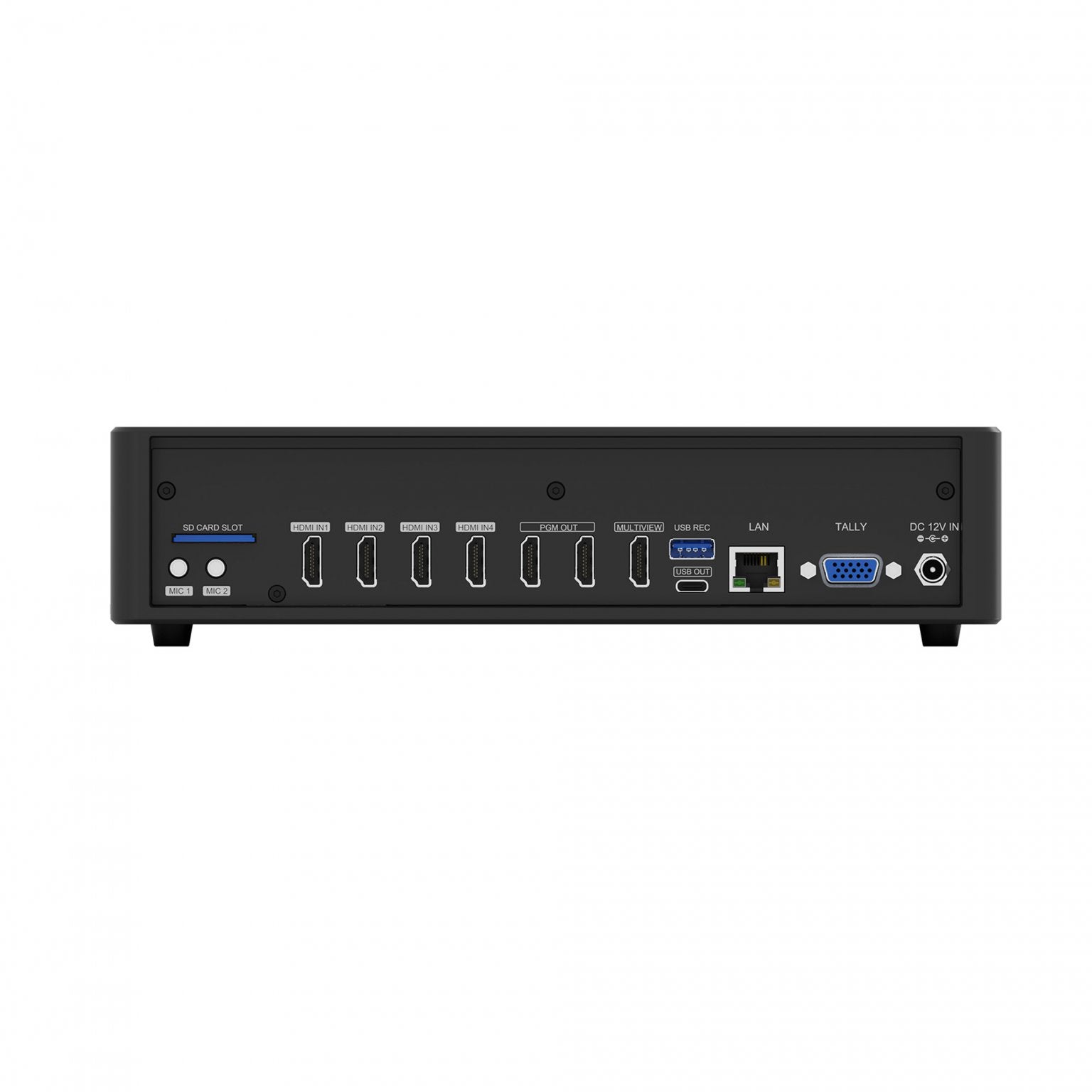

Video outputs	2 x HDMI PGM, 1 x HDMI multiview, 1 x USB Type-C
Streaming	RTMP / SRT
Recording	USB disk or SD card
Keying	Luma key, chroma key, 2 x PIP, POP, downstream key, logo overlay
Transitions	T-bar, auto, cut; wipe, mix and dip effects
Audio	4 x HDMI embedded audio, 2-channel mic/line input, audio delay
Tally	GPIO

Switch, stream and record from one unit

The SHARK H4 PLUS brings a switcher, audio mixer, streaming output and recorder into a single compact device, which keeps small productions simple to set up and operate.

Auto-detected HDMI inputs for cameras and computers.
RTMP/SRT streaming plus USB disk or SD card recording.
USB Type-C output for capture and streaming on a PC.

Keying and graphics

Upstream and downstream keys, picture-in-picture and a built-in media library help you add graphics, logos and layouts without extra hardware.

AVMatrix SHARK H4 PLUS FAQs

What is the AVMatrix SHARK H4 PLUS?

The AVMatrix SHARK H4 PLUS is a compact 4-channel HDMI video switcher with keying, an audio mixer, RTMP/SRT streaming and USB/SD recording.

How many inputs does it have?

It has four HDMI inputs that are auto-detected, plus a 2-channel microphone/line input.

Can it stream and record?

Yes. It supports RTMP/SRT streaming and can record to a USB disk or SD card.

Who is it for?

Event producers, churches, schools, universities and companies running multi-camera HDMI productions.

How much does it cost?

Contact Universal AV Solutions for the latest price and a GST quotation.

Do you provide installation and support?

Yes. Universal AV Solutions provides supply, installation and after-sales support across Delhi NCR and pan-India.

Good to know: Specifications are based on the manufacturer's published information and may change. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
