AVMatrix SHARK S6 6-CH HDMI/SDI Video Switcher India

Name: AVMatrix SHARK S6 6-Channel HDMI/SDI Video Switcher with PTZ Control
Brand: AVMatrix
Price: 90500.0 INR
Availability: InStock

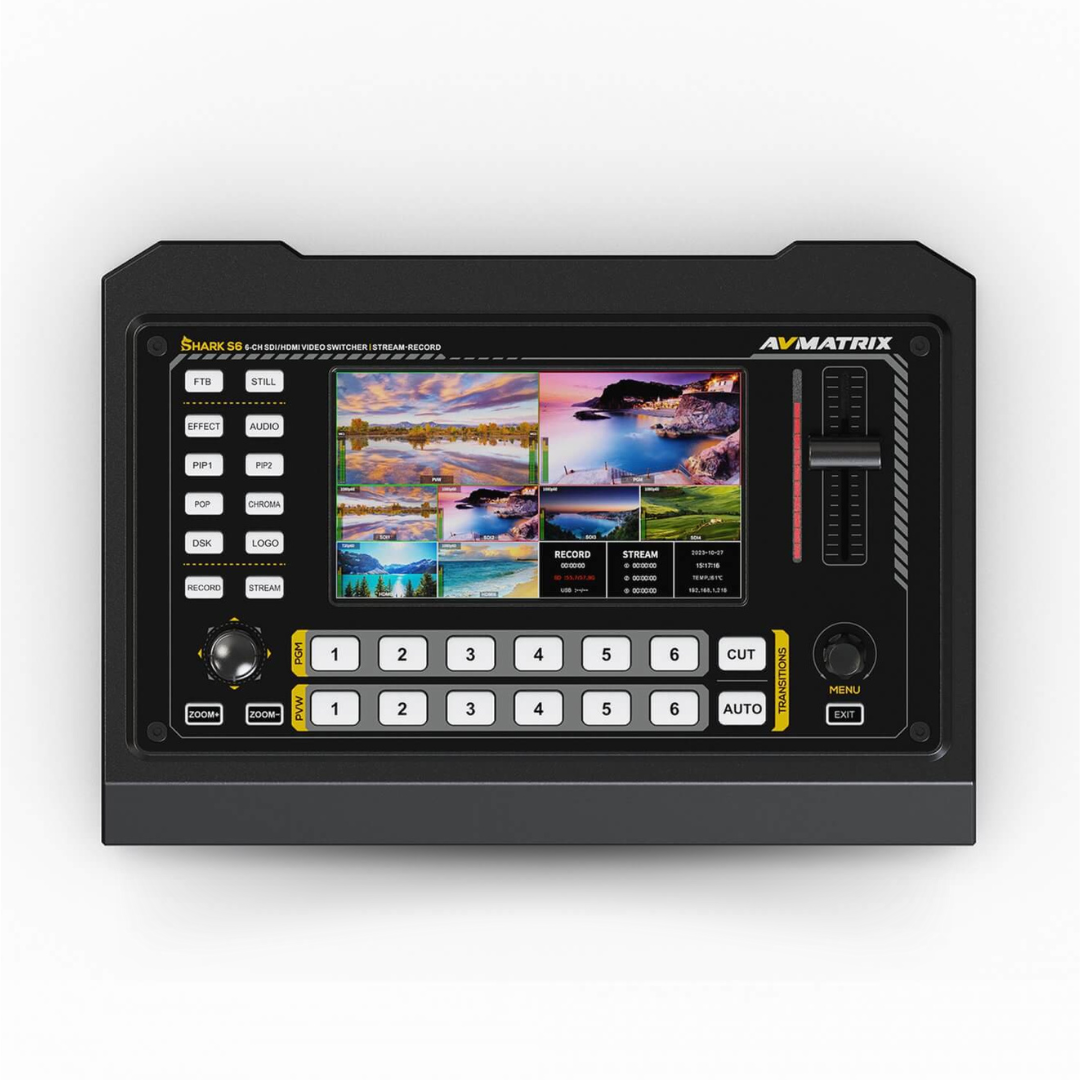

AVMatrix SHARK S6 6-channel HDMI/SDI video switcher, front view

AVMatrix SHARK S6 · Video Switcher

6-Channel HDMI/SDI Video Switcher with PTZ Control

SHARK S6 6-CH Switcher with 5-inch LCD and RTMP Ideal for Events, Worship & Studios

4 SDI + 2 HDMI Inputs
5-inch LCD
PTZ Camera Control
RTMP Streaming

Request for Quote

Product information

AVMatrix SHARK S6 is a 6-channel HDMI/SDI video switcher with a built-in 5-inch LCD for live production and streaming. Four SDI and two HDMI inputs, PTZ camera control and RTMP streaming make it a capable hub for multi-camera events, worship and studio productions.

Key features

6 inputs: 4 x SDI and 2 x HDMI inputs for a mixed SDI and HDMI camera setup.
Built-in 5-inch LCD: monitor and operate the switcher from the front panel.
Flexible outputs: 2 x SDI, 1 x HDMI PGM, 2 x SDI AUX, 1 x HDMI multiview and a USB Type-C output.
RTMP streaming and recording: stream over RTMP and record to a USB disk or SD card.
USB capture and streaming: use the switcher as a source for a PC over USB.
Keying and layers: chroma key, downstream key, two PIP windows, POP and logo overlay.
Transitions: T-bar, auto and cut transitions with mix, dip and wipe effects.
Audio mixer: mixes 4 x SDI and 2 x HDMI audio with two microphone inputs.
PTZ camera control: control PTZ cameras over VISCA, VISCA over IP, Pelco D/P and ONVIF.
Portrait and landscape layouts: plus GPIO tally and RS232/RS422/RS485 ports.

Ideal for

Multi-camera live events, houses of worship, auditoriums, education and corporate studios that need more SDI inputs and PTZ camera control in one switcher.

Buy AVMatrix SHARK S6 in India from Universal AV Solutions with supply, installation and after-sales support across Delhi NCR and pan-India. Contact us for the latest price and a GST quotation.

AVMatrix SHARK S6 at a glance

Product type	6-channel HDMI/SDI live production video switcher
Inputs	4 x SDI, 2 x HDMI
Display	Built-in 5-inch LCD
Outputs	2 x SDI, 1 x HDMI PGM, 2 x SDI AUX, 1 x HDMI multiview, 1 x USB Type-C
Streaming and recording	RTMP streaming; USB disk and SD card recording
Keying	Chroma key, downstream key, 2 x PIP / POP, logo overlay
Audio	4 x SDI and 2 x HDMI audio, 2 x MIC in
PTZ control	VISCA, VISCA over IP, Pelco D/P, ONVIF
Ports	GPIO tally; RS232/RS422/RS485

More SDI inputs and PTZ control

The SHARK S6 adds four SDI inputs alongside two HDMI inputs and can control PTZ cameras directly, which reduces the extra hardware needed in multi-camera rooms.

4 x SDI and 2 x HDMI inputs.
PTZ control over VISCA, VISCA over IP, Pelco D/P and ONVIF.
Landscape and portrait layout options.

Stream, record and capture

Stream over RTMP, record to a USB disk or SD card, or send the output to a PC over USB Type-C.

AVMatrix SHARK S6 FAQs

What is the AVMatrix SHARK S6?

The AVMatrix SHARK S6 is a 6-channel HDMI/SDI video switcher with a built-in 5-inch LCD, keying, an audio mixer and RTMP streaming.

Which inputs does it have?

Four SDI and two HDMI inputs, plus two microphone inputs.

Can it control PTZ cameras?

Yes. It supports VISCA, VISCA over IP, Pelco D/P and ONVIF PTZ control.

Who is it for?

Event producers, churches, auditoriums, schools and corporate studios running multi-camera productions.

How much does it cost?

Contact Universal AV Solutions for the latest price and a GST quotation.

Do you provide installation and support?

Yes. Universal AV Solutions provides supply, installation and after-sales support across Delhi NCR and pan-India.

Good to know: Specifications are based on the manufacturer's published information and may change. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
