Product information
The Datavideo iCast Mini is a video switcher from Datavideo, supplied in India by Universal AV Solutions. iCAST mini 4K Dual Channel Presentation Switcher. One USB Type C cable for online and offline teaching (UVC).
Key features
- One USB Type C cable for online and offline teaching (UVC)

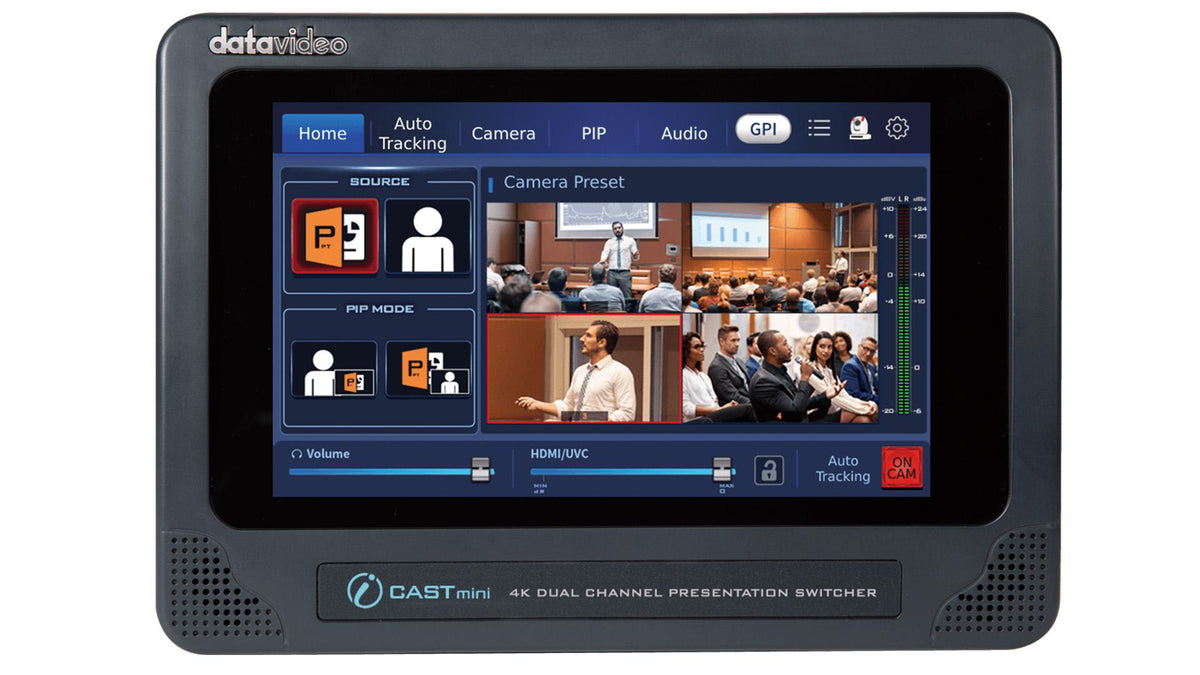

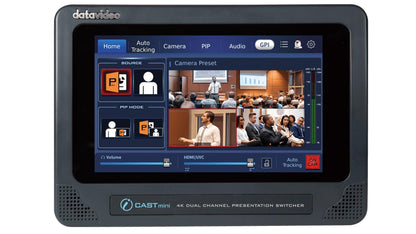

- 7-inch touch panel with one-button-one-function control
- Video and PIP modes
- Image keys and graphic keys
- Direct access to auto tracking
- Smart PTZ speed adaptation
- Custom AI object tracking
- Quick access to framing options (full body, half body, close up)
- Camera control via DVIP, RS-232/422
- Built-in audio mixer
Technical specifications
- Model Number: iCAST mini
- Video Standard: 4K & HD
- Video Format Input: 3840x2160p: 30/29.97/25/24/23.98; 1080p: 60/59.94/50/30/29.97/25/24/23.98; 1080i: 60/59.94/50, 720p: 60/59.94/50; 525i59.94 NTSC, 625i50 PAL
- Video Format Output: HDMI 3840x2160p: 30/29.97/25; 1080p: 60/59.94/50/30/29.97/25/24/23.98; UVC 3840x2160p: 30/29.97/25; 1080p60/59.94/50/30/29.97/25
- Video Processing: 4K, 2K/30 4:4:4, 8bit

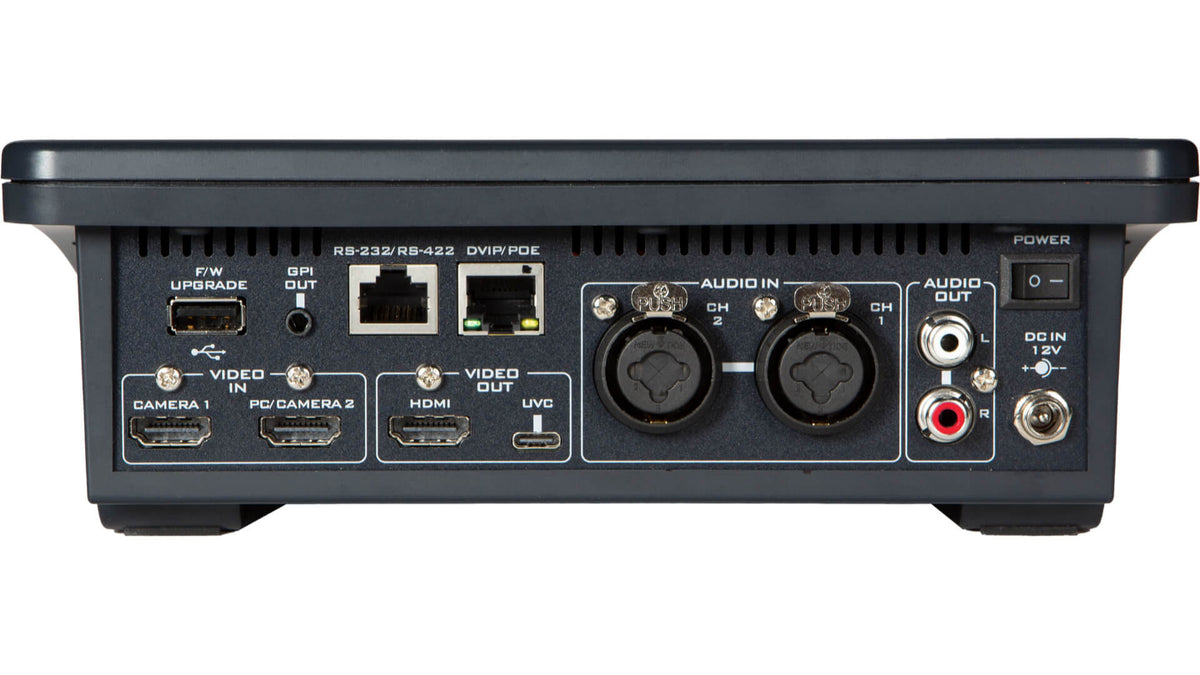

- Video Input: 2 x HDMI 1.4
- Computer Graphic Interface: 2 via HDMI
- Video Output: 1 x HDMI 1.4; 1 x USB 3.0 Type C (UVC)
- Down-converted Output: Yes
- Analogue Audio Input: 2 x 3 Pin XLR / 1/4" (6.3mm) Combo Socket
- Analogue Audio Output: 1 x Stereo RCA set (L/R); 1 x Stereo headphone
- Digital Embedded Audio Support: Input 2 channels, Output 2 channels
- Audio Delay Calibration: Up to 170ms
- A+V Switching: Yes
- Picture in Picture: 1
- Effects: Cut
- Camera Control: DVIP/ RS-422/ RS-232
- Built-in Audio Mixer: Yes
- Firmware Update: USB
- Special Features: 7" Touchscreen Display
- Chassis: Unibody
- Dimension (LxWxH): 220 x 154 x 75mm
- Weight: 1.1 kg
- Power: DC 12V 18.7W PoE+
- Operating Temp. Range: 0~40 °C
What's in the box (per official Datavideo page)
- 1 x iCast MINI product
- 1 x AD Switch DC 12V with AC Cord
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
