Product information

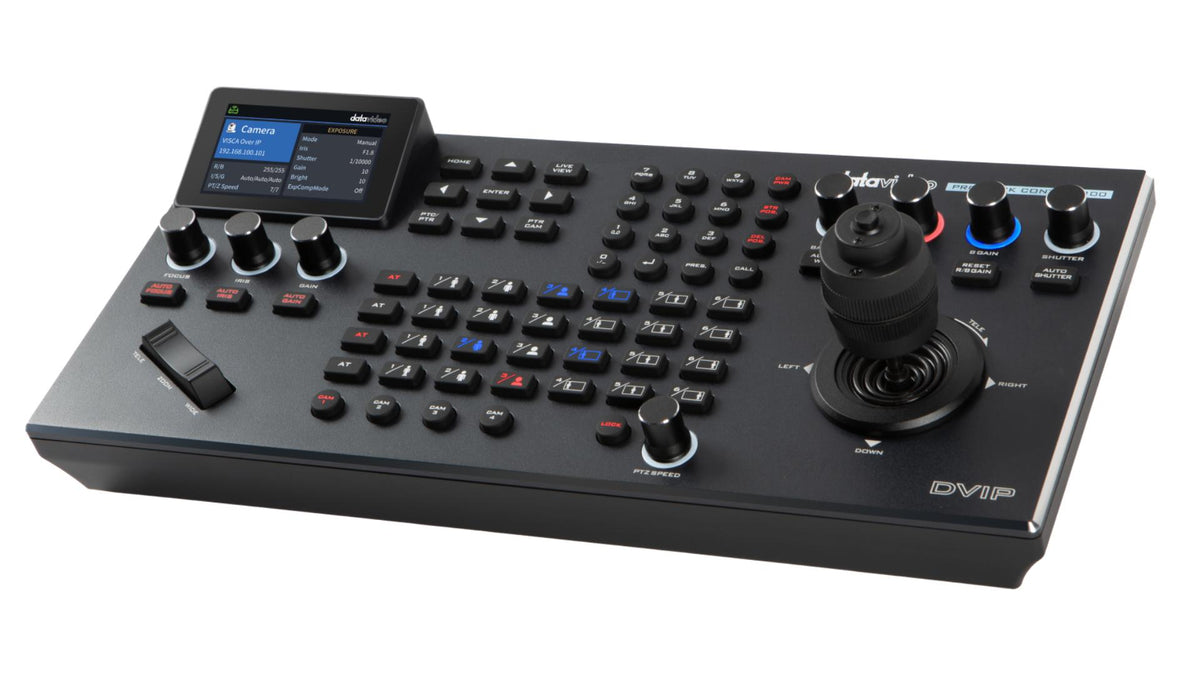

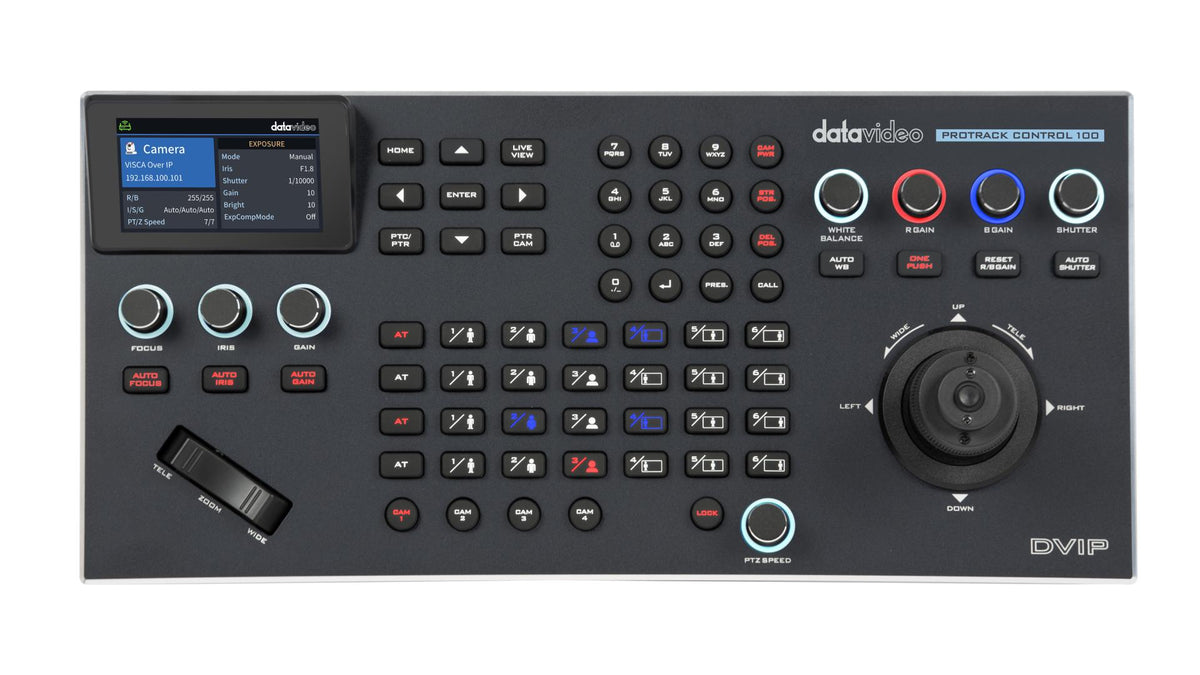

The Datavideo ProTrack Control 100 is a ptz camera controller from Datavideo, supplied in India by Universal AV Solutions. ProTrack Control 100 PTZ Camera Controller. The Master of Multi-Cam.
Key features
- The Master of Multi-Cam
- Storage of up to 999 cameras
- Up to 255 presets per camera
- High-precision 4D joystick
- 3-inch LCD display
- Multi-parameter precise adjustment
- Web UI management
- Multiple shortcut keys
- Multiple control protocols
- Multiple streaming protocols
- HDMI video output up to 4K30P
- PoE power supply
Technical specifications
- Model Number: ProTrack Control 100
- Maximum Camera Control: 4
- Preset (Position): 255
- Control Protocol: VISCA, VISCA over IP, Pelco-D, Pelco-P, DVIP, ONVIF, NDI

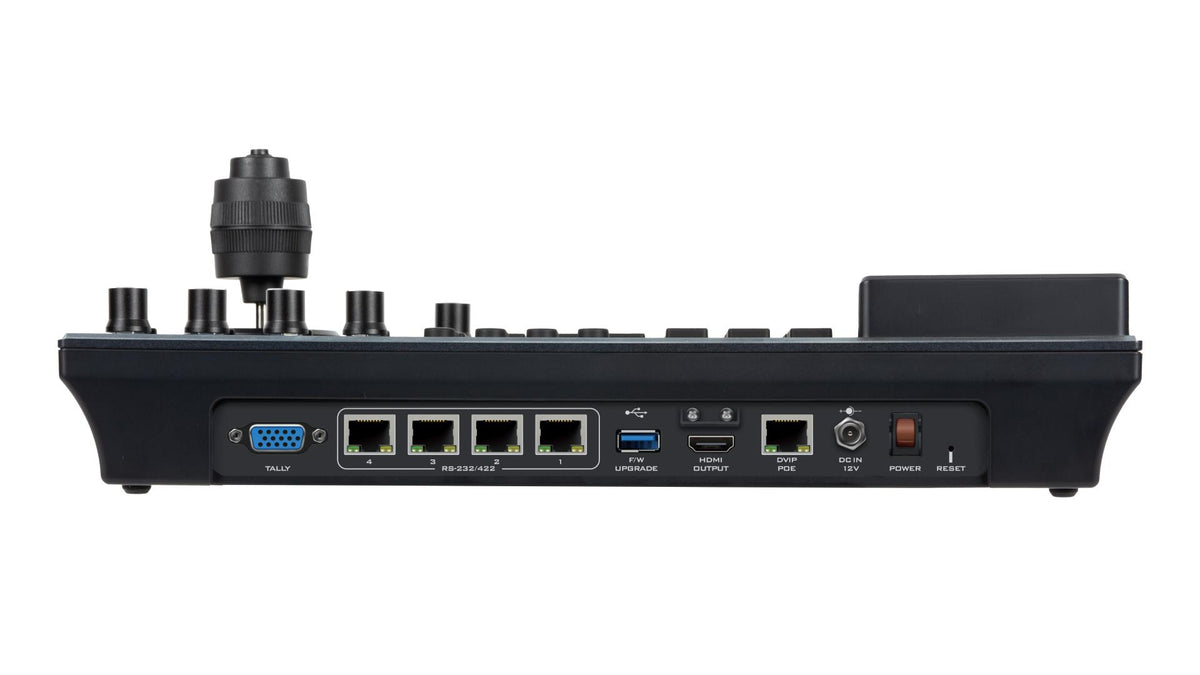

- Connection to Cameras: 4 x RS-422/RS-232, 1 x Ethernet (DVIP)
- Input/Output: 1 x Tally Input, 1 x HDMI Output, up to 4K30Hz
- Built-in Control Panel: Size: 3 inches, Resolution: 640 x 360
- Firmware Upgrade: Via WebUI, OSD+USB
- Dimension: 354x165x120mm
- Operating Temp. Range: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -10°C ~ 60°C (14°F ~ 140°F)
- Operating Humidity: 10% to 80% (non-condensing)
- Power: DC-12V, 18W
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
