Product information

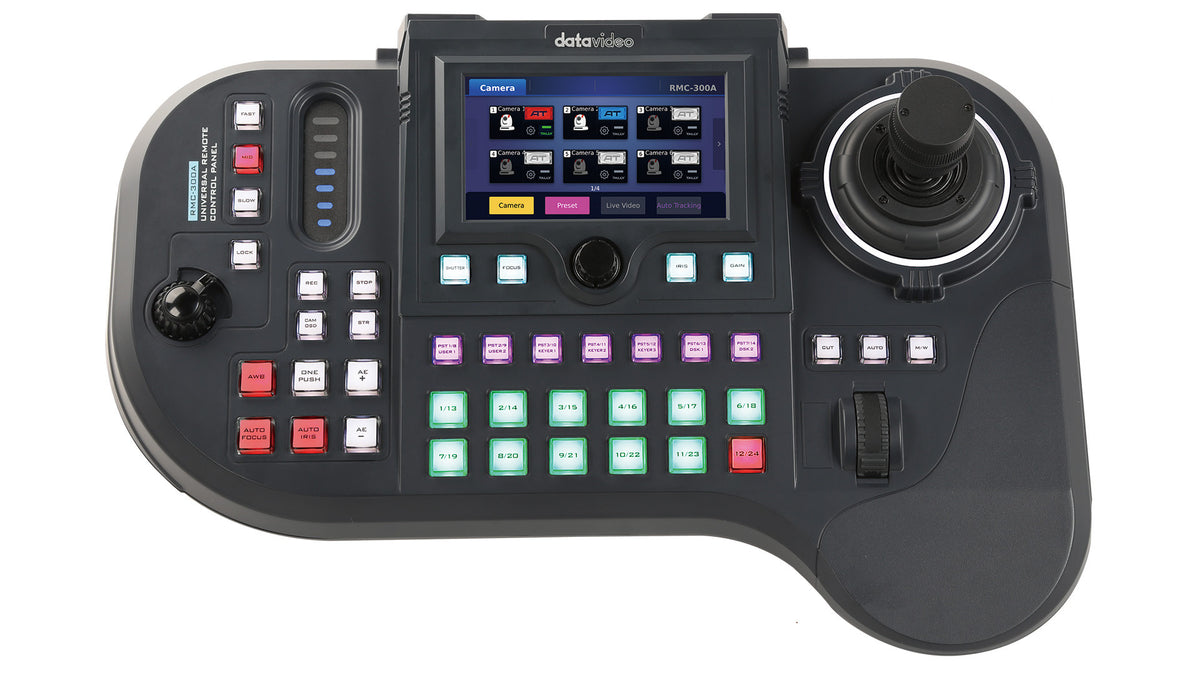

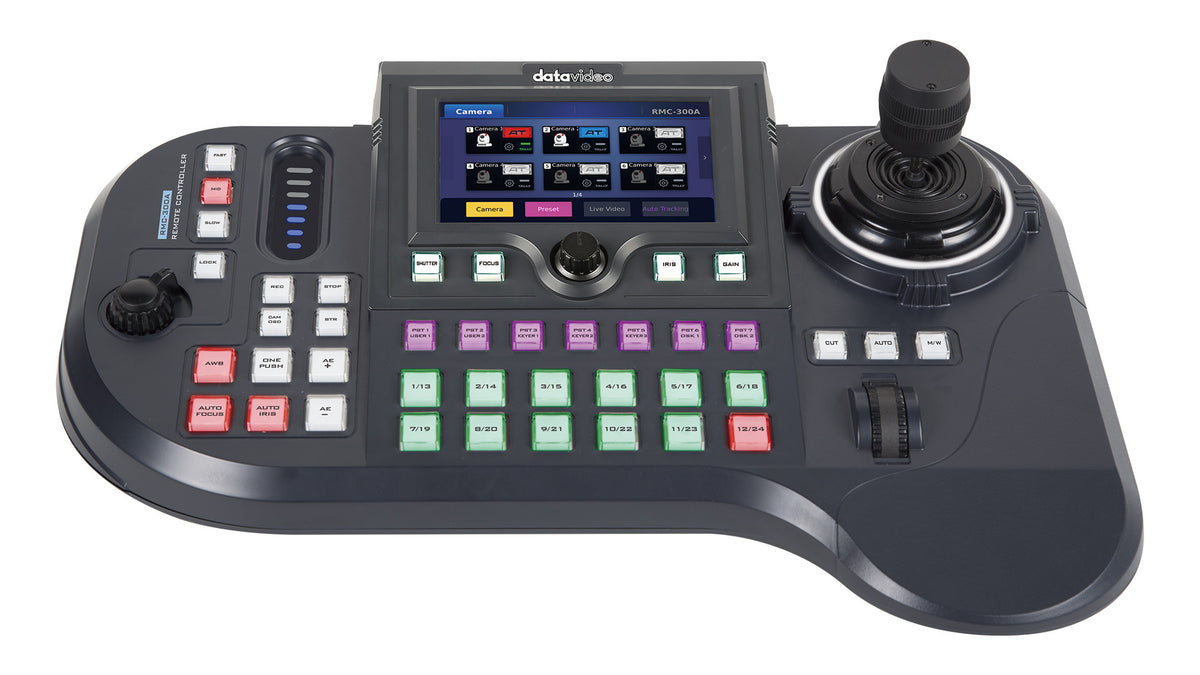

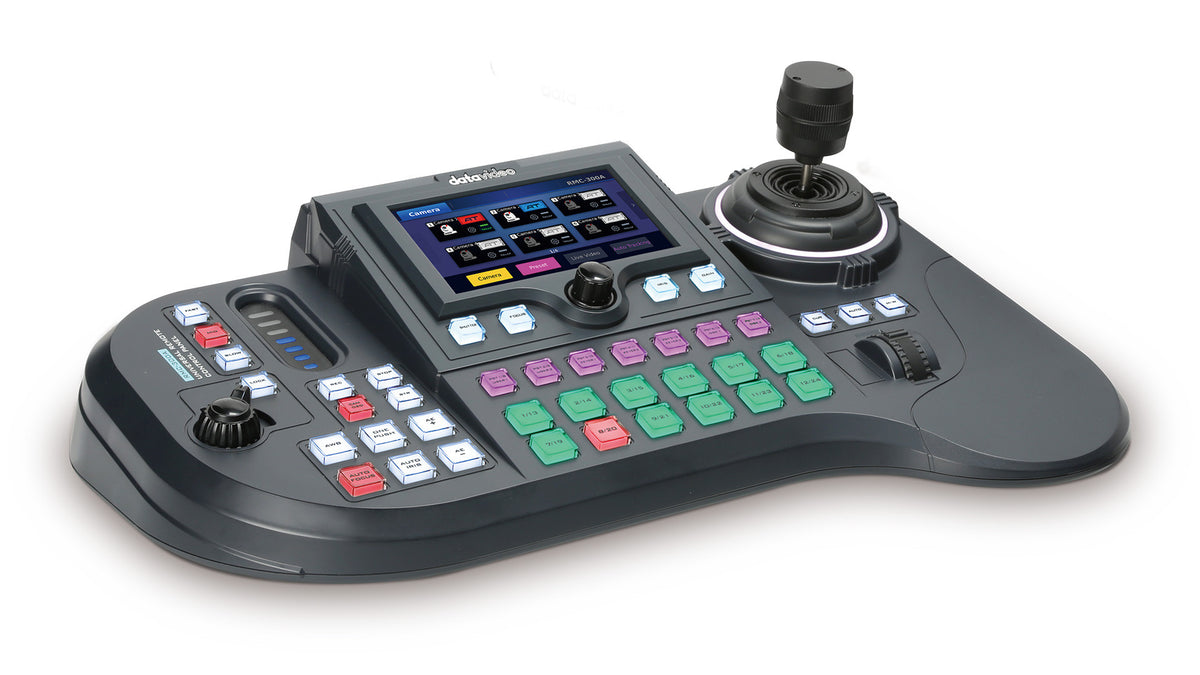

The Datavideo RMC-300A is a ptz camera controller from Datavideo, supplied in India by Universal AV Solutions. RMC-300A PTZ Camera Controller. Multi-camera controller with auto tracking.
Key features
- Multi-camera controller with auto tracking
- Controls up to 24 cameras via DVIP or up to 8 via RS-422
- 5-inch LCD touch panel plus hardware buttons
- Supports Sony VISCA, VISCA over IP-S/IP-C, and Datavideo DVIP
- 14 presets per camera
- Fast, Medium, and Slow speed settings
- Enhanced auto tracking with subject selection, tracking speed, and framing options
- Smart PTZ speed adaptation using a PID algorithm
- Image Key and Graphic Key
- Live RTSP video preview on the touchscreen
- 2-axis joystick and zoom knob with lock button
- Dual USB 2.0, 10/100Mbps Ethernet, and eight RS-422 ports
Technical specifications
- Model Number: RMC-300A
- Maximum Camera Control: 24 Datavideo cameras over DVIP, up to 8 Datavideo cameras over serial RS-422
- Preset (Position): 14 for each Datavideo camera
- Control Protocol: Sony VISCA, VISCA over IP-S, VISCA over IP-C, Datavideo DVIP
- Connection to Cameras: RS-422, Ethernet
- Input/Output: USB 2.0 x2; 10/100Mbps Ethernet (RJ-45 connector) x1; RS-422 (RJ-45 connector) x8
- Build-in Control Panel Size: 5"
- Build-in Control Panel Resolution: 1280 x 720
- Firmware Upgrade: USB 2.0
- Dimension: 420 x 294 x 134 mm
- Weight: 1.5 kg
- Operating Temp. Range: 0°C ~ 40°C (32°F~104°F)
- Storage Temperature: -10°C ~ 60°C (14°F~140°F)
- Operating Humidity: 10% to 80% (non-condensing)
- Power: DC 12V, 19W
What's in the box (per official Datavideo page)
- 1 x RMC-300A Main Unit
- 1 x DC 12V power adaptor
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
