Product information

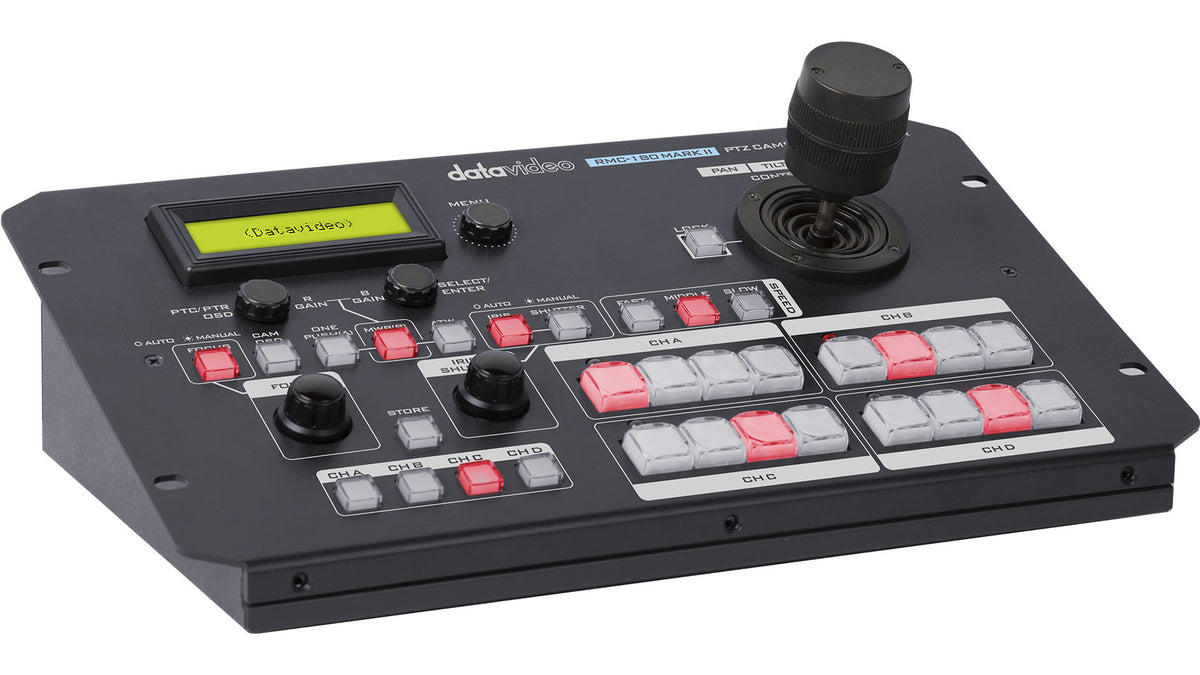

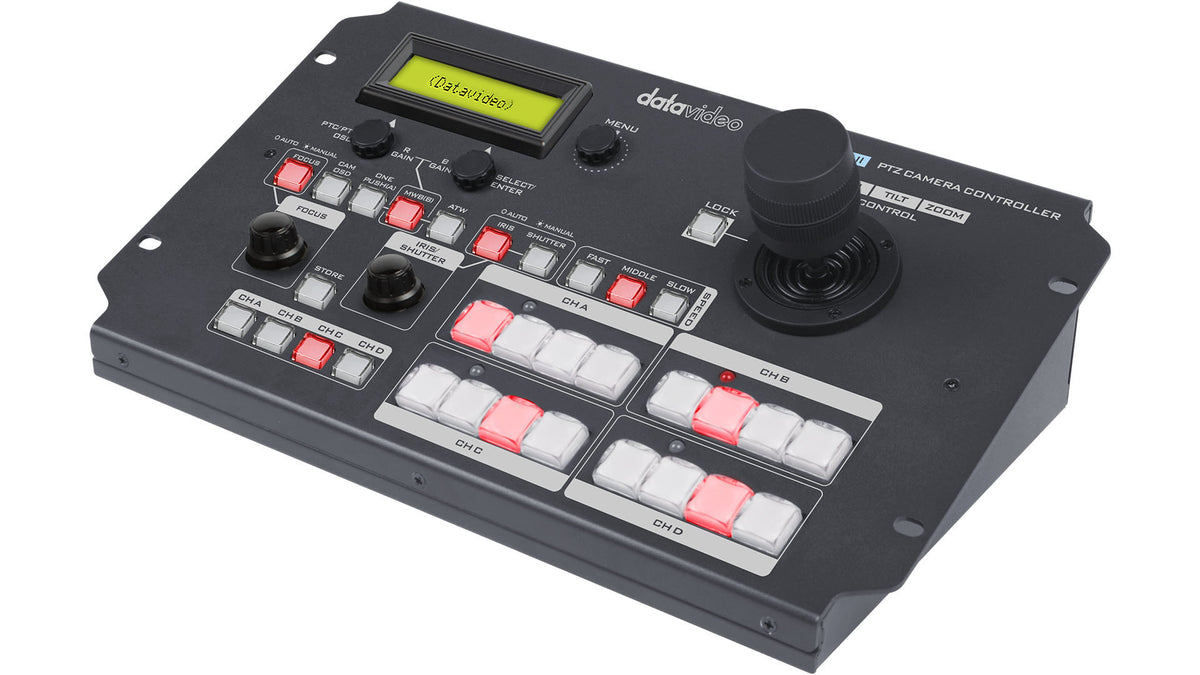

The Datavideo RMC-180 MK II is a ptz camera controller from Datavideo, supplied in India by Universal AV Solutions. RMC-180 MK II PTZ Camera Controller. Simple Multi-Camera Control at Your Fingertips.
Key features
- Simple Multi-Camera Control at Your Fingertips
- Just Plug and Play
- Automatic Camera Position Presets
- Manual Focus and Manual IRIS control
- Speed Mode for camera movement
- Support for Datavideo's Switcher Tally Indicators
- Controls PTR-10 with Presets
Technical specifications
- Model Number: RMC-180 MARK II
- Maximum Camera Control: 4
- Preset (Position): 4 for each camera
- Control Protocol: Sony VISCA
- Connection to Cameras: Point to point
- Input/Output: RS-422 (RJ-45 Connector) x 4
- Build-in Control Panel: Monochrome display
- Firmware Upgrade: Via USB
- Dimension: 310 x 170 x 125 mm
- Weight: 1.53kg
- Operating Temp. Range: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 60°C
- Power: DC 12V 1A
What's in the box (per official Datavideo page)
- 1 X RMC-180 Mark II item
- 1 X Adaptor
- 1 X Accessory List
- 1 X USB Type A to Type A cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
