Product information

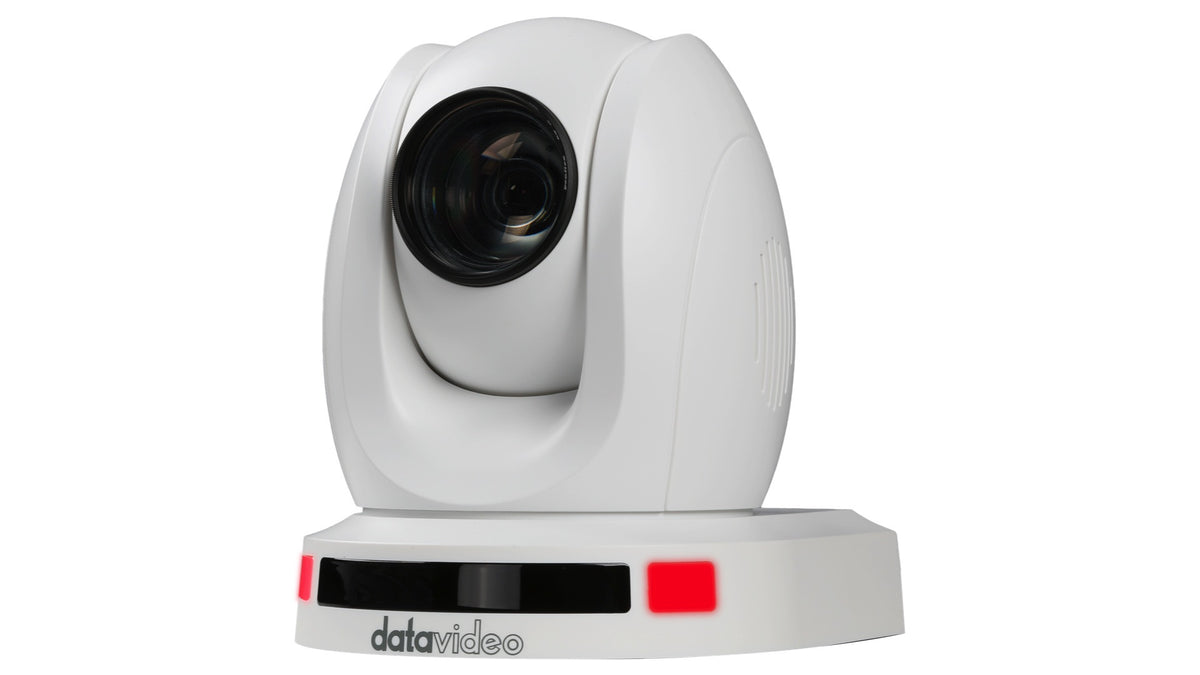

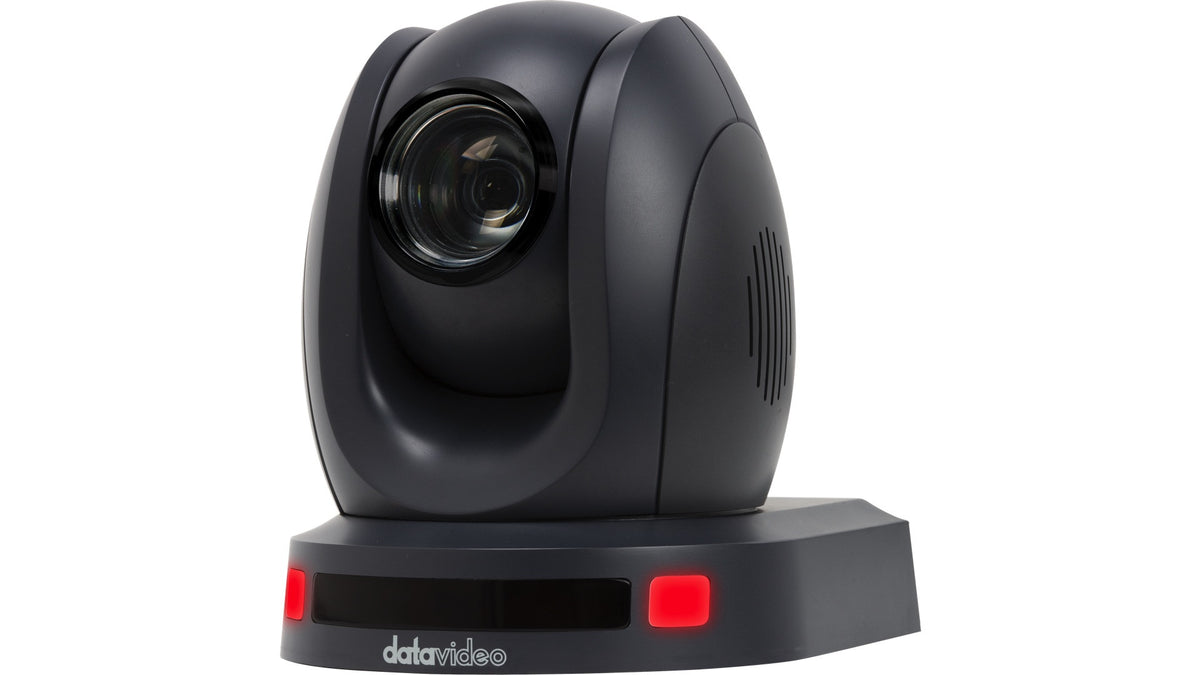

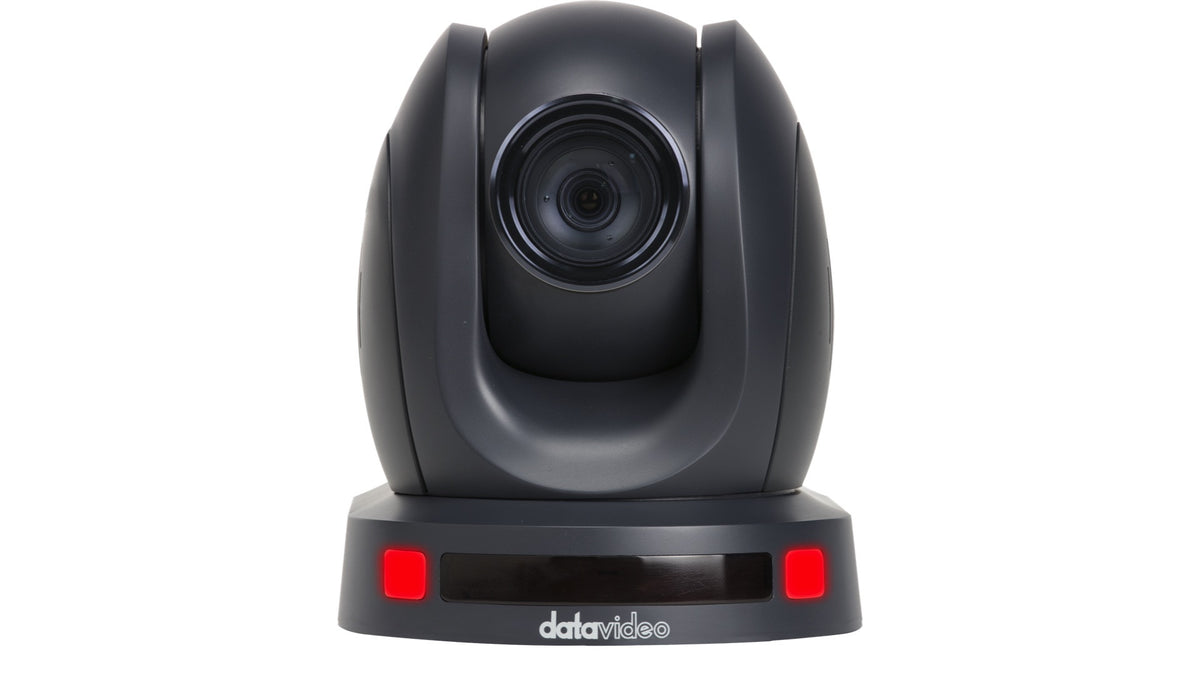

The Datavideo PTC-145 is a ptz camera from Datavideo, supplied in India by Universal AV Solutions. PTC-145 HD 20x Tracking PTZ Camera. Stunning Full HD Resolution with Auto Tracking.
Key features
- Stunning Full HD Resolution with Auto Tracking
- Simultaneous Outputs
- Custom Auto Object Tracking
- Smart PTZ Speed Adaptation
- S-Shaped Speed Curve
- Wide 60° Field of View
- Power over Ethernet
- Multiple Network Protocol
- Compliant with ONVIF Profile S
- One Ethernet Cable with NDI | HX Technology
- Advanced 3D Noise Reduction Function
- Dark or Light Body
Technical specifications
- Model Number: PTC-145
- Video format/Resolution: 1080p 60/59.94/50/30/29.97/25; 1080i 60/59.94/50; 720p 60/59.94/50
- Image Sensor: Sony 1/2.8" CMOS
- Effective Pixels (approx.): 2.07 Mega pixels
- S/N Ratio: ≥50dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 20x Optical Zoom, 8x Digital Zoom
- Effective Zoom Ratio: 18.12x
- Gamma Control: N/A
- Iris Control: Auto / Manual
- Digital Noise Reductions: 3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, Manual, One Push
- AGC / Gain Control: Yes
- HDR/WDR: N/A
- Mirror / Flip Image: Yes
- Focus Mode: Auto / Manual
- Panning / Tilting Range: Pan: 340°, Tilt: +90° to -30°
- Panning / Tilting Speed: Pan: 0.1~60°/sec; Tilt: 0.1~30°/sec
- Preset: 255 Positions
- Focal Length: f = 5.05mm (wide) to 91.49 mm (tele); F1.8 (Wide) ～ F2.9 (Tele)
- Field of View (Horizontal, Wide): 60°
- Image Compensation: Backlight Compensation
- Video Output: HDMI x 1; 3G-SDI x 1; RJ-45 PoE x1
What's in the box (per official Datavideo page)
- 1 x PTC-145 Unit
- 1 x IR remote controller
- 1 x Ceiling mount bracket-A
- 1 x Ceiling mount bracket-B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x Power Cord
- 1 x Safety cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
