Product information

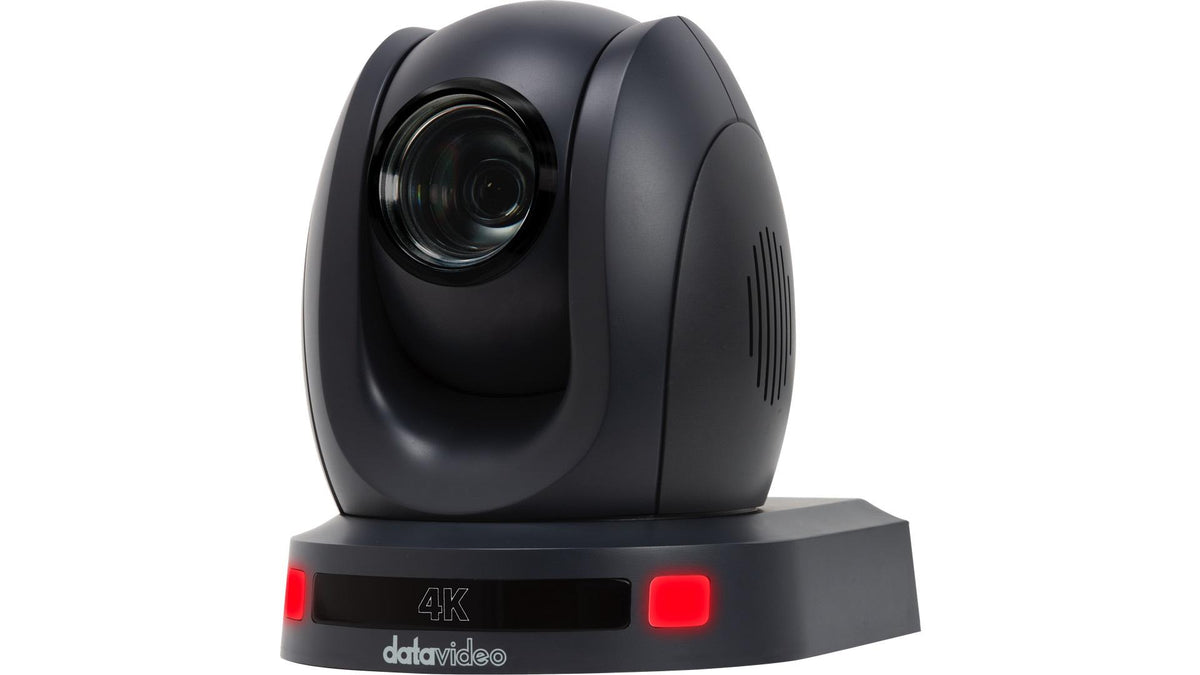

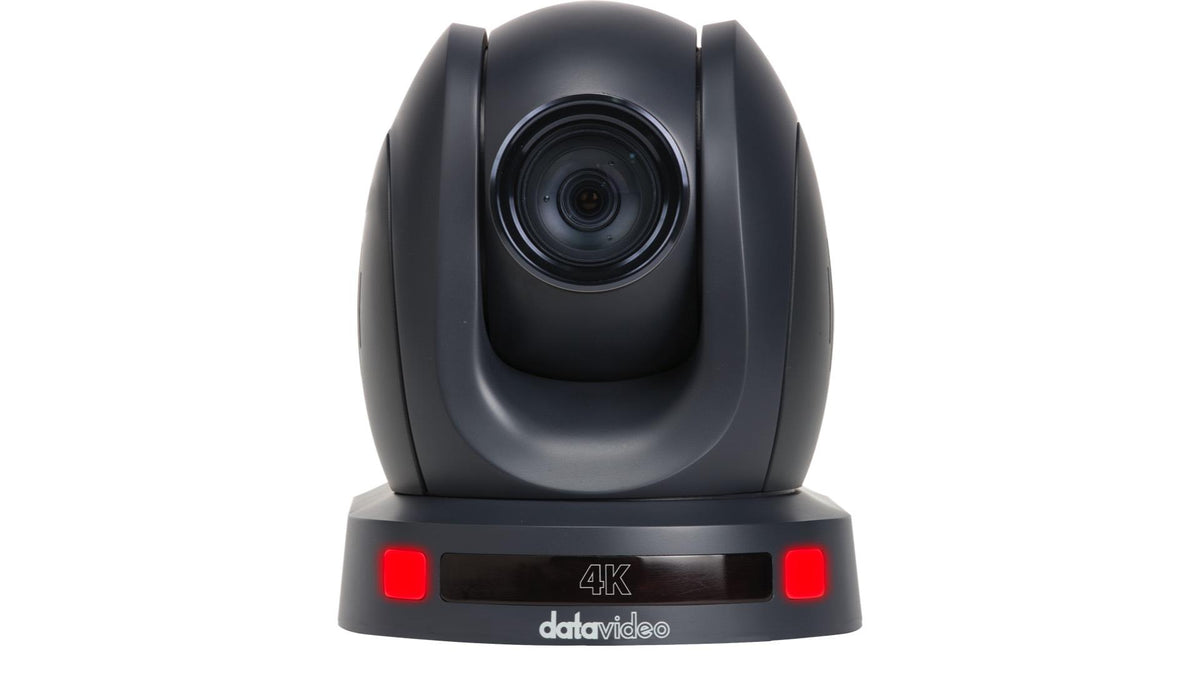

The Datavideo PTC-205 is a ptz camera from Datavideo, supplied in India by Universal AV Solutions. PTC-205 4K 20x Tracking PTZ Camera. PTC-205 4K PTZ Camera with Auto Tracking.
Key features
- PTC-205 4K PTZ Camera with Auto Tracking
- Built-in auto tracking
- Custom auto object tracking
- Smart PTZ speed adaptation
- Quick selection of full body / half body / close-up
- Broadcast quality 4K resolution
- 20x optical zoom, 8x digital zoom
- Low noise in low light (3D noise reduction)
- Multiple simultaneous video outputs (HDMI 2.0, IP, 3G-SDI)
- Dual stream with RTSP and RTMP(S) support
- H.264/H.265 video compression
- Power over Ethernet (PoE+, 802.3at)
Technical specifications
- Model Number: PTC-205
- Video format/Resolution: 2160p60/50/30/25; 1080p 60/50/30/25; 1080i 60/50; 720p 60/50
- Image Sensor: 1/2.8" CMOS
- Effective Pixels (approx.): 8.51 Mega Pixels
- S/N Ratio: ≥50dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 20x Optical, 8x Digital Zoom
- Effective Zoom Ratio: 18.12x
- Gamma Control: N/A
- Iris Control: Auto / Manual
- Digital Noise Reductions: 3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, OnePush, Manual
- AGC / Gain Control: Auto / Manual
- HDR/WDR: N/A
- Mirror / Flip Image: Yes
- Focus Mode: Auto/Manual
- Panning / Tilting Range: Pan: 340°; Tilt: +90° to -30°
- Panning / Tilting Speed: Pan: 0.1°/s~60°/s; Tilt: 0.1°/s ~30°/s
- Preset: 255 Position
- Focal Length: f = 5.05mm (wide) to 91.49 mm (tele); F1.8 (Wide) ～ F2.9 (Tele)
- Field of View (Horizontal, Wide): 60°
- Image Compensation: Back light compensation

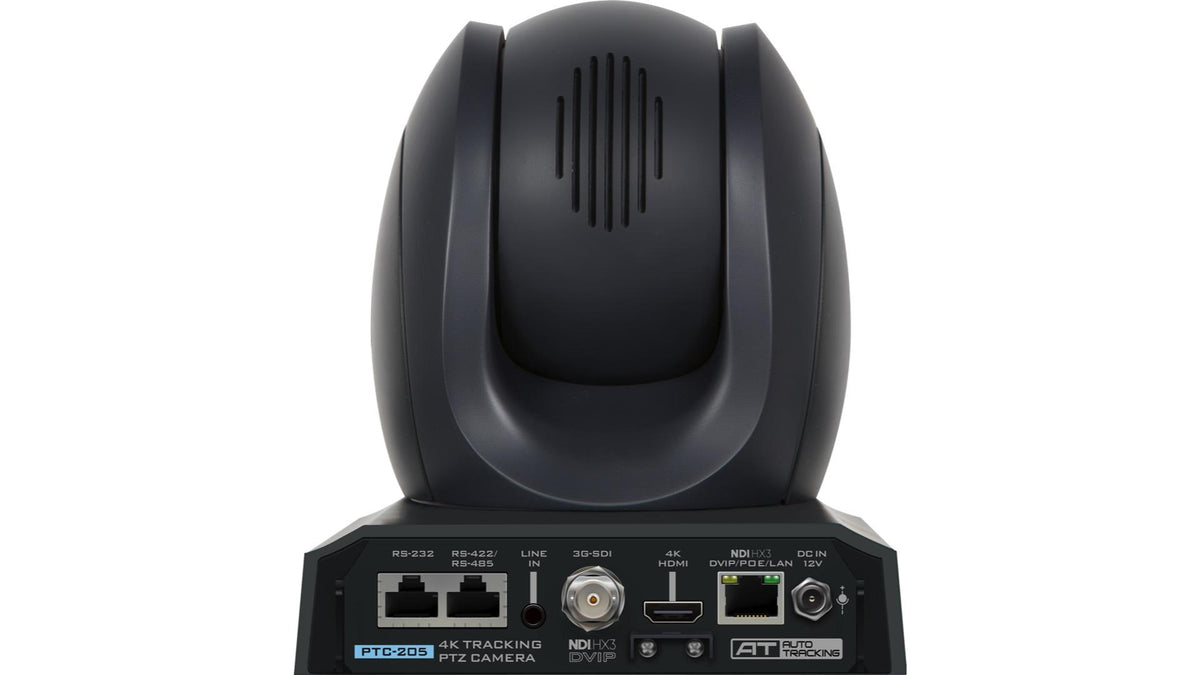

- Video Output: HDMI x 1; 3G-SDI x 1; RJ-45 PoE x1
What's in the box (per official Datavideo page)
- 1 x PTC-205 Unit
- 1 x IR remote controller
- 1 x Ceiling mount bracket-A
- 1 x Ceiling mount bracket-B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x Power Cord
- 1 x Safety cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
