Product information

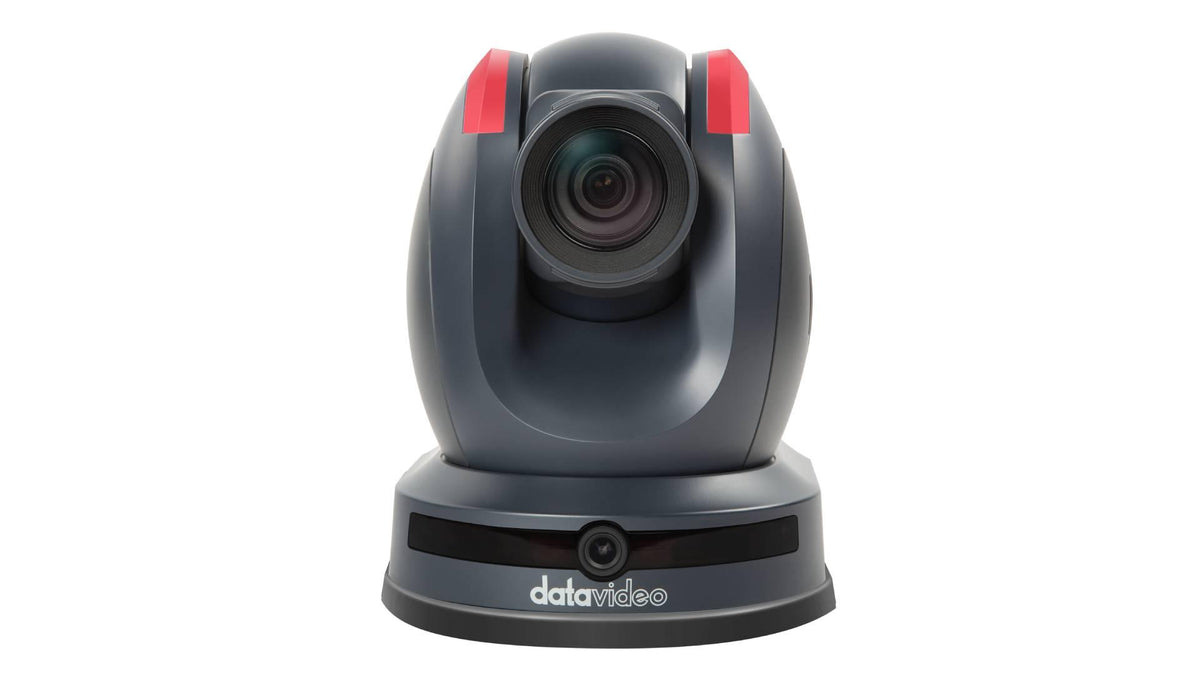

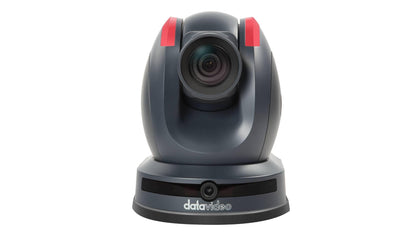

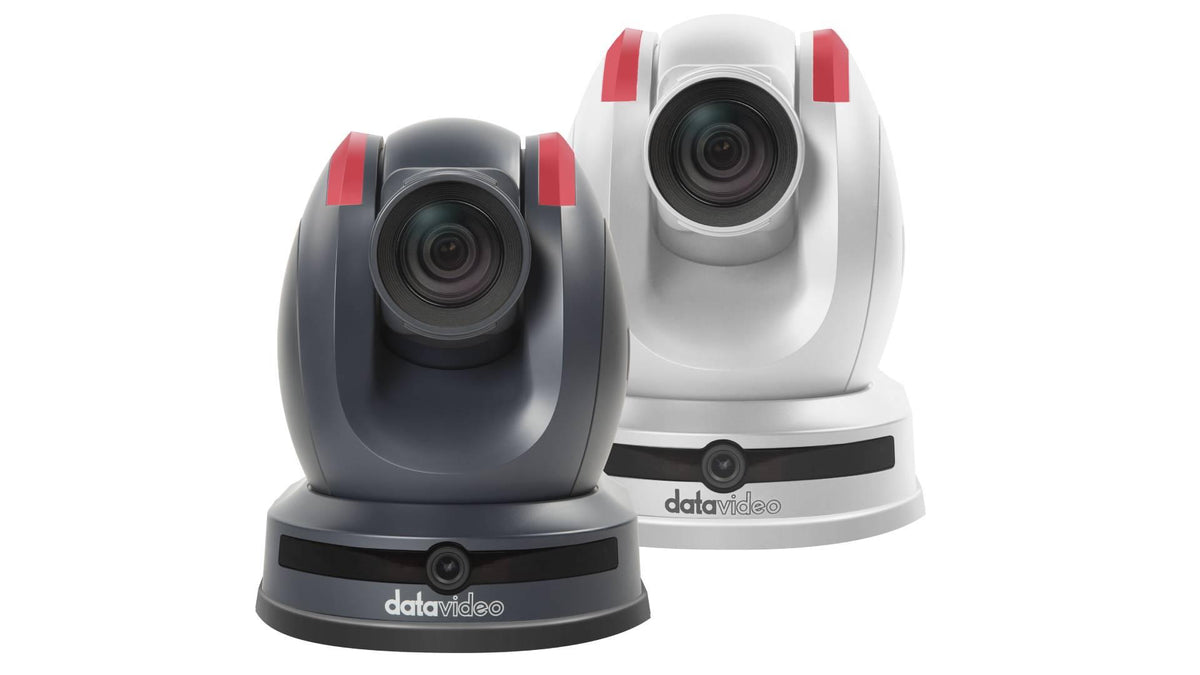

The Datavideo PTC-155 is a ptz camera from Datavideo, supplied in India by Universal AV Solutions. PTC-155 HD 30x Tracking PTZ Camera. Stunning Full HD Resolution with Auto Tracking.
Key features
- Stunning Full HD Resolution with Auto Tracking
- AI Auto-Tracking
- Stunning Image Quality
- Versatile Connectivity
- Easy Control
Technical specifications
- Model Number: PTC-155
- Video format/Resolution: 1080p60/59.94/50/30/29.97/25; 720p60/59.94/50
- Image Sensor: Sony 1/2.8" CMOS
- Effective Pixels (approx.): 2.14 Mega pixels
- S/N Ratio: ≥50dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/25s ~ 1/10000s
- Zoom Ratio: 30x Optical Zoom, 16x Digital Zoom
- Effective Zoom Ratio: 27.35x
- Gamma Control: N/A
- Iris Control: Auto / Manual
- Digital Noise Reductions: 2D/3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, OnePush, Manual
- AGC / Gain Control: Yes
- HDR/WDR: WDR
- Mirror / Flip Image: Yes
- Focus Mode: Auto / Manual
- Panning / Tilting Range: Pan: 300° Tilt: +130° to -15°
- Panning / Tilting Speed: Pan: 0.1~ 60°/Sec Tilt: 0.1° to 30°/sec
- Preset: 255 Positions
- Focal Length: f = 5.5mm (wide) to 150.43 mm (tele); F1.66 (Wide) ～ F4.99 (Tele)
- Field of View (Horizontal, Wide): Main: 54°; Panorama: 86°
- Image Compensation: Backlight Compensation

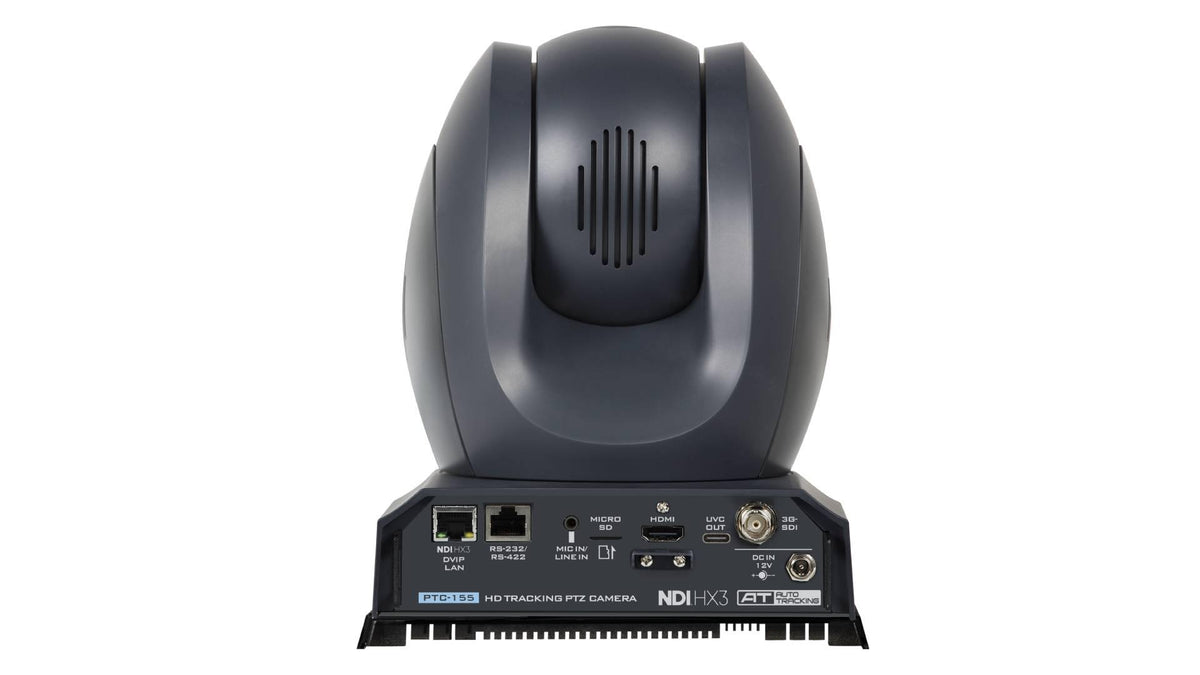

- Video Output: HDMI 1.3 x1; 3G-SDI x1; UVC output x1; 10/100M RJ45 (PoE) x1
What's in the box (per official Datavideo page)
- 1 x PTC-155 product
- 1 x IR remote controller
- 1 x Ceiling mount bracket -B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x Safety cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
