Product information

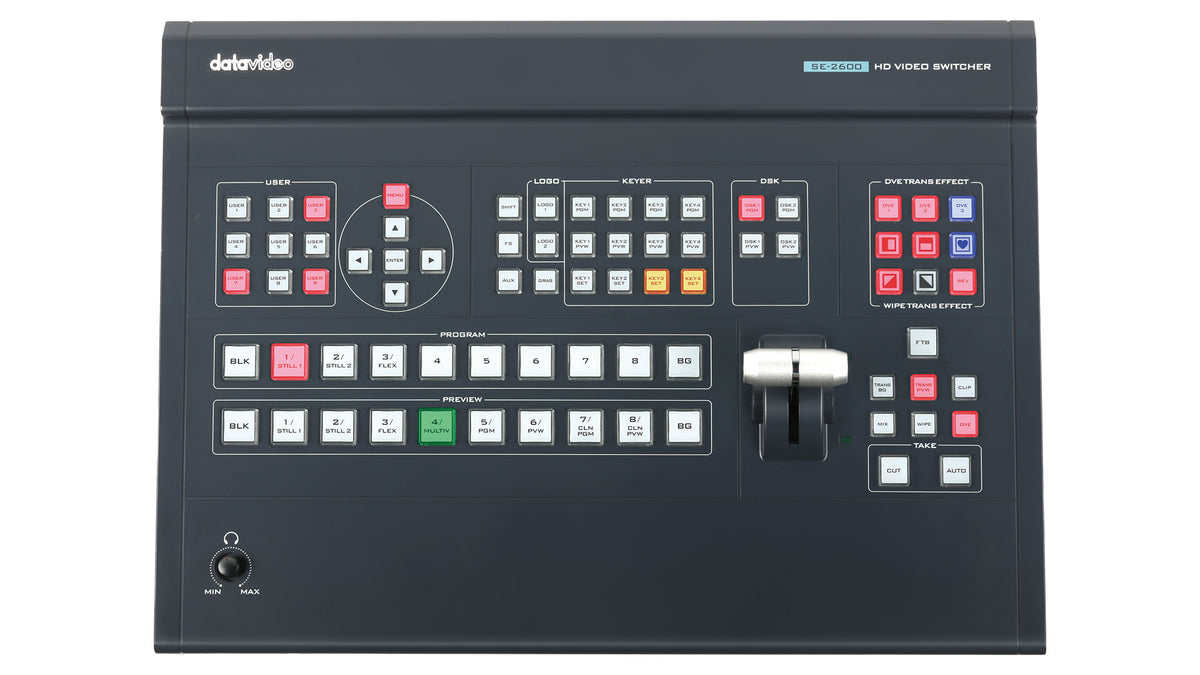

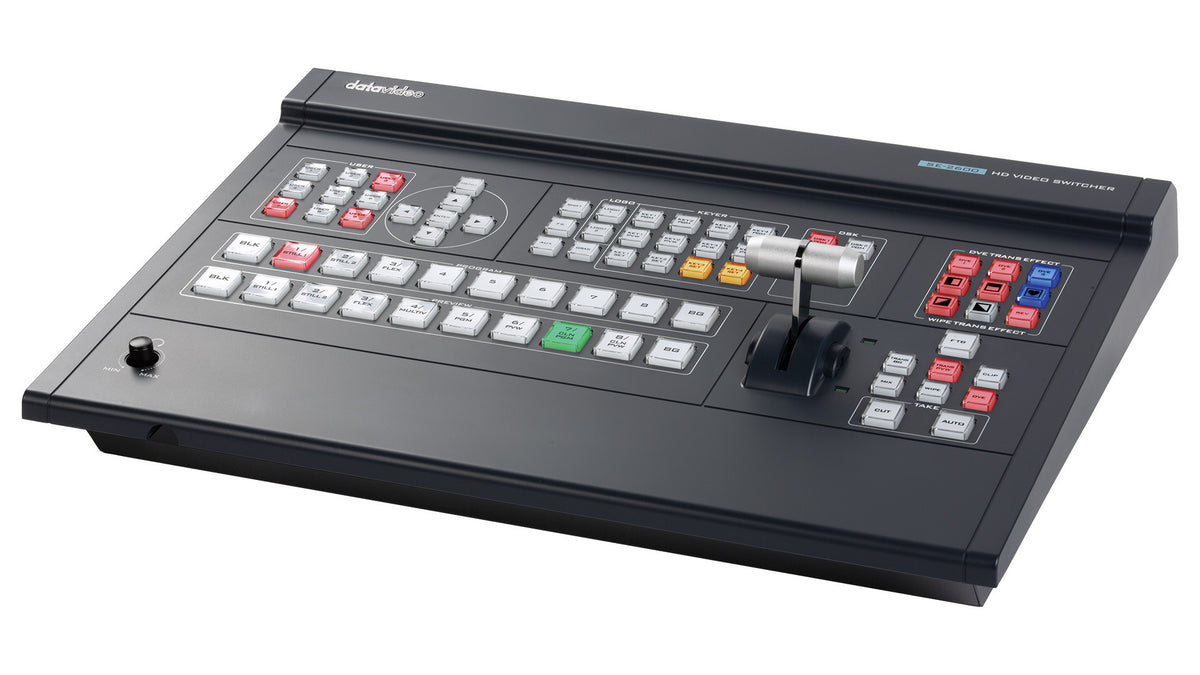

The Datavideo SE-2600 is a video switcher from Datavideo, supplied in India by Universal AV Solutions. SE-2600 HD 8-Channel Digital Video Switcher. 8 inputs (4x SDI, 4x HDMI) and 6 outputs (3x SDI, 3x HDMI), supporting 1080p/60 (3G).
Key features
- 8 inputs (4x SDI, 4x HDMI) and 6 outputs (3x SDI, 3x HDMI), supporting 1080p/60 (3G)
- Scaling on each available input
- 4 USK upstream keyers for chromakey, linear, and luma keys
- 2 DSKs (downstream keyers)
- Up to 4 picture-in-picture (PIP) frames with adjustable size and position and 3D borders
- 4 chromakeyers with Key tie functionality for virtual studio setups
- Pre-saved animated stinger transitions and 50 virtual set backgrounds, plus support for importing your own
- Crosspoint assignment for rerouting any input or output to any available button
- Single HDMI input for the CG Title Creator interface
- 2 independent animated logos and logo insertion
- 2D transition DVE
- 10-bit processing (SDI 4:2:2; HDMI YUV 4:2:2 and RGB 4:4:4)
Technical specifications
- Model Number: SE-2600
- Video Standard: Full HD
- Video Format: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz (input and output)
- Video Processing: SDI: 4:2:2; HDMI: YUV 4:2:2, RGB: 4:4:4
- Input Routable / Crosspoint: YES

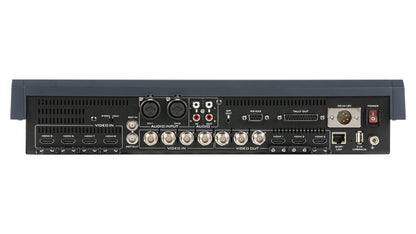

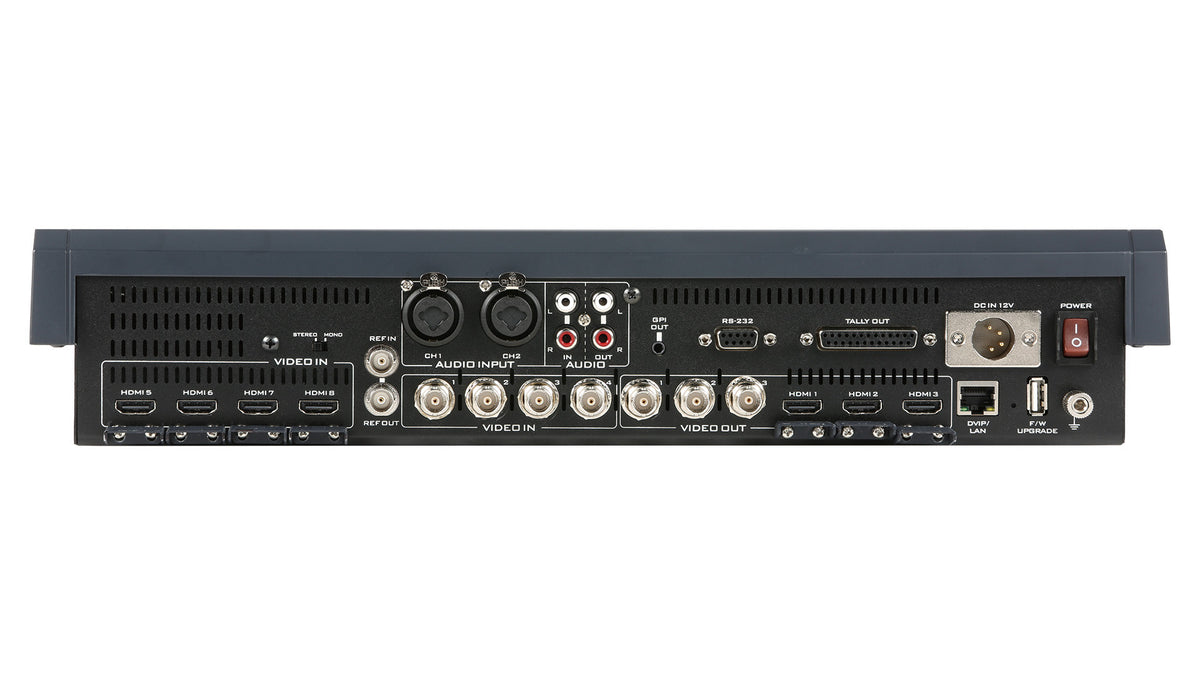

- Video Input: Total 8 live inputs; 4 x SDI; 4 x HDMI
- Computer Graphic Interface: 4 via HDMI
- Video Output: 3 x SDI; 3 x HDMI; assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source
- Built-in Multi-view Monitoring Out: HDMI & SDI assignable
- Analogue Audio Input: 2 x XLR/MIC (6.3mm) Combo Socket; 1 x Stereo RCA set (L/R)
- Analogue Audio Output: 1 x Stereo RCA set (L/R)
- Digital Embedded Audio Support: SDI Input/Output 4 channels; HDMI Input/Output 2 channels
- Audio Delay Calibration: Up to 16 fields or 8 frames per channel
- A+V Switching: Yes
- Chromakey: 4
- Title Creator: Yes
- USK: 4x Keyer support Chromakey/ Linear/ Luma Key
- DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
- Picture in Picture: 4
- Logo Insertion: 2
- Still Store: 999+ (1080p)
- Effects: Cut, Auto, WIPE, Mix, DVE, Stinger
- Transition Preview: Full transitions preview
- Sync / Reference In/Out: 1 x BNC Ref in; 1 x BNC Ref out (loop-through)
- Tally Output: 1x D-sub 25pin, dual color
What's in the box (per official Datavideo page)
- 1 x SE-2600 product
- 1 x AD Switch DC 12V
- 1 x AC Cord
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
