Product information

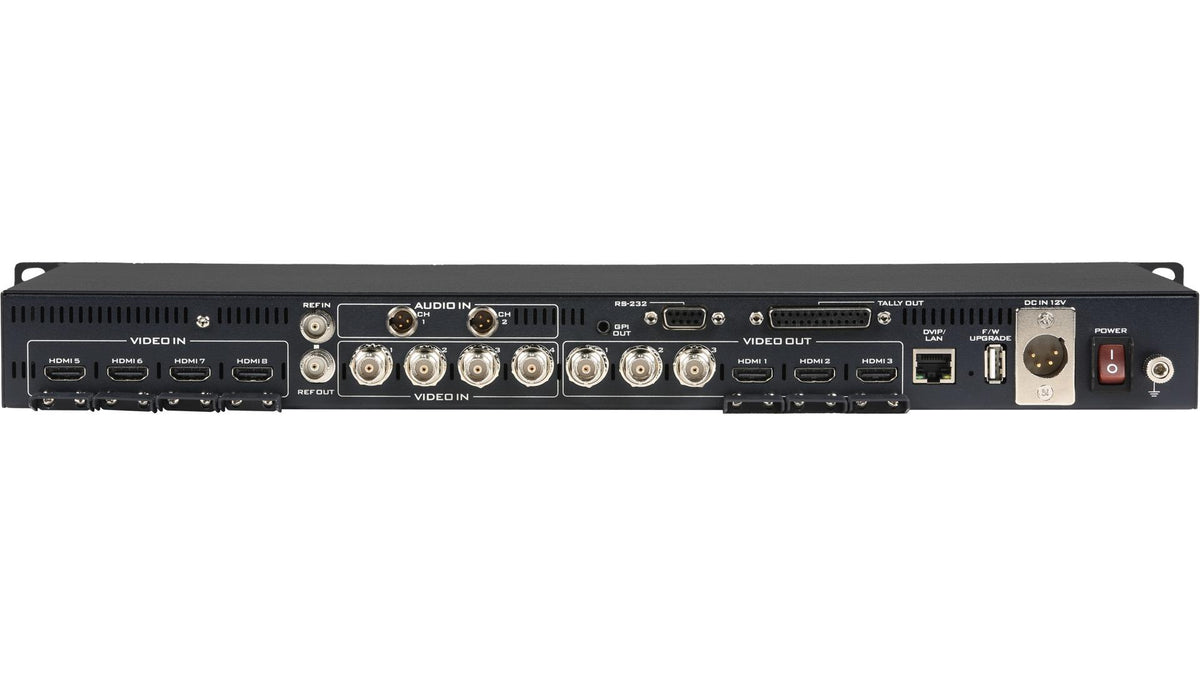

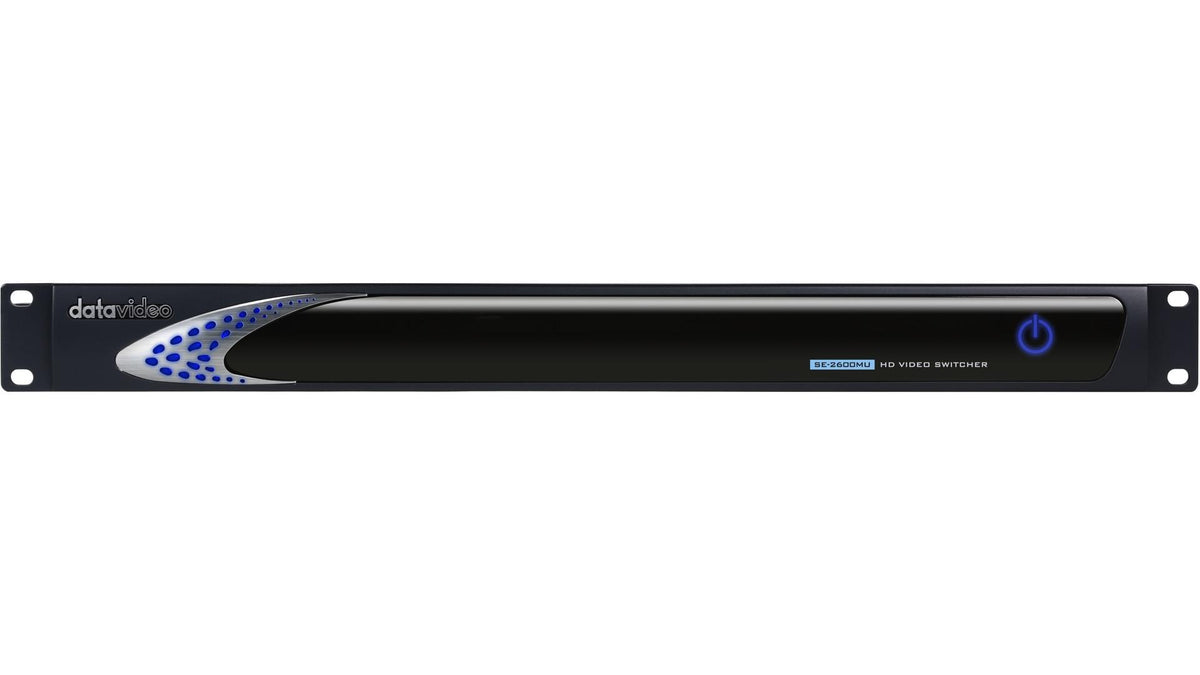

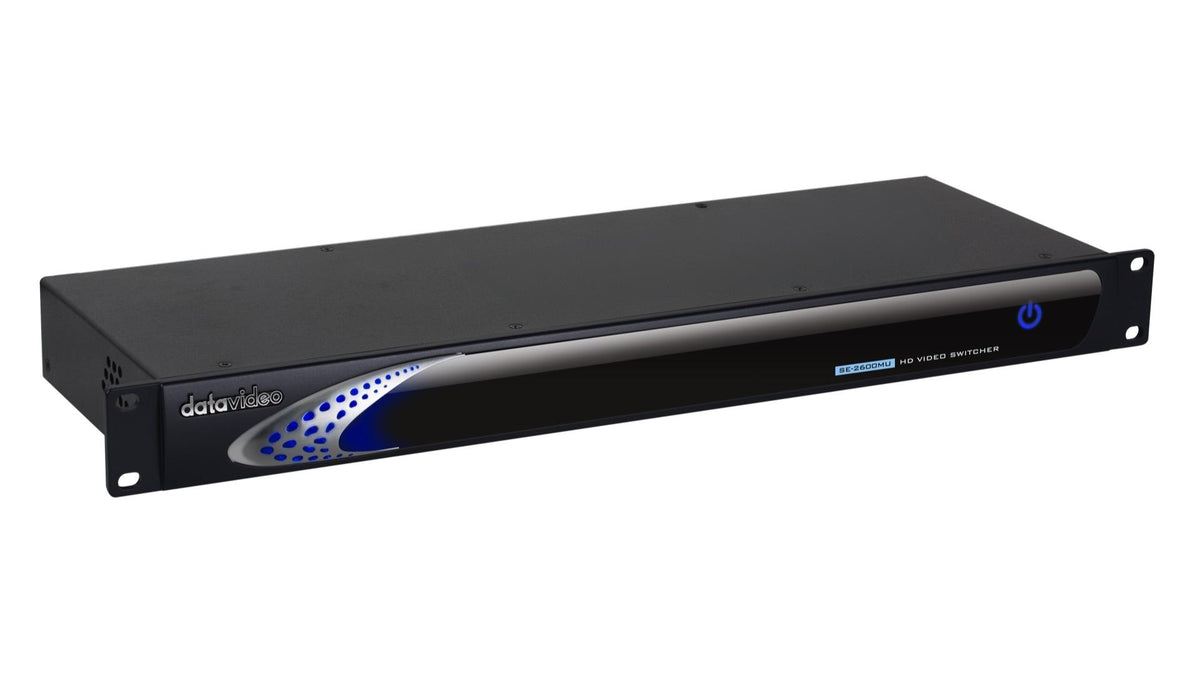

The Datavideo SE-2600MU is a video switcher from Datavideo, supplied in India by Universal AV Solutions. SE-2600MU HD 8-Channel Digital Video Switcher. Mini XLR Balanced Audio Input.
Key features
- Mini XLR Balanced Audio Input
- Flexible AUX Outputs
- Tally Output
- Analogue Gen-Lock Support
- USK and DSK
- Stinger Transitions and Backgrounds
- Up to 4 PIPs
- Crosspoint Assignment
- 4 Chromakeyers
- CG Title Creator Interface
- Plug-and-Play
- Professional 10-bit Processing
Technical specifications
- Model Number: SE-2600MU
- Video Standard: Full HD
- Video Format: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz (input and output)
- Video Processing: SDI: 4:2:2; HDMI: YUV 4:2:2, RGB: 4:4:4
- Input Routable / Crosspoint: YES
- Video Input: Total 8 live inputs; 4 x SDI; 4 x HDMI
- Computer Graphic Interface: 4 via HDMI
- Video Output: 3 x SDI; 3 x HDMI; assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source
- Built-in Multi-view Monitoring Out: HDMI & SDI assignable
- Analogue Audio Input: 2x Balanced Mini XLR
- Digital Embedded Audio Support: SDI Input/Output 4 channels; HDMI Input/Output 2 channels
- Audio Delay Calibration: Up to 16 fields or 8 frames per channel
- A+V Switching: Yes
- Chromakey: 4
- Title Creator: Yes
- USK: 4x Keyer support Chromakey/ Linear/ Luma Key
- DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
- Picture in Picture: 4
- Logo Insertion: 2
- Still Store: 999+ (1080p)
- Effects: Cut, Auto, WIPE, Mix
- Transition Preview: Full transitions preview
- Sync / Reference In/Out: 1 x BNC Ref in; 1 x BNC Ref out (loop-through)
- Tally Output: 1x D-sub 25pin, dual color
- PC Remote Control: RS-232 / DVIP (Ethernet)
What's in the box (per official Datavideo page)
- 1 x SE-2600MU product
- 1 x AD Switch DC 12V
- 1 x AC Cord
- 4 x M5 Screws for Rack Mount Ear
- 2 x Mini XLR 3P-F to XLR 3P-F Cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
