Product information

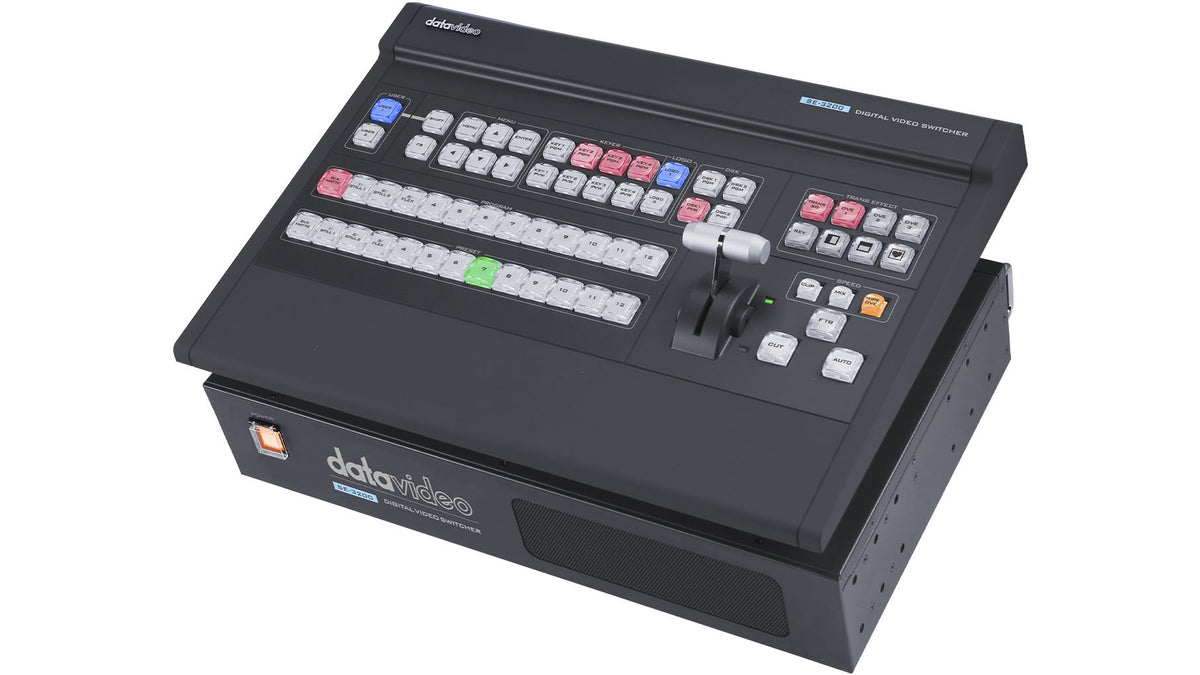

The Datavideo SE-3200 is a video switcher from Datavideo, supplied in India by Universal AV Solutions. SE-3200 HD 12-Channel Digital Video Switcher. Full 1080p support on every input and output.
Key features
- Full 1080p support on every input and output
- Built-in input scaler (up/down conversion)
- 12 inputs (8x SDI, 4x HDMI)
- 9 outputs (6x SDI, 3x HDMI)
- 8 picture-in-picture (4x PIP, 4x Flex Source)
- FlexSource
- 4 upstream keyers (chromakey, linear, luma)
- 2 DSKs
- 2 independent animated logos
- Stinger transitions and 50 virtual set backgrounds
- Included CG Title Creator
- Custom multiview layout and dual multiview output
Technical specifications
- Model Number: SE-3200
- Video Standard: Full HD
- Video Format: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz
- Video Processing: SDI: 4:2:2; HDMI: YUV 4:2:2, RGB: 4:4:4
- Input Routable / Crosspoint: All 12, repeatable
- Video Input: 8x SDI, 4x HDMI
- Computer Graphic Interface: 4 via HDMI
- Video Output: 6x SDI outputs assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source; 3x HDMI assignable (same list)
- Down-converted Output: 1x SDI
- Built-in Multi-view Monitoring Out: HDMI & SDI assignable
- Analogue Audio Input: 4x Balanced XLR
- Analogue Audio Output: 2x Balanced XLR
- Digital Embedded Audio Support: Input 2 channels, Output 4 channels
- Audio Delay Calibration: Up to 16 fields or 8 frames per channel
- A+V Switching: Yes
- Chromakey: 4
- Title Creator: Yes, free software download
- USK: 4x Keyer support Chromakey/ Linear/ Luma Key
- DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
- Picture in Picture: 8 (4x PIP, 4x Flex Source)
- Logo Insertion: 2
- Still Store: 999+
- Effects: DVE, FTB, Cut, 32 Wipe with border
- Transition Preview: Full transitions preview
- Sync / Reference In/Out: Built-in Genlock; Support external sync with loop thru
What's in the box (per official Datavideo page)

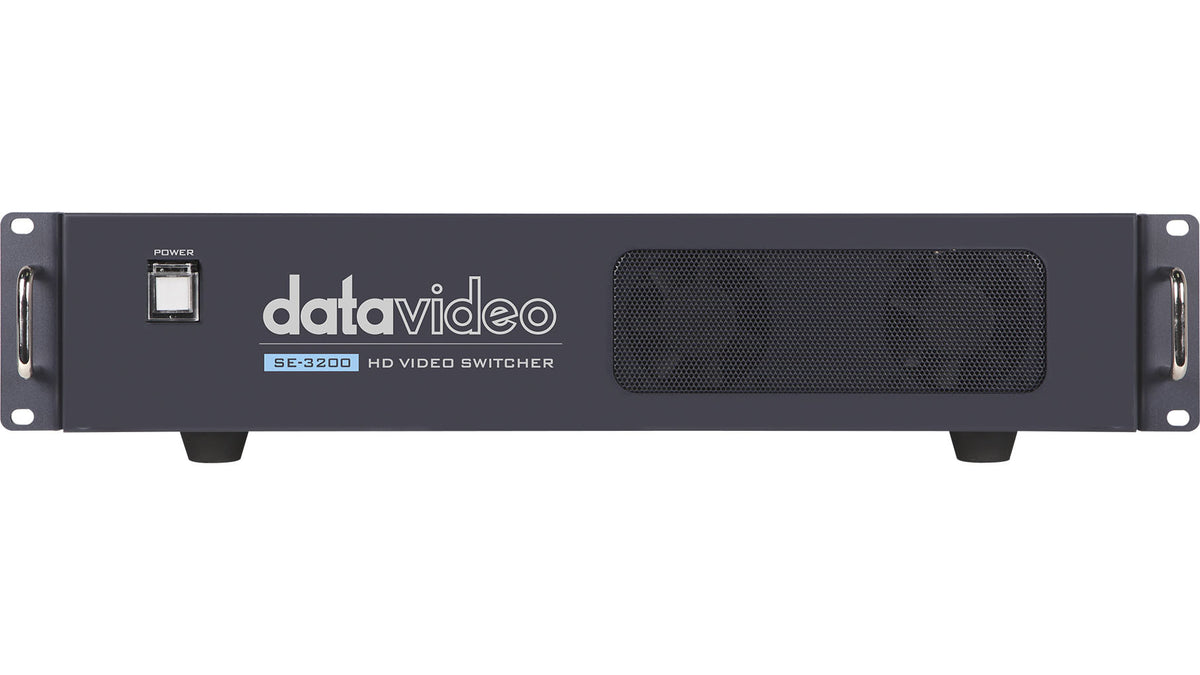

- 1 x SE-3200 Main Unit

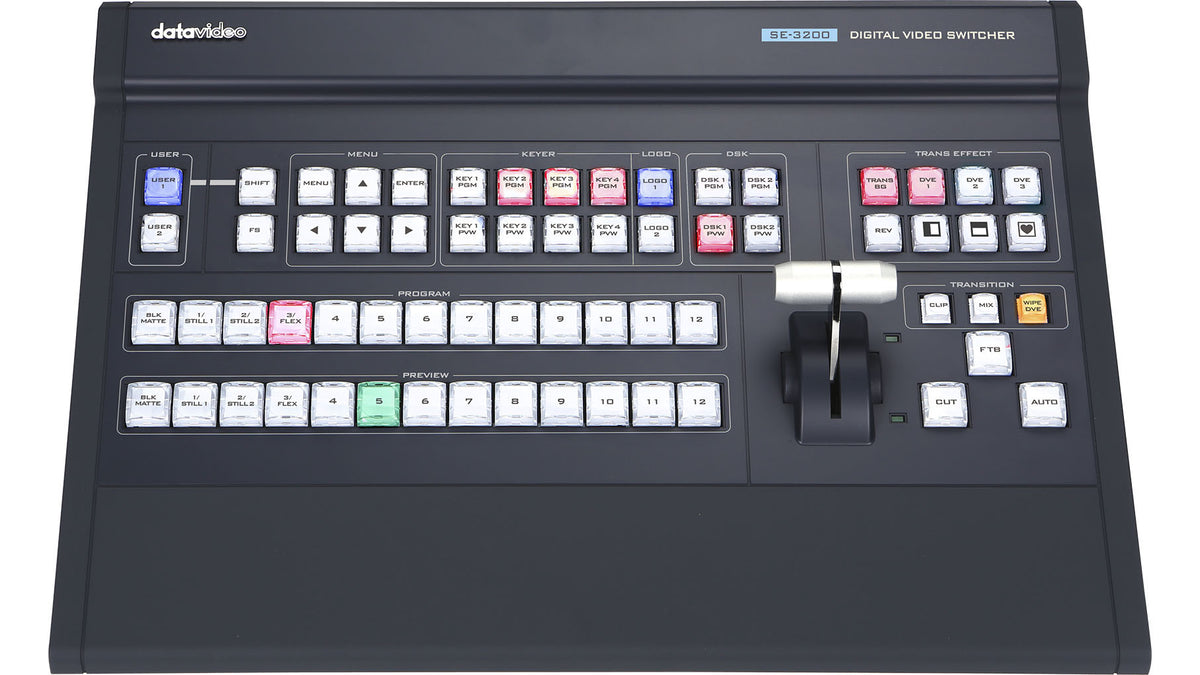

- 1 x SE-3200 Control Board
- 2 x AD Switch DC 12V
- 1 x AC Cord
- 1 x DB9P TO DB9P Cable
- 12 x Screw
- 2 x 2U Ear Rack
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
