Product information

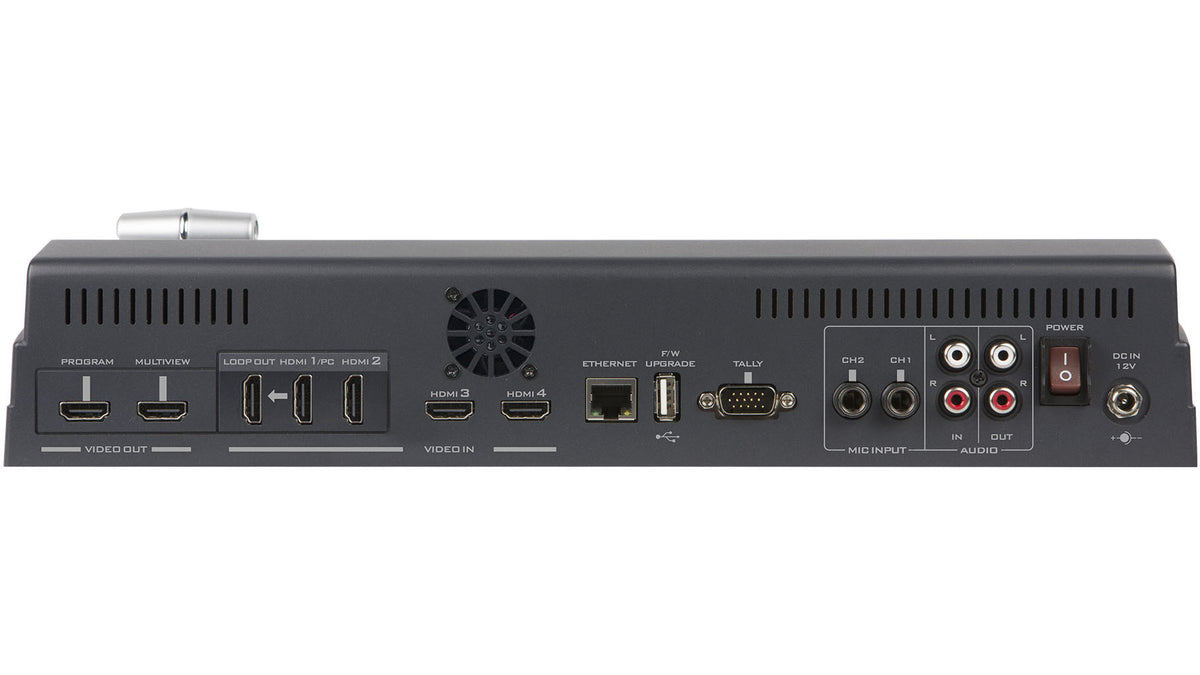

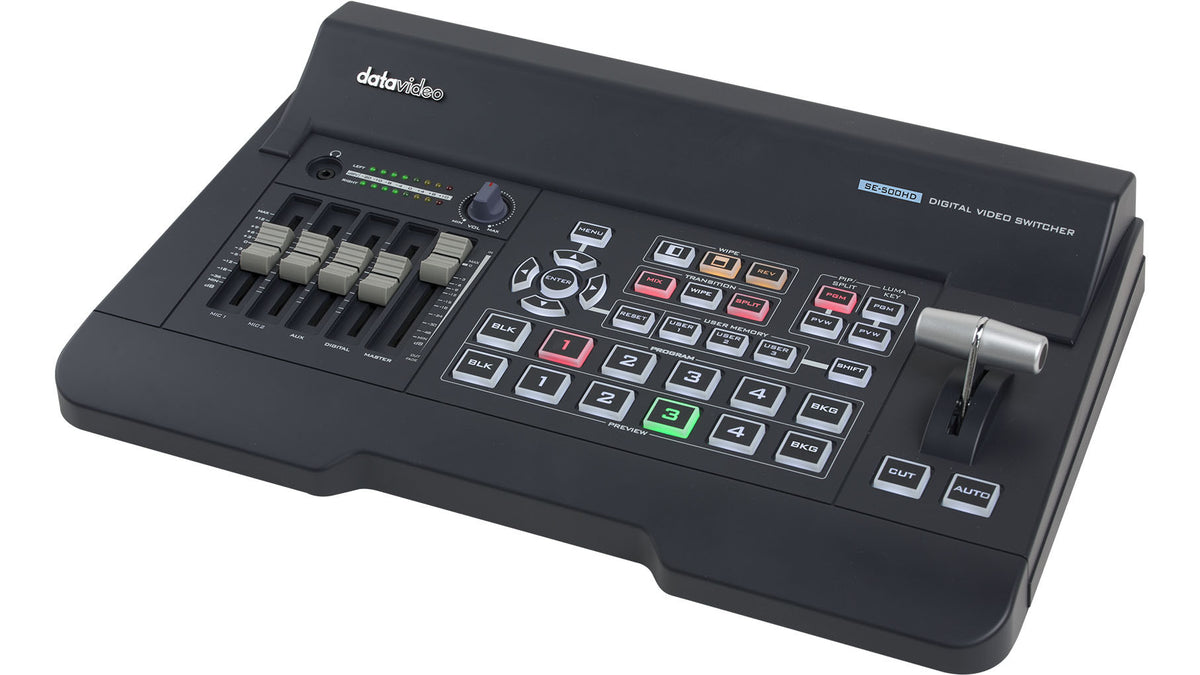

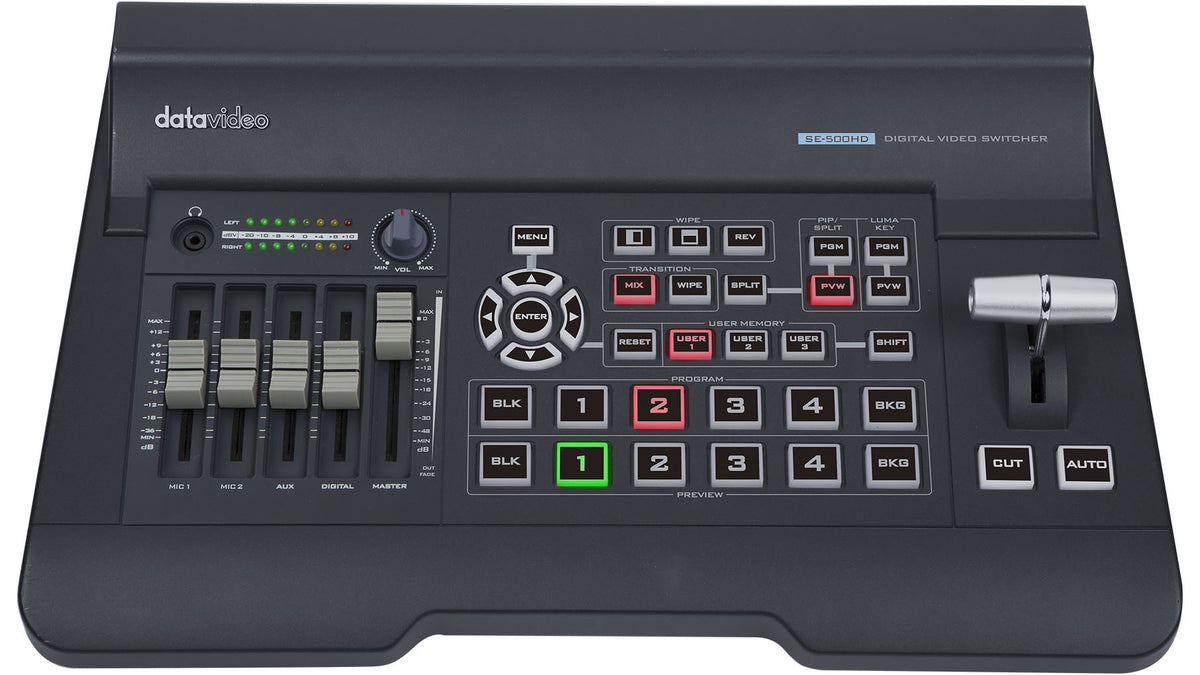

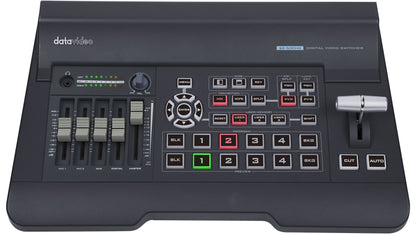

The Datavideo SE-500HD is a video switcher from Datavideo, supplied in India by Universal AV Solutions. SE-500HD 4-Channel 1080p HDMI Video Presentation Switcher. Supports Up to Full HD 1080P (4:4:4, 10-bit).
Key features
- Supports Up to Full HD 1080P (4:4:4, 10-bit)
- Built-in H.264 recorder for SD cards
- Compact but Powerful
- Luma key for graphic overlays
- Split screen
- PiP (Picture in Picture)
- Built-in audio mixer
- Supports lumakey for titles
- User memories
- Supports Vertical video multiview
- Plug-and-Play
- Professional 10-bit processing
Technical specifications
- Model Number: SE-500HD
- Video Standard: Full HD & SD
- Video Format: 1080p 50/59.94/60Hz; 1080i 50/59.94/60Hz; 720p 50/59.94/60Hz; 576i 50Hz; 480i 59.94Hz
- Video Processing: HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4
- Video Input: 4x HDMI
- Mix HD & SD Source: Yes
- Computer Graphic Interface: 4 via HDMI
- Video Output: 2 x HDMI (1 is MV, 1 is PGM)
- Down-converted Output: Yes
- Built-in Multi-view Monitoring Out: HDMI
- Analogue Audio Input: 1 x Stereo RCA (L/R); 2 x Mono Microphone
- Analogue Audio Output: 1 x Stereo RCA (L/R); 1 x Stereo headphone (Mini Jack with volume control)
- Digital Embedded Audio Support: Input 2 channels, Output 2 channels
- A+V Switching: Yes
- USK: Lumakey
- Picture in Picture: 1
- Effects: FTB, Cut, Wipe with border
- Sync / Reference In/Out: Built-in Genlock (internal)
- Tally Output: 1x D-sub 15pin, dual color
- Built-in Audio Mixer: Yes, 4 channels
- Firmware Update: USB
- Special Features: Built-in video scaler for mixed resolution inputs
- Chassis: Unibody
- Dimension (LxWxH): 400 x 250 x 82 mm
- Weight: 1.7 kg
What's in the box (per official Datavideo page)
- 1 x SE-500HD product
- 1 x AD Switch DC 12V with AC Cord
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
