Kiloview E3 · 4K Multi-interface Video Encoder
Encode HDMI, SDI and USB Sources for Professional IP Streaming
Kiloview E3 4K Multi-interface Video Encoder HDMI, 3G-SDI and USB
- 4K HDMI
- 3G-SDI
- H.265/HEVC
- NDI HX
- SRT
Price on Request
Every installation is different. Talk to our AV Consultant for configuration, BOQ and customised proposal.
Key Highlights
-
4K HDMI Input up to 3840×2160p30
Encode 4K HDMI sources at up to 3840×2160p30, with HDMI loop-out to a local monitor.
-
3G-SDI Input up to 1080p60
A 3G-SDI input with loop-out accepts professional cameras and SDI equipment at up to 1080p60.
-
USB Video Input
Add a USB camera or capture source at up to 1080p60 alongside HDMI and SDI.
-
H.264 and H.265/HEVC Encoding
Choose H.264 for broad compatibility or H.265/HEVC for bandwidth-efficient IP delivery.
-
NDI HX2 and NDI HX3 Support
Send video onto the network as NDI HX for IP-based production workflows.
-
SRT, RTMP/RTMPS, RTSP and HLS
Stream to platforms, servers and decoders with SRT, RTMP/RTMPS, RTSP, HLS, WHIP and TS over UDP.
-
Up to 8 Concurrent Streams
Deliver to up to eight destinations at the same time from a single compact encoder.
-
PIP and PBP Multi-Source Composition
Combine HDMI and SDI in picture-in-picture or picture-by-picture, or switch seamlessly between inputs.
-
Recording to USB Storage or NAS
Record MP4, MOV or TS to USB drives or a NAS while streaming.
-
PoE-enabled Gigabit Ethernet
Power and connect the unit over one Gigabit Ethernet cable, or use the DC 12V input.
Product information
The Kiloview E3 is a compact 4K multi-interface video encoder for professional streaming and IP video workflows. It accepts HDMI, 3G-SDI and USB sources, encodes them with H.264 or H.265/HEVC, and delivers them over Ethernet using NDI HX, SRT, RTMP and other protocols. It suits broadcast, education, house of worship, sports and corporate AV teams that need one small, flexible encoder rather than a different box for each source.
Multi-interface video encoding
The E3 offers an HDMI 1.4b input with loop-out (up to 3840x2160p30), a 3G-SDI input with loop-out (up to 1080p60) and a USB video input (up to 1080p60). That makes it easy to connect a professional SDI camera, an HDMI camera or computer, or a USB source, and keep a local monitor fed through the loop-out connections. Interlaced sources are accepted and encoded as progressive video.
H.264 and H.265
Choose H.264 for wide compatibility, or H.265/HEVC when bandwidth matters. Kiloview states that H.265 can deliver comparable quality at up to 50% lower bitrate than H.264, which helps on limited uplinks and busy networks. M-JPEG is also listed in the specifications.

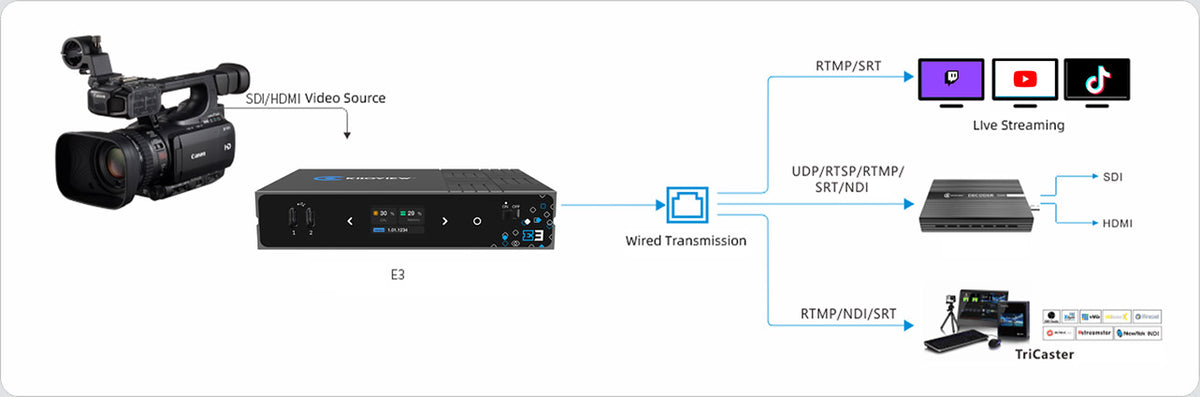

NDI and IP streaming
For IP production, the E3 supports NDI HX2 and NDI HX3. For delivery it offers SRT, RTMP/RTMPS, RTSP, HLS, WHIP and TS over UDP, and Kiloview specifies up to eight simultaneous streams. Plan network capacity carefully for multi-destination streaming, and our team can help you size it.
Multi-source production
The E3 can switch seamlessly between inputs, encode HDMI and SDI together, or combine them in picture-in-picture (PIP) or picture-by-picture (PBP) layouts. Rotation, mirroring, cropping and on-screen text, image or logo overlays are available, including portrait-mode output for mobile-first streaming. It is an encoder with advanced source handling, not a full production switcher; if you need multi-camera switching, compare the Datavideo iCAST 10NDI, Datavideo SE-650 or Datavideo HS-1300.

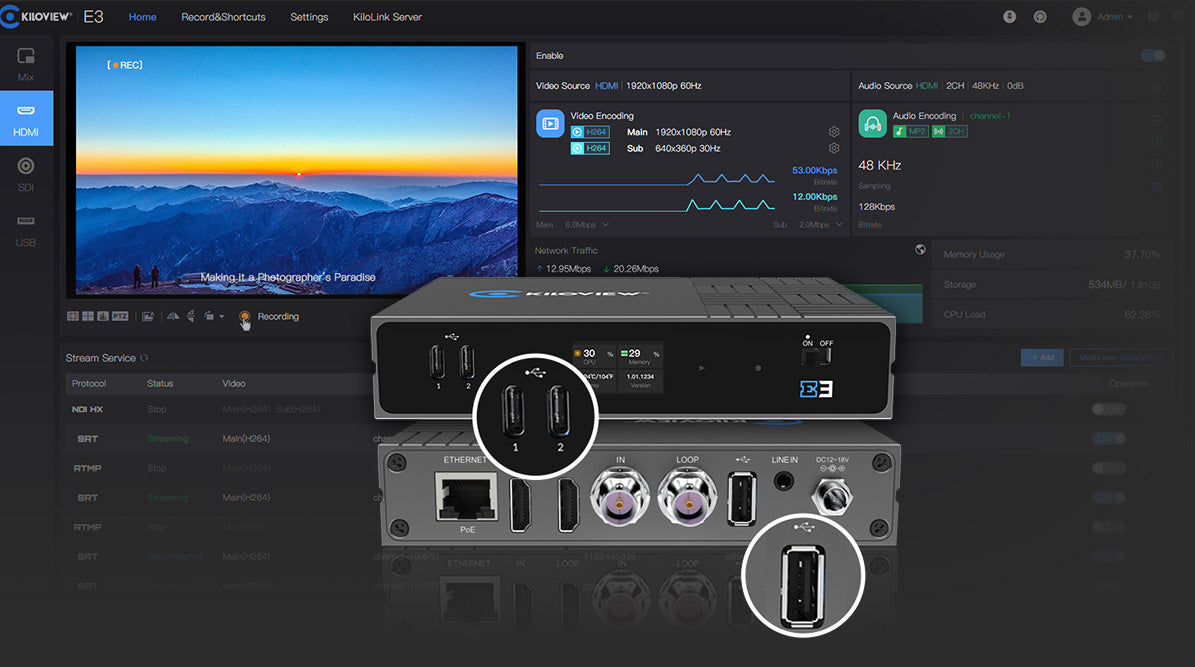

Recording and professional workflows
Record MP4, MOV or TS to external USB storage or a NAS while you stream. A 1.14-inch touch LCD, a web interface and KiloLink Server Pro cover local and central management. The E3 also supports PTZ camera control, USB headset intercom through the Kiloview Intercom System, and power over Ethernet or DC 12V, in a 400 g body that mounts on a cold shoe. For a different H.264 encoder option, see the Datavideo NVS-35.
Buy Kiloview E3 in India from Universal AV Solutions with supply, system design, installation and after-sales support across Delhi NCR and pan-India. Explore our video encoders and video production equipment, read about broadcast and video production solutions, education AV solutions, corporate AV solutions and house of worship AV solutions, or contact us for a quotation.
Specifications are based on the manufacturer's published information and may change. Cameras, storage devices, cables and other accessories are sold separately. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
Applications
-
Broadcast and Live Production
Encode camera feeds from SDI and HDMI sources for contribution, remote production and IP broadcast workflows.
-
Education and Lecture Capture
Stream and record lectures from a camera, presentation source or USB device over the campus network.
-
House of Worship Streaming
Stream services to online platforms from a camera feed while recording locally to USB or NAS.
-
Sports Production and Streaming
Send live match coverage to multiple platforms, with portrait-mode output for mobile-first audiences.
-
Corporate and Professional AV Streaming
Stream town halls, webinars and events from meeting-room or studio sources with NDI HX and SRT delivery.
Technical Specifications

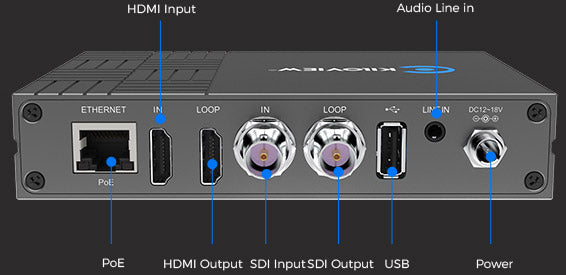

Video Inputs and Loop-Through
- HDMI input and loop-out
- 1 × HDMI 1.4b input with HDMI loop-out
- HDMI input resolutions
- Up to 3840×2160p30; 1080p 23.98/24/25/29.97/30/50/59.94/60; 1080i 50/59.94/60; 720p 29.97/30/50/59.94/60; 576i50; 480i59.94
- SDI input and loop-out
- 1 × 3G-SDI input with SDI loop-out
- SDI input resolutions
- Up to 1080p60: 1080p 23.98/24/25/29.97/30/50/59.94/60; 1080i 50/59.94/60; 720p 25/29.97/30/50/59.94/60; 576i50; 480i59.94
- USB video input
- 1 × USB video input
- USB input resolutions
- 1080p 24/25/30/50/60; 720p 30/50/60
- Input handling
- Switches between three inputs; HDMI and SDI can be encoded simultaneously
Video Encoding
- H.265/HEVC
- Supported
- H.264/AVC
- Supported
- M-JPEG
- Supported
- Interlaced sources
- Interlaced input is accepted; output is encoded and streamed as progressive
- Timecode
- SEI timecode synchronised to NTP or system time
Multi-Source Processing
- Seamless switching
- Seamless switching between inputs
- PIP and PBP
- Picture-in-picture and picture-by-picture combining of HDMI and SDI sources
- Rotation, mirroring and cropping
- Supported, including portrait-mode output
- On-screen display
- OSD with text, image or logo; VU meters, safety area, centre line and colour adjustment
Streaming Protocols
- NDI
- NDI HX2 and NDI HX3
- SRT
- Supported
- RTMP and RTMPS
- Supported
- Other protocols
- RTSP, HLS, WHIP and TS over UDP
Streaming Capacity
- Concurrent streams
- Up to 8 simultaneous streams
- Bitrate limits
- Kiloview documents show differing combined-bitrate figures; contact us to confirm for your workflow
Audio
- Line input
- 1 × 3.5 mm line input (2-channel)
- HDMI embedded audio
- 4-channel
- SDI embedded audio
- 4-channel
- USB audio
- Embedded USB audio supported
- Audio codecs
- AAC and G.711
Recording
- Storage
- External USB storage (3 USB ports) or NAS
- Recording formats
- MP4, MOV and TS
- Record while streaming
- Supported
Network
- Ethernet
- 1 × 10/100/1000 Mbps Ethernet (RJ-45), DHCP supported
- PoE
- Power over Ethernet supported (IEEE 802.3af)
Control and Management

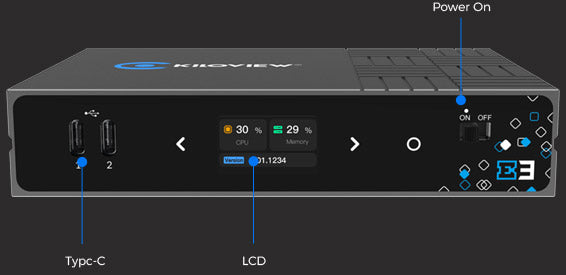

- Display and controls
- 1.14-inch colour LCD with touch keys
- Web UI
- Browser-based management, no software installation
- Central management
- KiloLink Server Pro
- Tally
- LCD display doubles as tally
- Open API
- Supported
PTZ Control
- Serial control
- RS-232, RS-485 and RS-422 via USB-to-serial adapter
- IP camera control
- Sony VISCA, Pelco-D and Pelco-P
- UVC PTZ
- Supported
USB and Intercom
- USB ports
- 2 × USB 2.0 Type-C (front); 1 × USB 2.0 Type-A (rear)
- Intercom
- USB headsets via Kiloview Intercom System (KIS)
Physical and Power
- Dimensions
- 140 × 100 × 28 mm
- Weight
- 400 g
- Power input
- DC 12V/1A or PoE
- Power consumption
- Under 6 W
- Mounting
- Cold shoe
- Operating temperature
- -20°C to 45°C
Frequently Asked Questions
What is the Kiloview E3?
The Kiloview E3 is a compact 4K multi-interface video encoder that takes HDMI, 3G-SDI and USB sources and streams them over IP using H.264 or H.265.
Does Kiloview E3 support 4K video?
Yes. The HDMI input supports up to 3840×2160p30. The SDI input supports up to 1080p60 and the USB input up to 1080p60.
Does the E3 support HDMI and SDI?
Yes. It has one HDMI 1.4b input and one 3G-SDI input, each with a loop-out, plus a USB video input.
Does Kiloview E3 support H.265/HEVC?
Yes. It encodes H.265/HEVC and H.264/AVC. Kiloview states that H.265 can lower bitrate by up to 50% compared with H.264 for similar quality.
Does Kiloview E3 support NDI?
Yes. It supports NDI HX2 and NDI HX3 for IP production workflows. NDI devices on your network will need to be compatible with NDI HX.
Does it support SRT streaming?
Yes. SRT is supported along with RTMP/RTMPS, RTSP, HLS, WHIP and TS over UDP.
Can the E3 combine HDMI and SDI sources?
Yes. It can encode HDMI or SDI on their own, switch between inputs, or combine HDMI and SDI in PIP or PBP layouts.
How many simultaneous streams can Kiloview E3 support?
Kiloview specifies up to 8 simultaneous streams. Available bitrate depends on your network and settings, so contact us to plan your workflow.
