Datavideo iCAST 10NDI · All-in-one Streaming Switcher
Switch, Stream, Record and Mix Hybrid Events from One Unit
iCAST 10NDI 5-Channel Streaming Switcher HDMI, SDI, USB and NDI|HX
- 5 Channels
- NDI|HX
- Stream + Record
- ISO Recording
Price on Request
Every installation is different. Talk to our AV Consultant for configuration, BOQ and customised proposal.
Key Highlights
-
5-Channel All-in-one Streaming Switcher
Switcher, streaming encoder and recorder in a 1RU unit
-
HDMI and SDI Video Inputs
4 × HDMI and 1 × SDI, with channel 1 selectable between SDI and HDMI
-
USB 3.0 Video Input
Add a USB source, such as a document camera, as the fifth channel
-
Up to 3 NDI|HX IP Video Signals
Receive and decode up to three NDI|HX sources over Ethernet
-
Built-in Streaming Encoder and Recorder
H.264 recording to 1080p50/60 and live streaming without extra hardware
-
ISO Recording: 5 Inputs + Program
Record five camera inputs plus the program output at once
-
Multi-Channel Audio Mixing with Delay
XLR, RCA, embedded and IP audio, with 0–3000 ms delay
-
Vertical Streaming
Vertical crop or 90-degree rotation, plus vertical multiview
-
SRT and Multi-Protocol Streaming
SRT alongside RTMP(S), HLS, WebRTC and NDI|HX
-
Character Generator and Captions
Logos, titles and custom captions and subtitles via News CG
Product information

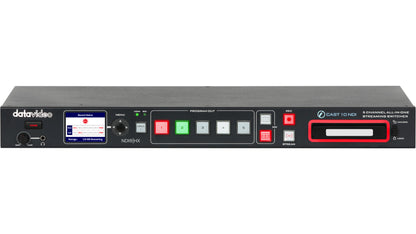

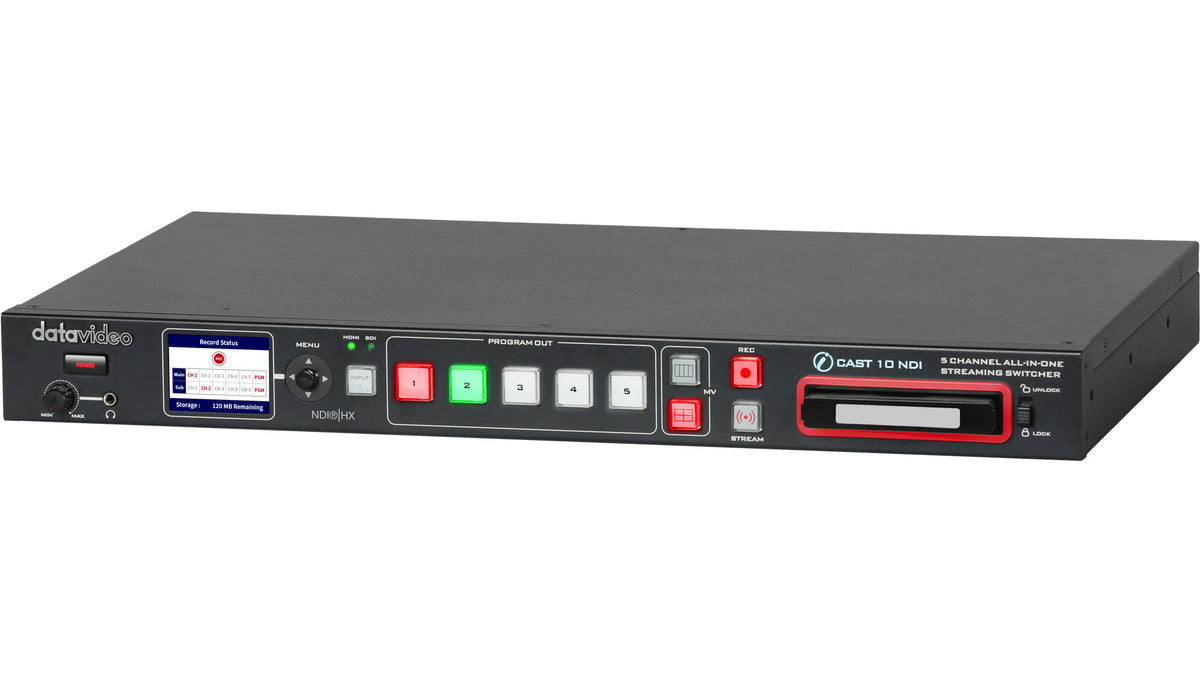

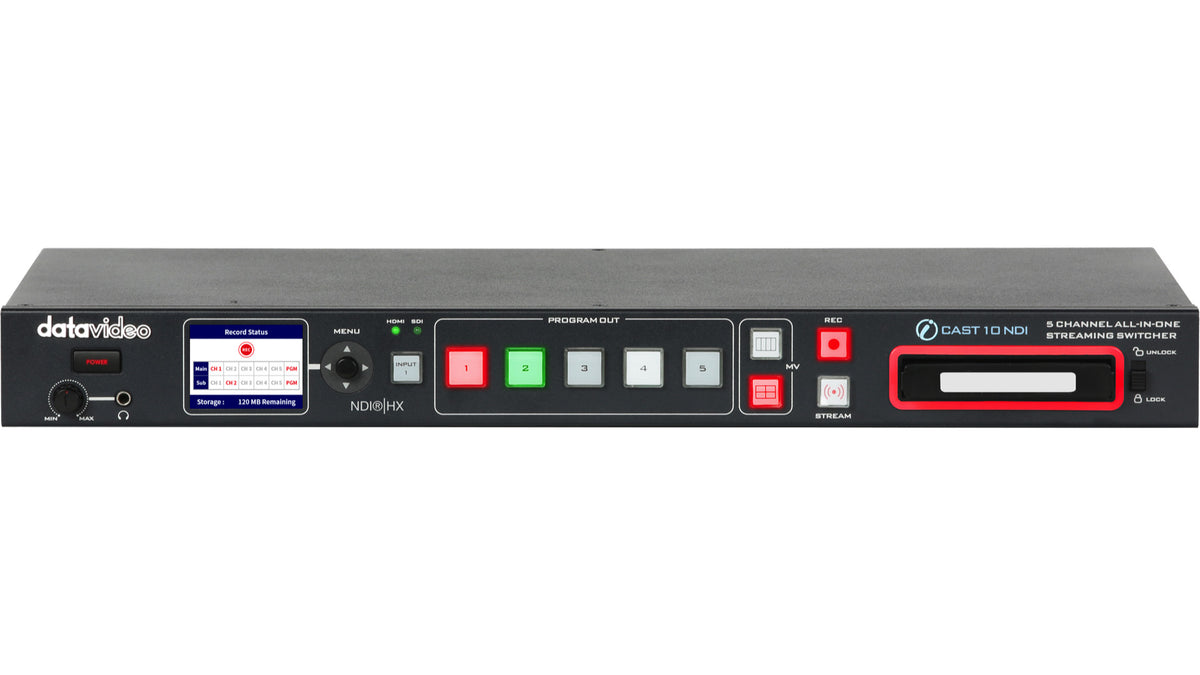

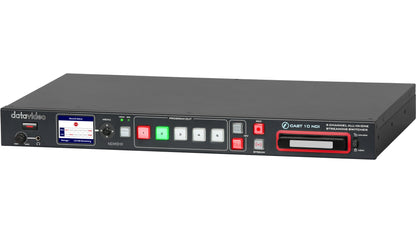

The Datavideo iCAST 10NDI is an all-in-one live production and hybrid event switcher that combines video switching, NDI|HX connectivity, streaming, recording, audio mixing, character generation and system control in a single 1RU platform. It is built for teams that want to run a multi-camera production, from a lecture hall to a corporate conference, without assembling a rack of separate boxes.
One platform for live production
Instead of a separate switcher, encoder, recorder, audio mixer and graphics unit, the iCAST 10NDI brings these functions together. Operators can cut between sources, adjust audio, add logos, titles and captions, start streaming and recording, and monitor everything on a multiview, using the front-panel LCD, the Web UI or an optional TPC-700 touch panel controller. Datavideo positions it for classroom, lecture capture and conferencing work as well as hybrid events.
Flexible video connectivity

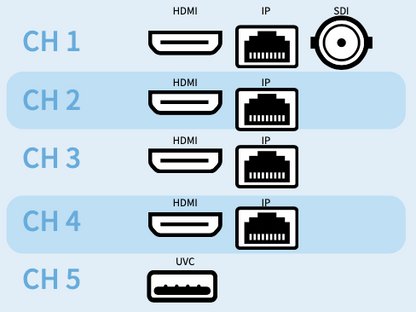

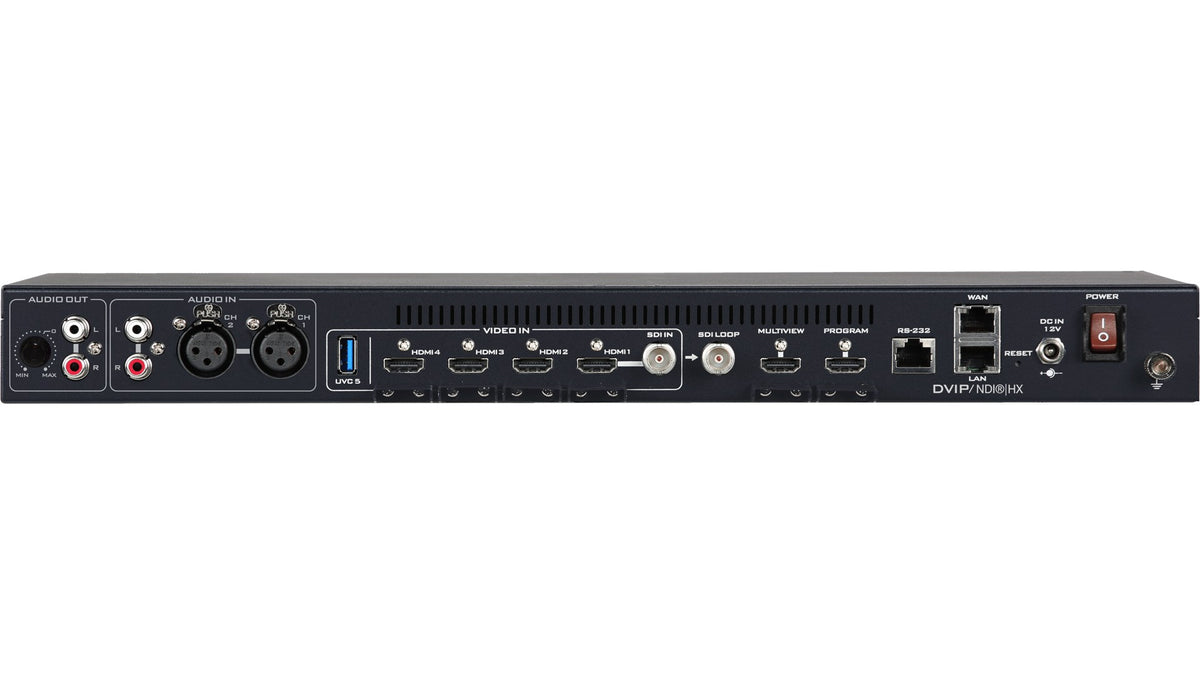

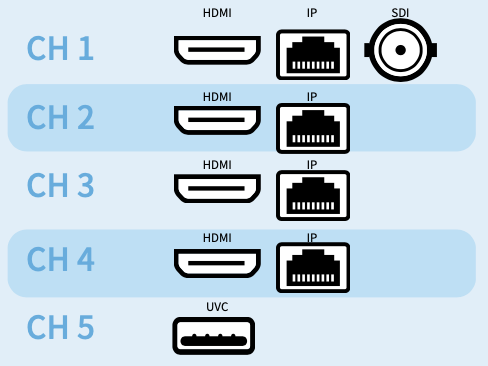

It is a 5-channel switcher with one 3G/HD/SD-SDI input and four HDMI 1.4 inputs (channel 1 can be set to SDI or HDMI), plus a USB 3.0 input for sources such as a document camera. An SDI loop-through, an HDMI program output and a separate HDMI multiview output let you feed displays, recorders and confidence monitors. It handles HD and SD sources, up to 1080p at 60/59.94/50, and can mix HD and SD inputs.
NDI workflow over Ethernet

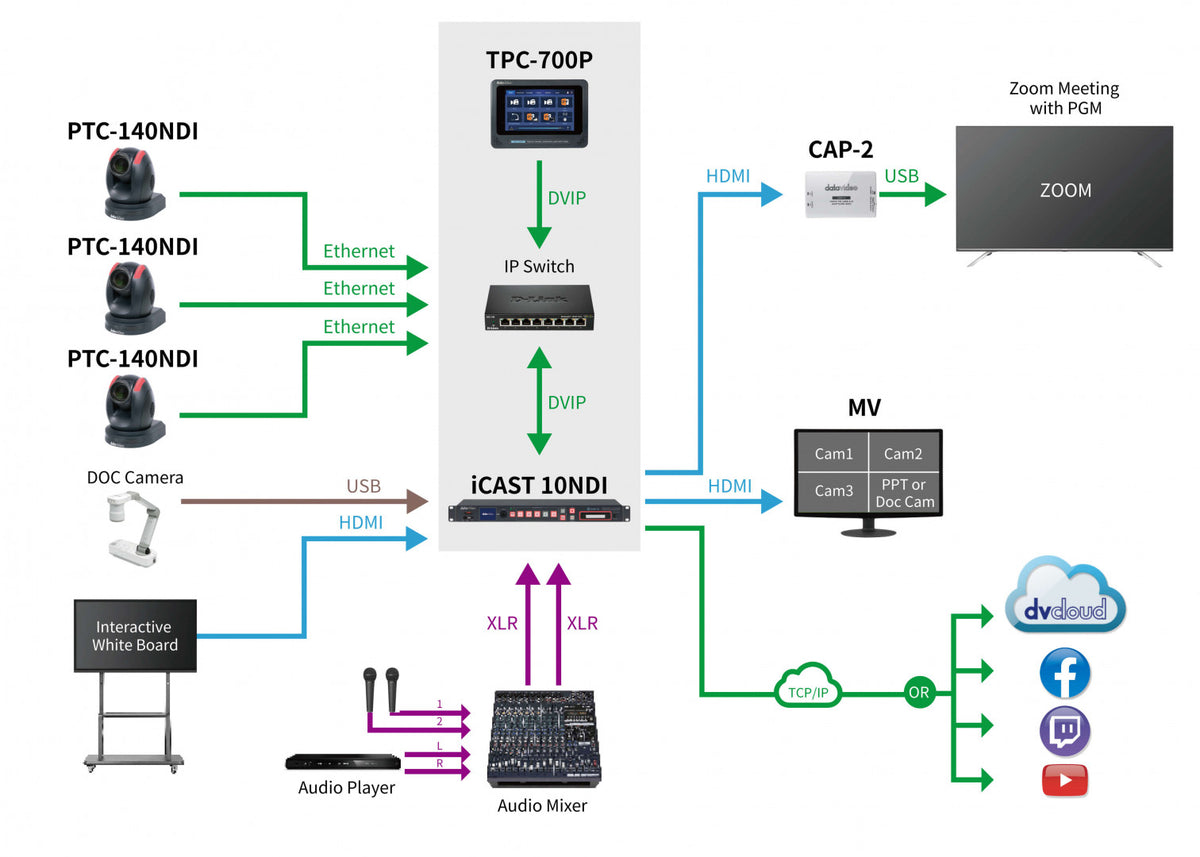

With NDI|HX input and output support, the iCAST 10NDI can receive and decode up to three IP video signals over Ethernet, alongside RTSP and SRT sources. This makes it easy to add NDI|HX PTZ cameras on the network while keeping HDMI and SDI sources for local cameras and presentation computers. Good network design matters for any IP workflow, and our team can help you plan it.
Streaming and recording
A built-in streaming encoder supports RTMP/RTMPS, SRT, HLS, WebRTC, RTSP and TS over UDP, and vertical streaming helps with mobile-first delivery. The built-in H.264 recorder saves MP4 files up to 1080p50/60 and offers ISO recording of the five camera inputs plus the program output. Recording uses internal SATA storage with a removable 2.5-inch drive enclosure (the drive is not included). Datavideo's optional dvCloud subscription adds distribution to multiple platforms.

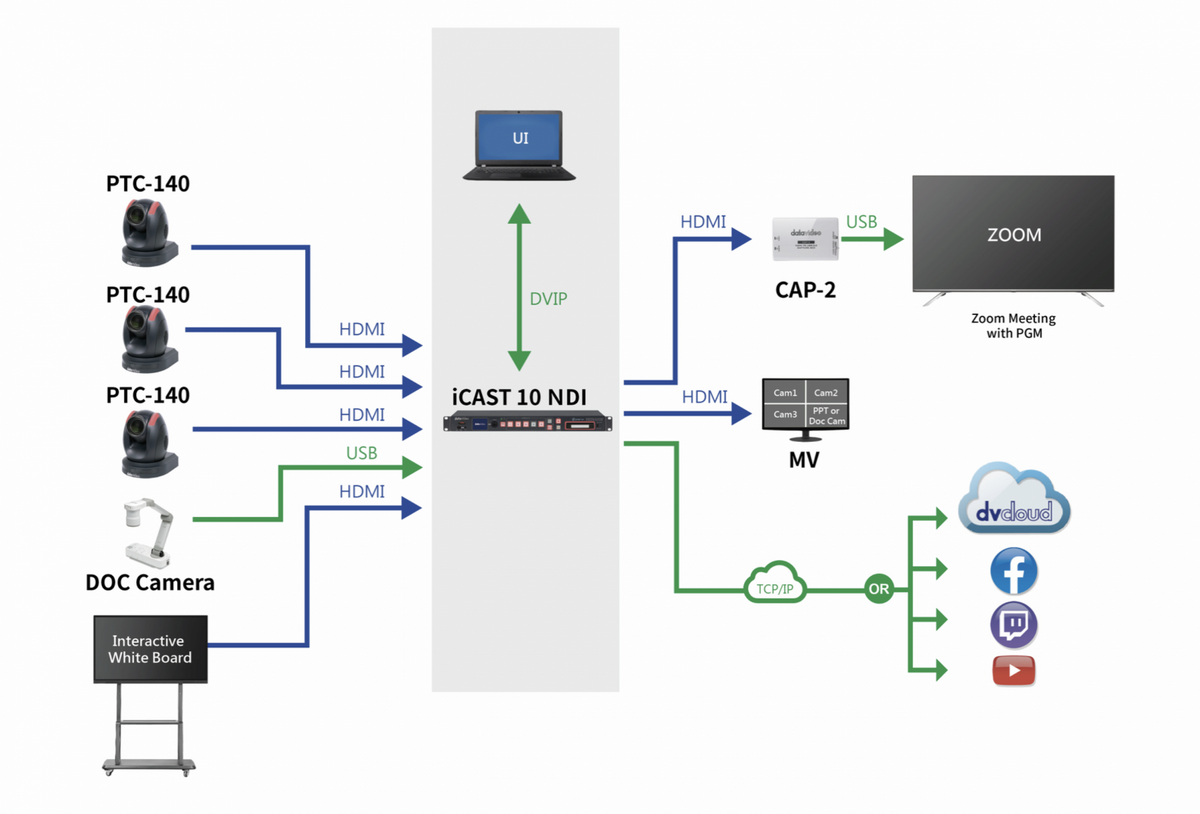

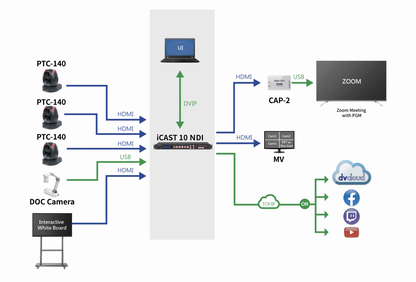

Hybrid event and education applications
Use it for hybrid events, corporate conferences, classrooms and lecture capture, government and institutional meetings, multi-camera productions and live streaming. If you only need an encoder and recorder, see the Datavideo NVS-35; for traditional multi-input switching, compare the Datavideo SE-650 and the all-in-one Datavideo HS-1300.
Buy Datavideo iCAST 10NDI in India from Universal AV Solutions with supply, system design, installation and after-sales support across Delhi NCR and pan-India. Explore our video switchers, video encoders and video production equipment, read about broadcast and video production solutions, corporate AV solutions, education AV solutions, lecture capture systems and government AV solutions, or contact us for a quotation.
Specifications are based on the manufacturer's published information and may change. Cameras, storage drives, touch panel controllers, audio mixers, dvCloud subscriptions and other accessories are sold separately. Contact Universal AV Solutions to confirm what is included with your order. All brand names are trademarks of their respective owners.
Applications
-
Hybrid Events
Combine in-room cameras, presentation sources and remote speakers into a switched program that is streamed live and recorded.
-
Corporate Conferences and Meetings

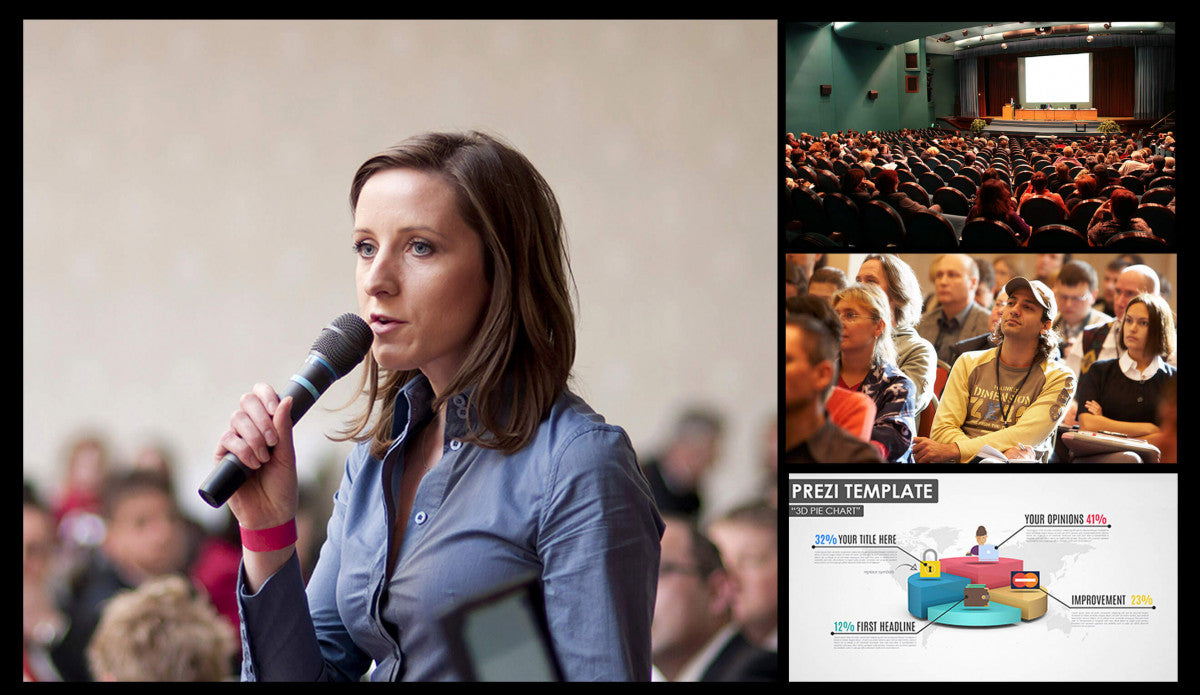

Run multi-camera conferences, town halls and webinars, with picture-in-picture layouts, audio mixing and logos or titles on screen.
-
Education and Lecture Capture
Switch between lecturer cameras, document camera and presentation sources, then record and stream lectures from one unit.
-
Government and Institutional Events
Produce and record multi-camera meetings and public events with ISO recording for records and archives.
-
Multi-Camera Live Production and Streaming
Switch HDMI, SDI, USB and NDI|HX sources and stream the program to multiple platforms while recording.
Technical Specifications
Video Inputs
- 3G/HD/SD-SDI input
- 1 × 3G/HD/SD-SDI (BNC, 75 ohm)
- HDMI inputs
- 4 × HDMI 1.4
- SDI/HDMI selectable input
- Channel 1 is selectable between SDI and HDMI
- USB input
- 1 × USB 3.0
- IP video inputs
- 3 × RTSP / SRT / NDI|HX via IP stream
- Computer graphics inputs
- Up to 4, via HDMI
- Mixing HD and SD sources
- Supported

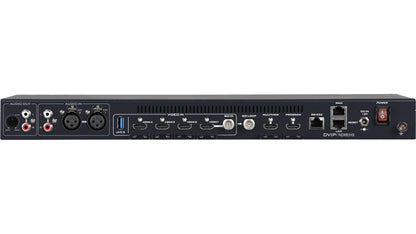

Video Outputs
- SDI loop-through
- 1 × 3G/HD/SD-SDI loop-through
- HDMI program output
- 1 × HDMI 1.4 (program)
- HDMI multiview output
- 1 × HDMI 1.4 (multiview)
- Ethernet
- 2 × RJ-45, 10/100/1000M (LAN and WAN), DHCP client supported
Video Formats
- Video standard
- HD and SD
- Supported input formats
- 1080p60/59.94/50; 1080p30/29.97/25/24/23.98; 1080i60/59.94/50; 720p60/59.94/50; 480i59.94; 576i50
- Output formats
- 1080p60/59.94/50, 1080p30/29.97/25/24/23.98 and 720p60/59.94/50 output as the same format; 1080i60/59.94/50 outputs as 1080p30/29.97/25; 480i59.94 and 576i50 output as 480p29.97 and 576p25
- Interlaced output
- Not supported
NDI and IP
- NDI|HX
- Input and output supported
- NDI sources received
- Up to 3 NDI signals can be received and decoded
- RTSP / SRT / RTMP(S) inputs
- Supported over the RJ-45 port
Streaming
- Streaming protocols
- TS over UDP (unicast and multicast); RTSP over HTTP/TCP/UDP; RTMP (publish) and RTMPS; HLS; SRT (caller and listener); WebRTC (encode/decode); NDI|HX
- Multi-platform streaming
- Supported with one unit; dvCloud, a separate paid service, can stream to up to 25 platforms at once
- Vertical streaming
- Vertical crop or 90-degree rotation, with vertical multiview
Recording
- Recorder
- Built-in professional H.264 recorder, MP4 format
- Recording resolution
- Up to 1080p50/60
- ISO recording
- Five camera inputs plus one PGM output (six channels at once)
- Recording audio
- AAC-LC, 48 kHz, 16-bit, configurable at 128K, 256K or 384K
- Storage
- Internal SATA (6 Gb/s) with a 2.5-inch removable HDD/SSD enclosure
- File systems
- FAT, exFAT
- Other recording destinations
- Recording can also save to a local drive or file server
- Recommended drives
- Samsung 870 EVO and 860 EVO SSDs, 250 GB and 500 GB (as recommended by Datavideo)
- Recording status
- 2-inch LCD and LED indicators (red = recording, green = standby)
Audio
- XLR inputs
- 2 × XLR, balanced
- RCA inputs
- 1 pair, RCA unbalanced
- Embedded audio
- SDI embedded audio and HDMI embedded audio
- IP audio
- RTSP AAC-ADTS, PCM
- Headphone output
- 1 × 3.5 mm headphone jack (PGM monitoring)
- Audio mixing
- Built-in audio mixer; external and embedded audio can be mixed
- Audio delay
- 0–3000 ms per channel
- Audio modes
- AES and EBU modes can be selected
Multiview
- Multiview layouts
- Five multiview layouts
- Multiview modes
- Horizontal and vertical multiview
- Multiview output
- 1 × HDMI
Character Generator and Graphics
- Title creation
- Web GUI
- Logo insertion
- Supported
- Picture-in-picture (PGM)
- Supported
- Captions and subtitles
- Custom captions and subtitles via News CG
- Text and graphic adjustment
- Size, position, colour and borders adjustable
- Transitions and keying
- Cut only; chromakey, USK, DSK, still store and transition preview are not available
Control
- Web UI
- System configuration and control
- DVIP
- Datavideo control protocol supported
- RS-232
- Serial control via RS-232 (RJ-45)
- Front-panel LCD
- Included
- TPC-700 touch panel
- TPC-700 touch panel controller supported via DVIP (the iCAST 10NDI app runs on it)
- Firmware update
- Via Web UI (network)
Physical and Power
- Form factor
- 1RU rack-mount
- Dimensions (L × W × H)
- 440 × 284 × 44 mm
- Weight
- 2.9 kg
- Power
- DC 12 V, 24 W
- Operating temperature
- 0–40 °C
Package Contents
- In the box
- iCAST 10NDI main unit; DC 12 V power adapter; 2 × 1U rack-mount ears with 6 × M4 screws; 2.5-inch removable HDD/SSD enclosure with 4 screws; blank label; SATA to USB 3.0 cable. SSD or HDD not included
Frequently Asked Questions
What is the Datavideo iCAST 10NDI?
The Datavideo iCAST 10NDI is a 5-channel all-in-one streaming switcher for hybrid events, classrooms, lecture capture and conferencing. It combines video switching, NDI|HX connectivity, a built-in streaming encoder and H.264 recorder, audio mixing, a character generator and system control in a 1RU unit.
Is the iCAST 10NDI a video switcher or encoder?
It is primarily an all-in-one streaming switcher, but it also incorporates a built-in streaming encoder and recorder. That means you can switch between sources, stream live and record from one device, without adding a separate encoder.
How many video inputs does the iCAST 10NDI support?
Datavideo lists 1 × 3G/HD/SD-SDI, 4 × HDMI 1.4 (channel 1 is selectable between SDI and HDMI), 1 × USB 3.0, and up to 3 IP sources (RTSP, SRT or NDI|HX) over Ethernet. It is a 5-channel switcher, so please share your camera and source list and we will confirm the best input plan.
Does the iCAST 10NDI support NDI?
Yes. It supports NDI|HX input and output, and can receive and decode up to 3 NDI signals over Ethernet, in addition to RTSP and SRT sources. Network design matters for NDI, so contact us to plan the setup.
Can the iCAST 10NDI stream and record simultaneously?
Yes. It has a built-in streaming encoder and an H.264 recorder (MP4, up to 1080p50/60), so you can stream and record at the same time. Recording uses internal SATA storage with a removable 2.5-inch HDD/SSD enclosure; the drive itself is not included.
Does it support ISO recording?
Yes. ISO recording captures the five camera inputs plus the program (PGM) output, six channels at once, which helps with post-production and archive copies.
Does the iCAST 10NDI support SRT?
Yes. SRT is supported (caller and listener) alongside RTMP/RTMPS, HLS, WebRTC, RTSP, TS over UDP and NDI|HX. Datavideo's dvCloud service, sold separately, can be added for multi-platform distribution.
What applications is the iCAST 10NDI suitable for?
It suits hybrid events, corporate conferences, classrooms and lecture capture, government and institutional meetings, and multi-camera live production and streaming. Tell us about your room or event and we will recommend the right configuration.
