Product information

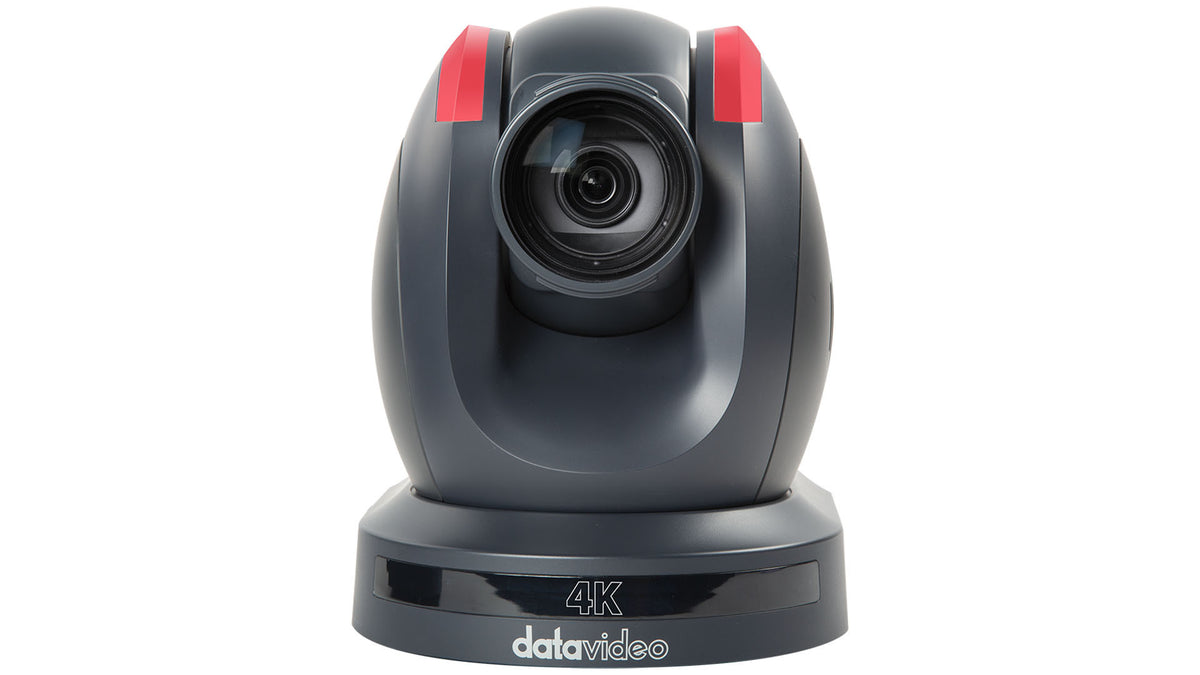

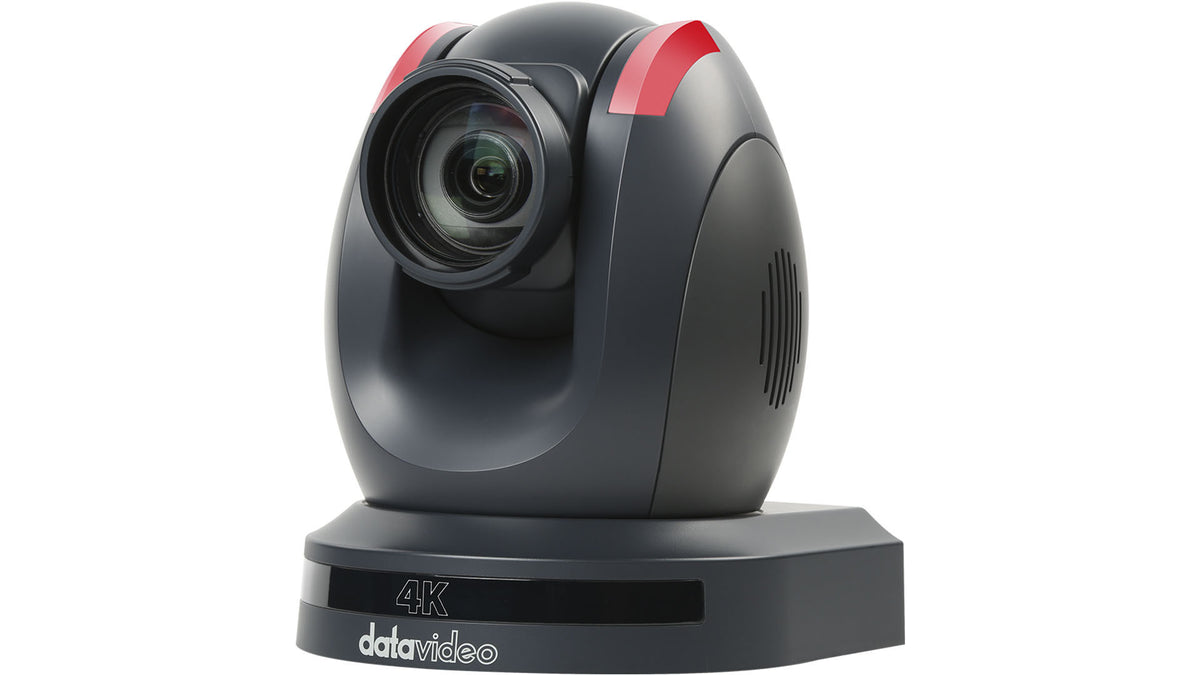

The Datavideo PTC-280 is a ptz camera from Datavideo, supplied in India by Universal AV Solutions. PTC-280 4K 12x PTZ Camera. 360° Product View.
Key features
- 360° Product View
- Simultaneous Outputs
- PTZ View Assist: control up to four cameras
- Sony CMOS sensor
- Broadcast quality 4K resolution
- Low noise in low light
- Multiple simultaneous video outputs
- Dual stream with RTSP/RTMPS
- Compatible with various controllers
- RS-422, DVIP and Ethernet camera control
- NDI features
- One Ethernet cable with NDI HX technology
Technical specifications
- Model Number: PTC-280
- Video format/Resolution: HDMI: 2160p 60/59.94/50/30/29.97/25; 1080p 60/59.94/50/30/29.97/25; 1080i 60/59.94/50; 720p 60/59.94/50 | SDI: 1080p 60/59.94/50/30/29.97/25; 1080i 60/59.94/50; 720p 60/59.94/50 | (2160p 60/59.94/50 YUV 4:2:0 only)
- Image Sensor: Sony 1/2.5" CMOS
- Effective Pixels (approx.): 8.51Mega Pixels
- S/N Ratio: ≥55dB
- Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
- Electronic Shutter: 1/30s ~ 1/10000s
- Zoom Ratio: 12x Optical Zoom, 16x Digital Zoom
- Effective Zoom Ratio: 12x
- Gamma Control: Off / Normal
- Iris Control: Auto / Manual
- Digital Noise Reductions: 2D/3D
- On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
- White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
- AGC / Gain Control: Yes
- HDR/WDR: N/A
- Mirror / Flip Image: Yes
- Focus Mode: Auto/Manual
- Panning / Tilting Range: Pan: 300°; Tilt: +90° to -15°
- Panning / Tilting Speed: Pan: 0.876°/s~43°/s; Tilt: 0.693°/s ~21.32°/s
- Preset: 255
- Focal Length: 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
- Field of View (Horizontal, Wide): 71°
- Image Compensation: Back light compensation
- Video Output: HDMI 2.0 x1; 3G-SDI x1; 10/100/1000M RJ45 x1
What's in the box (per official Datavideo page)
- 1 x PTC-280 product
- 1 x IR remote controller
- 1 x Ceiling mount bracket-A
- 1 x Ceiling mount bracket-B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x Safety cable
Specifications are taken from the official Datavideo product page. Contact Universal AV Solutions for configuration, compatibility and project advice.
